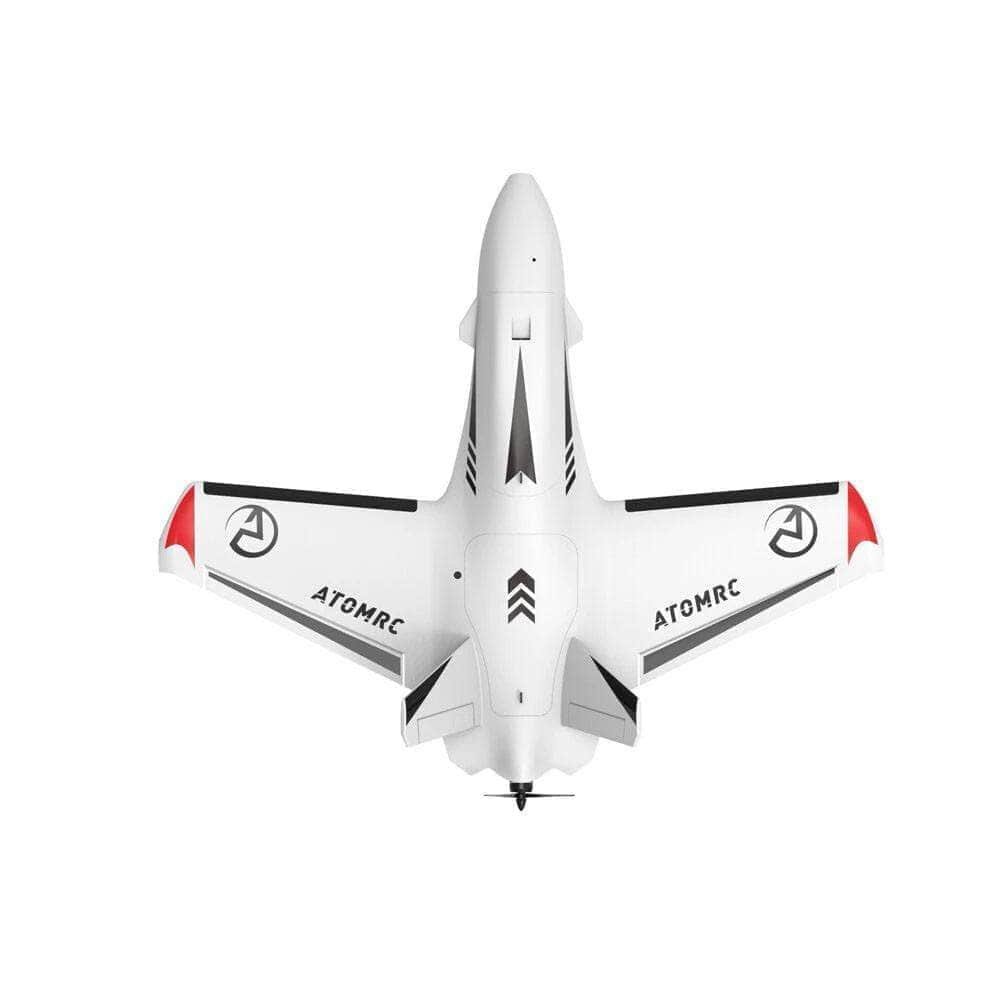

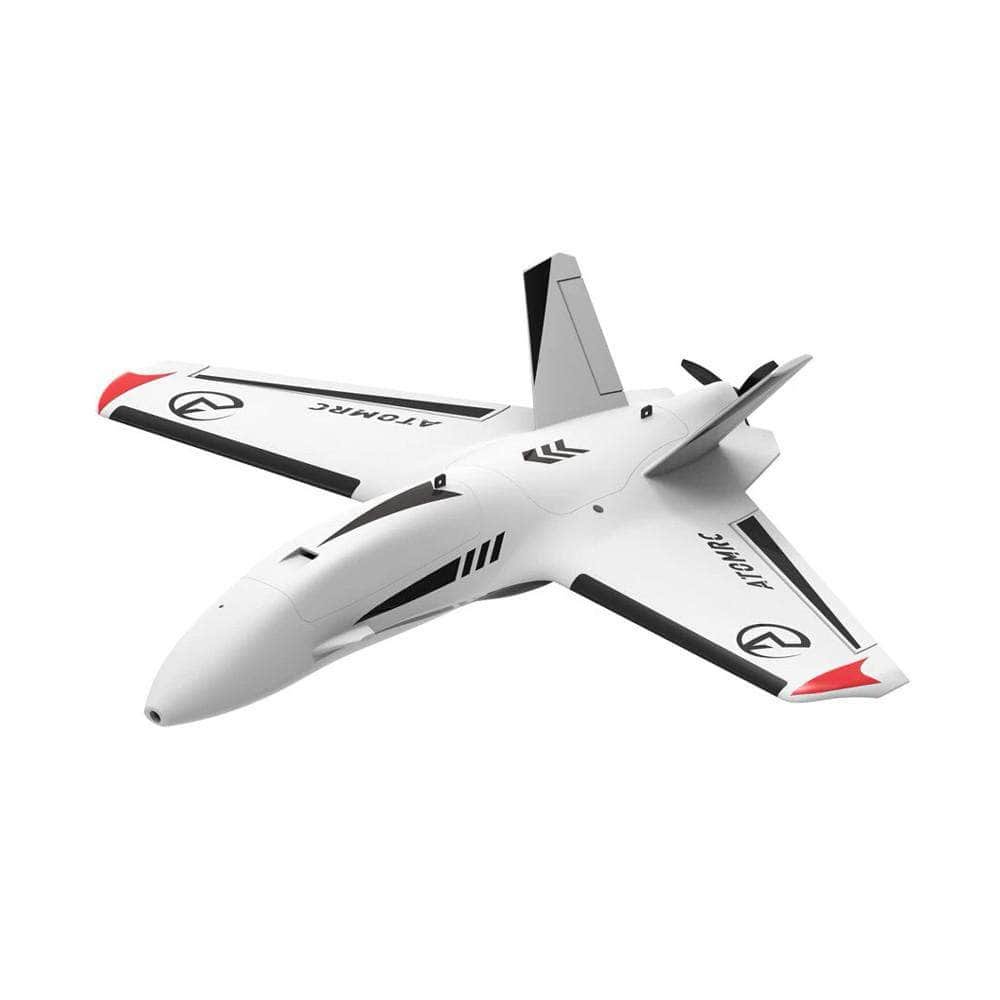

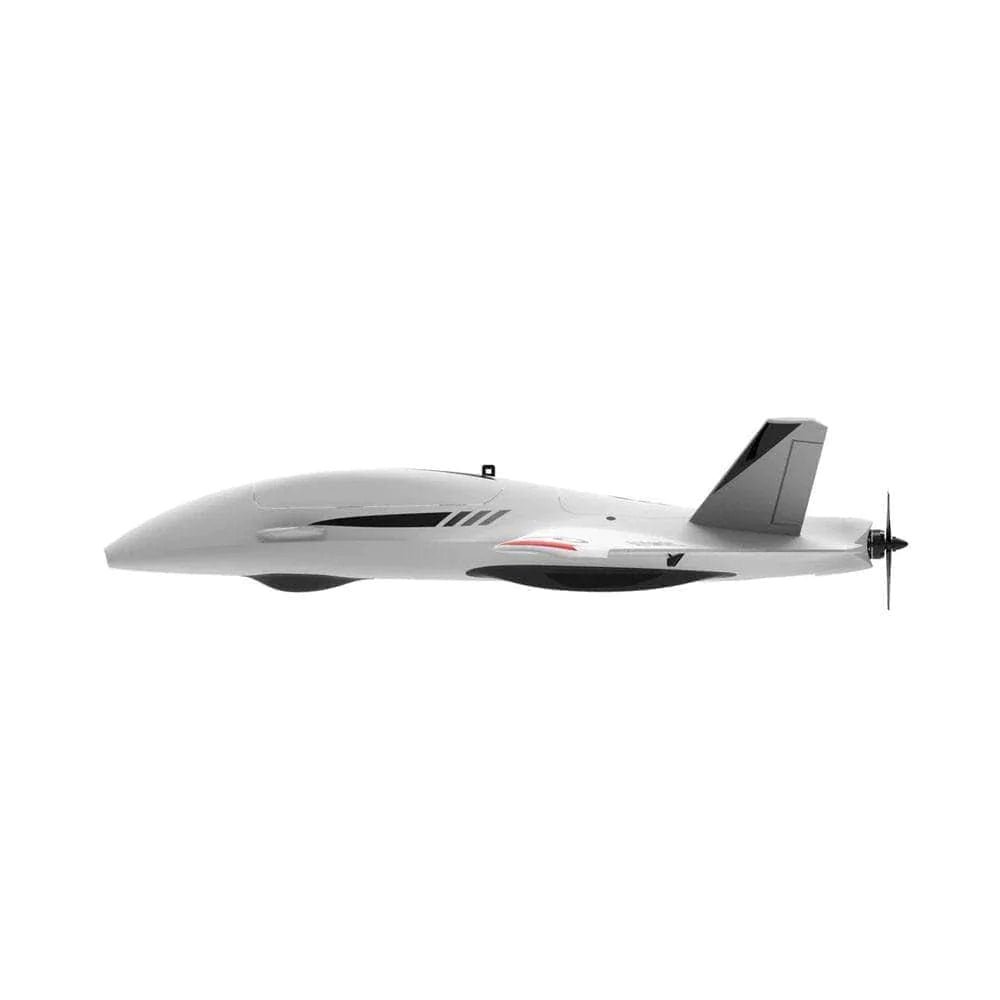

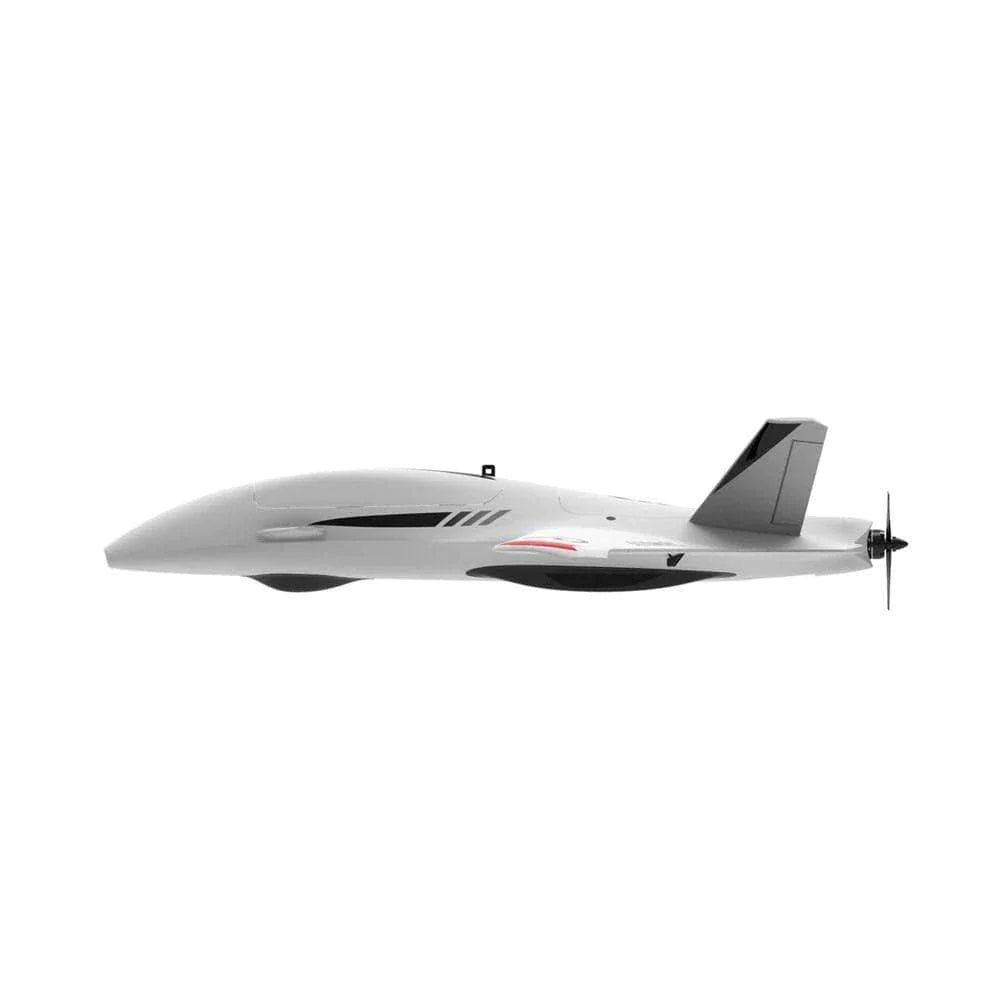

AtomRC Dolphin Fixed Wing Plane Kit – PNP

The AtomRC Dolphin Plane is a durable lightweight plane with molded EPP embedded with carbon fiber tubes. Features include a detachable nose and wings, integrated GoPro mount, fuselage protector, and other cool features!

Unlike most PNP planes, you will have to install the included electronics.

Don’t forget to check out the rest of our Fixed Wing Planes as well as the rest of our AtomRC Product Selection!

Features

• 845mm wingspan
• EPP molded , embedded with carbon fiber tubes, durable and lightweight.
• Carbon fiber tubes help keep wings rigid during flight
• Detachable wing, easy to transport.
• Detachable nosecone for GoPro mounting
• V tail design for added stability
• Pre-installed wing and fuselage protector for durability
• Compatible with GoPro Hero 5-7.
• Movable battery slot for “CG” adjustment.
• Pre-installed camera and VTX antenna cable for FPV gear.
• Air inlet and outlet for FPV gear cooling.

Specifications

• Wingspan: 845mm
• Length: 710mm
• Propeller recommend: 5~6 inch
• Battery recommend : 4S 1300-2200mah
• Dimension: 660*225*135mm

Includes

• 1x Dolphin KIT
• 1x 2306 Motor
• 1x ATOMRC Exceed 9g Servo
• 1 x Ball Push/ Push Rod
• 1 X Sticker
• 1 x Battery Strap
• 1 x Screws
• 1 x Camera Cable
• 1 x SMA to UFL VTX cable

Diagram
