AxisFlying ELRS 2.4GHz Radio Receiver

The Axisflying 2.4GHz ELRS receiver is a great pairing with the Thor TX PRO ExpressLRS Transmitter. Using the ESP8285 MCU, SX1280 RF CHIP, and IPEX ports, you can connect external T-type antennas for more range, and a stronger signal. The receiver also has a built on Wi-Fi antenna for easy updating of firmware via your home Wi-Fi network.

Check out all our ExpressLRS Collection,  Receivers and the rest of our Axisflying Products!

Specifications

• Type: ISM
• MUC: ESP8285
• RF Module: SX1280IMLTRT
• Antenna Connector: IPEX
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum Receive Refresh Rate: 500Hz
• Minimum Receiver Refresh Rate: 25Hz
• Reciever Protocol: CRSF
• Working Voltage: 5V
• Dimension: 18.2×11.75x3mm
• Weight: 0.8g(Reciever only), 2.4g (W/ Antenna)

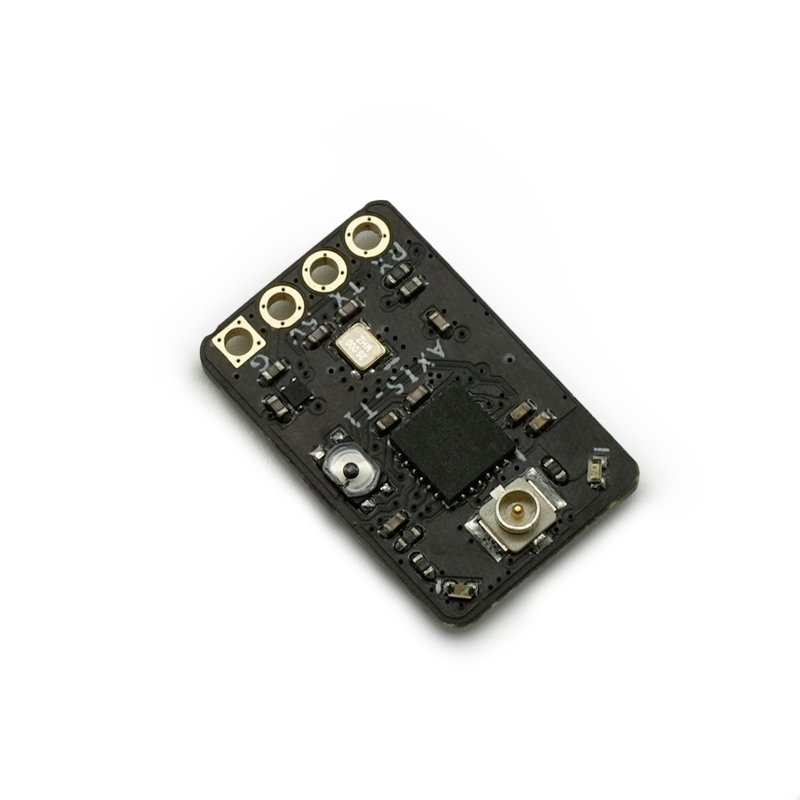

Receiver Wiring Pinout

• Receiver RX — FC UART_TX  for Telemetry
• Receiver TX — FC UART_RX  for Control
• Receiver 5V — FC 5V or 4v5
• Receiver G — FC GND
• Receiver protocol: Serial-based receiver – CRSF

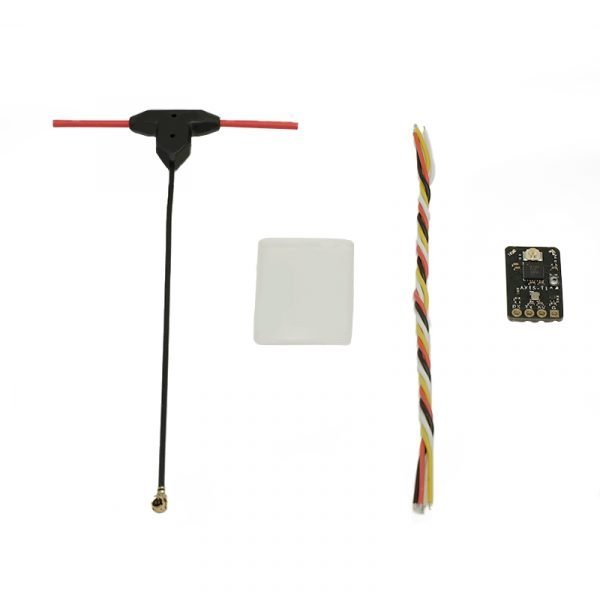

Includes

• 1 x Axisflying ELRS 2.4GHz Radio Receiver
• 1 x 2.4Ghz T-Antenna
• 1 x Silicone Wiring
• 1 x Heat Shrink
