AxisFlying Manta 5 Pro 5inch Squashed X Freestyle FPV Drone Frame Kit
$114.99
| Weight | 0.501 kg |
|---|
Out of stock
Description
This is the Squashed X Geometry Frame, also available in Deadcat Geometry here.
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.
You can find all the related parts in The AxisFlying Manta 5 Pro Freestyle Frame Collection
Check out all our 5″ Frames and the rest of our AxisFlying Products!
Features:
- MANTA frame is specially designed for 5-inch Freestyle and Cine, now have DC structure
- The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
- The stack mounting is compatible with 20*20MM and 30.5*30.5MM, which can cover all types of stacks on the market. The VTX mounting is compatible with the movable M2* (20*20MM) and M3 (30.5*30.5MM), which can cover all kinds of VTX: Analog, Vista, HD Link, DJI O3, and DJI AIR UNIT.

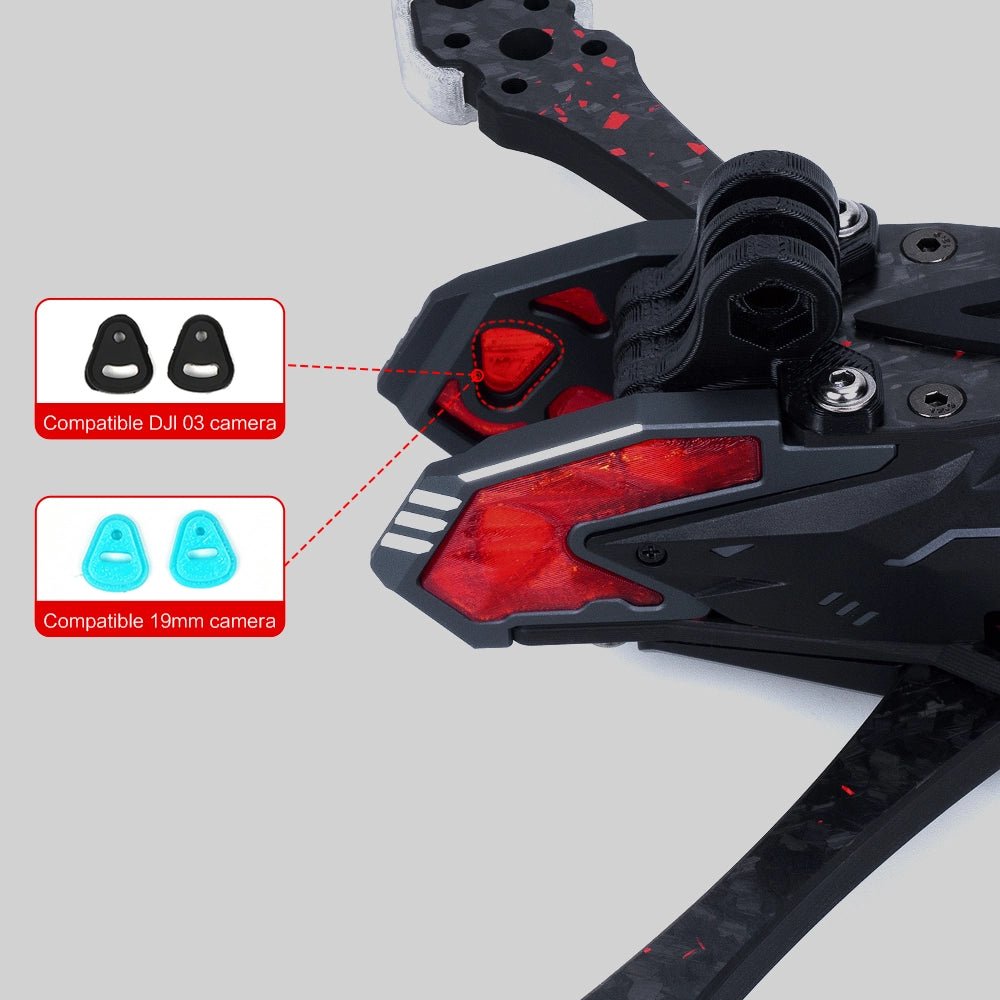

- The frame is compatible with 19-20MM wide FPV camera, and the aluminum side plates can effectively protect the camera. Now upgraded the print section, the lens is fixed more firmly, no jelly.
Specifications:
- Geometry: Squashed X
- Carbon Fiber: T700
- Wheelbase: 226.5mm
- Top Plate: 2mm Forged grain carbon plate
- Bottom Plate: 3mm Forged grain carbon plate
- Arm Thikness: 6mm Forged grain carbon plate
- Stack Height: 23mm
- Camera Thickness: 19mm, 20mm
- Stack Mounting Holes: 20x20mm / M3
- VTX Mounting Holes: 20x20mm / M2 / M1.6 – 25x25mm / M2
- Motor Mounting Holes: 16x16mm / M3
- Supported Prop Size ：Max 5.1″
- Weight: 212g (Plus Minus 5g)
Package Includes:
- 1 x AxisFlying Manta 5pro 5inch Squashed X Freestyle FPV Drone Frame Kit
