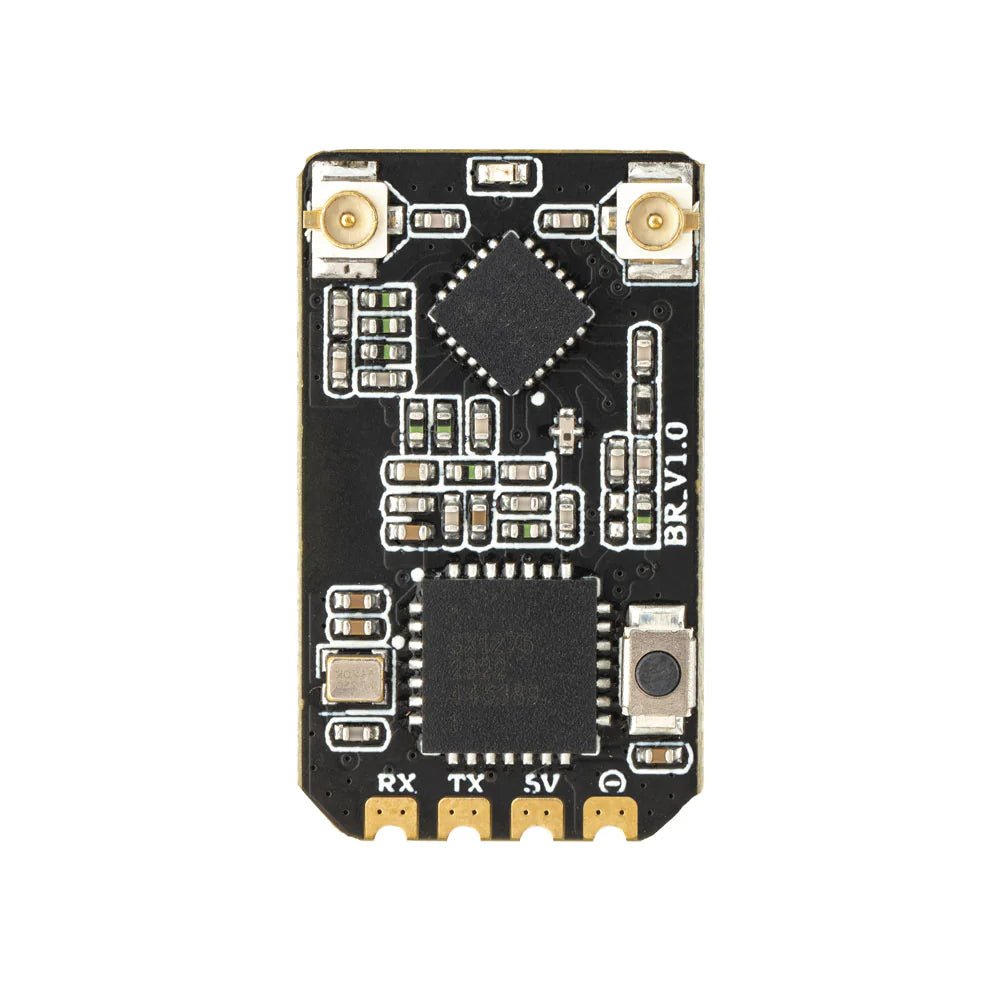

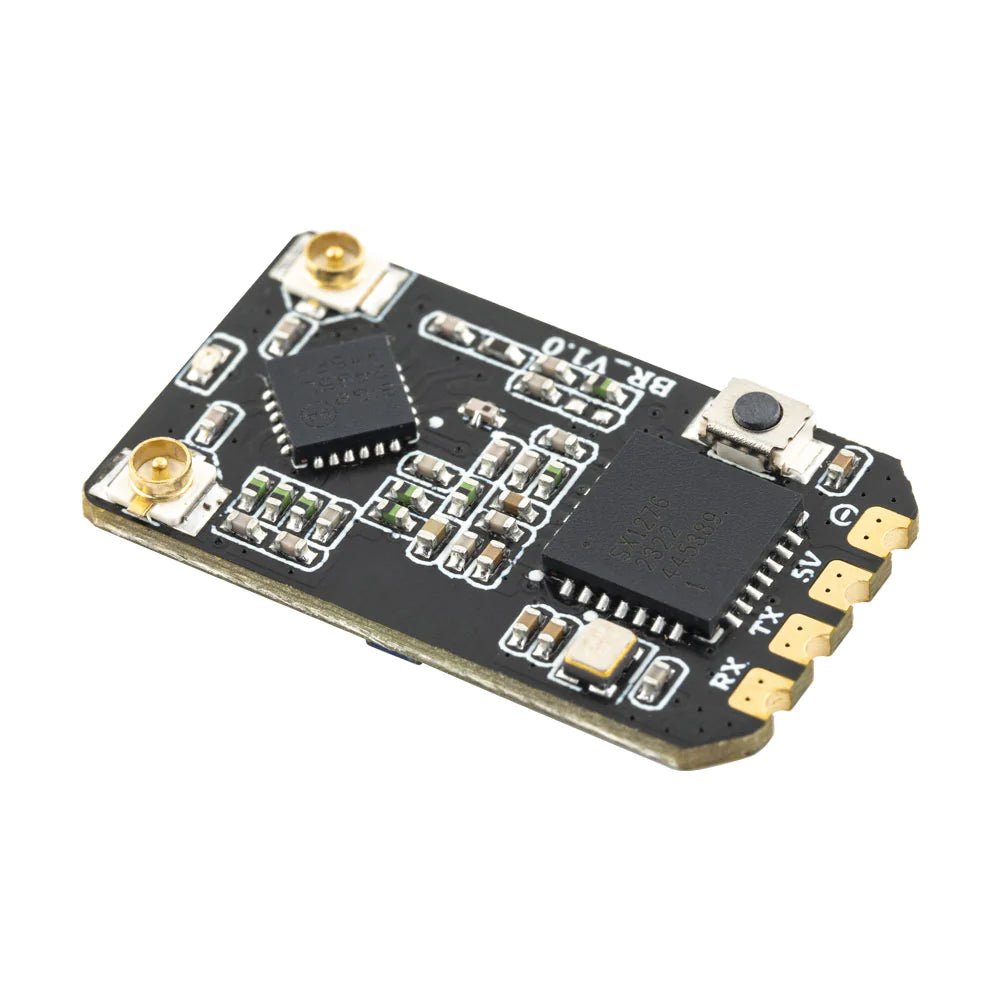

Bandit BR3 915/868MHz Dual High Sensitivity T Antenna ELRS Receiver

The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna and Y Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Browse The Complete Bandit Series Products Collection.

Check out all our External Modules/Receivers Collection, and the rest of our ExpressLRS Products.

Dimensions

Features:

• Maximum 500mW telemetry RF power
• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Dual 915/868MHz T Antenna for improved signal stability and range

• Item: Bandit BR3 ExpressLRS Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF power: 100mW – 500mW LUA Adjustable

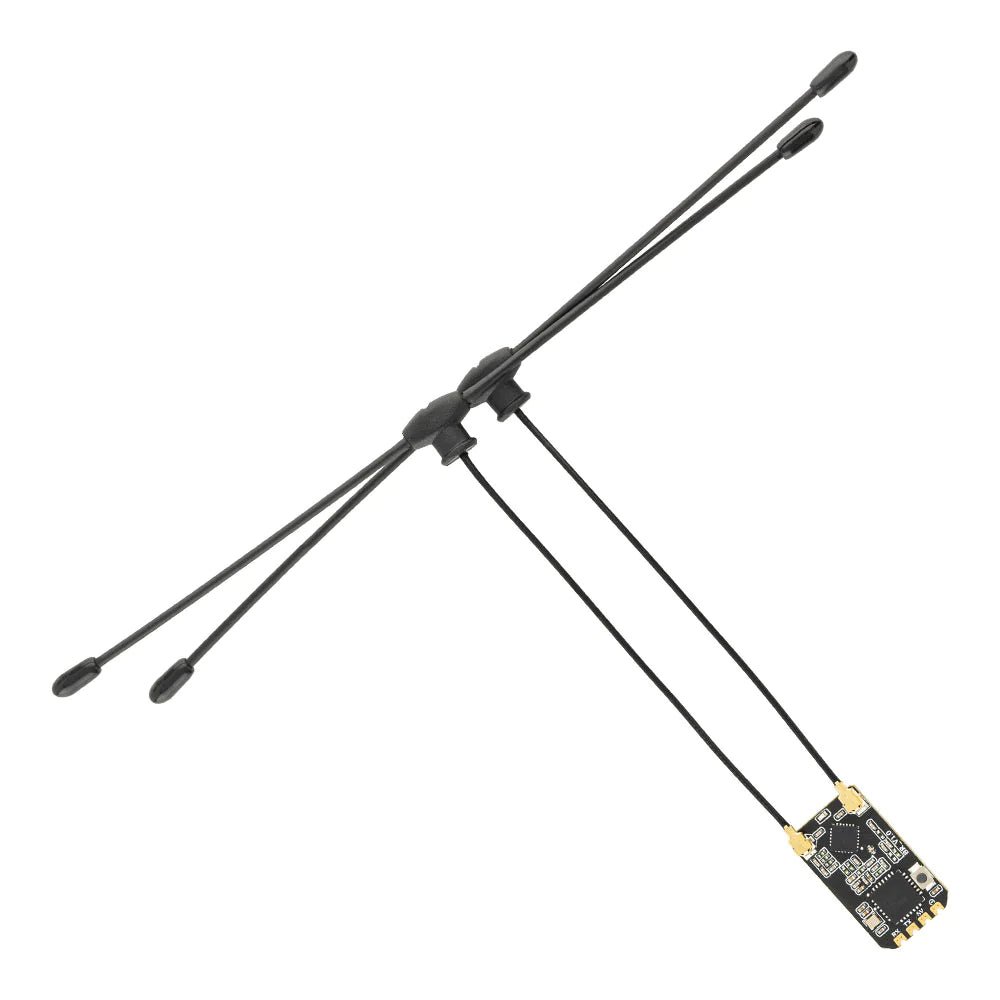

• Antenna: 915/868MHz T Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 5.0V
• Dimension: 24*14.2mm
• Weight: 5.5g (with antennas)

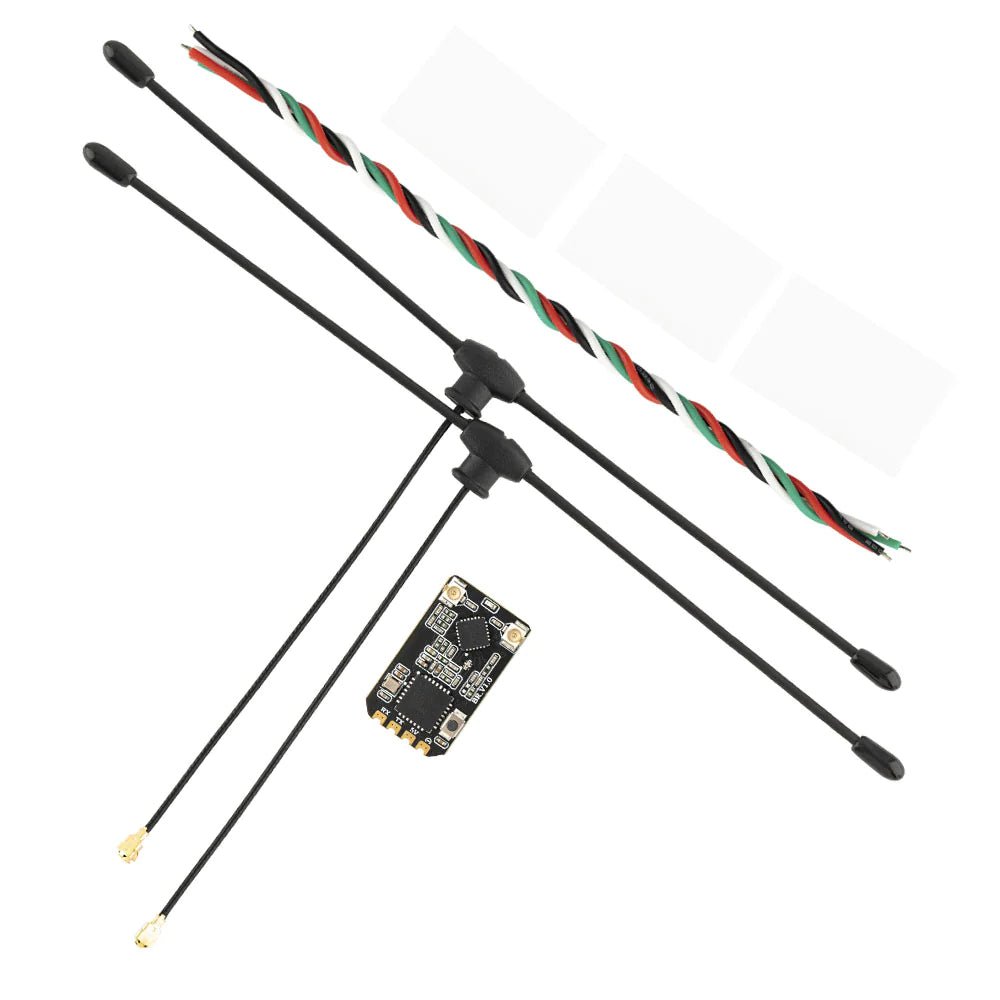

Package Includes:

• 1 * Bandit BR3 Expresslrs Receiver
• 2 * T Antenna (Installed on Receiver)
• 3 * Receiver Shrink Tube Sleeves
• 1 * CRSF Wire
• 1 * Manual
