Bandit Nano 915/868MHz ELRS RF Module

After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.

Browse The Complete Bandit Series Products Collection.

Check out all our External Modules/Receivers Collection, and the rest of our ExpressLRS Products.

Keep Your Cool!

With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a “Nano” Module bay.

Intuitive Control at Your Fingertips

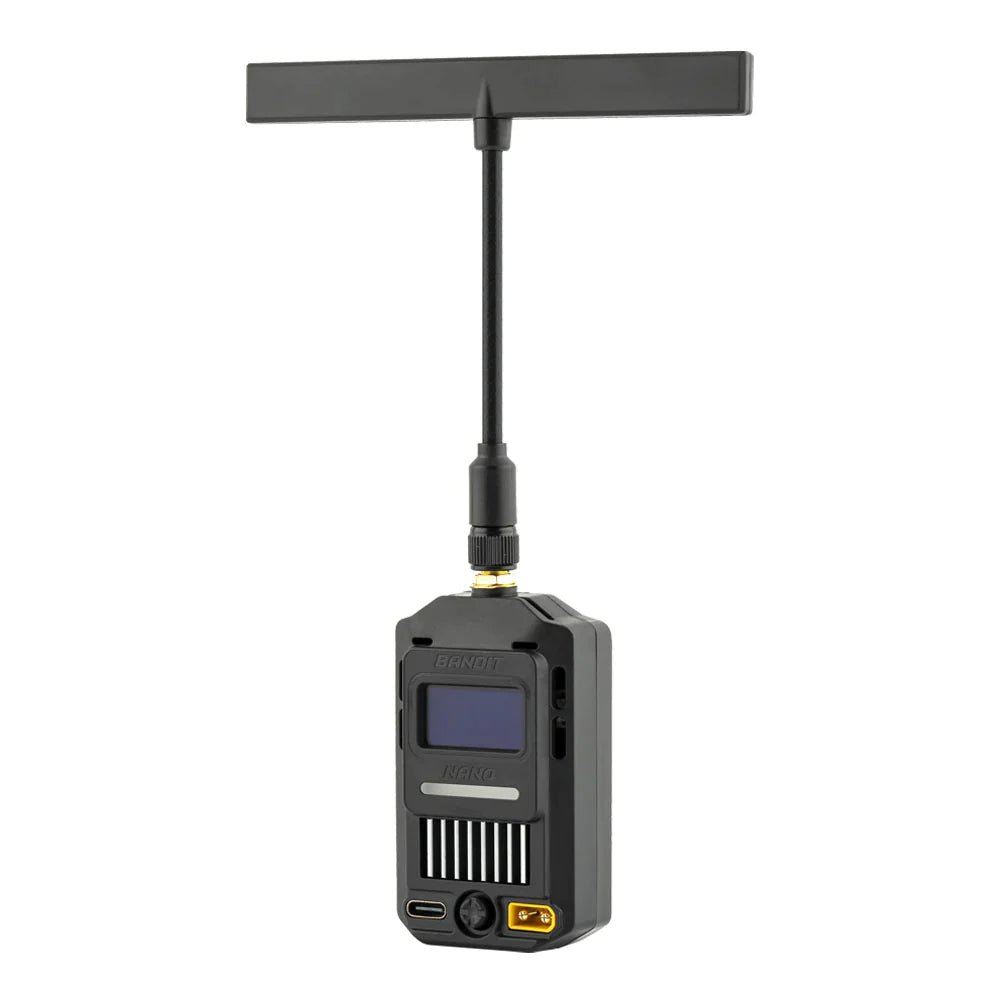

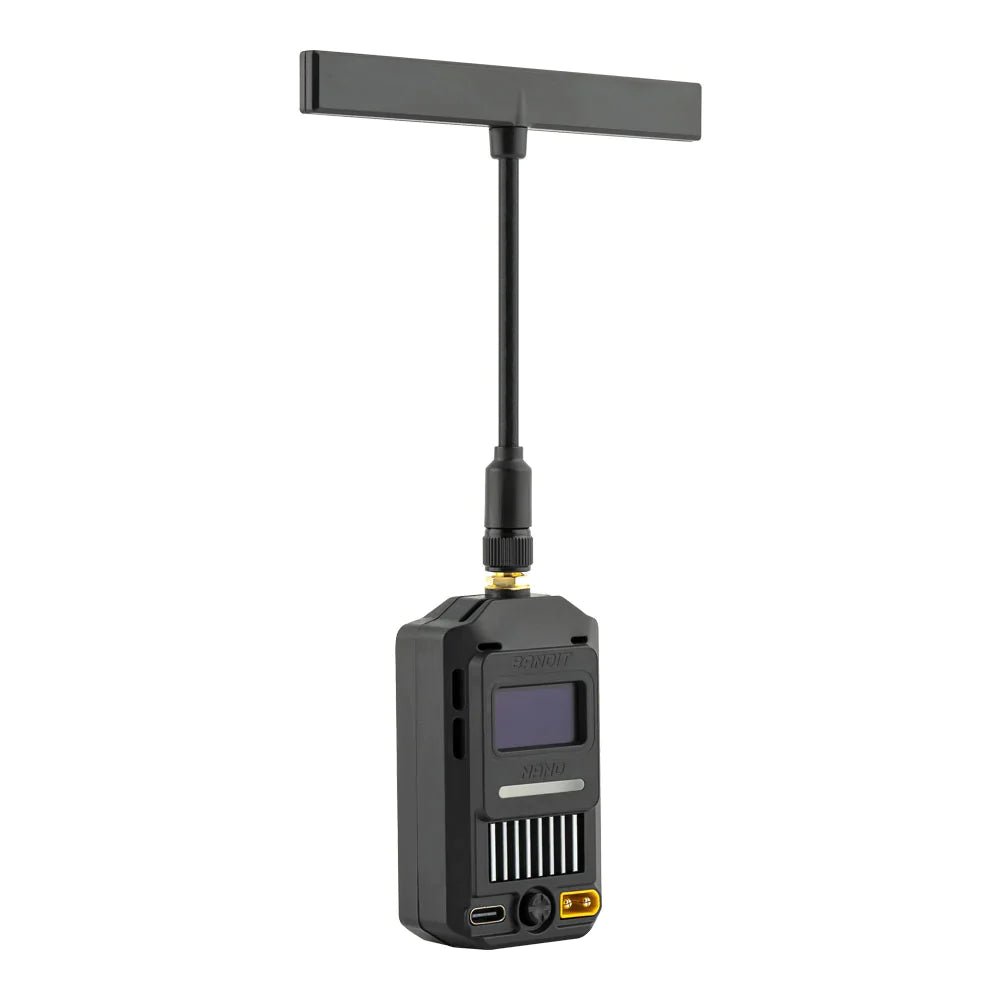

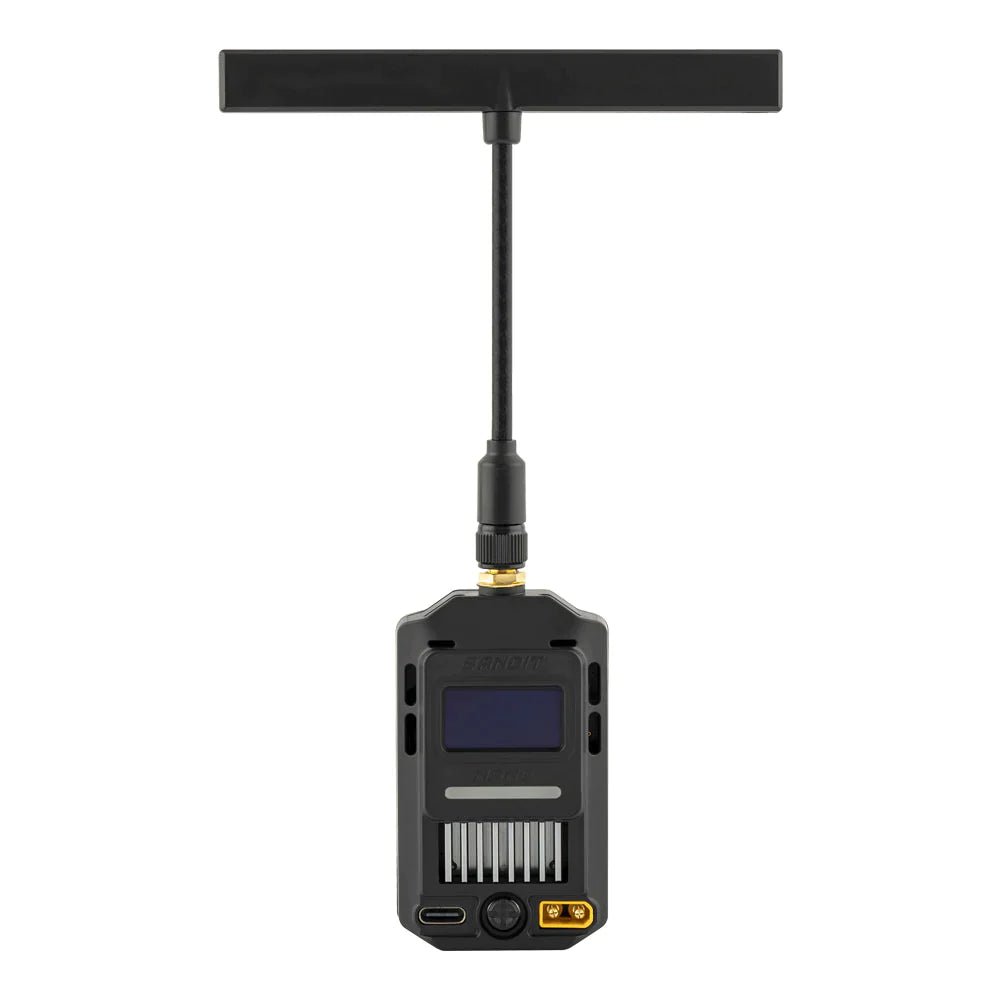

The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

Versatile Antenna Options for Diverse Applications

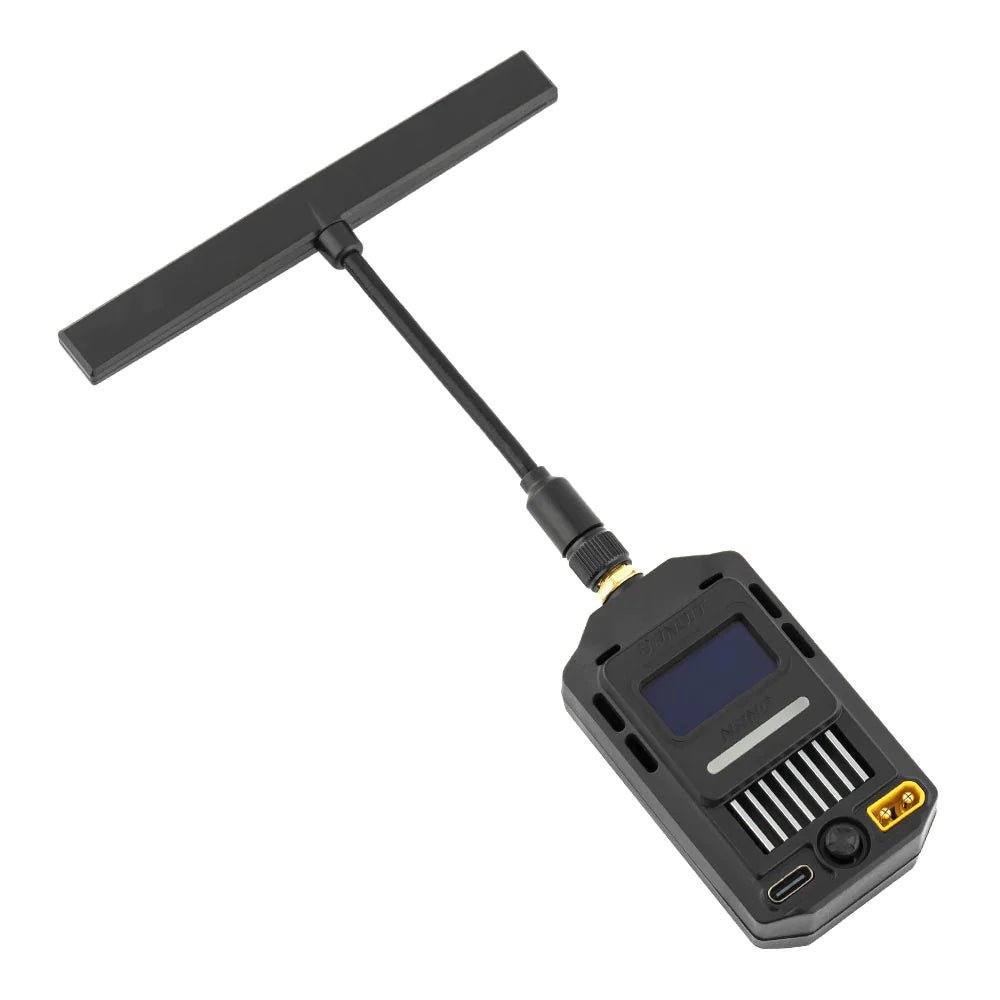

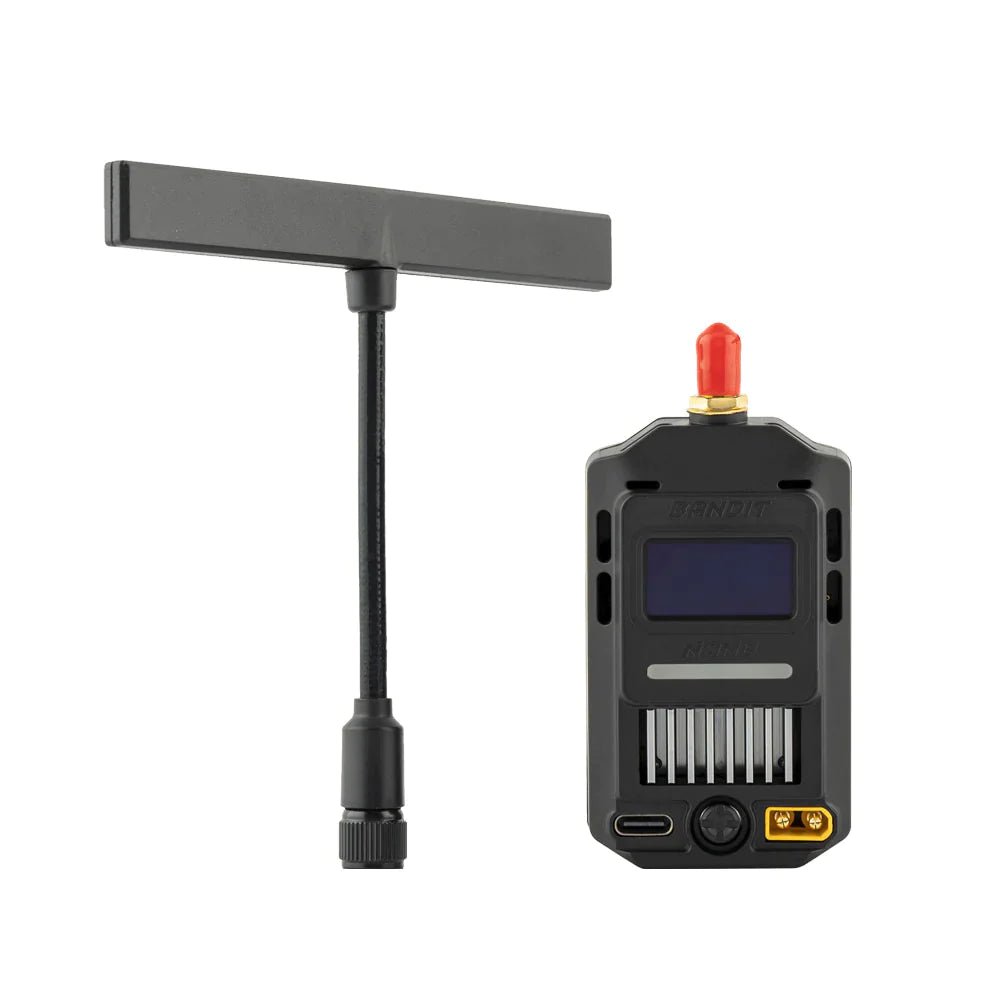

The Bandit Nano ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

But wait.. there’s more!

The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That’s right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.

The Ideal Solution for Demanding Applications

Whether you’re an experienced drone enthusiast or a professional UAV operator, the Bandit Nano ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

Dimensions

 Features:

• Up to 1 Watt power output
• Packet rates up to 200Hz
• Optimized circuitry for ultra-low power consumption
• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• High efficiency cooling system
• Wifi and Bluetooth support
• Built-in ExpressLRS backpack
• 5 Directional nav key
• 915/868MHz T Antenna included
• With the Nano connector, support Zorro, Pocket and MT12 Radio

• Item: Bandit Nano ExpressLRS RF Module
• Regulatory Domain: FCC915
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF Chip: SEMTECH SX1276
• Refresh Rate Min/Max: 25Hz/200Hz
• RF Output Power: 1000mW/30dBm

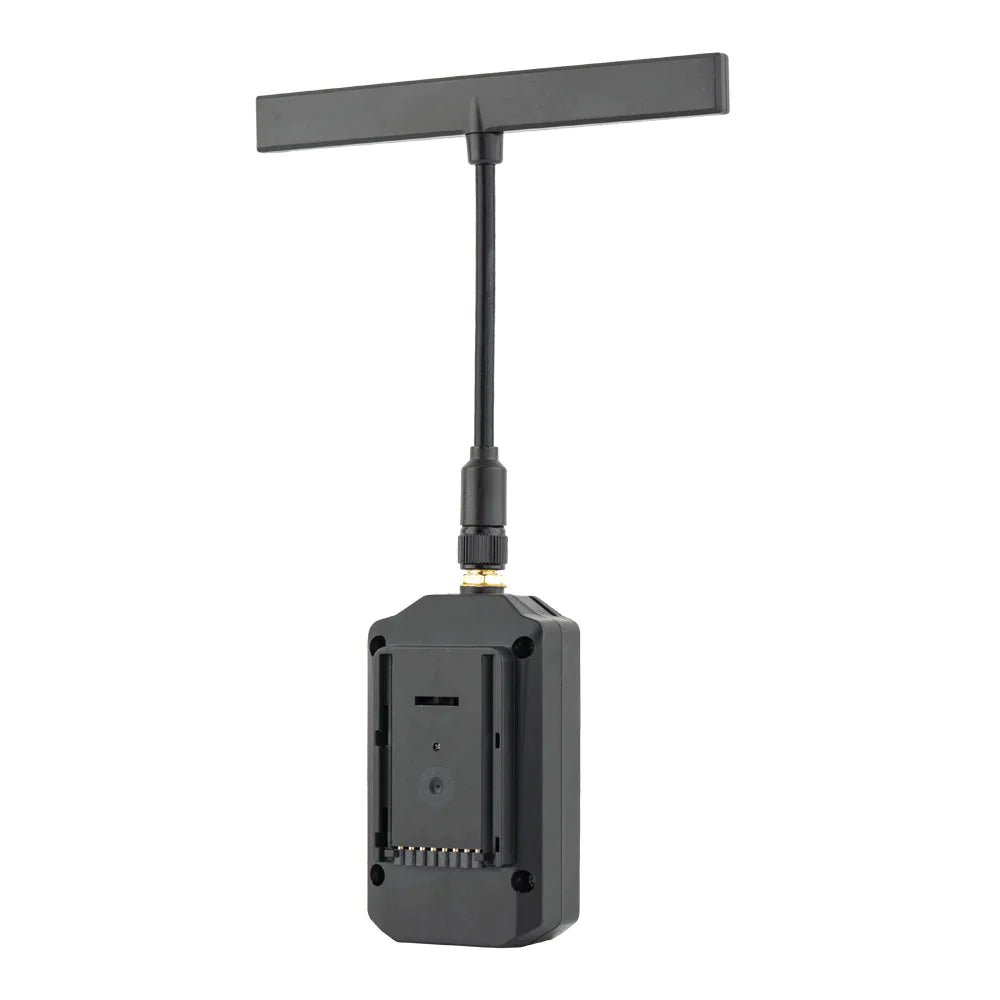

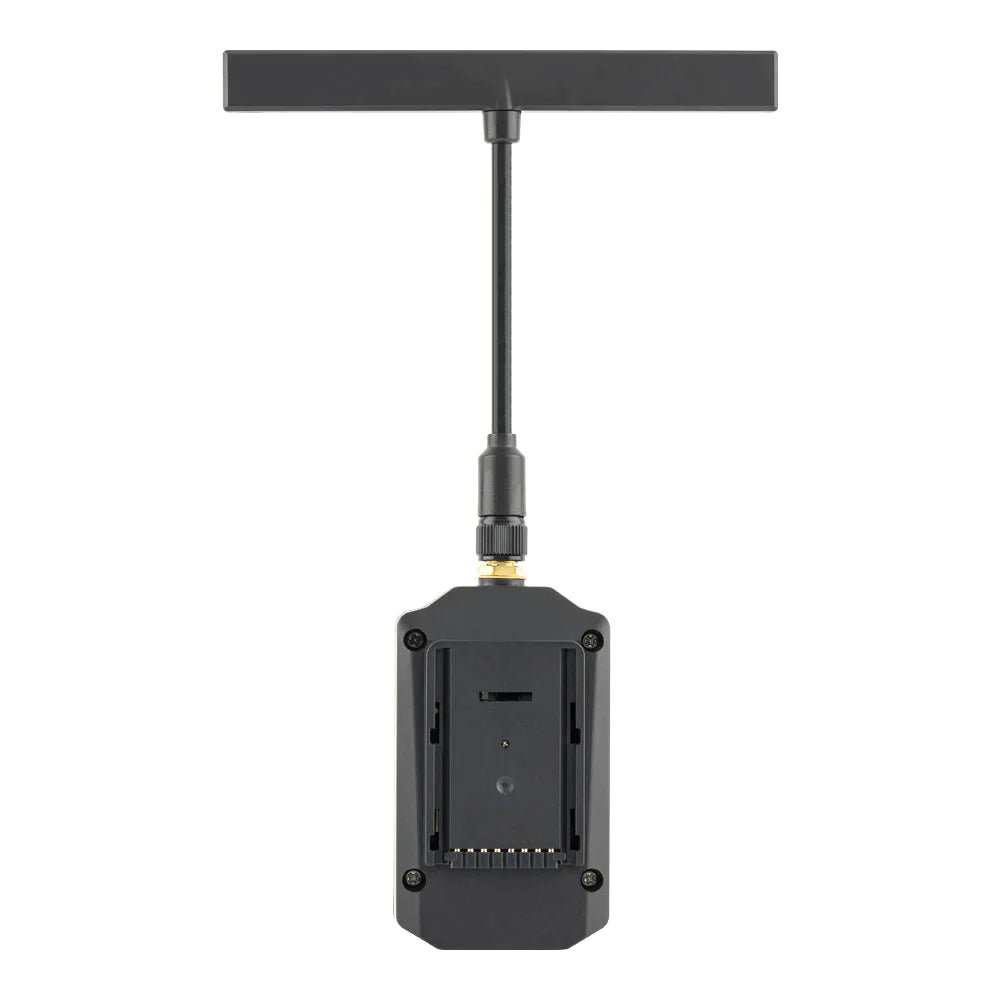

• Nano standard 8 pin connector
• Built-in OLED screen
• XT30 Power Supply Voltage: DC 6V ~ 16.8V

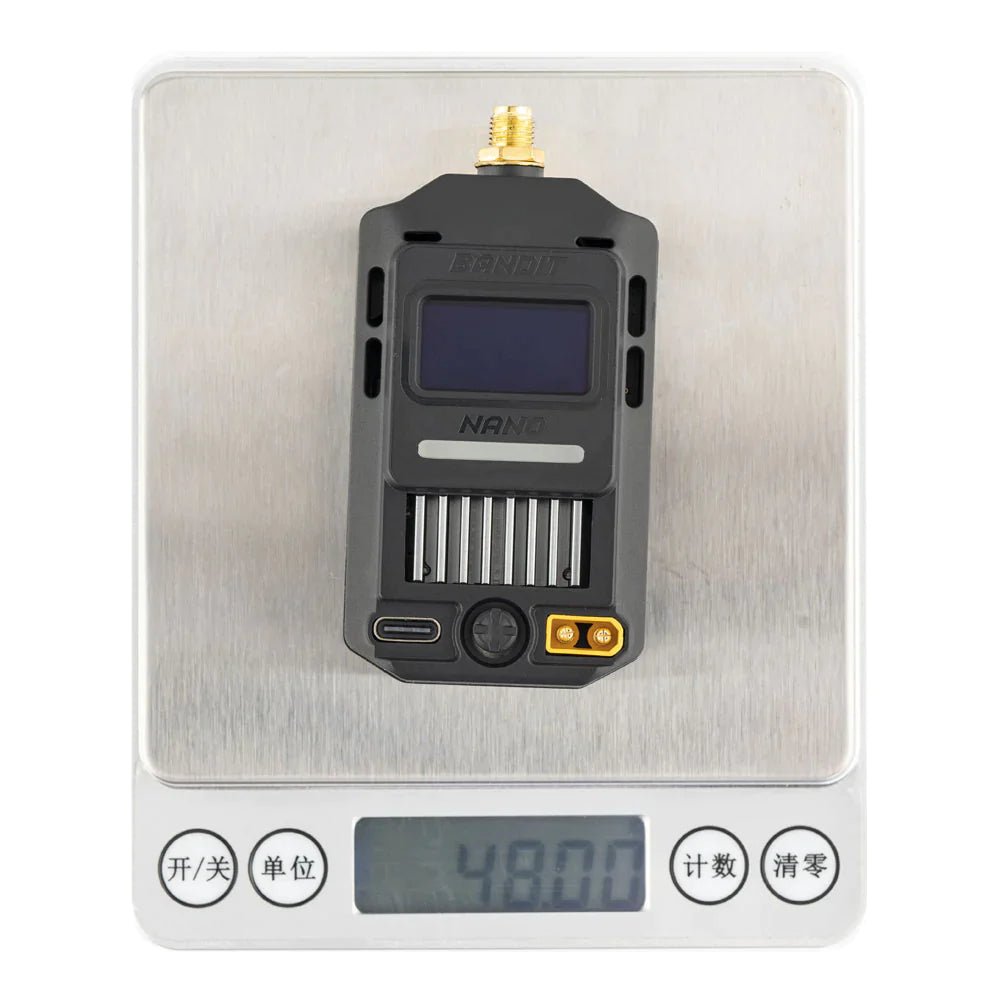

• Weight: 62.5grams (with T antenna）
• Dimension: 68.5*41.0*27.0mm

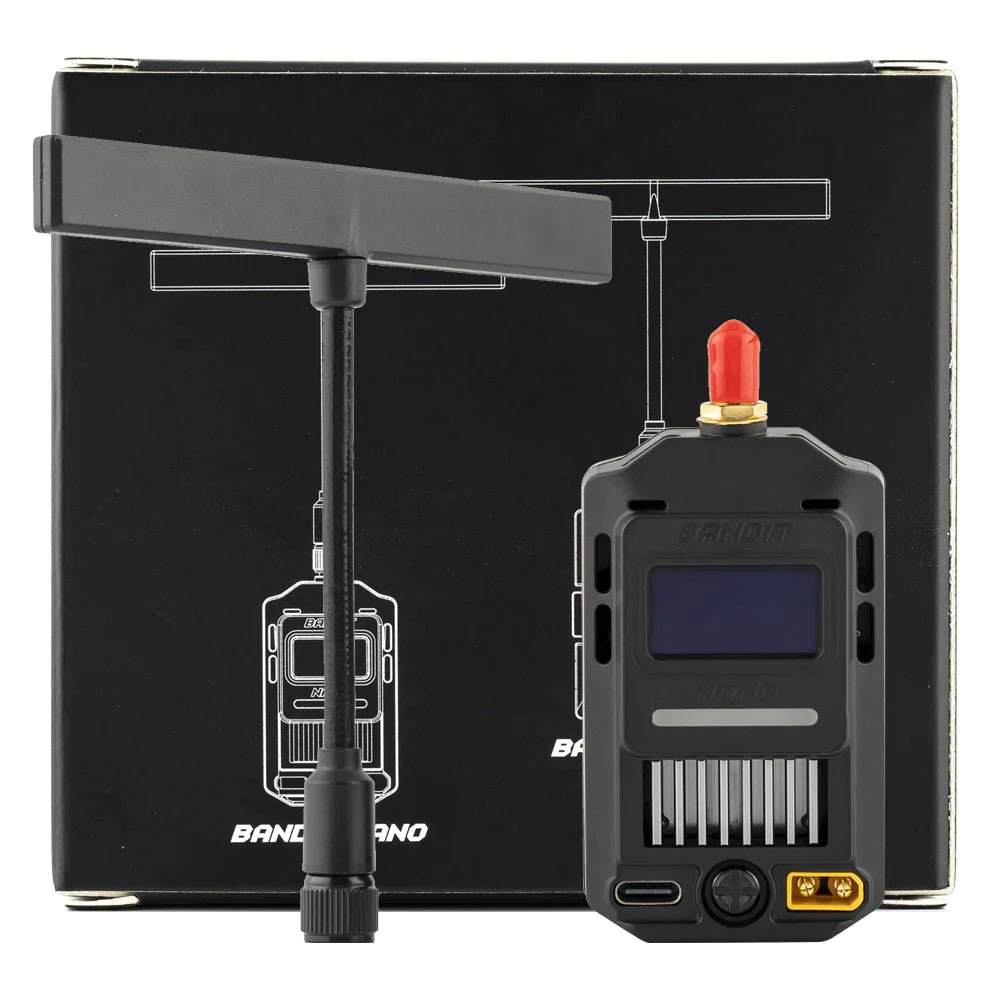

Package Includes:

• 1 * Bandit Nano ExpressLRS RF Module
• 1 * 900Mhz T Antenna
• 1 * Manual
