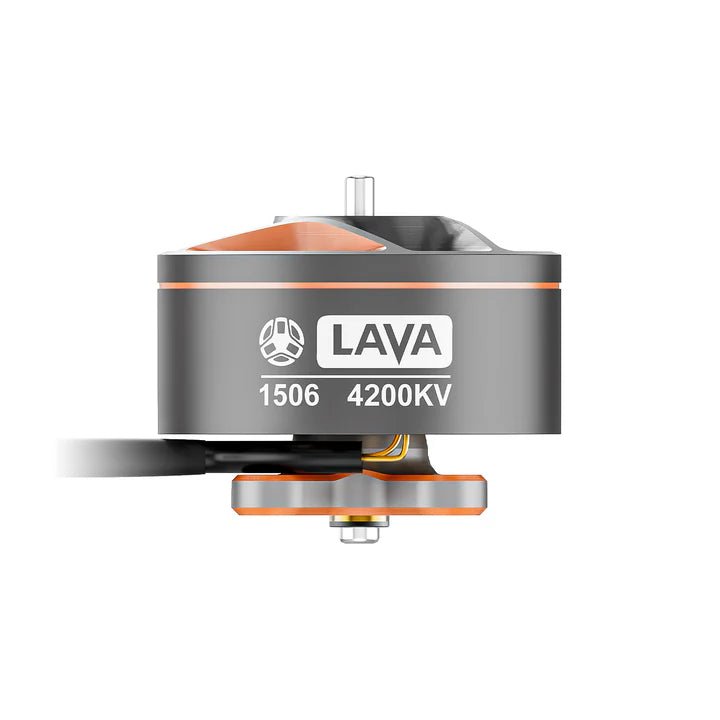

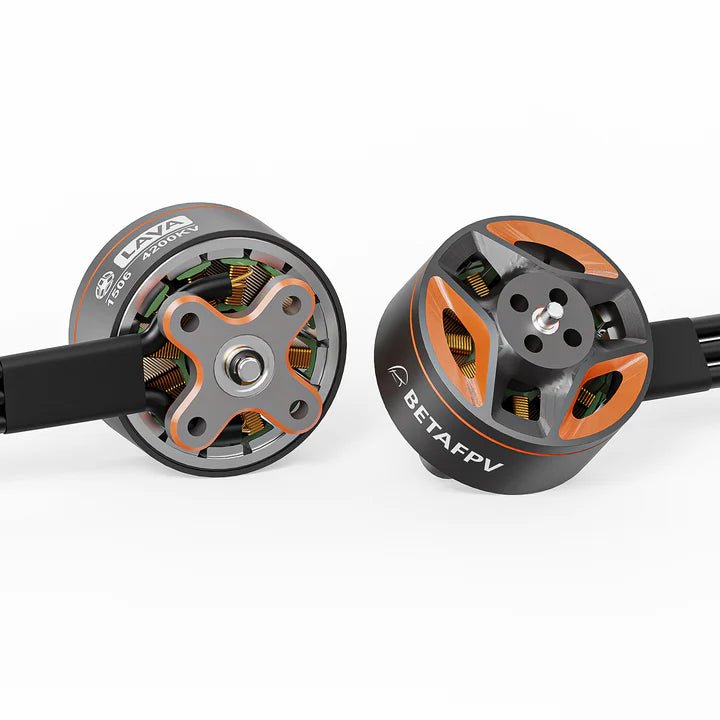

BetaFPV LAVA Series 1506 Brushless Motor – 4200KV – 1PC

LAVA Series 1506 Brushless Motors is designed for the 4S 2.5” quads, with smoother torque output performance. Combined with the GF D63 3-Blade Propellers 1.5mm Shaft and the F722 35A AIO V2 Flight Controller, it could enable pilots to effortlessly freestyle. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 4S 2.5” quads to preserve energy flight while more efficiency.

Check out our other 1506 Motors and the rest of our BetaFPV products!

Features:

• The LAVA Series 1506 Brushless Motors are designed specifically for 4S 2.5” quads, providing a significant boost in power and taking our Pavo25 V2 Brushless Whoop Quadcopter to new heights.
• GF D63 3-Blade Propellers 1.5mm Shaft will be the best match with LAVA Series 1506 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.
• When paired with the F722 35A AIO V2 Flight Controller, the LAVA Series 1506 Brushless Motors lets pilots experience a powerful and thrilling flight.
• Compared to the 1505 4600KV Brushless Motor, it boasts a 15g increase in maximum thrust, ensuring smoother and more efficient power output while conserving energy, and enhancing pilots’ overall flying experience.

Specifications:

• Items: LAVA Series 1506 4200KV Brushless Motors
• Maximum Power: 313.44W
• Maximum Current: 19.59A

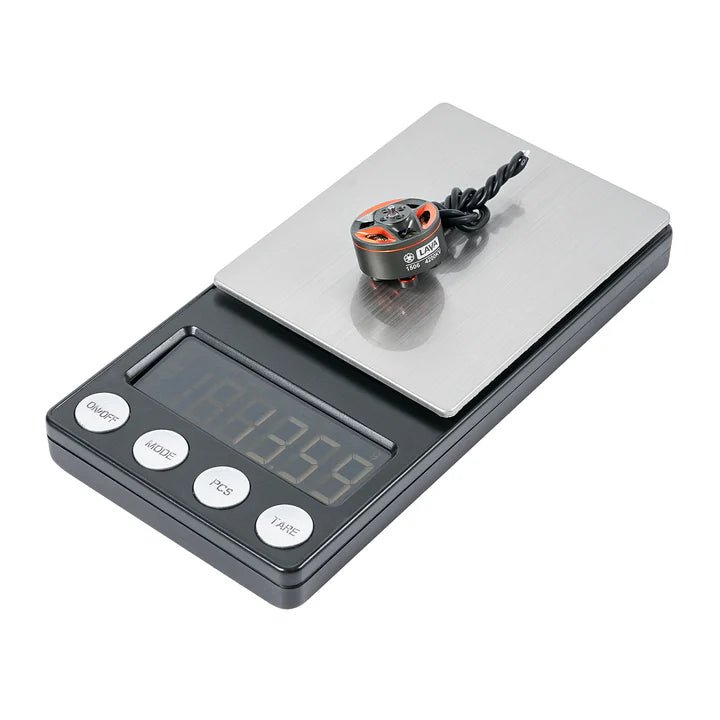

• Weight: 13.6g
• Shaft Diameter: ø1.5mm
• Shaft Length: 4mm
• Wire Specification: 24AWG
• Wire Length: 80mm
• Motor Mounting Hole Size: 4*M2 Ø12mm
• Propeller Mounting Hole Size: 4*M2 Ø5mm

Package Includes:

• 1 * LAVA Series 1506 4200KV Brushless Motors
• 4 * M2 * 5 Hex Flat Head Screw
• 4 * M2 * 7 Hex Flat Head Screw
