BetaFPV Loop Antenna – 2.4GHz

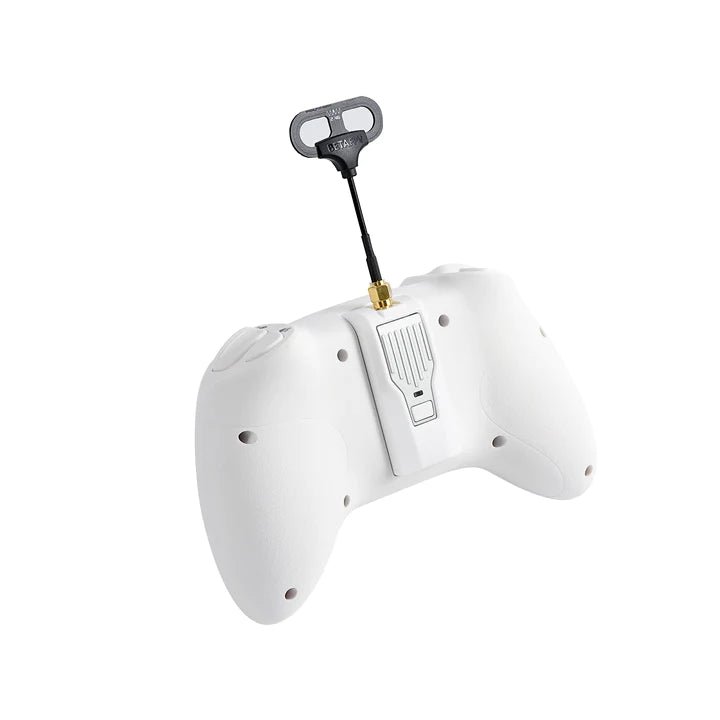

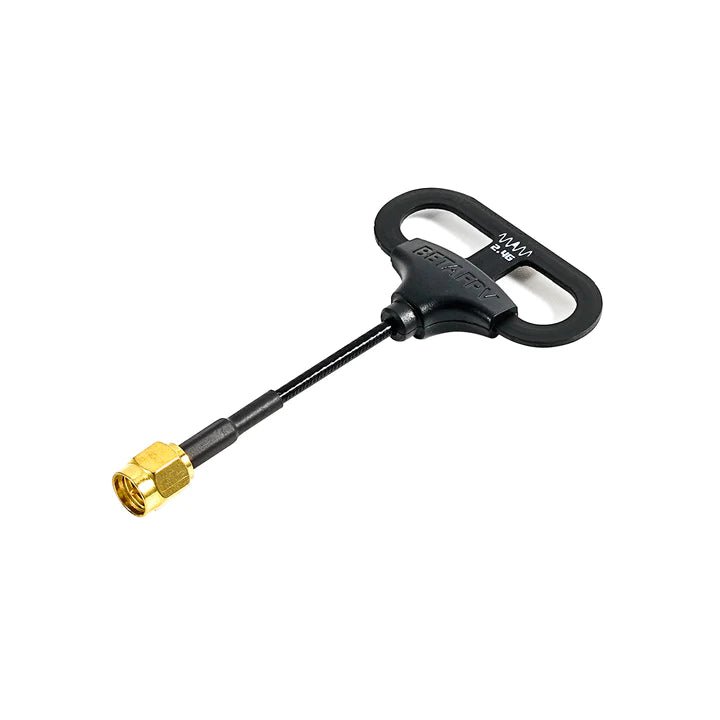

Designed and manufactured by BETAFPV, the Loop Antenna is used for 2.4GHz TX modules or radios. It is an omnidirectional antenna that provides a 360-degree horizontal radiation pattern with a gain of 2.3dBi, covering a wider range. Besides, by soldering the coaxial cable to the antenna, it features less signal transmission loss for better performance.

Check out all our 2.4GHz Antennas and the rest of our BetaFPV Products!

Loop Antenna or Moxon Antenna

All antennas have a specific use case and choosing a suitable antenna is important to fly a quadcopter. BETAFPV Loop antenna is an omnidirectional antenna that radiates and receives the RF energy equally, providing a 360-degree radiation pattern that allows connectivity in all horizontal directions. BETAFPV Moxon antenna is a directional antenna that focuses RF energy in a required direction. For example, if pilots fly a quadcopter around within a certain range, the Loop antenna is a good choice. When flying a quadcopter for long distances in one direction, the Moxon antenna works better.

The BETAFPV Loop antenna is omnidirectional with a 360-degree horizontal radiation pattern. Below is the antenna 3D radiation pattern image. Note that do NOT use the antenna with the wrong frequency. Even if they look almost the same, they will have different performances at the wrong frequency.

Specifications:

• Coaxial cable length: 65mm (2.4G)
• Connector: SMA Male
• Gain: 2.3dBi (2.4G)
• VSWR: <1.5 (2.4G)
• Polarization type: Linear polarization
• Suggested for: Any 2.4G TX module or radios

Package Includes:

• 1 * BETAFPV Loop Antenna – 2.4GHz
