BetaFPV Pavo20 Pro 2.2″ HD Cinewhoop – HD VTX Bracket Only – Choose Color

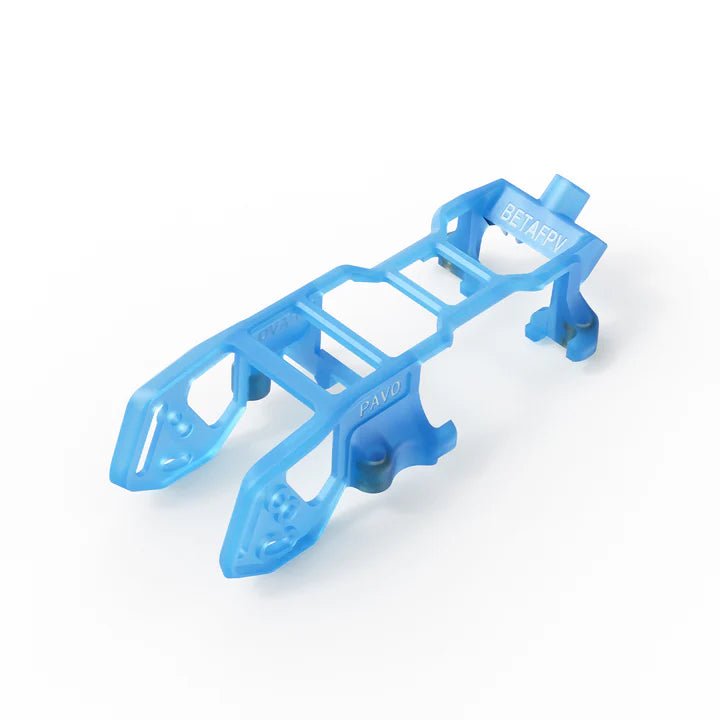

This Listing is for the Pavo20 Pro Replacement HD VTX BRACKET only.

Pavo20 Pro Brushless Whoop Frame is designed for a 2.2″ DJI O3 cinewhoop. It also boasts compatibility with the Caddx Vista and RunCam Link. with a wheelbase of 93.7mm, is constructed with a crash-proof PA12 thickened whoop duct. It employs the principles of aerodynamics, boosting an extra 8~11% thrust, and synergizes flawlessly with a powerful 3S propulsion system to deliver unparalleled thrust. With new 2 camera fixed holes for DJI O3 camera wide-angle mode shooting, and the Pavo Series Classic Rubber Damper Design, capture smooth, HD footage every time and perfect your freestyle shooting in the sky.

All parts and related items can be found in our Pavo20 Frame Parts Collection.

Check out all our Frames, and the rest of our BetaFPV Products!

Bullet Points:

• Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance.
• Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct, coupled with LAVA Series 1104 Brushless Motors, enabling Pavo20 Pro up to 6’40” flight time.
• Add 2 new cam fixed holes for the wide-angle mode shooting. The cam side panel protects the lens from effective harm, eliminating any concerns about angle deviation after intense flights while allowing for easy vertical installation of ND filters.
• Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation with only 8 screws. The antenna holder is tailored to the contours of the antenna’s form and installation, ensuring easy assembly and secure retention.
• Featured the Pavo Series’ Classic Rubber Damper Design, delivers a consistently smooth, HD image.
• An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries.

Specifications:

• Item: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 93.7mm
• Material: PA12/PP
• Top Plate Thickness: 2mm
• Weight: 33.3g(With HD VTX Bracket), 17.8g(Whoop Duct), 4.6g(Only HD VTX Bracket)
• Color: Black/Transparent Grey/Blue
• Camera: 19mm/20mm
• FC Mount: 26×26mm, suitable for conventional whoop FC
• Motor Mount: 4-M2-φ9mm
• Battery Slot Width: 20mm
• Camera Filter: Support

Compatibility with Popular HD VTX

Pavo20 Pro supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Exclusively Sculpted for HD VTX

6 camera fixed holes, including 2 new cam fixed holes for the wide-angle mode shooting, minimizing the cam side panel shadows for the wide-angle view. The cam side panel protects the lens from harm while allowing for easy vertical installation of ND filters. No more worries about angle deviations post-thrilling flights. The antenna Holder is tailored to the contours of the antenna’s form and installation for a more convenient installation and stable holding. Experience the Pavo Series’ Classic Rubber Damper Design, bidding farewell to “jello” in your footage and delivering a consistently smooth, HD image. The anti-vibration tips of the Pavo20 Pro are consistent with the Pavo Pico.

Please refer to Pavo Pico DJI O3 Vibration Problem.

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, getting the frame together hassle-free in a snap with just only 8 screws, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images.

Click to watch the installation guide video for the DJI O3 Air Unit.

Recommend Parts:

• Quad: Pavo20 Pro Brushless Whoop Quadcopter
• FC&ESC: F4 2-3S 20A AIO FC V1
• Motor: LAVA Series 1104 Brushless Motors
• Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Frame: Pavo20 Pro Brushless Whoop Frame
• Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
• Filter: BETAFPV ND filter
• VTX: DJI O3, Caddx Vista, RunCam Link

Package Includes:

• 1 * Pavo20 Pro VTX Bracket
• 1 * 20*20mm VTX Mounting Plate
• 2 * 5.8g Antenna
• 4 * M2 Nut
• 6 * Rubber Damper
• 6 * M2*10 Screws
• 6 * M2*4 Screws
• 4 * M2*15 Screws
