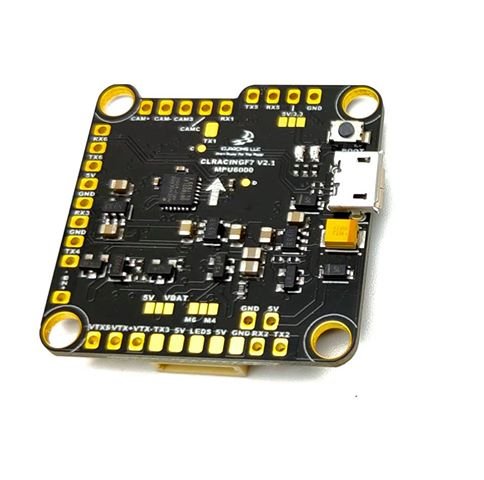

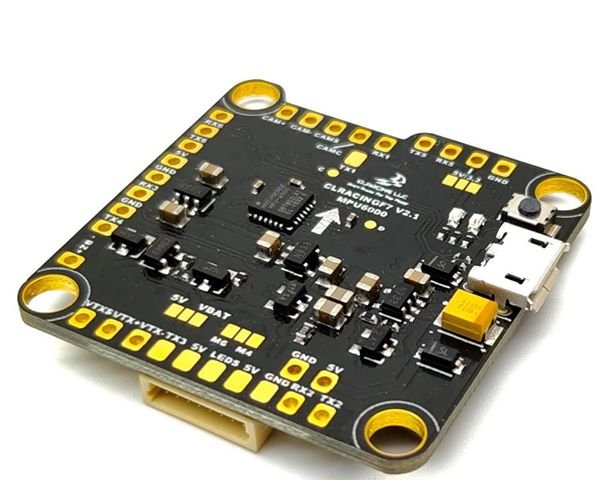

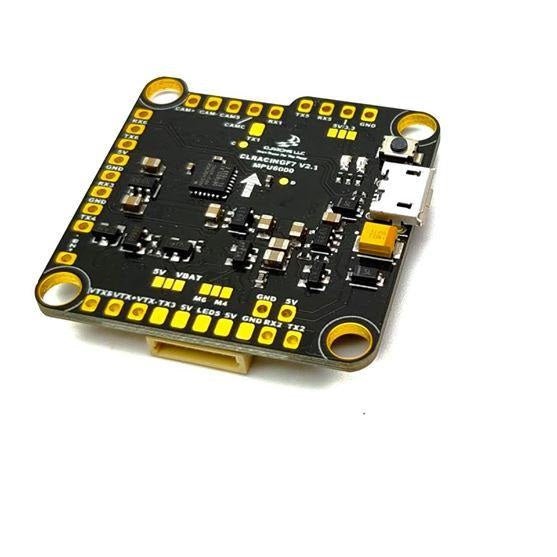

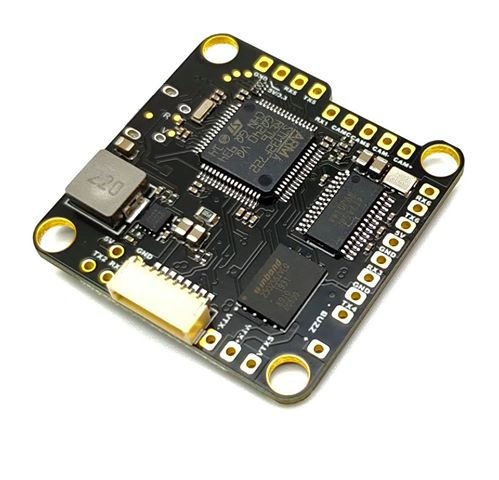

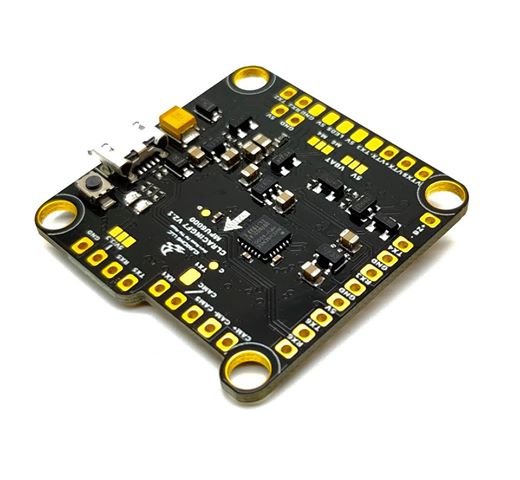

CLRACING F7 V2.2 30×30 FLIGHT CONTROLLER

The CLRACING F7 V2.2 is available in 2 versions.
Dual gyro and single Gyro, the main difference between the previous version and this is the front side notch to give better room behind the camera area for tight builds.

Checkout all our 30×30 and 20×20 Flight Controller.

Features

• MCU: STM32F722RET6216MHz
• 6-Axis MPU6000 Separated Interrupts or BMI270
• Build in Beta flight OSD
• Up to 8S(36V) direct battery power
• Build in Voltage monitoring resistor
• Build in 5V/3A BEC and 3.3V/250mA for system
• Led strip share 5V with 5V/3.0A BEC
• 5V OR VBAT, camera and VTX POWER VIA Pit Switch
• 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
• Buildin Camera Control pin with necessary resistor and capacitor near camera connection
• Buzzerpads for external buzzer
• Build in 32MB Blackbox flash chip
• M4 Can be selected either led strip signal or M4 signal for RPM filtering

Includes

• 1x CLRacing F7 V2.2 30×30 Flight Controller
• 6x Soft Mount Gummies
• 1x 4in1 Cable
• 2x Spare Plug

Manual Download
