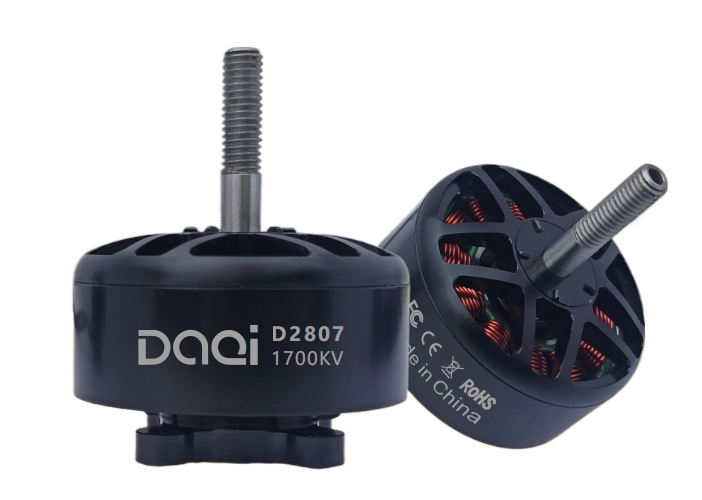

D2807 1700KV High-Response Brushless Outrunner Motor for VTOL & Agricultural Crop Duster Drones
$37.90
Engineered for high dynamic response and reliable performance, this D2807 1700KV brushless outrunner motor weighs only 58g while delivering up to 2100g of max thrust for an exceptional power-to-weight ratio. Compatible with 3S-6S LiPo batteries, a 60A ESC, and 7x4x3 propellers, it features a dynamic balanced rotor, heavy-duty design, and customizable waterproofing. Purpose-built for VTOL platforms, agricultural crop duster drones, and high-performance FPV aircraft. In stock now, with global shipping and bulk order discounts available.
Description
D2807 1700KV Motor Core Technical Specifications
Electrical Specifications
- Model: D2807 1700KV
- KV Rating: 1700KV (No-Load RPM Constant)
- Operating Voltage: 3S-6S LiPo Battery (12V-24V)
- Rated Current: 16A | Max Continuous Current: 48A
- Max Continuous Power: 1053W
- Idle Current: 1.1A | Motor Efficiency: 90%
- Internal Resistance: 41mΩ
- Motor Cable Length: 180mm
Mechanical & Environmental Specifications
- Stator Size: Φ28mm (Diameter) × 7mm (Height)
- Motor Outer Dimensions: Φ33.1mm × 33.5mm
- Spindle Thread: M5 | Propeller Mounting Hole Diameter: 5mm
- Motor Mounting Pattern: 19×19mm, 4-M3
- Net Weight: 58g
- Winding Configuration: 12N14P
- Dynamic Balanced Rotor: Yes | Heavy Duty Design: Yes
- Water & Dust Proof: Customizable
- Recommended ESC: 6S / 60A Brushless ESC
- Recommended Propeller: 7x4x3 Prop
- Primary Application: VTOL Aircraft, Agricultural Crop Duster Drones
D2807 1700KV Official Thrust Test Data
Tested with the recommended 7x4x3 propeller, 4S LiPo battery, at a stable 101℃ operating temperature:
| Throttle Level | RPM | Voltage (V) | Current (A) | Input Power (W) | Thrust (G) | Efficiency (g/W) |
|---|---|---|---|---|---|---|
| 50% | 13340 | 16.8 | 11.2 | 269.0 | 816 | 3.29 |
| 70% | 17642 | 16.8 | 18.9 | 317.0 | 1355 | 2.69 |
| 90% | 21297 | 16.8 | 42.6 | 1409.0 | 2166 | 2.15 |
| 100% | 22602 | 16.8 | 47.0 | 800.0 | 2100 | 2.6 |
Key Features & Benefits of the D2807 1700KV Brushless Motor
- High-Response 1700KV Winding for VTOL & FPV Performance: Optimized 1700KV KV rating delivers fast throttle response, high dynamic performance, and stable RPM output, perfect for VTOL vertical takeoff/landing transitions and high-maneuverability FPV flights, while maintaining 90% peak operating efficiency.
- Exceptional Power-to-Weight Ratio: Weighs only 58g while delivering a maximum static thrust of 2100g, making it the ideal choice for weight-sensitive mid-weight VTOL, agricultural, and FPV drone builds where payload capacity and flight agility are critical.
- Dynamic Balanced Rotor for Low-Vibration Flight: Factory dynamic balancing eliminates unwanted vibration, reducing wear on drone components, improving flight stability, and enhancing imaging accuracy for mapping and inspection payloads.
- Heavy-Duty Design for Harsh Operating Environments: Rugged construction with stable performance at up to 101℃ operating temperature, customizable water and dust proofing, built to withstand repeated agricultural spraying, outdoor VTOL operations, and high-intensity FPV flights.
- Standardized Mounting for Plug-and-Play Setup: Industry-standard 19×19mm mounting pattern, M5 spindle thread, and universal 180mm motor cables are fully compatible with mainstream mid-weight VTOL, agricultural, and FPV drone frames, no custom modifications required.
Ideal Applications & Compatible Platforms
The D2807 1700KV motor is engineered for professional and high-performance UAV applications, including:
- VTOL (Vertical Takeoff and Landing) aircraft and hybrid fixed-wing drones
- Small to medium agricultural crop duster / spray drones
- High-performance freestyle and long-range FPV drones
- Compact aerial mapping and photogrammetry UAVs
- Small logistics and delivery drones
- Industrial inspection and surveillance multirotor platforms
Compatibility Guide for D2807 1700KV Motor
- Battery Compatibility: Optimized for 3S (12V) to 6S (24V) LiPo batteries, minimum 25C continuous discharge rate
- Recommended ESC: 6S 60A multirotor/VTOL/FPV-specific brushless ESC, for reliable power delivery and precise throttle response
- Recommended Propeller: 7x4x3 propeller (official tested and validated for maximum efficiency and thrust output)
Frequently Asked Questions (FAQs)
What is the maximum thrust of the D2807 1700KV motor?
When paired with the recommended 7x4x3 propeller and 4S LiPo battery, the D2807 1700KV delivers a maximum static thrust of 2100g (2.1kg) at 100% throttle, with a stable operating temperature of 101℃.
What battery voltage is compatible with the D2807 1700KV motor?
This motor is optimized for 3S to 6S LiPo batteries (12V-24V), with flexible configuration for both high-response FPV setups and stable VTOL/agricultural drone builds.
What ESC should I use with the D2807 1700KV motor?
We recommend pairing the D2807 1700KV with a 6S 60A brushless ESC, specifically designed for multirotor, VTOL, and FPV applications, to ensure reliable power delivery and precise throttle response.
Is the D2807 1700KV suitable for VTOL and agricultural spray drones?
Yes. This motor is purpose-built for VTOL aircraft and agricultural crop duster drones, with a heavy-duty design, high dynamic response, dynamic balanced rotor, and customizable waterproofing to withstand harsh farming and outdoor flight environments.
What is the difference between D2807 1700KV and D2807 1300KV motors?
The D2807 1700KV features a higher KV rating for faster throttle response and higher RPM output, optimized for VTOL transitions and high-performance FPV flights. The D2807 1300KV has a lower KV rating for higher low-end torque, better suited for heavy-lift agricultural drone and long-endurance mapping applications. Both share the same 58g weight, 28x7mm stator, and 19×19mm mounting pattern.
