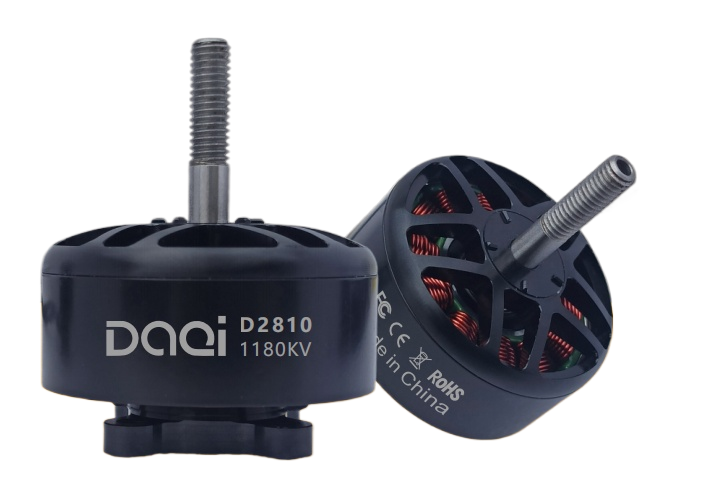

D2810 1180KV Balanced Torque & Response Brushless Outrunner Motor for VTOL & Agricultural Crop Duster Drones

D2810 1180KV Motor Core Technical Specifications

Electrical Specifications

• Model: D2810 1180KV
• KV Rating: 1180KV (No-Load RPM Constant)
• Operating Voltage: 3S-6S LiPo Battery (12V-24V)
• Rated Current: 12A | Max Continuous Current: 44A
• Max Continuous Power: 1024W
• Idle Current: 0.9A | Motor Efficiency: 90%
• Internal Resistance: 64mΩ
• Motor Cable Length: 180mm

Mechanical & Environmental Specifications

• Stator Size: Φ28mm (Diameter) × 10mm (Height)
• Motor Outer Dimensions: Φ33mm × 33.2mm
• Spindle Thread: M5 | Propeller Mounting Hole Diameter: 5mm
• Motor Mounting Pattern: 19×19mm, 4-M3
• Net Weight: 70g
• Winding Configuration: 12N14P
• Dynamic Balanced Rotor: Yes | Heavy Duty Design: Yes
• Water & Dust Proof: Customizable
• Recommended ESC: 6S / 60A Brushless ESC
• Recommended Propeller: 7×4.5×3 Prop
• Primary Application: VTOL Aircraft, Agricultural Crop Duster Drones

D2810 1180KV Official Thrust Test Data

Tested with 7x4x3 propeller, 6S LiPo battery, at a stable 101℃ operating temperature:

Key Features & Benefits of the D2810 1180KV Brushless Motor

• Balanced Torque & Response for VTOL Hybrid Flight: Optimized 1180KV mid-KV winding delivers the perfect blend of low-end torque for vertical takeoff/landing and fast dynamic throttle response for fixed-wing forward flight, making it ideal for VTOL hybrid aircraft transitions, while maintaining 90% peak operating efficiency.
• Exceptional Power-to-Weight Ratio: Weighs only 70g while delivering a maximum static thrust of 2341g, making it the ideal choice for weight-sensitive VTOL, small agricultural, and long-range drone builds where payload capacity and flight endurance are critical.
• Dynamic Balanced Rotor for Low-Vibration Flight: Factory dynamic balancing eliminates unwanted vibration, reducing wear on drone components, improving flight stability, and enhancing imaging accuracy for high-precision aerial mapping and inspection payloads.
• Heavy-Duty Design for Harsh Operating Environments: Rugged construction with stable performance at up to 101℃ operating temperature, customizable water and dust proofing, built to withstand repeated agricultural spraying, outdoor VTOL operations, and long-endurance flights in extreme conditions.
• Standardized Mounting for Plug-and-Play Setup: Industry-standard 19×19mm mounting pattern, M5 spindle thread, and universal 180mm motor cables are fully compatible with mainstream VTOL, small agricultural, and FPV drone frames, no custom modifications required.

Ideal Applications & Compatible Platforms

The D2810 1180KV motor is engineered for professional UAV applications that demand balanced torque and dynamic response, including:

• VTOL (Vertical Takeoff and Landing) hybrid fixed-wing drones
• 3L-5L small agricultural crop duster / spray drones
• Long-range FPV freestyle and endurance drones
• High-precision aerial mapping and photogrammetry UAVs
• Power line, pipeline, and border security inspection drones
• Scientific research and university educational UAV platforms

Compatibility Guide for D2810 1180KV Motor

• Battery Compatibility: Optimized for 3S (12V) to 6S (24V) LiPo batteries, minimum 25C continuous discharge rate
• Recommended ESC: 6S 60A multirotor/VTOL-specific brushless ESC, for reliable power delivery and precise throttle control
• Propeller Recommendation: Official recommended 7×4.5×3 propeller for optimal efficiency; validated 7x4x3 propeller for balanced thrust and response

Frequently Asked Questions (FAQs)

What is the maximum thrust of the D2810 1180KV motor?

When paired with a 7x4x3 propeller and 6S LiPo battery, the D2810 1180KV delivers a maximum static thrust of 2341g (2.34kg) at 100% throttle, with a stable operating temperature of 101℃.

What battery voltage is compatible with the D2810 1180KV motor?

This motor is optimized for 3S to 6S LiPo batteries (12V-24V), with flexible configuration for both long-endurance low-power setups and high-response VTOL hybrid drone builds.

What ESC should I use with the D2810 1180KV motor?

We recommend pairing the D2810 1180KV with a 6S 60A brushless ESC, specifically designed for multirotor, VTOL, and agricultural drone applications, to ensure reliable power delivery and precise throttle response.

Is the D2810 1180KV suitable for VTOL and agricultural spray drones?

Yes. This motor is purpose-built for VTOL hybrid aircraft and small agricultural crop duster drones, with a balanced mid-KV design, heavy-duty construction, dynamic balanced rotor, and customizable waterproofing to withstand harsh farming and outdoor flight environments.

What is the difference between D2810 1180KV and D2810 980KV motors?

The D2810 1180KV has a higher mid-KV rating for faster dynamic throttle response and smoother VTOL flight transitions, making it ideal for hybrid fixed-wing VTOL platforms. The D2810 980KV has a lower KV rating for higher low-end torque, better suited for pure heavy-lift agricultural spray drone and long-endurance mapping applications. Both share the same 70g weight, 28x10mm stator, and 19×19mm mounting pattern for cross-compatibility.
