D3115 900KV Brushless Motor | 4.2KG Thrust | 4S-6S | For FPV, VTOL & Agricultural Drones
Original price was: $53.90.$20.00Current price is: $20.00.

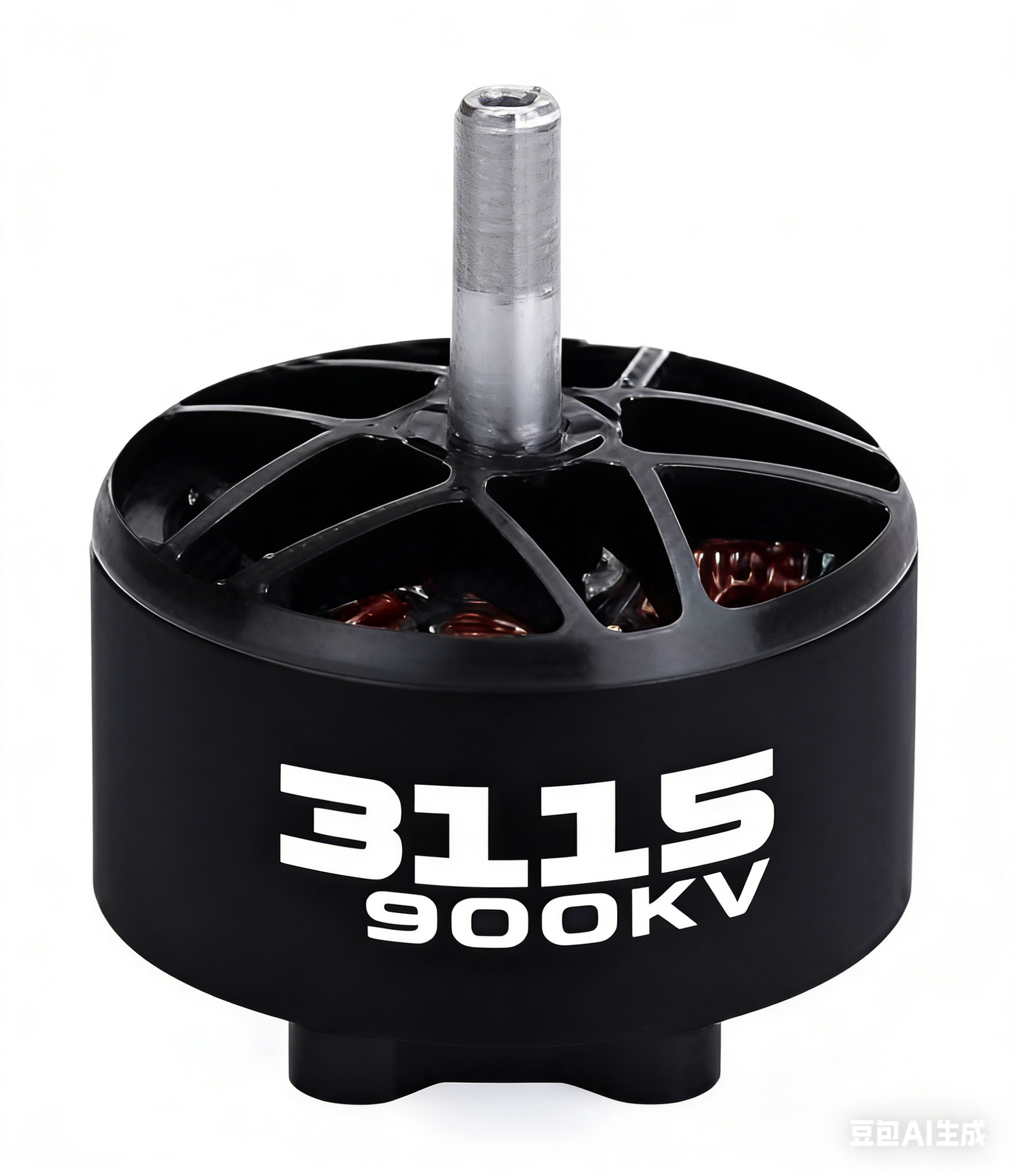

High-performance industrial-grade D3115 900KV brushless motor, engineered for heavy-lift FPV cinelifter, mini VTOL fixed-wing, and small agricultural crop duster drones. Weighing only 112g, it delivers a 4.2KG peak static thrust and 1652W max power, with 3S-6S wide voltage compatibility, factory-calibrated dynamic balancing, and a universal 19x19mm mounting pattern for drop-in fit on most mainstream drone frames.
Description
Key Features & Performance Highlights
- Industry-Leading Power-to-Weight Ratio: Weighing only 112g while delivering a 4.2KG peak static thrust and 1652W max continuous power, this 900KV 3115 drone motor achieves an unmatched balance of lightweight design and heavy-lift performance for 9-10 inch FPV, VTOL, and compact agricultural drone builds.
- Smooth, Stable Power Delivery: Built with a 12N14P slot pole configuration and factory-calibrated dynamic balancing on every unit, it delivers near-zero vibration across the entire throttle range, eliminating jello effect in aerial footage and ensuring stable flight for professional cinematography, mapping, and precision spraying.
- Reliable Thermal & Electrical Performance: With a 48mΩ optimized internal resistance and 90% peak working efficiency, it minimizes power loss and heat generation during sustained heavy-load operation. It is fully compatible with 3S-6S Lipo batteries, paired with a recommended 6S / 80A ESC for safe, consistent full-throttle performance.
- Heavy-Duty Durability: Reinforced heavy-load design with a robust 6061 aluminum shell, M5 stainless steel spindle, and customizable water & dust protection, making it crash-resistant and suitable for harsh outdoor farming, surveying, and FPV flight environments.
- Universal Drop-In Fit: Standard 19*19mm 4-M3 motor mounting pattern and 250mm pre-tinned motor cables, compatible with 90% of mainstream 9-10 inch FPV cinelifter, mini VTOL, and compact agricultural drone frames, with no extra modification required for fast assembly.
Full Technical Specifications
| Specification | Value |
|---|---|
| Model | D3115-900KV Brushless Motor |
| Net Weight | 112g |
| Stator Size | Φ31x15mm |
| Overall Dimensions | Φ37.5 x 49.5mm |
| KV Rating | 900KV (RPM/Volt) |
| Working Voltage | 3S-6S Lipo (12V-24V) |
| Idle Current (@10V) | 1.8A |
| Internal Resistance | 48mΩ |
| Rated Current | 25A |
| Max Continuous Current | 68A |
| Max Continuous Power | 1652W |
| Peak Motor Efficiency | 90% |
| Slot Pole Configuration | 12N14P |
| Spindle Thread | M5 |
| Motor Mounting Holes | 19*19mm 4-M3 |
| Propeller Mounting Hole Pitch | 5mm |
| Motor Cable Length | 250mm |
| Factory Dynamic Balanced Rotor | Yes |
| Heavy-Duty Reinforced Design | Yes |
| Water & Dust Protection | Customizable |
| Recommended ESC | 6S / 80A (4S / 60A compatible) |
| Recommended Propeller | 10×4.5 (primary), 9-10 inch propellers (secondary) |
Factory Lab Thrust Test Data (10×4.5 Propeller, 6S Lipo)
| Throttle | RPM | Volts (V) | Amps (A) | Watts (W) | Thrust (G) | Efficiency (g/W) | Max Operating Temp (℃) |
|---|---|---|---|---|---|---|---|
| 50% | 11074 | 25.2 | 19.9 | 501.0 | 2288 | 4.56 | – |
| 60% | 11632 | 25.0 | 25.2 | 630.0 | 2656 | 4.21 | – |
| 70% | 12037 | 24.9 | 30.1 | 749.0 | 2966 | 3.96 | – |
| 80% | 12357 | 24.9 | 49.6 | 1236.0 | 3610 | 2.92 | – |
| 90% | 12702 | 24.8 | 57.7 | 1431.0 | 3922 | 2.74 | – |
| 100% | 12940 | 24.8 | 66.6 | 1652.0 | 4213 | 2.55 | 104 |
Ideal Applications
Optimized for high-conversion long-tail search keywords
- FPV Cinelifter & Heavy-Lift Freestyle Drones (9-10 inch)
- Mini VTOL Fixed-Wing Drones for Mapping & Surveillance
- Small-Scale Agricultural Crop Duster & Pesticide Sprayer Drones (2-5L)
- Lightweight Professional Aerial Cinematography & Photography Drones
- Portable Surveying & LiDAR Mapping UAVs
- Compact Last-Mile Cargo Delivery Drones
Why Choose Our Brushless Motors?
Every motor is factory-tested and calibrated to meet strict performance standards, with full quality control for every unit. We offer bulk wholesale pricing for drone manufacturers, FPV teams, and commercial UAV fleets, with customizable branding, waterproofing, and cable length options to fit your production needs.
