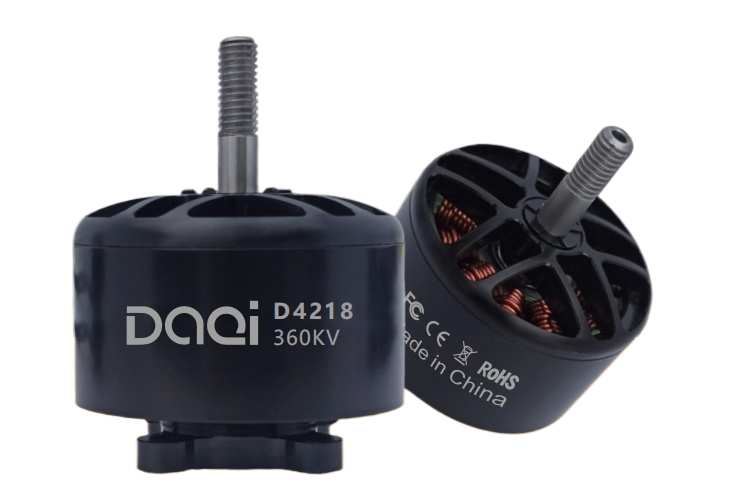

D4218 360KV Brushless Motor | High-Efficiency Powerhouse for VTOL & Heavy-Lift Multirotors

When building a high-value industrial or agricultural drone, failure is not an option. Here is how the D4218-360KV eliminates the most common pilot anxieties:

• Anxiety 1: “Will it overheat and fail mid-flight with a heavy payload?”

  • The Solution (Thermal Reliability): Even when pushed to its maximum continuous power of 1781.4W (drawing nearly 80A), the thrust test data shows this motor operates at a shockingly cool 31.7°C. Combined with a low internal resistance of just 29mΩ and a 90% motor efficiency rating, this motor practically eliminates the risk of thermal burnout, keeping your expensive payloads safe.

• Anxiety 2: “Is my flight time going to be too short to finish the mission?”

  • The Solution (Cruising Efficiency): At a 50% cruising throttle, the D4218 generates nearly 2kg of thrust (1943g) while maintaining a high efficiency of 5.6 g/W. This means your VTOL or multirotor can stay in the air significantly longer on a standard 6S LiPo, covering more acres or capturing longer cinematic takes.

• Anxiety 3: “Will I have enough raw power for quick maneuvers or heavy wind?”

  • The Solution (Massive Lifting Power): Swinging a 13-inch or 14-inch tri-blade propeller, a single D4218 motor outputs up to 5618g (5.6kg) of maximum thrust. Whether you are lifting agricultural spraying equipment or recovering from a dive in a heavy X-Class FPV rig, you have instant, responsive power on demand.

• Anxiety 4: “Can it handle rain, dust, and harsh environments?”

  • The Solution (Industrial-Grade Durability): Built specifically with crop duster drones and industrial VTOLs in mind, the D4218 features a heavy-duty design with Customized Water and Dust Proofing. It is engineered to shrug off moisture, agricultural chemicals, and field dust.

• Anxiety 5: “Will motor vibrations ruin my footage or mess up my flight controller?”

  • The Solution (Precision Manufacturing): Every single rotor undergoes strict Dynamic Balancing (Y) at the factory. This guarantees silky-smooth rotation at 10,000+ RPM, preventing micro-vibrations from reaching your sensitive camera gimbals or IMU sensors.

Key Specifications Summary

• Motor Model: D4218-360KV

• Stator Size: 42 x 18 mm

• Configuration: 12N14P

• Supported Voltage: 3S – 6S LiPo (12V – 24V)

• Max Continuous Current: 80A

• Max Continuous Power: 1781.4W

• Max Thrust: 5618g (Tested on 1310-3 Propeller at 6S)

• Motor Weight: 300g

• Mounting Pattern: 30x30mm (4-M4 holes)

• Motor Cable Length: 350mm (Extended for easy large-frame routing)

• Recommended ESC: 6S / 80A

• Recommended Propellers: 1310-3 or 1410-3
