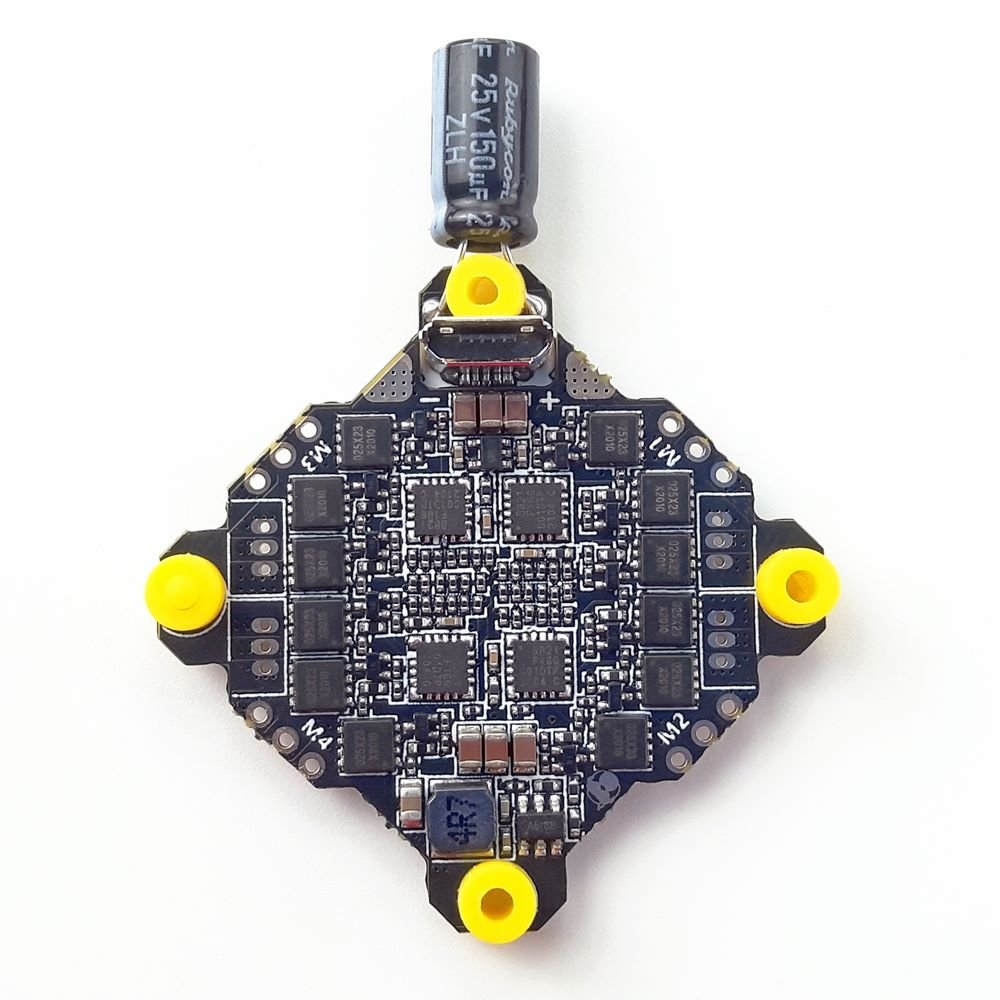

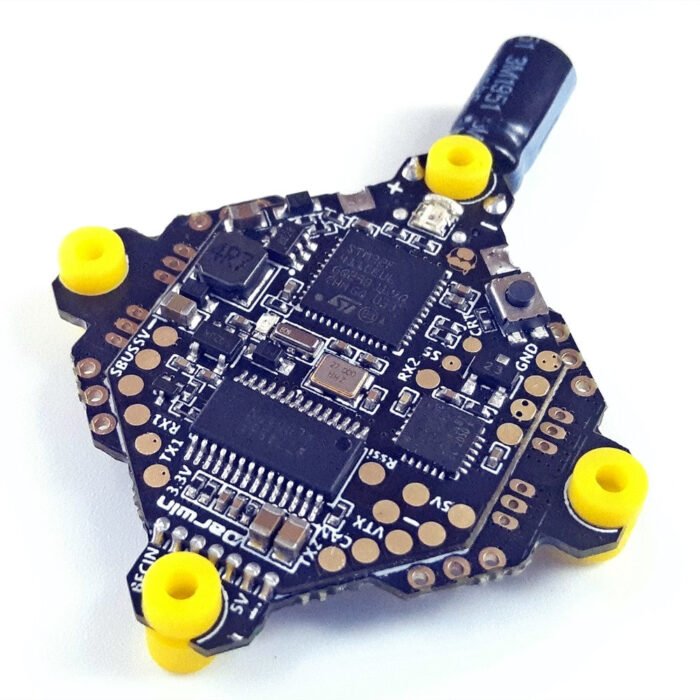

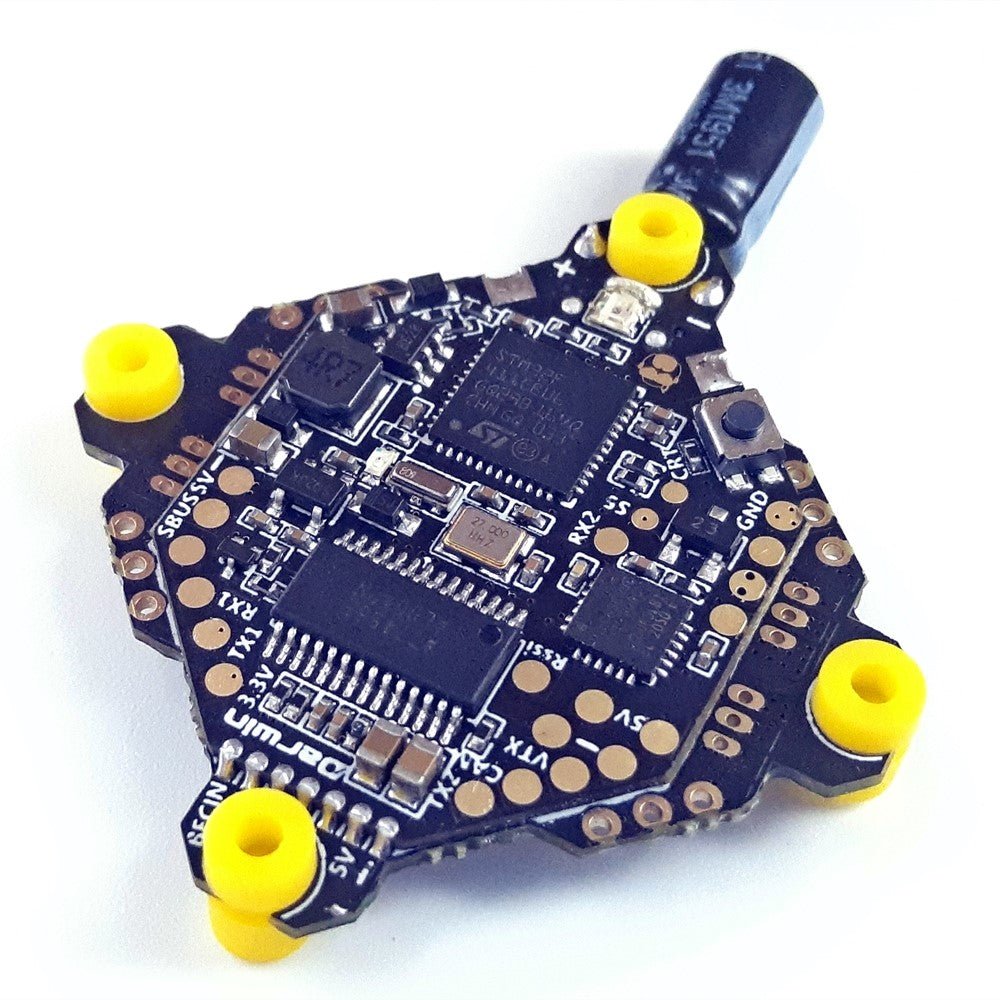

DarwinFPV 15A 1-3s F411 Ultralight/Whoop AIO
$38.99

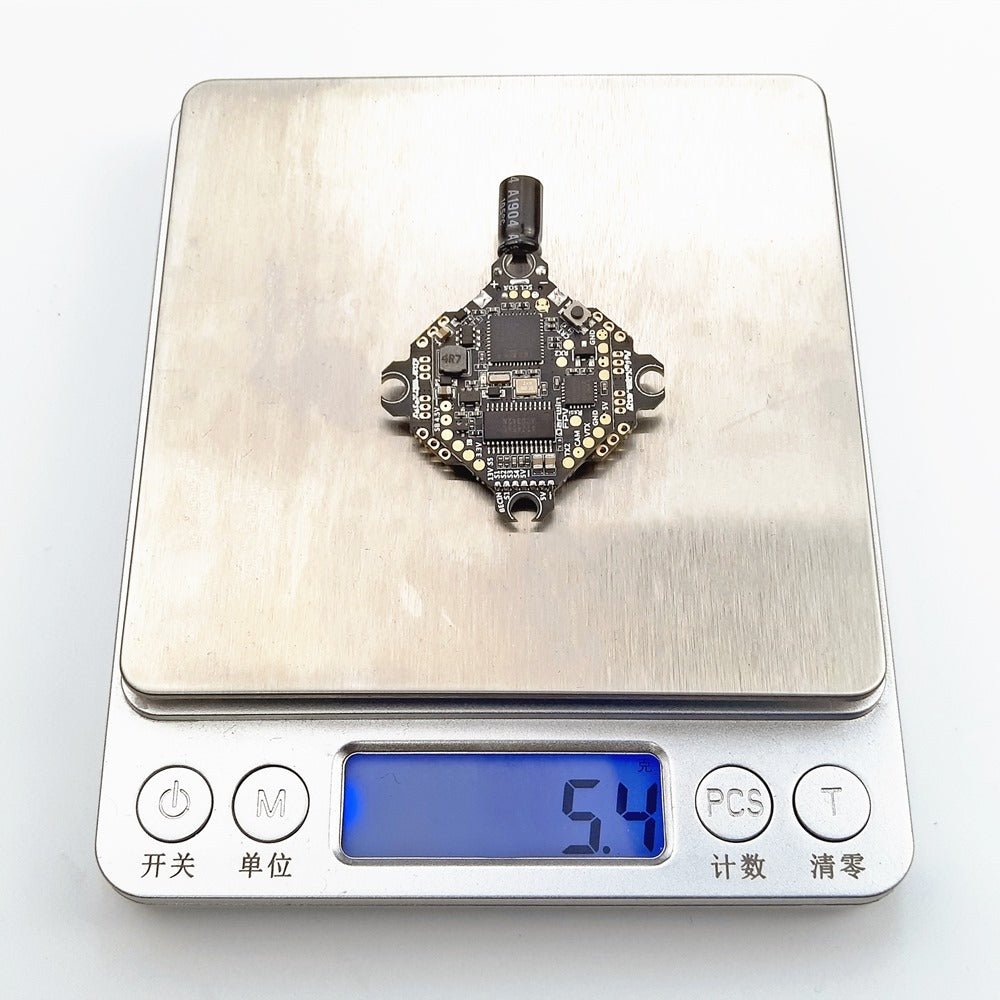

| Weight | 0.057 kg |
|---|
Out of stock
Description
DarwinFPV 15A 1-3S F411 AIO great for Ultralight and Whoop builds! Capacitor Pre-soldered for convenience!
Check out all our Whoop Style AIO Boards and the rest of our DarwinFPV Products!

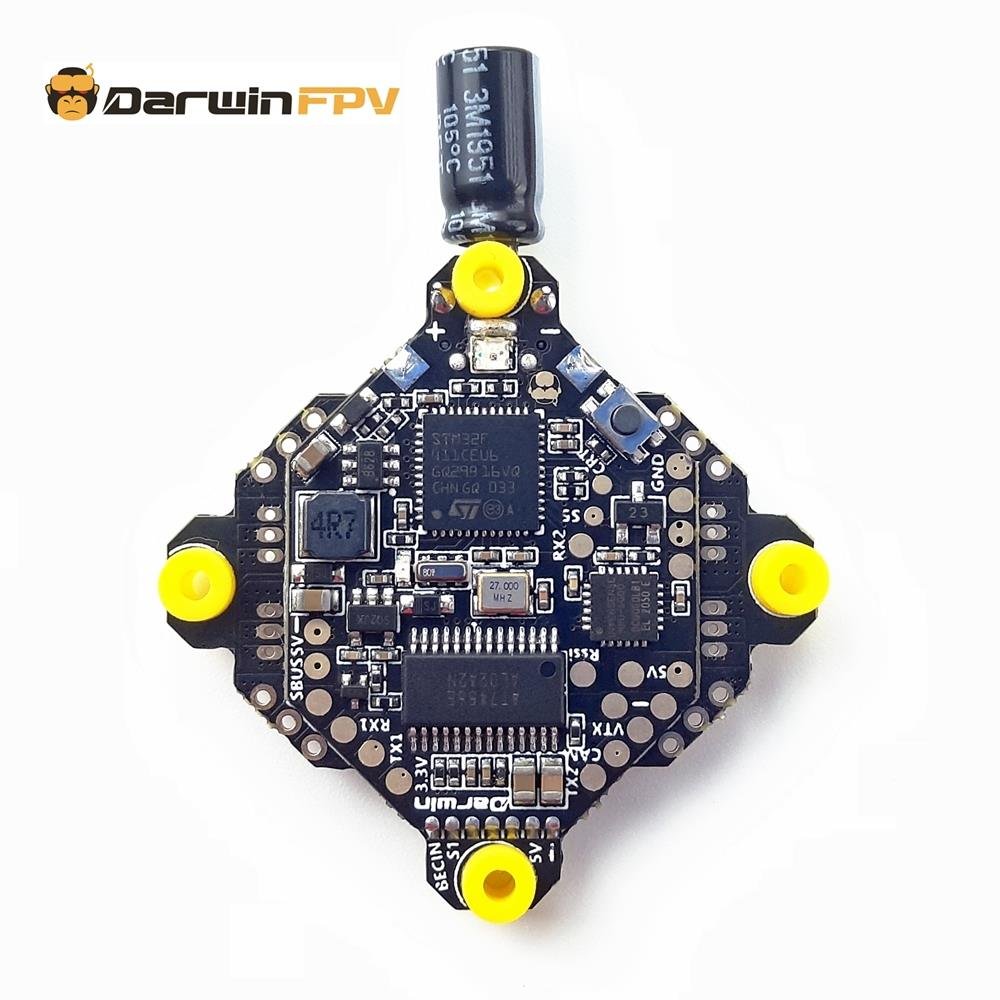

FC Specifications:
- MCU: 100MHz STM32F411CEU6
- IMU: MPU6000(SPI)
- Baro: No
- Blackbox: No
- OSD:AT7456E
- Built in inverter for SBUS input (UART1-RX)
- 1xSoftserial supported(S5)
- 3.7~13V DCIN(1~3SLiPo)
- BEC:5V 2A cont.(Max 2.5A)
- LDO3.3V:Max 200mA
- Battery Voltage Sensor: 1:10(Scale110)
- BetaFlight target:MATEKF411
ESC Specifications:
- Input Voltage: 3.7~13V DCIN(1~3SLiPo)
- Constant Current: 15A
- Peak Current: 17A
- BEC Ouput: No
- MCU: 48MHz EFM8BB21F16G
- Protocol:DSHOT/Oneshot/MultiShot
- BLHeli_S Firmware target： S-H-50
- Telemetery: No
- Current Sensor: No

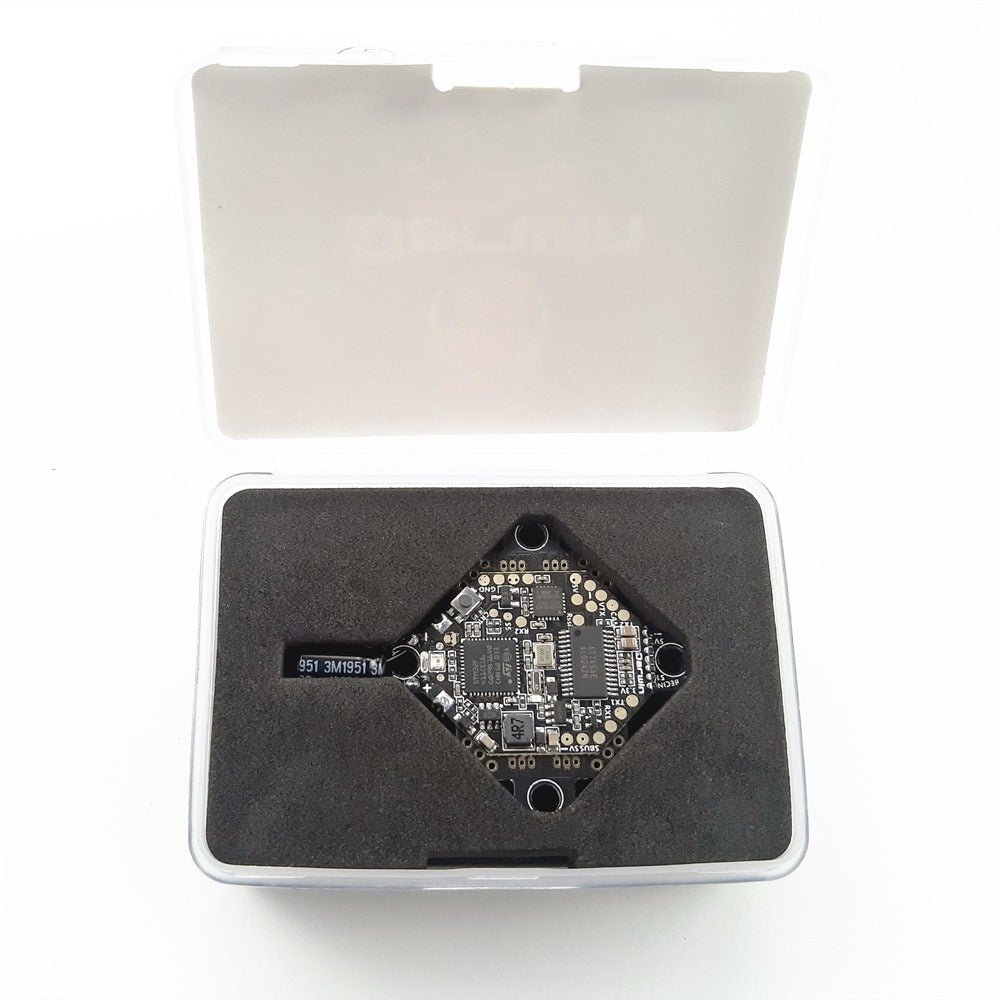

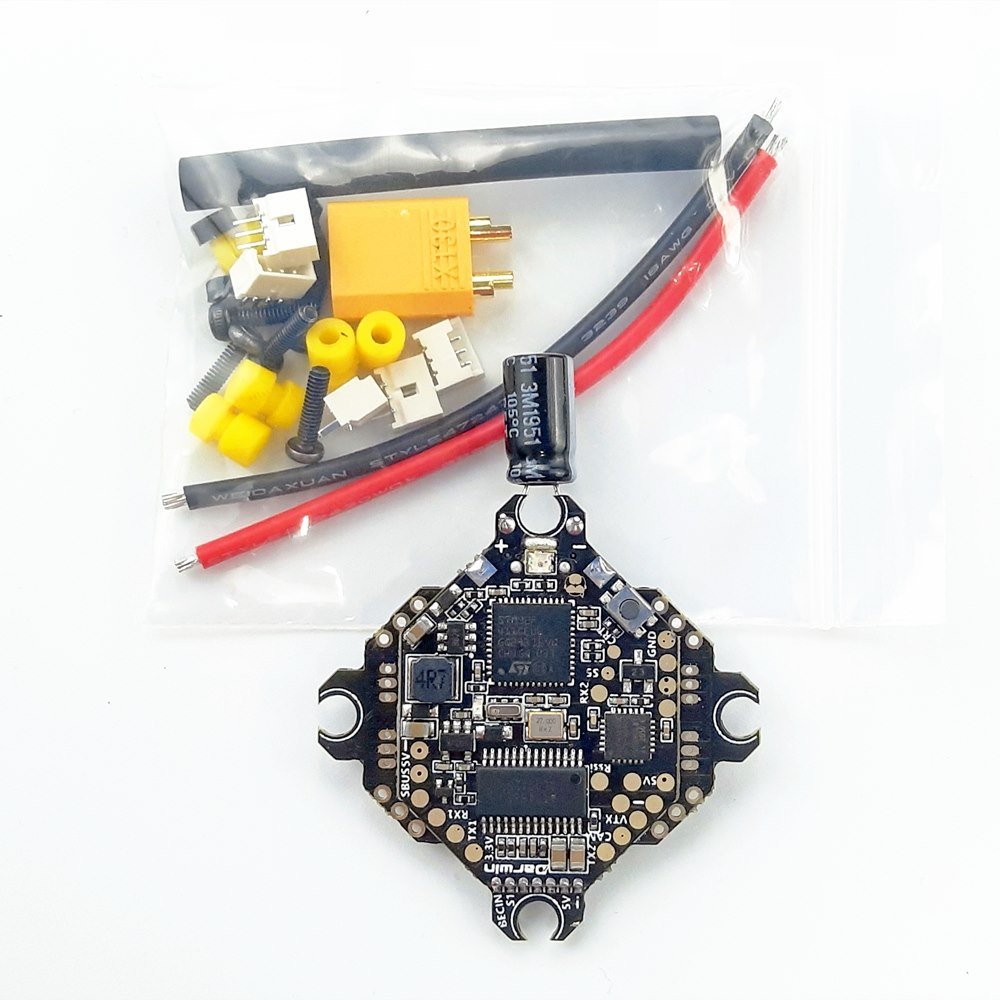

Package Includes:
- 1 x DarwinFPV 15A 1-3s Ultralight/Whoop AIO

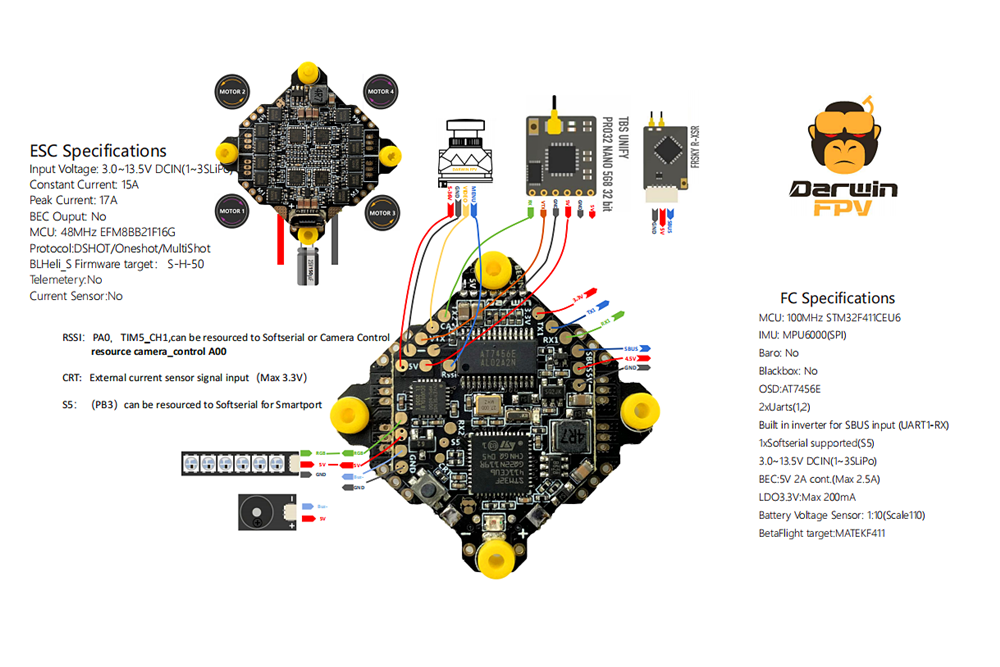

Wiring Diagram:
