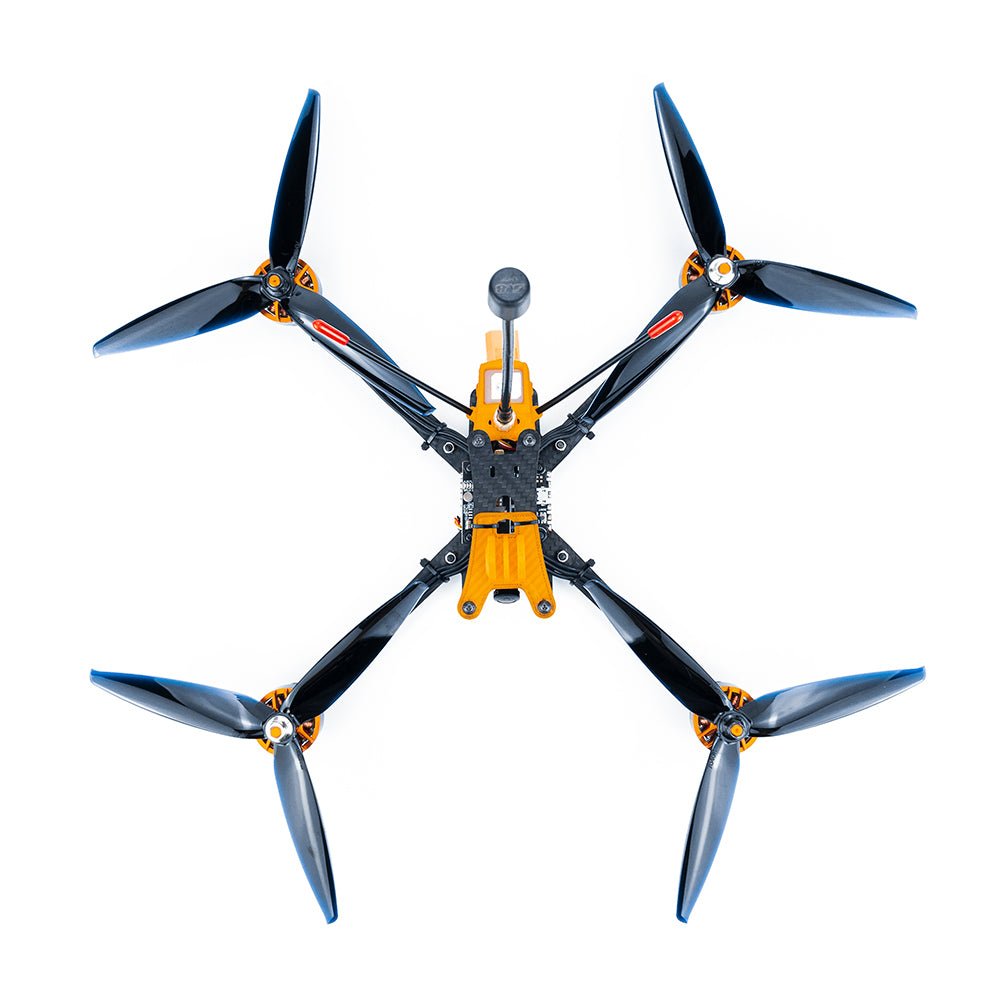

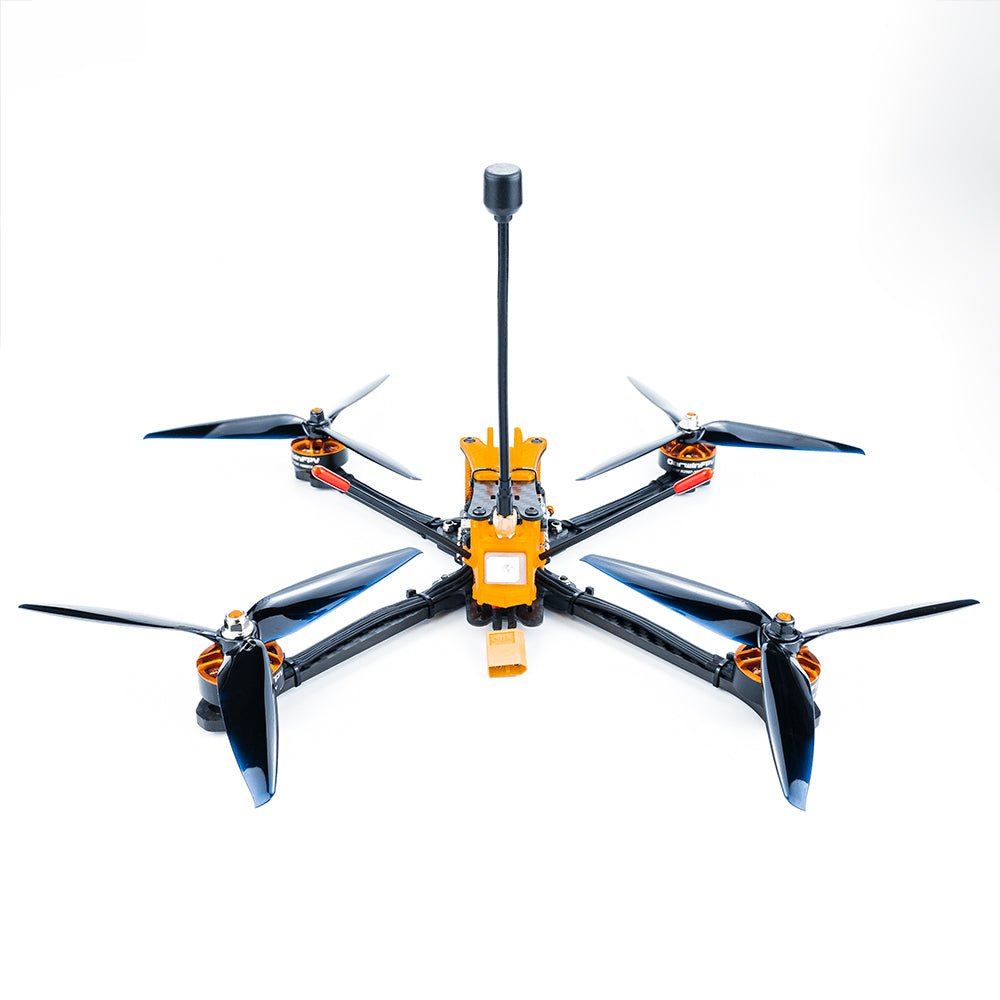

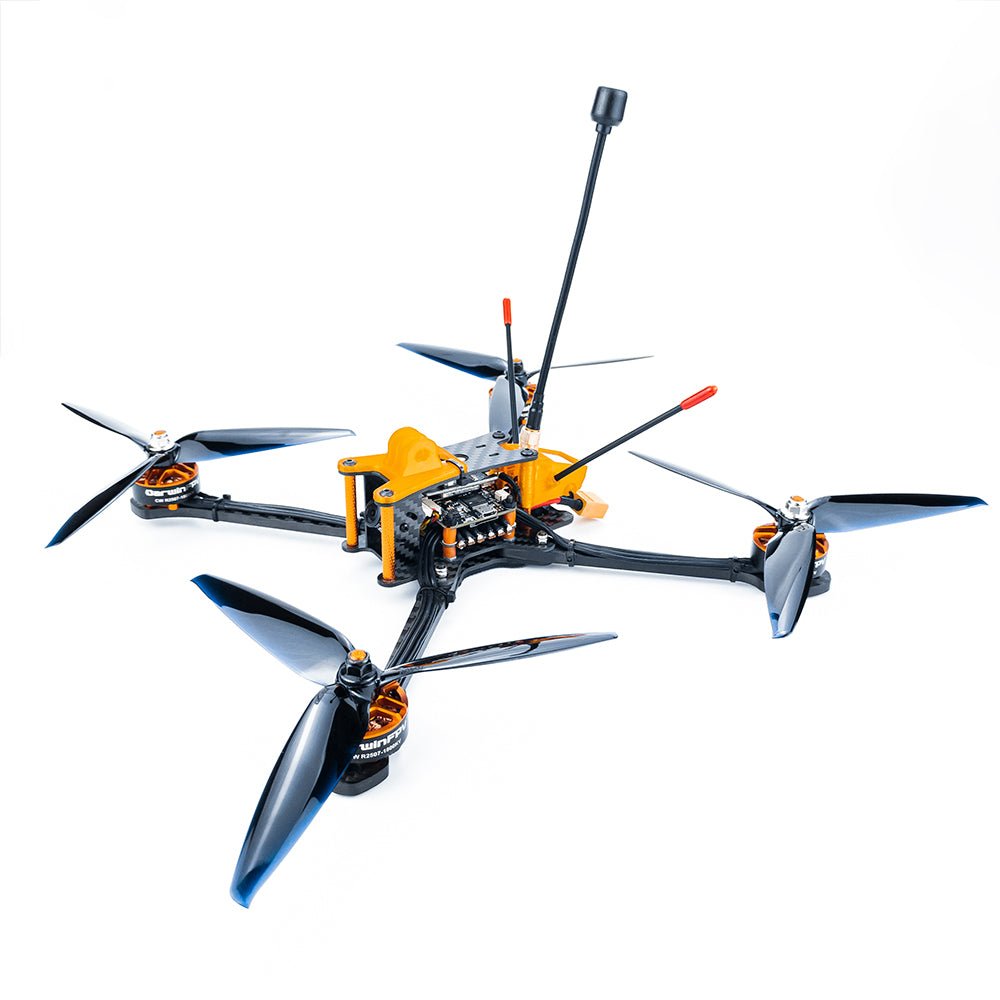

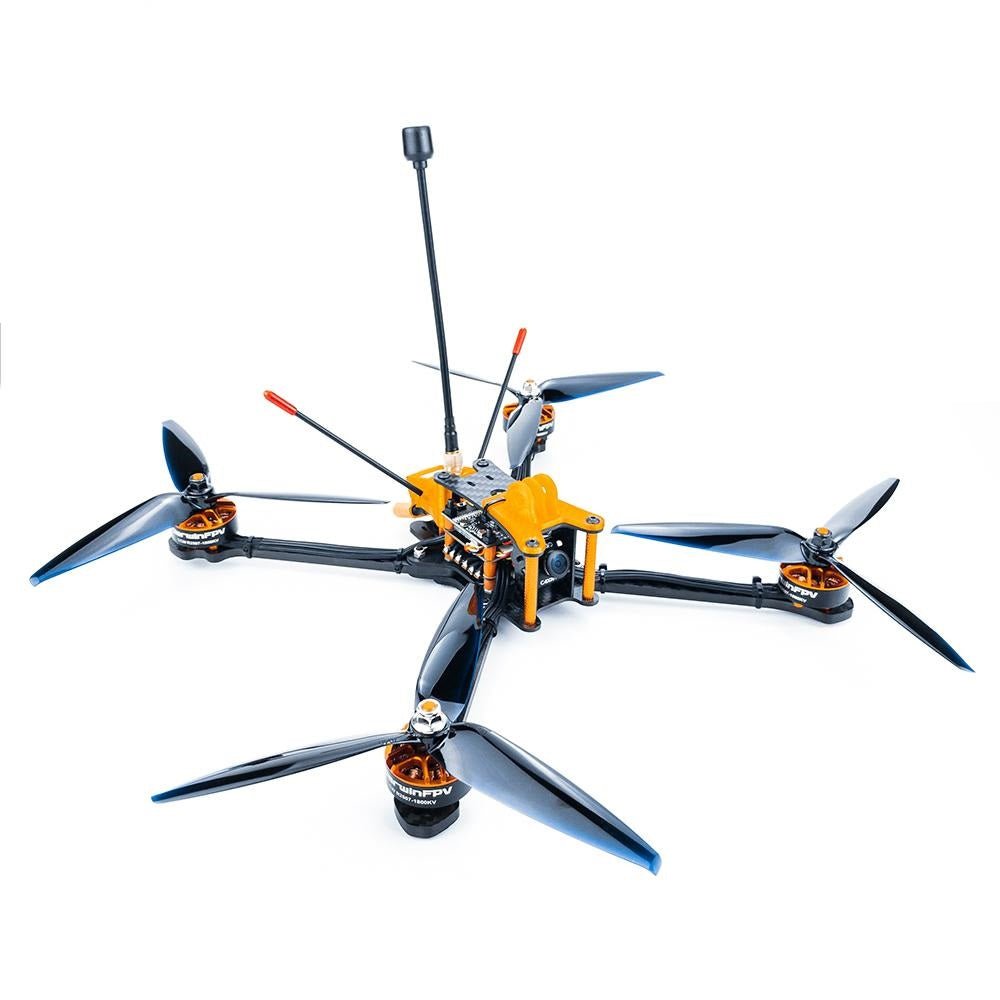

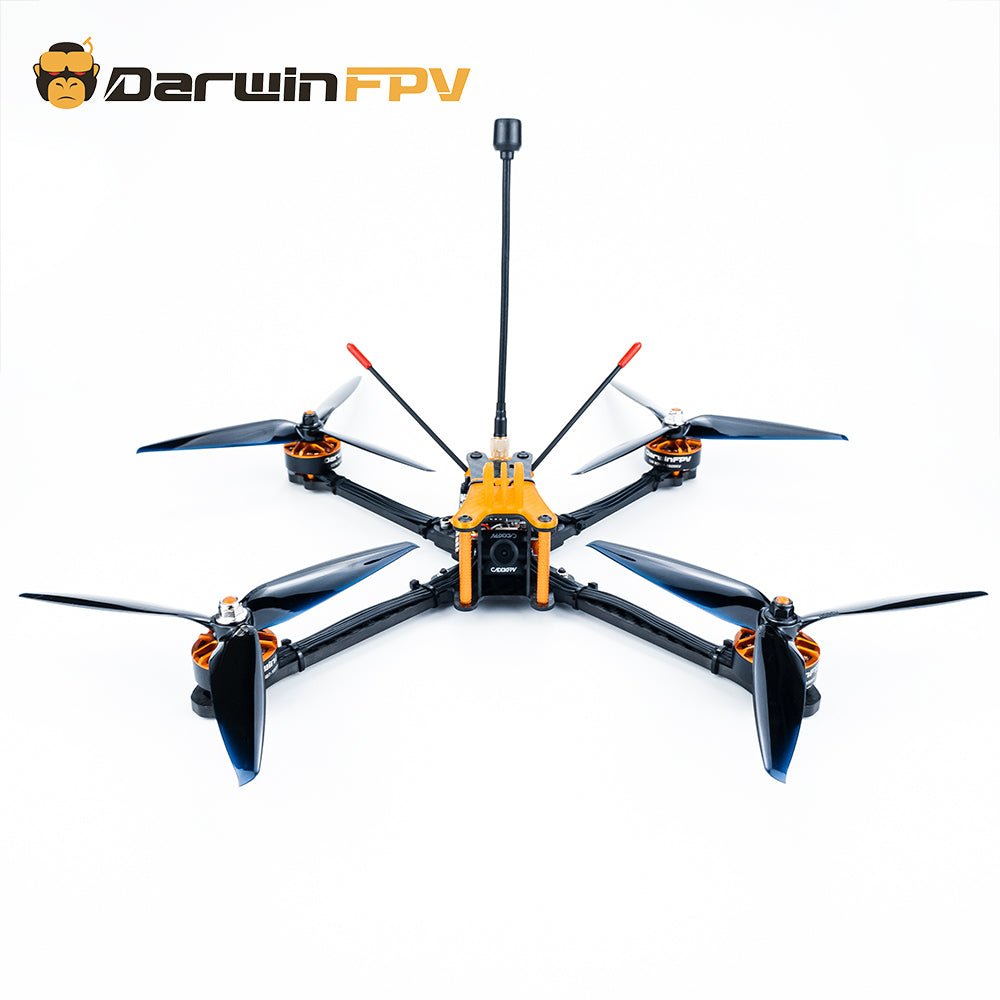

DarwinFPV Darwin129 7″ Long Range PNP

DarwinFPV Darwin129 7″ Long Range PNP

Check out all our Long Range BNF/PNP/RTFs and the rest of our DarwinFPV Products!

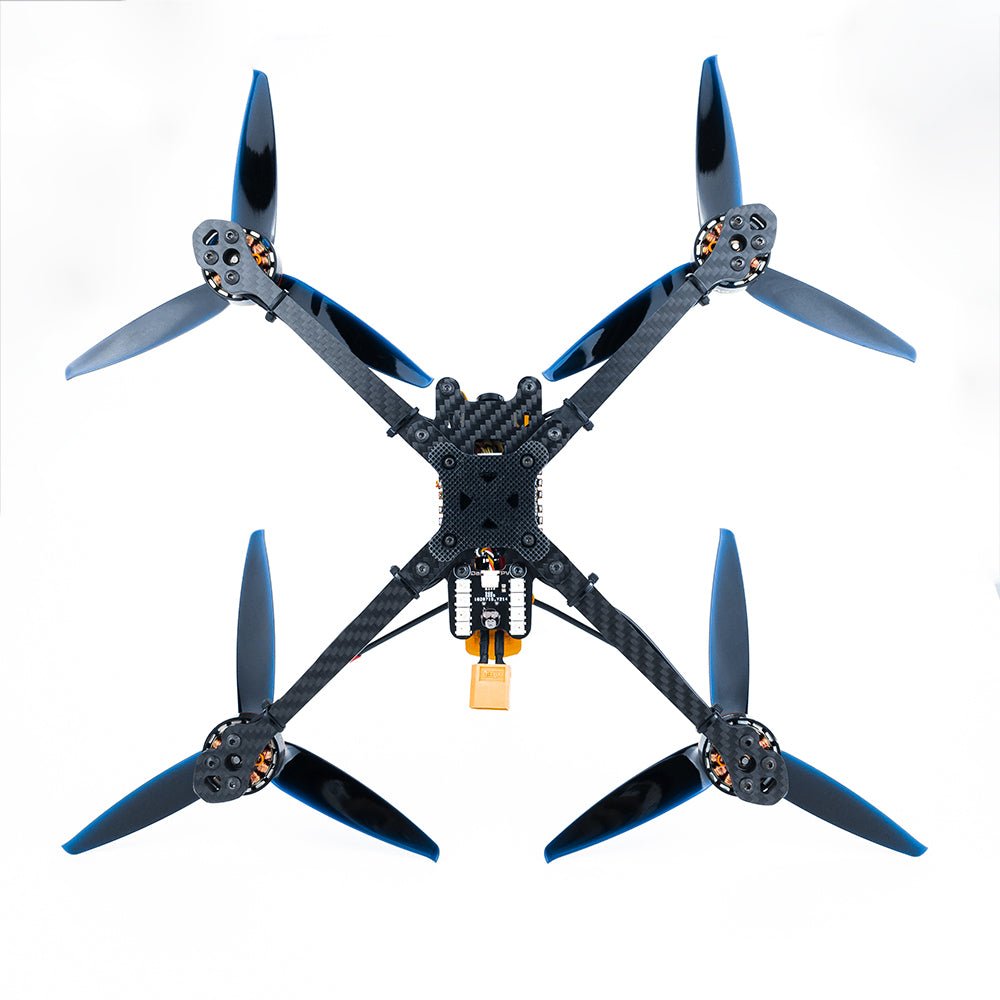

Darwin129:

• Wheel base: 280mm
• Frame arm thickness: 5mm
• Frame kit material: 3K carbon fiber

DarwinFPV:

• 2507 1800KV 3-5S
• Brushless Motor Motor KV:1800KV
• Idle Current (Io/10V):0.89A
• Lipo Cell:3-5S
• Weight:39g
• Max Continuous Current:42A
• Max Continuous Power:840W
• Max thrust:1488g(4S/7″)
• Configu-ration:12N/14P
• Motor Resistance (RM):0.0586 Ω
• Stator Diameter:25mm
• Stator Thickness:7mm
• Motor Diameter:30.8mm
• Motor Body Length:20mm
• Overall Shaft Length:35mm
• Prop adapter shaft:M5
• Bolt holes spacing:16mm
• Bolt thread: M3
• Propeller:7”

4 IN 1 50A:

• BLHeli_S ESC F4-50A stack
• Continuous current: 50A
• Peak current: 60A (10S)
• Lithium battery section number: 2-6S
• BEC: 5V2A
• ESC weight: 10.8g
• Firmware: BL_S
• Maximum support throttle signal: DSHOT600
• Mounting hole: M3 30.5 * 30.5mm

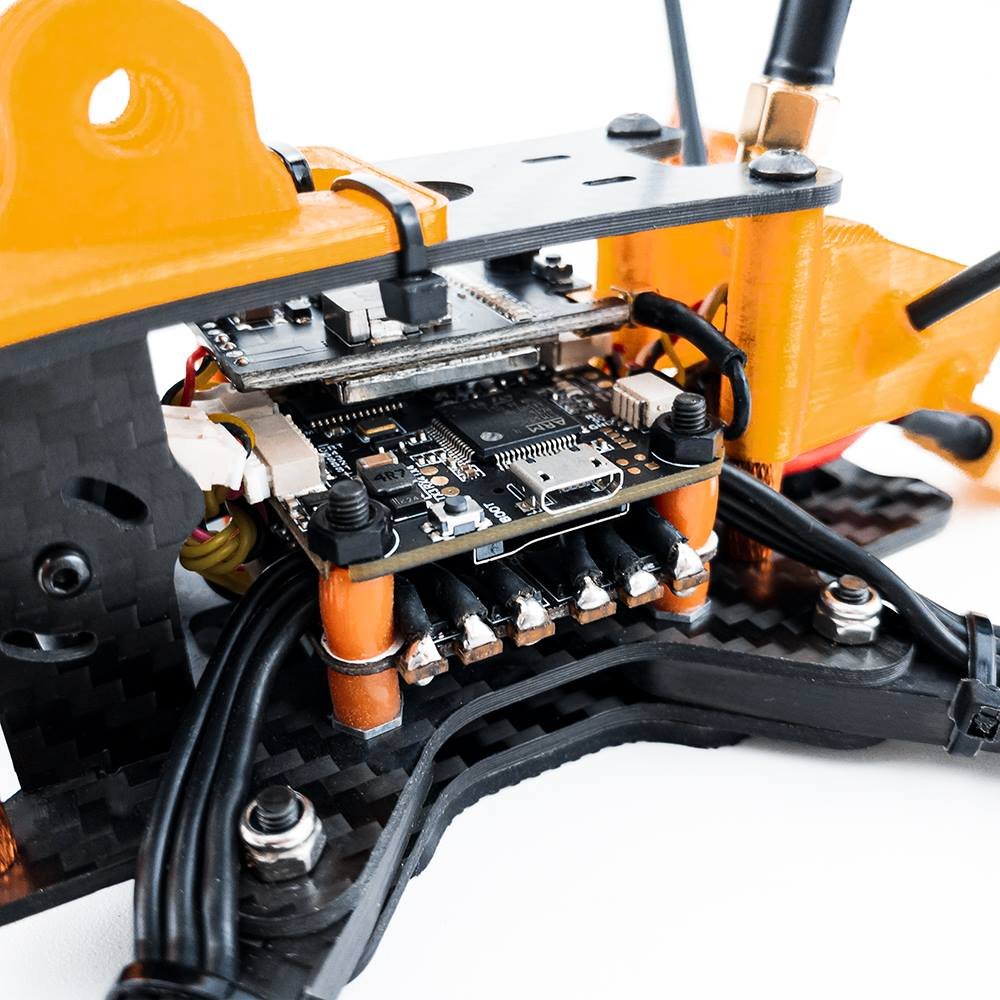

F4 Flight Controller F4 Flight controller:

• Lithium battery section number: 3-6S
• BEC: 10V 1A, 4.5V, 3.3V
• MCU: STM32F405
• Gyro: MPU6000
• OSD: AT7456E
• Firmware: MATEKF405
• Weight: 7.2g
• Mounting hole: M3 30.5 * 30.5mm
• Support barometer, black box
• Bluetooth

5.8G 40CH 800mw:

• VTX TX805 Item name: FPV Transmitter VTX
• Frequency: 5.8G Channels: 40CH
• Input voltage: 7V~24V
• 5V camera supply: 120mA(MAX)—-25mW@12V 5V
• camera supply: 200mA(MAX)—-200mW@12V 5V
• camera supply: 300mA(MAX)—-600mW@12V 5V
• camera supply: 350mA(MAX)—-800mW@12V Extra
• features: Smart audio
• Power supply: 5V output for Camera
• Output power: 25mW/200mW/600mW/800mW
• switchable Antenna connector: MMCX
• Cable connector: Solder pads
• Dimensions: 36mm*22mm*5mm,30.5 stackable hole
• Weight: 8g(excluding antenna)

CADDX Camera:

• Brand Name: Caddx
• Sensor: 1/1.8” Inch Starlight
• Resolution: 1200TVL
• FOV: 165°
• Lens: 2.1mm
• TV System: NTSC & PAL (switchable)
• Image: 4:3 & 16:9 (switchable)
• WDR: Super WDR
• DNR: 3DNR
• Min. Illumination: 0.0001LUX
• Video Output: CVBS
• Day/Night: Auto/Color/B&W/EXT
• Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000
• Wide Power Input: 5-40V
• Working Temperature: -20℃ ~ +60 ℃
• Weight: 5.9g
• Dimension: 19*19*20mm

Darwin M80 GPS Item Name:GPS+GLONASS:

• Power Supply:5V
• Support Rate:115200dps
• Receiving Sensitivity:Trace-167dBm Capture-160dBm
• Size:18mm*18mm*7.1mm
• Gemfan Flash 7040-3
• Flash Durable 3 Blade
• 7040-Clear 2L2R Material: PC
• Mounting hole: 5mm
• Center thickness: 8mm
• Quantity: 2 pairs
• Weight: 7.9g
• Color:Black/Transparent by random
• Lipo Battery Not included
• Recommend 4S

Package Includes:

• 1 x DarwinFPV Darwin129 7″ Long Range PNP

Does not include battery, charger, receiver or remote controller.
