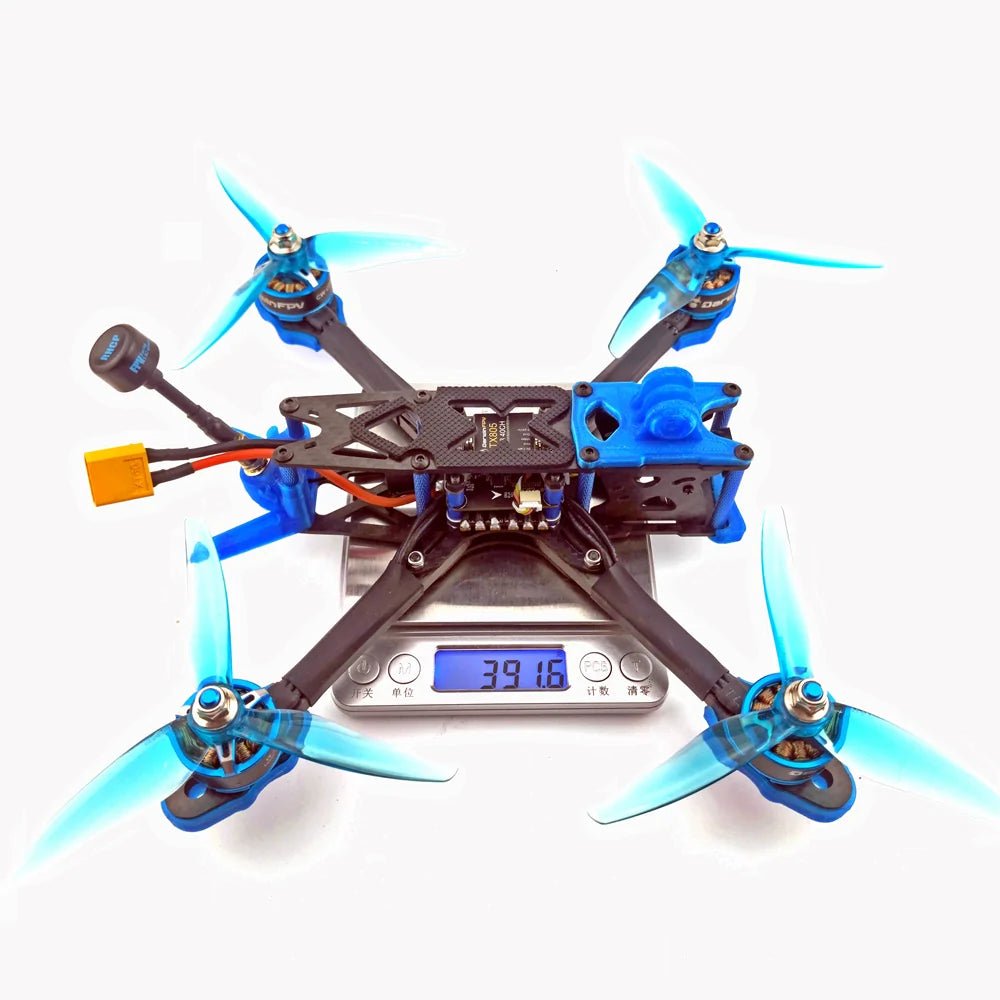

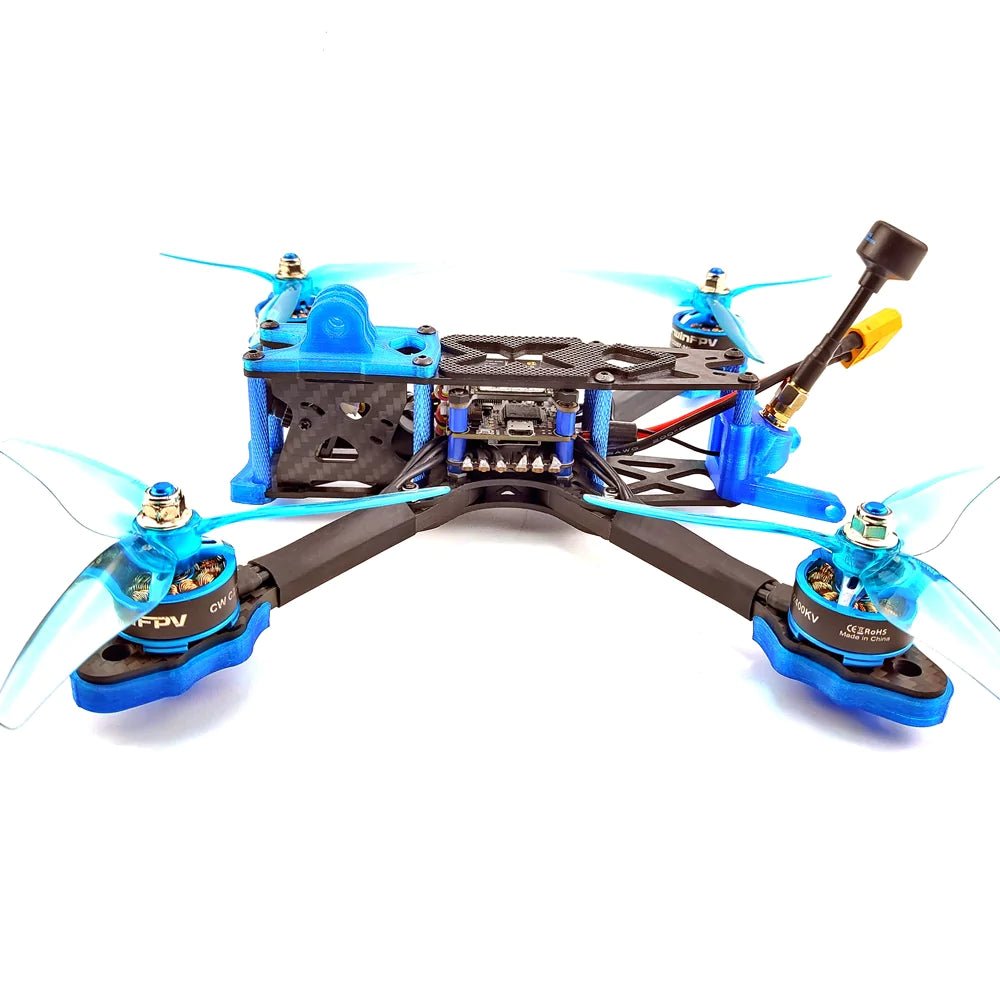

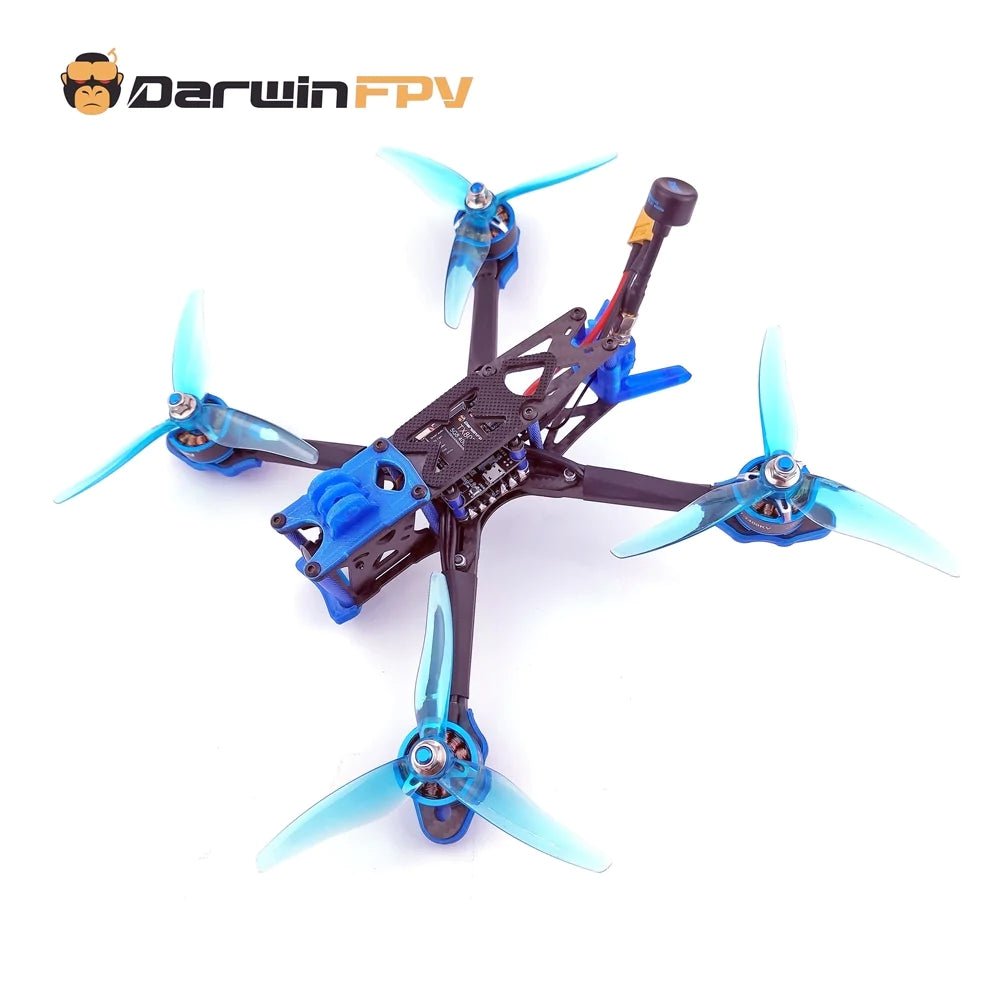

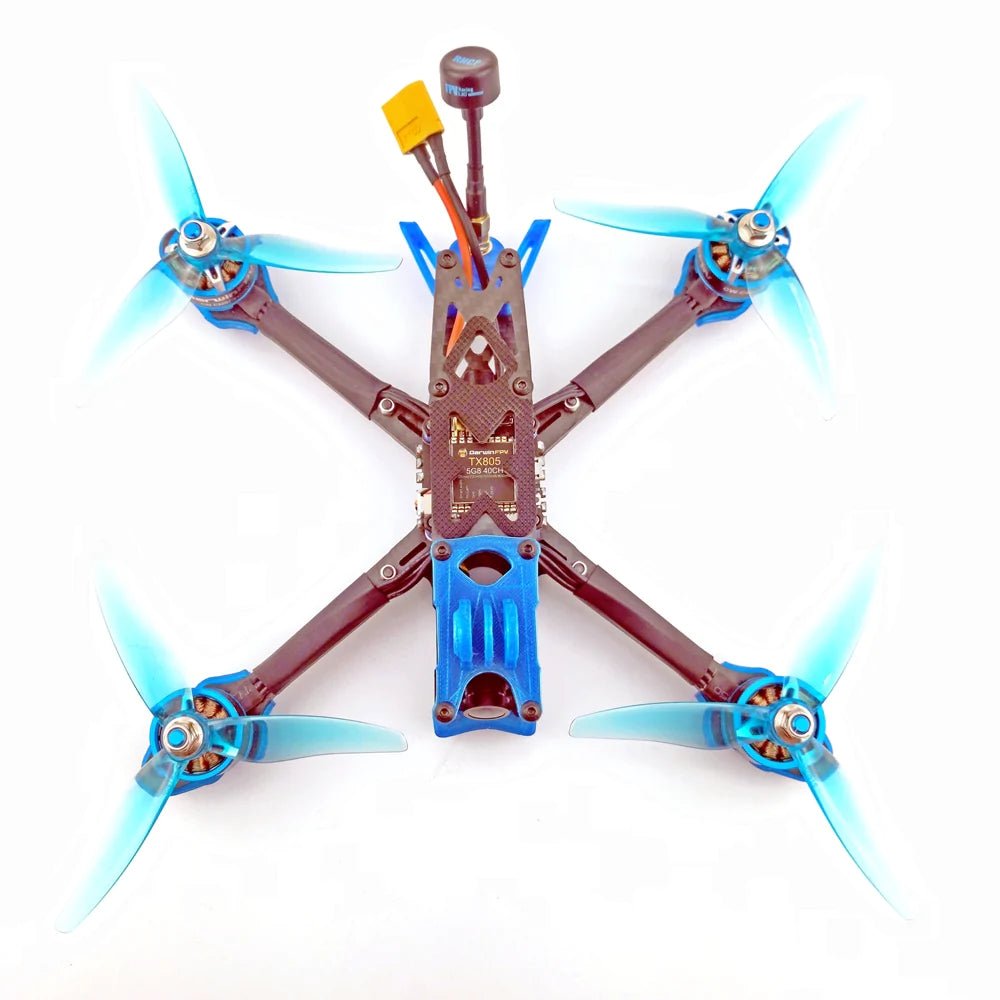

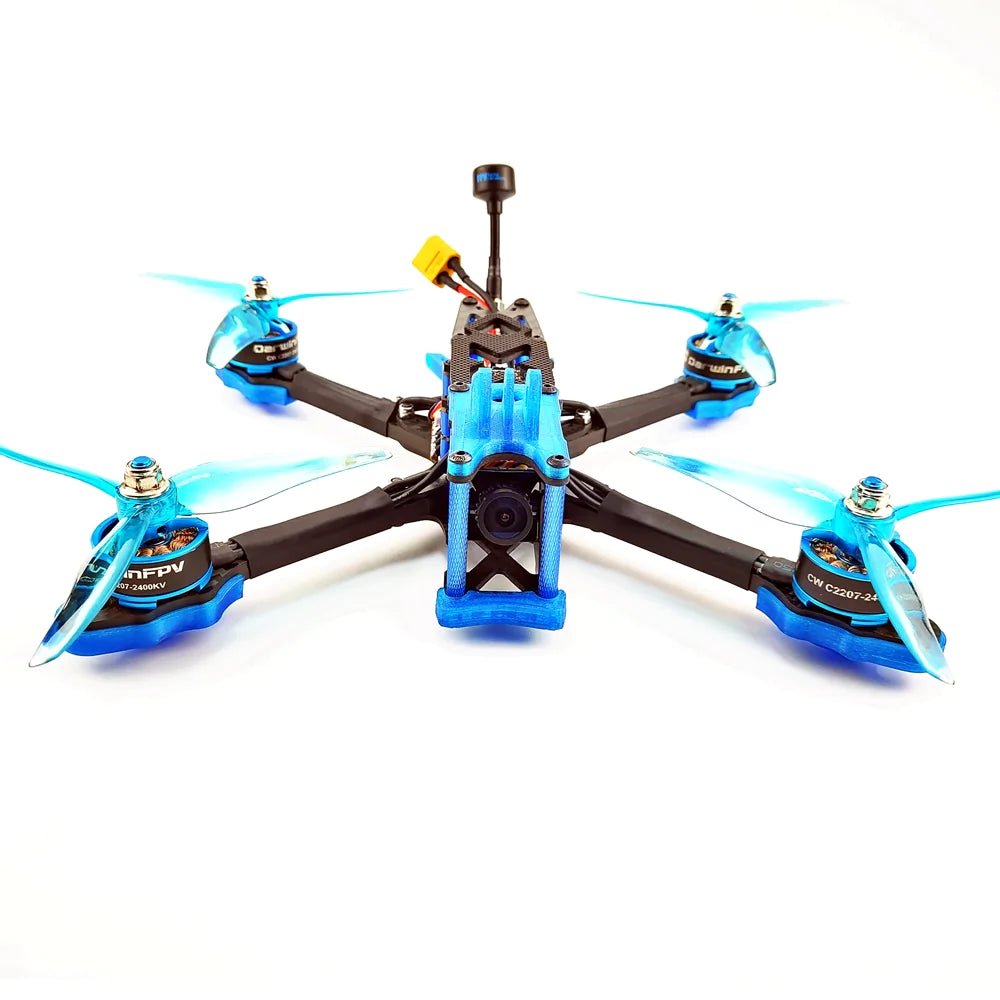

DarwinFPV Darwin240 Johnny 5 Freestyle 5″ FPV Drone – PNP

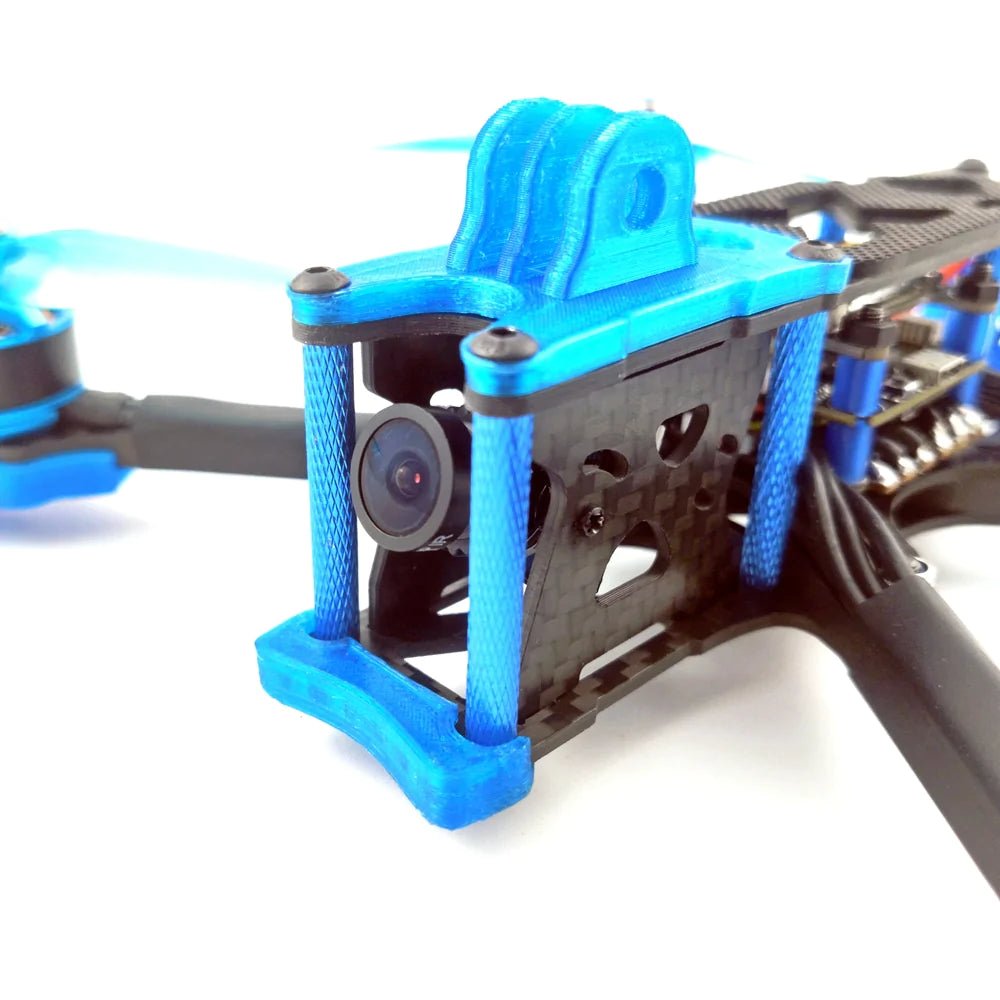

The Darwin240 Johnny5 Freestyle is the first 5” drone from DarwinFPV. This is a great entry level drone to get you into the hobby. Just add a receiver of your choosing and your off in flying in no time! It even includes a TPU GoPro Hero 8 tab style mount so you can get that juicy footage. Pick up yours today!

Check out all our Analog BNF Drones and the rest of our DarwinFPV Products!

Darwin240 Frame Specifications

• Wheel base: 240mm
• Frame arm thickness: 5.5mm
• Frame kit material: 3K carbon fiber

DrawinFPV 2207- 2400KV Brushless Motor Specifications

• Motor KV: 2400KV
• Idle Current (Io/10V): 0.81A
• Lipo Cell: 3-4S
• Weight: 36.4g
• Max Continuous Current: 32A
• Max Continuous Power: 765W
• Configu-ration: 12N/14P
• Prop adapter shaft: M5
• Bolt holes spacing: 16mm
• Bolt thread: M3

4 IN 1 50A BLHeli_S ESC Specifications

• F4-50A stack
• Continuous current: 50A
• Peak current: 60A (10S)
• Lithium battery section number: 2-6S
• BEC: 5V2A
• ESC weight: 10.8g
• Firmware: BL_S
• Maximum support throttle signal: DSHOT600
• Mounting hole: M3 30.5 * 30.5mm

F4 Flight Controller Specifications

• F4 Flight controller
• Lithium battery section number: 3-6S
• BEC: 10V 1A, 4.5V, 3.3V
• MCU: STM32F405
• Gyro: MPU6000
• OSD: AT7456E
• Firmware: MATEKF405
• Weight: 7.2g
• Mounting hole: M3 30.5 * 30.5mm
• Support barometer, black box
• Bluetooth

TX805P 5.8GHz 37CH 800mw VTX Specifications

• Frequency: 5.8G Channels: 37CH
• Input voltage: 7V~24V
• 5V camera supply: 120mA(MAX)—-25mW@12V 5V
• camera supply: 200mA(MAX)—-200mW@12V 5V
• camera supply: 300mA(MAX)—-600mW@12V 5V
• camera supply: 350mA(MAX)—-800mW@12V Extra
• features: Smart audio
• Power supply: 5V output for Camera
• Output power: 25mW/200mW/600mW/800mW
• switchable Antenna connector: MMCX
• Cable connector: Solder pads
• Weight: 8g(excluding antenna)

Includes:

• 1 x DarwinFPV Darwin240 Johnny5 Freestyle 5″ FPV Drone – PNP
