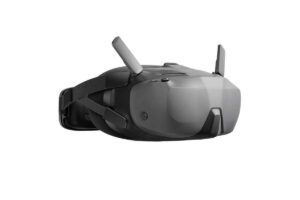

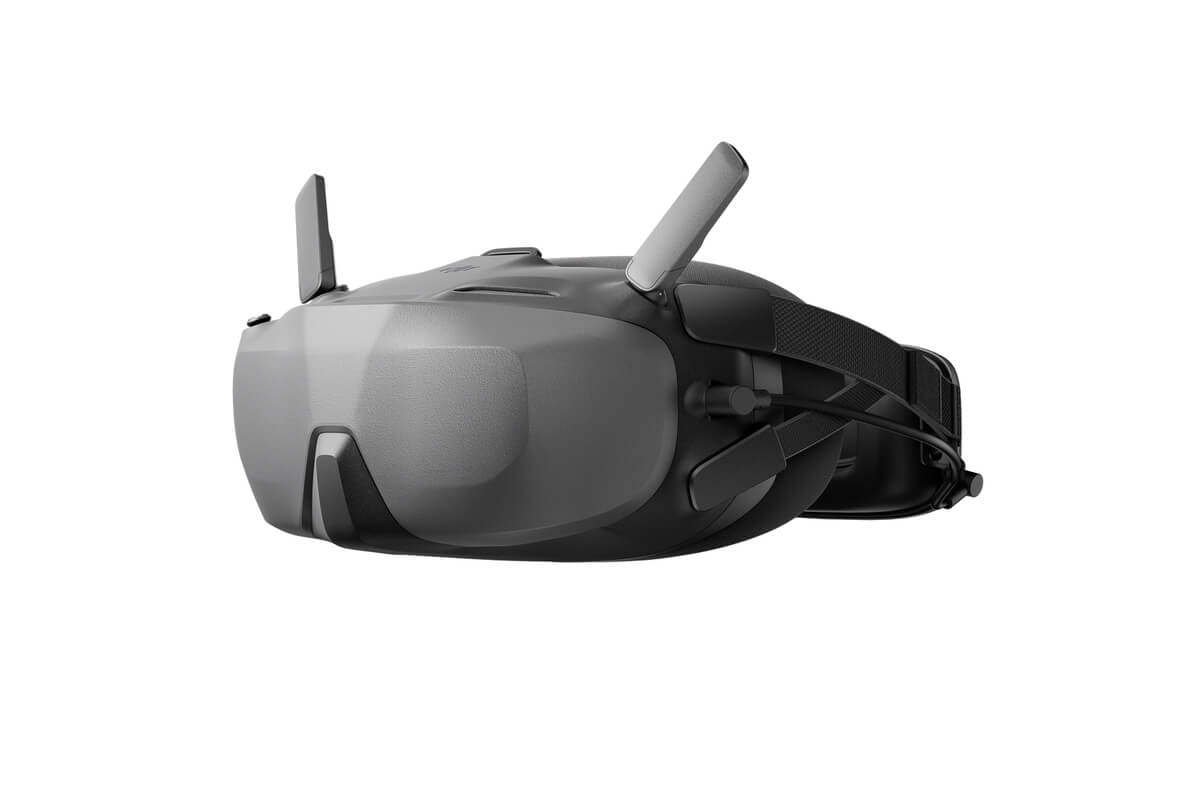

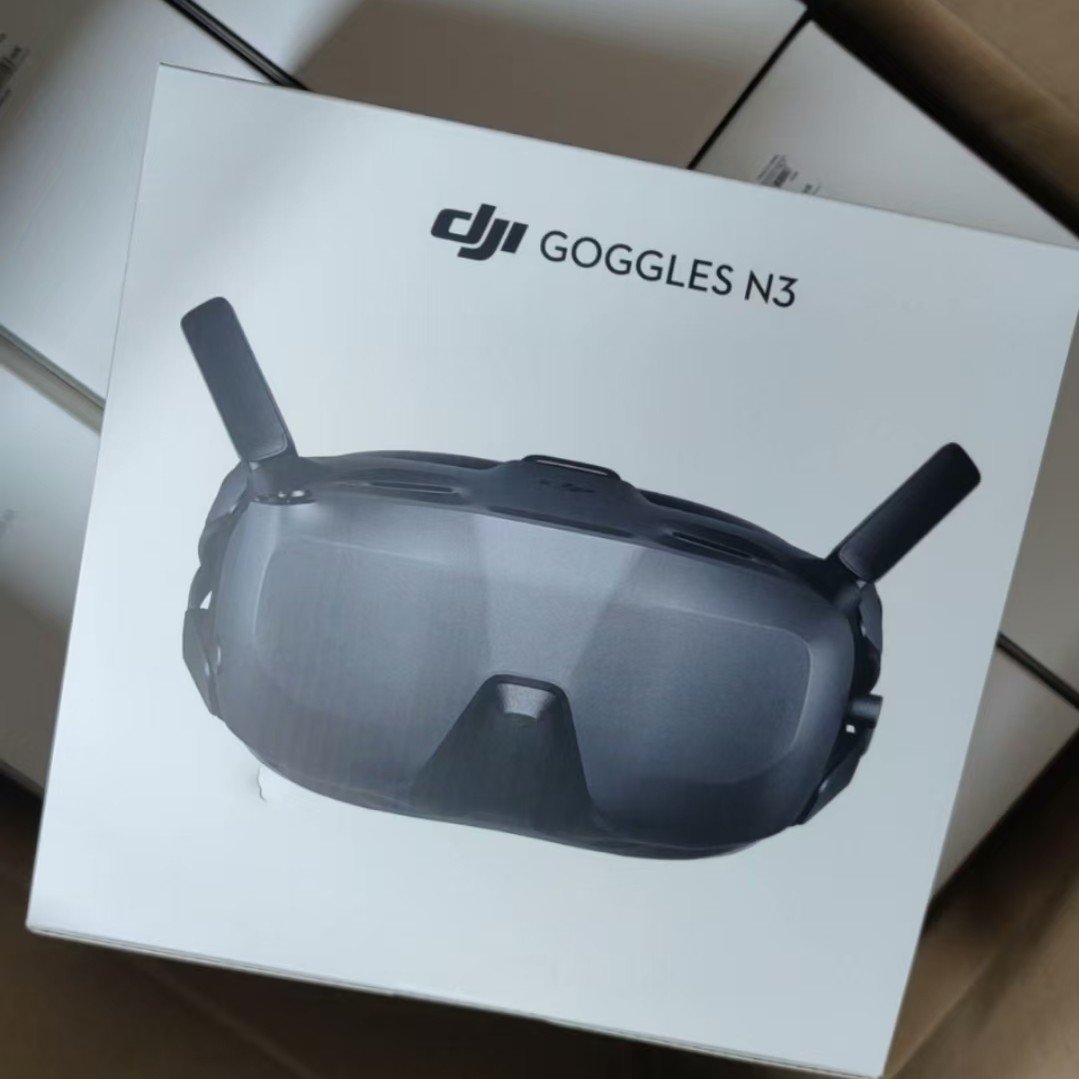

DJI FPV Goggles N3 (DJI N3)

DJI FPV Goggles N3 (DJI N3) Core Technical Specifications

Display Core Specifications

• Display Type: Dual Micro-OLED Screens
• Resolution: 1920×1080 (1080p) per eye
• Max Refresh Rate: 100fps
• Field of View (FOV): Up to 41° (diagonal)
• Minimum End-to-End Latency: 4ms (paired with DJI O3 Air Unit, 720p/120fps mode)
• Brightness: 500nits typical, 600nits peak
• Contrast Ratio: 100000:1
• Aspect Ratio: 16:9
• IPD Adjustment: 59mm-69mm, stepless adjustment

Hardware & Performance Specifications

• Net Weight: 260g (without headband and battery)
• Operating Frequency Bands: 2.4GHz, 5.8GHz (dual-band dynamic frequency hopping)
• Max Transmission Range: 10km (FCC compliance, paired with O3 Air Unit)
• Video Input: Wireless DJI digital FPV transmission, USB-C wired video input for simulators
• Audio: Built-in mono speaker, 3.5mm headphone jack
• Diopter Adjustment: -8.0D to +2.0D, supports third-party prescription lens inserts
• Operating Voltage: 2S LiPo Battery (7.4V-8.4V)
• Battery Life: Up to 2 hours (with included 2S 4950mAh battery)
• Power Consumption: ≤10W (typical operation)
• Operating Temperature: -10℃ ~ 40℃
• Storage Temperature: -20℃ ~ 60℃

DJI Ecosystem Compatibility

• Compatible Drones & Transmission Systems: DJI Avata 2, DJI O3 Air Unit
• Compatible Remote Controllers: DJI FPV Remote Controller 3, DJI RC Motion 3
• Compatible Flight Controllers: DJI Ace Series, Betaflight, INAV, ArduPilot (with O3 Air Unit integration)
• Software Support: DJI Fly App, DJI Assistant 2 (FPV Series) for firmware updates and configuration

Key Features & Benefits of DJI FPV Goggles N3 (DJI N3)

• Ultra-Lightweight Ergonomic Design for Extended Comfort: Weighs only 260g (without battery and headband) – 10% lighter than the DJI FPV Goggles 3 – with an optimized low-profile faceplate, breathable memory foam padding, and stepless 59-69mm IPD adjustment, drastically reducing facial pressure and fatigue for long FPV sessions, making it ideal for new pilots and extended cinematic flights.
• Ultra-Low 4ms Latency for Intuitive FPV Control: Delivers a minimum 4ms end-to-end latency when paired with the DJI O3 Air Unit and Avata 2, eliminating video lag for precise, intuitive flight control – perfect for freestyle maneuvers, close-quarters cinematic flying, and new pilot training, with a smooth 100fps max refresh rate for fluid motion.
• Crystal-Clear Dual 1080p Micro-OLED Screens: Dual 1080p per eye Micro-OLED screens with 100000:1 contrast ratio and 600nits peak brightness deliver vibrant, true-to-life image quality with deep blacks and crisp detail, ideal for cinematic aerial videography, detailed inspection, and immersive FPV flying.
• Dual-Band Anti-Interference Stable Reception: Dynamic frequency hopping across 2.4GHz and 5.8GHz bands, with high-gain integrated antennas, ensuring uninterrupted video reception up to 10km (FCC) in line-of-sight conditions, with reliable performance even in moderately crowded urban and suburban environments.
• Seamless Plug-and-Play DJI Ecosystem Integration: Fully native plug-and-play compatibility with the DJI Avata 2 and DJI O3 Air Unit, with one-touch auto-pairing, no manual configuration required for out-of-the-box operation. Perfect for Avata 2 owners looking for a lightweight, high-performance goggle upgrade or replacement.
• All-Day Battery Life & Flexible Power: Includes a 2S 4950mAh battery for up to 2 hours of continuous operation, with support for third-party 2S LiPo batteries for extended runtime. The external battery design allows for quick hot-swapping during long FPV sessions, with balanced weight distribution for optimal comfort.
• Accessible for Glasses Wearers & New Pilots: Built-in diopter adjustment from -8.0D to +2.0D, with full support for third-party prescription lens inserts, eliminating the need to wear glasses inside the goggles. The intuitive, user-friendly interface and simplified setup make it the perfect entry point for new digital FPV pilots.

Ideal Applications & Use Cases

The DJI FPV Goggles N3 (DJI N3) are purpose-built for consumer and entry-level professional FPV applications, including:

• DJI Avata 2 immersive FPV flying and cinematic videography
• Entry-level FPV freestyle and drone racing training
• Consumer aerial cinematography and content creation
• Lightweight industrial and residential property inspection
• FPV drone simulator training (via USB-C wired input)
• Recreational long-range FPV exploration
• University and educational drone training programs

Setup & Compatibility Guide

• Pairing: One-touch auto-pairing with DJI Avata 2 and DJI O3 Air Unit, with step-by-step on-screen prompts for seamless setup in under 60 seconds.
• Power Supply: Connect to the included 2S 4950mAh battery via the pre-installed XT30 power cable, with reverse polarity protection for safe, worry-free operation.
• IPD & Diopter Adjustment: Stepless IPD adjustment from 59mm to 69mm for perfect image alignment and clarity, with built-in diopter adjustment from -8.0D to +2.0D for most vision needs.
• Flight Controller Integration: Native telemetry overlay support for DJI flight controllers, with customizable OSD elements for real-time flight data, and compatibility with Betaflight/INAV/ArduPilot via the O3 Air Unit.
• Firmware Updates: Simple, one-click firmware updates via the DJI Fly App for access to the latest features, performance improvements, and bug fixes.

Frequently Asked Questions (FAQs)

What is the minimum latency of the DJI FPV Goggles N3?

The DJI FPV Goggles N3 deliver a minimum end-to-end latency of 4ms when paired with the DJI O3 Air Unit in 720p/120fps mode, with 1080p/60fps mode delivering ≤15ms latency for cinematic video.

What drones and transmission systems are compatible with the DJI N3 FPV Goggles?

The DJI FPV Goggles N3 are fully compatible with the DJI Avata 2 and DJI O3 Air Unit digital video transmission system, with plug-and-play pairing and full native feature support.

What is the difference between DJI FPV Goggles N3 and DJI FPV Goggles 3?

The DJI FPV Goggles N3 is a lightweight, accessible model optimized for the DJI Avata 2 and O3 system, with a 260g weight, dual-band reception, and 10km max range. The DJI FPV Goggles 3 is a flagship model with 4-band anti-interference, 20km max range, lower 2.5ms minimum latency, and compatibility with O3/O4/O4 Pro transmission systems.

Can you wear glasses with the DJI FPV Goggles N3?

Yes. The DJI FPV Goggles N3 feature built-in diopter adjustment from -8.0D to +2.0D, and full support for third-party prescription lens inserts, making them fully accessible for glasses wearers.

What is the battery life of the DJI N3 FPV Goggles?

The DJI FPV Goggles N3 deliver up to 2 hours of continuous operation with the included 2S 4950mAh LiPo battery, with support for third-party 2S batteries to extend runtime for long FPV sessions.

Are the DJI FPV Goggles N3 compatible with the DJI O4/O4 Pro transmission system?

The DJI FPV Goggles N3 are purpose-built for the DJI Avata 2 and O3 Air Unit. For compatibility with the DJI O4 and O4 Pro transmission systems, we recommend the flagship DJI FPV Goggles 3.
