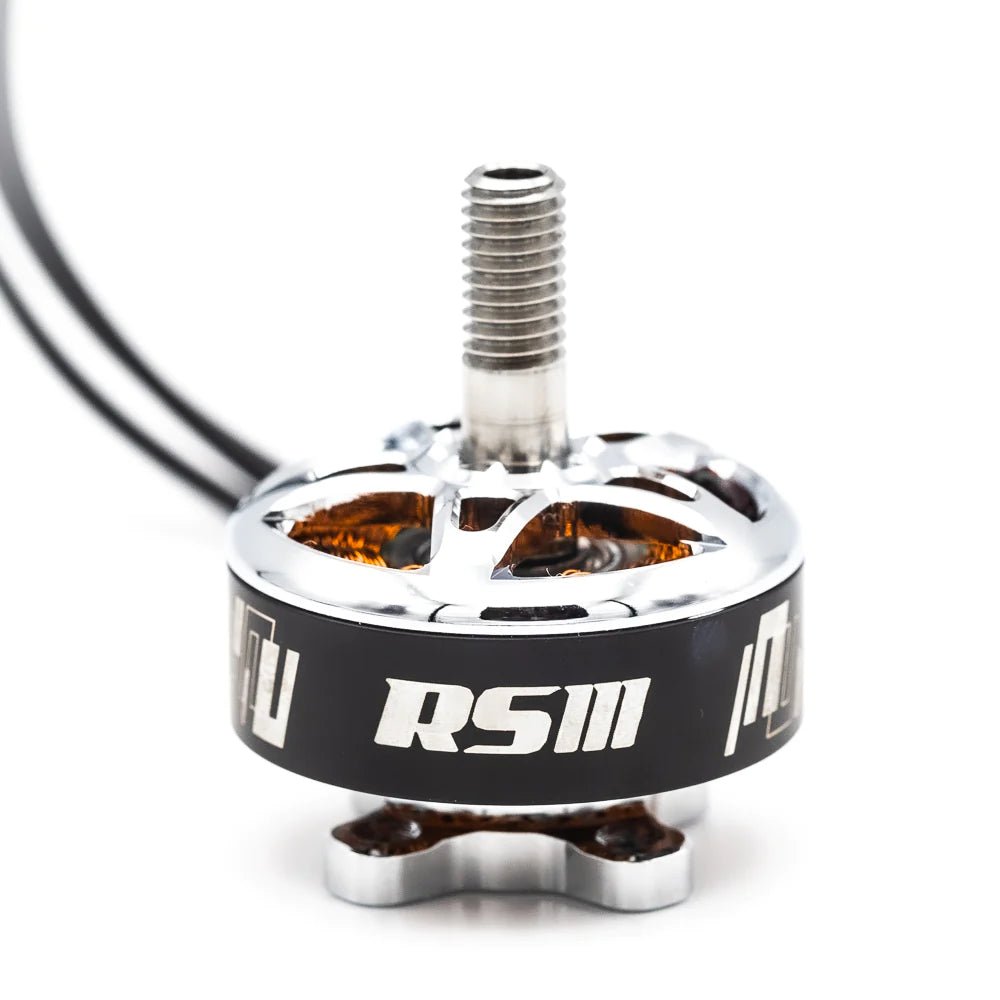

Emax RSIII 2306 1800KV FPV Racing Motor

Emax RSIII Series, the newest addition to the prestigious lineage of racing motors, built with the purpose to revolutionize the world of Drone racing.

Designed from the ground up, this performance racing motor is engineered for unrivaled speed, precision, and endurance.

Available in 3 KVs:

• 1800KV
• 2100KV
• 2500KV

Checkout all our 2306 and 2306.5 motors and the rest of our Emax Products!

Features:

• Staggeringly light 29.3g with 2cm wires for the 2207 size makes the EMAX RS3 one of the lightest racing motors available. Available in 1800kv/2100kv/2500kv as well as 2306 stator size for those who desire a lightweight freestyle motor or low end torque race motor.
• While the RS3 is extremely lightweight, no attention was spared towards the durability of this platform. EMAX took what they learned with the near indestructible ECO II line and applied this to the RS3 to provide high performance without the sacrifice of durability that many race motors make.
• The RS3 has been under testing for the last 6 months with the fastest pilots on the planet to truly test the limits in terms of capability to withstand heat. The feedback from these pilots has been that the EMAX RS3 withstands excessive heat on 2100kv 6S without burning unlike any other motor they have tested to date.

Specifications:

• Framework: 12N14P

• Length: 32mm

• Diameter: 27.3mm
• No.of cells: 3-6S 1800Kv
• Propeller: 5″-5.5″

• Weight: 27.9g(W/O Silicone Wire)  1800Kv
• Prop adapter shaft thread: M5

• Bearing Shaft: 4mm

• Shaft Thread: CW
• Lead: 20#AWG 120mm
• Idle Current (10V): 1.1A
• Internal Resistance: 68mΩ
• Peak Current (6S): 34A
• Max Power (6S): 860W

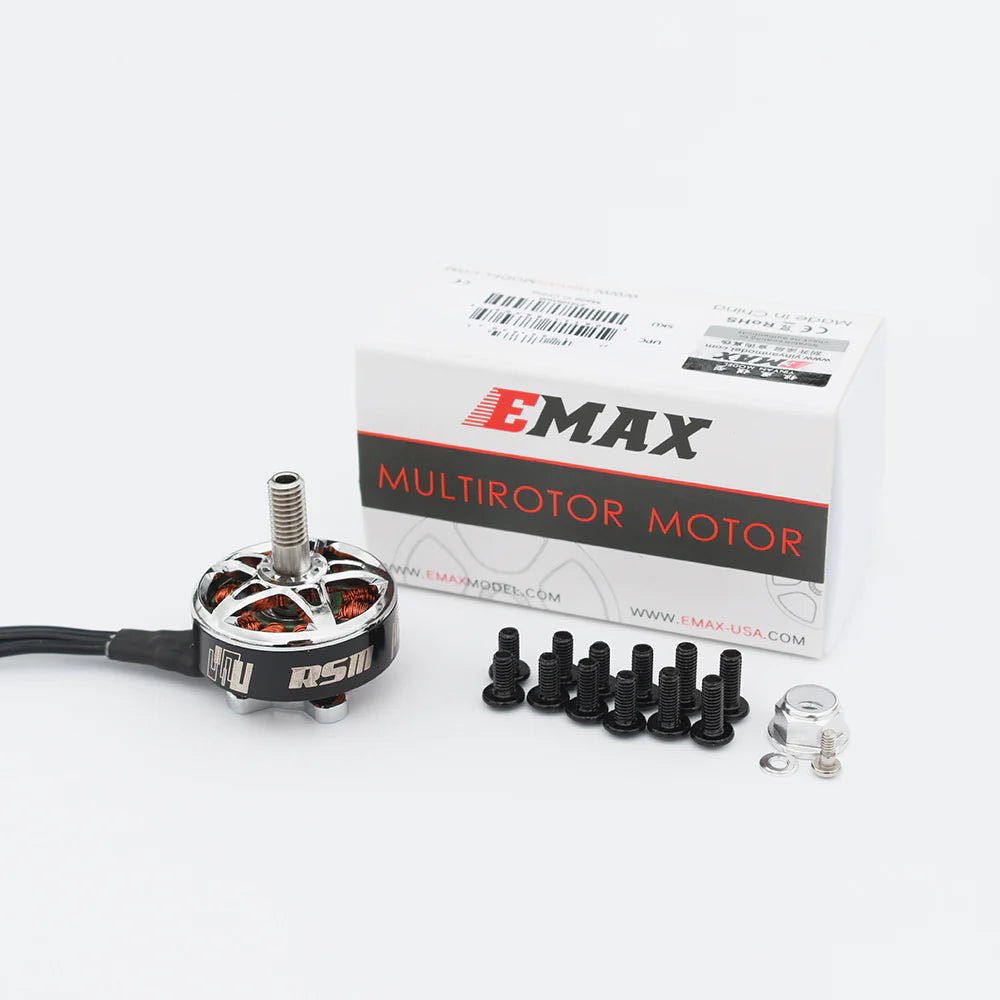

Package Includes:

• 1 x Emax RSIII 2306 1800KV FPV Racing Motor
• 5 x M3x8 Screw

• 5 x M3x7 Screw

• 5 x M3x6 Screw

• 1 x Aluminum M5 nylock nut

• 1 x Washer and Screw for shaft
