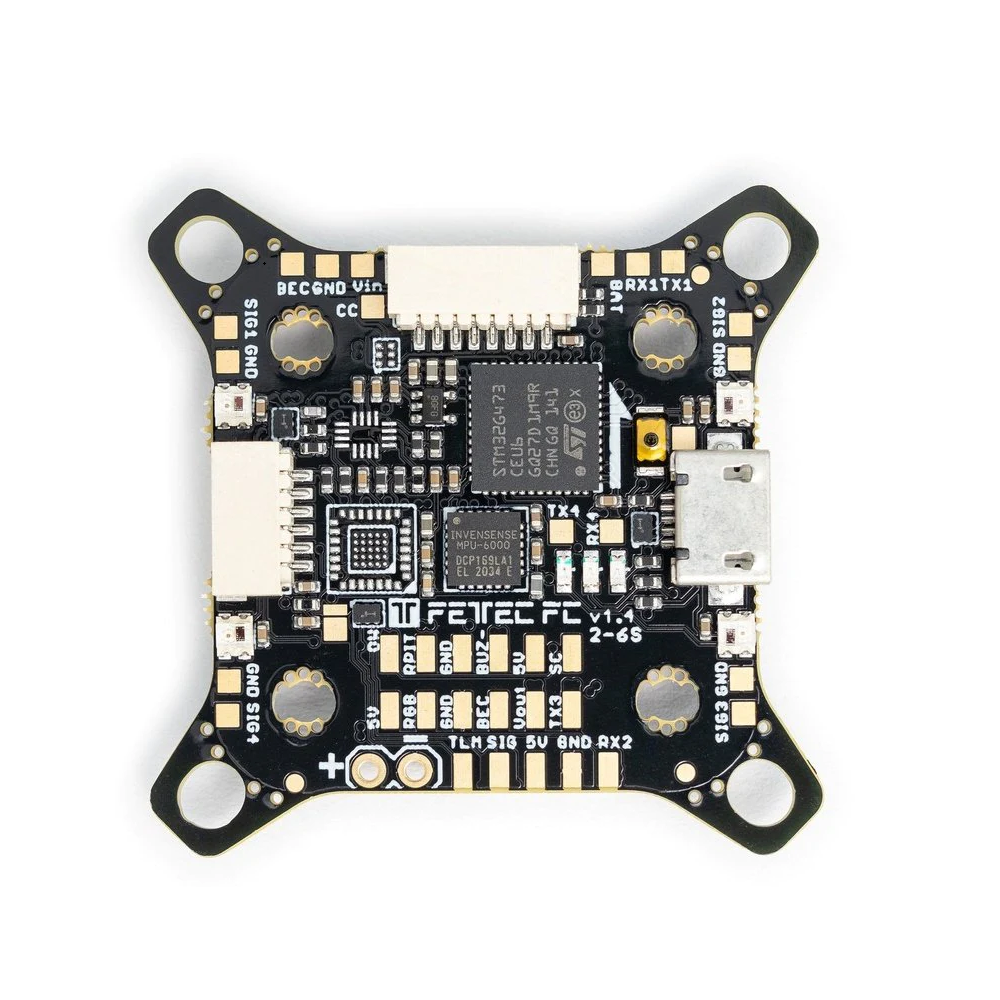

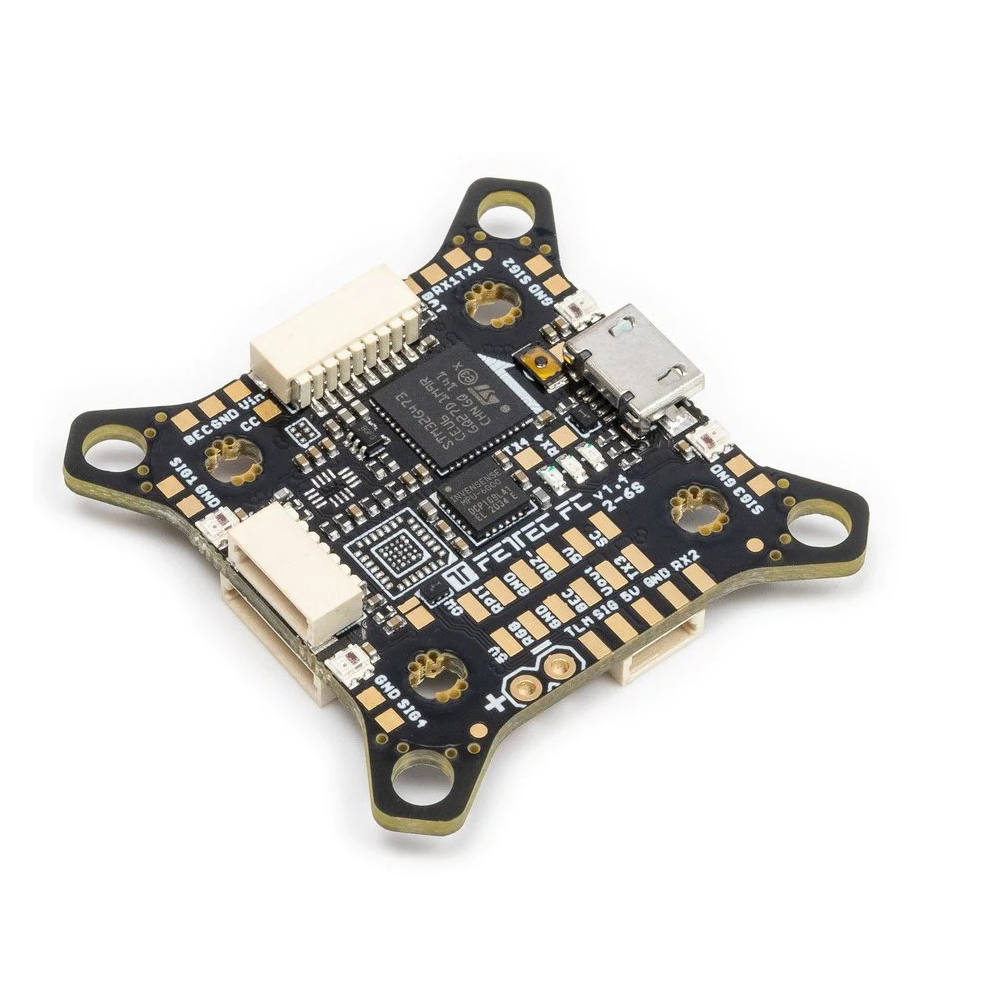

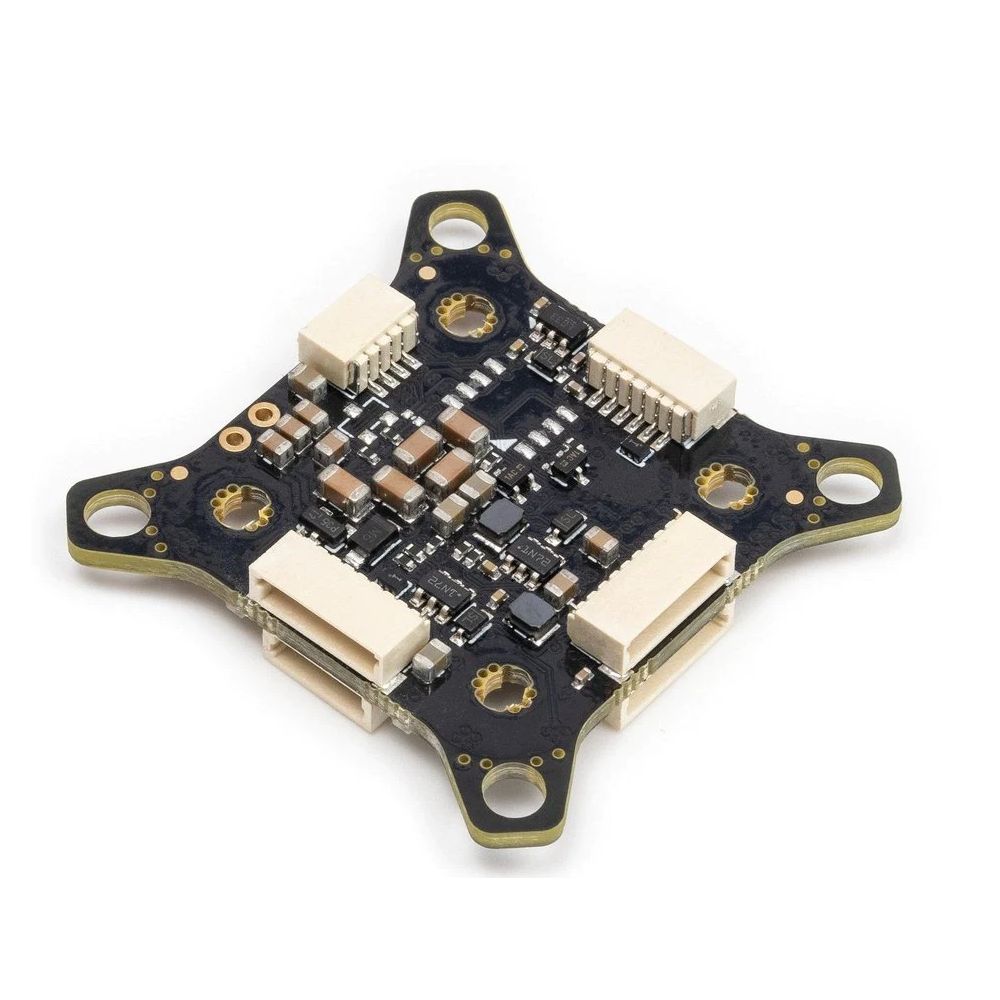

Fettec G4-N V1.7 FPV Drone Flight Controller – 20x20mm & 30x30mm

The FETtec FC G4 features the latest STM32G4 processor. Providing unparalleled processing power to your aircraft. Along with an IIM-42652 SPI gyro, two 5v BECs, 6-27V (2-6S) power handling, and a host of other features, the G4 from FETtec is on the cutting edge of Flight Controller technology.

Check out our large variety of Flight controllers , KISS Keychain Configurator V1.2 for Fettec Flight controllers and the rest of our Fettec Collection!

The next generation of FETtec’s popular KISS flight controller has arrived! Featuring the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, IIM-42652 SPI gyro, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20×20 and 30×30 mounting holes.

This new “N” version simply means there is no onboard analog OSD chip.  Due to global shortages, the OSD chip was removed.  This only affects analog systems, there are no other restrictions and you can use the full potential of this FC as you are used to.  The use of external OSD boards and digital FPV systems still work fine.

Comparison:

Specifications:

• Latest STM32G4 Processor
• 170Mhz + Math accelerator
• IIM-42652 SPI Gyro
• Supply voltage 6-27V (2S-6S Lipo)
• 2x dedicated onboard BEC (max. 600mA each)
• 5V BEC for RX
• 5V/16V BEC for VTX (switchable and real Pit*)
• 2x 8 pin connector for solder-free ESC connection
• Connector 1: ESC signal 1-4, telemetry, VCC, GND
• Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
• 1x 8 pin connector for solder-free VTX, cam connection and OSD or digital systems
• real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
• 2x 6 pin connectors for serials
• RX1, TX1, 3.3V, VCC, 5V, GND
• RX3, VCS/TX3, RGB LED, VCC, 5V, GND
• 1x 4 pin connector for receiver
• Signal, TLM, 5V, GND
• 5 UART serials
• UART 1 free
• UART 2 used for Receiver
• UART 3 free
• UART 4 free
• UART 5 used for ESCs / TLM / Onewire
• 4 ESC solder pads (Signal/GND) in each corner
• Buzzer pads
• 4 tiny RGB LEDs (selectable color)
• Supported ESC protocols
• PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
• FETtec KISS firmware
• Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

Dimensions:

• Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm
• Mounting hole arrangement:
• 20 x 20mm with M2 mounting hole (expandable to M3)
• 30 x 30mm with M3 mounting hole
• 30 x 30mm mounting hole tips are removable to reduce overall FC size
• Overall height: 7,9mm
• Weight: 5,37g

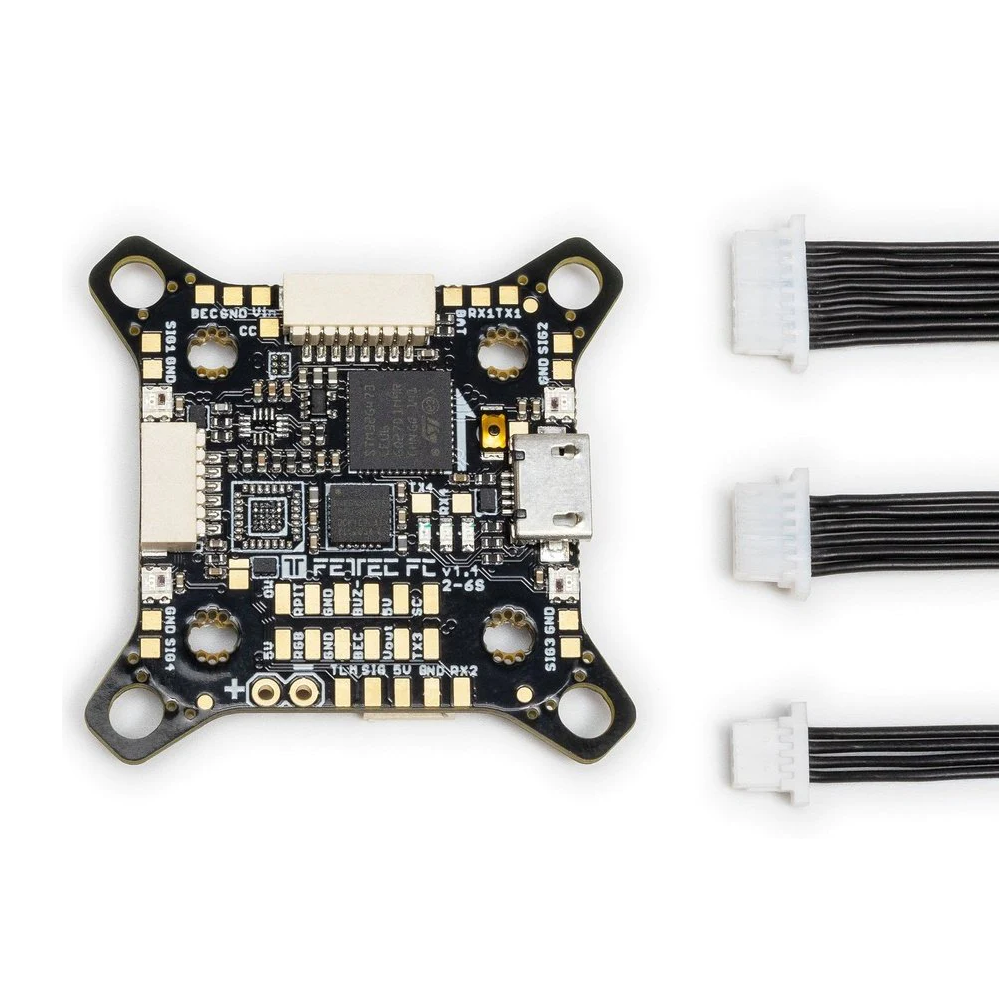

Includes:
1x FETtec Flight Controller G4 – N
1x 8 pin cable
1x 6 pin cable
1x 4 pin cable

Download Manual
