Flash Hobby 2004 1900KV Brushless FPV Drone Motor
$15.99

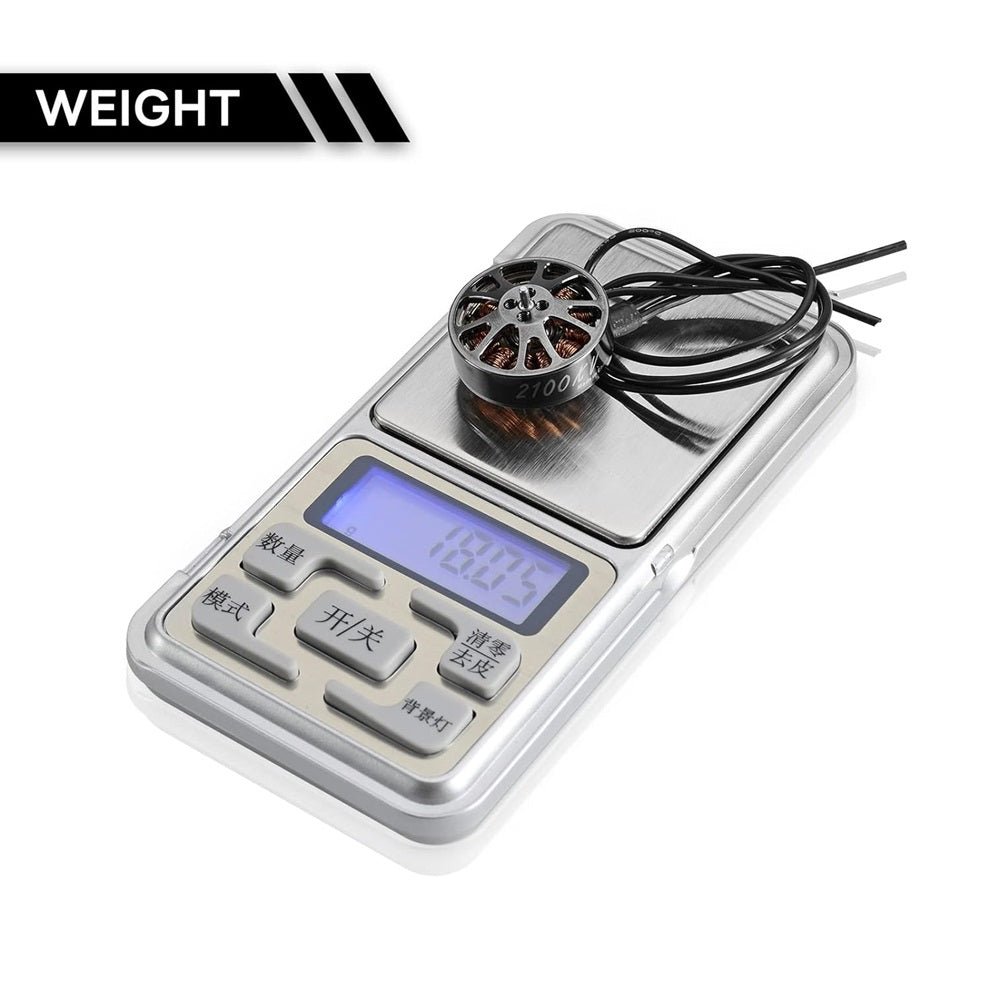

| Weight | 0.027 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Fpvelite item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Motors section!
This Fpvelite item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Motors section!

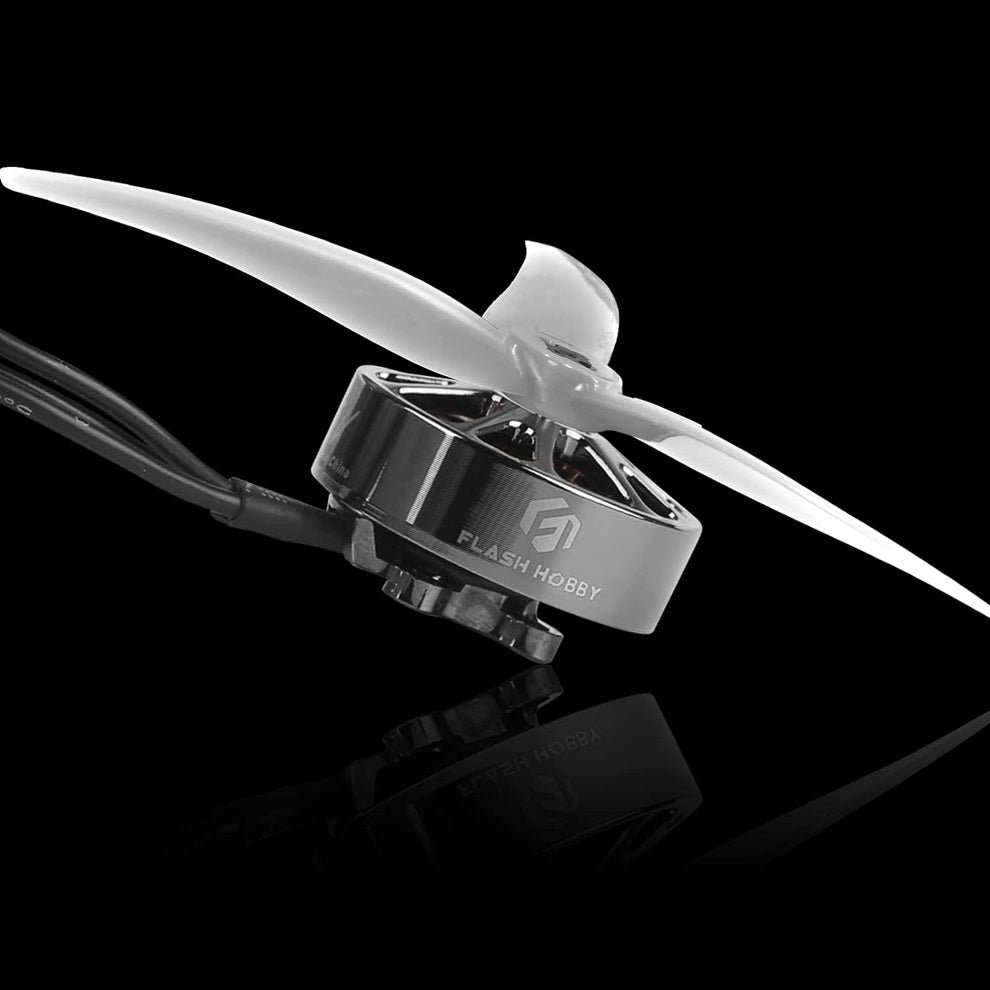

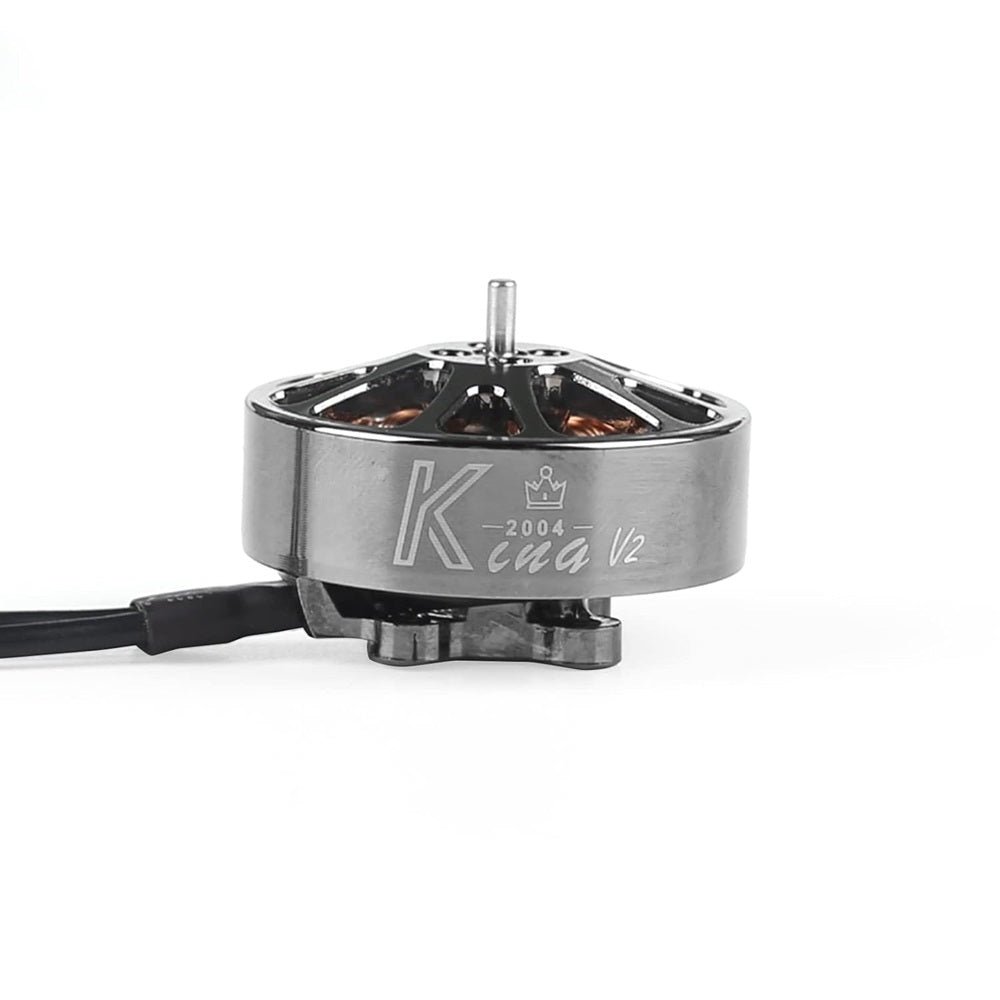

Flash Hobby 2004 Brushless FPV Drone Motor
Check out all our 20XX Motors and the rest of our Flash Hobby Products!
Specifications:
- K2004-1900KV Motor Specification
- Max pull：844g(6S/HQ5030)
- Input Voltage：DC7.4-24V(2-6S)
- Current: 15.0A
- Suggested ESC: 20A~30A
- Maximum Power：257.9W
- Suggested Prop: 4~6 inch prop
Package Includes:
- 1 x Flash Hobby 2004 Brushless FPV Drone Motor
Test Datas:
ltem NO. | Prop | Throttle | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Efficiency (g/W) | Operating temperature(℃) |
K2004 1700kv | HQ5030 | 50% | 24.22 | 2.16 | 52.3 | 285 | 5.45 | 55.8℃ |
60% | 24.13 | 3.78 | 91.2 | 395 | 4.33 | |||
70% | 24.02 | 5.95 | 142.9 | 519 | 3.63 | |||
80% | 24.16 | 8.72 | 210.7 | 677 | 3.21 | |||
90% | 24.05 | 11.28 | 271.3 | 783 | 2.89 | |||
100% | 24.08 | 11.08 | 266.8 | 772 | 2.89 | |||
K2004 1900kv | HQ5030 | 50% | 24.11 | 3.18 | 76.7 | 342 | 4.46 | 76.4℃ |
60% | 24.08 | 5.61 | 135.1 | 475 | 3.52 | |||
70% | 24.02 | 8.65 | 207.8 | 605 | 2.91 | |||
80% | 23.97 | 12.16 | 291.5 | 771 | 2.65 | |||
90% | 23.86 | 15.34 | 366.0 | 862 | 2.36 | |||
100% | 23.86 | 15 | 357.9 | 844 | 2.36 | |||
K2004 2100kv | HQ5030 | 50% | 24.11 | 3.78 | 91.1 | 396 | 4.35 | 79℃ |
60% | 24.11 | 6.69 | 161.3 | 538 | 3.34 | |||
70% | 24.11 | 10.27 | 247.6 | 701 | 2.83 | |||
80% | 24.11 | 14.05 | 338.7 | 847 | 2.50 | |||
90% | 23.97 | 17.77 | 425.9 | 945 | 2.22 | |||
100% | 24.16 | 17.36 | 419.4 | 847 | 2.02 | |||
K2004 3150kv | HQ5030 | 50% | 16.18 | 6.49 | 105.0 | 370 | 3.52 | 77.4℃ |
60% | 16.07 | 10.88 | 174.8 | 511 | 2.92 | |||
70% | 16.02 | 16.55 | 265.1 | 664 | 2.50 | |||
80% | 15.99 | 22.7 | 363.0 | 815 | 2.25 | |||
90% | 15.74 | 28.45 | 447.8 | 913 | 2.04 | |||
100% | 15.74 | 27.74 | 436.6 | 890 | 2.04 | |||

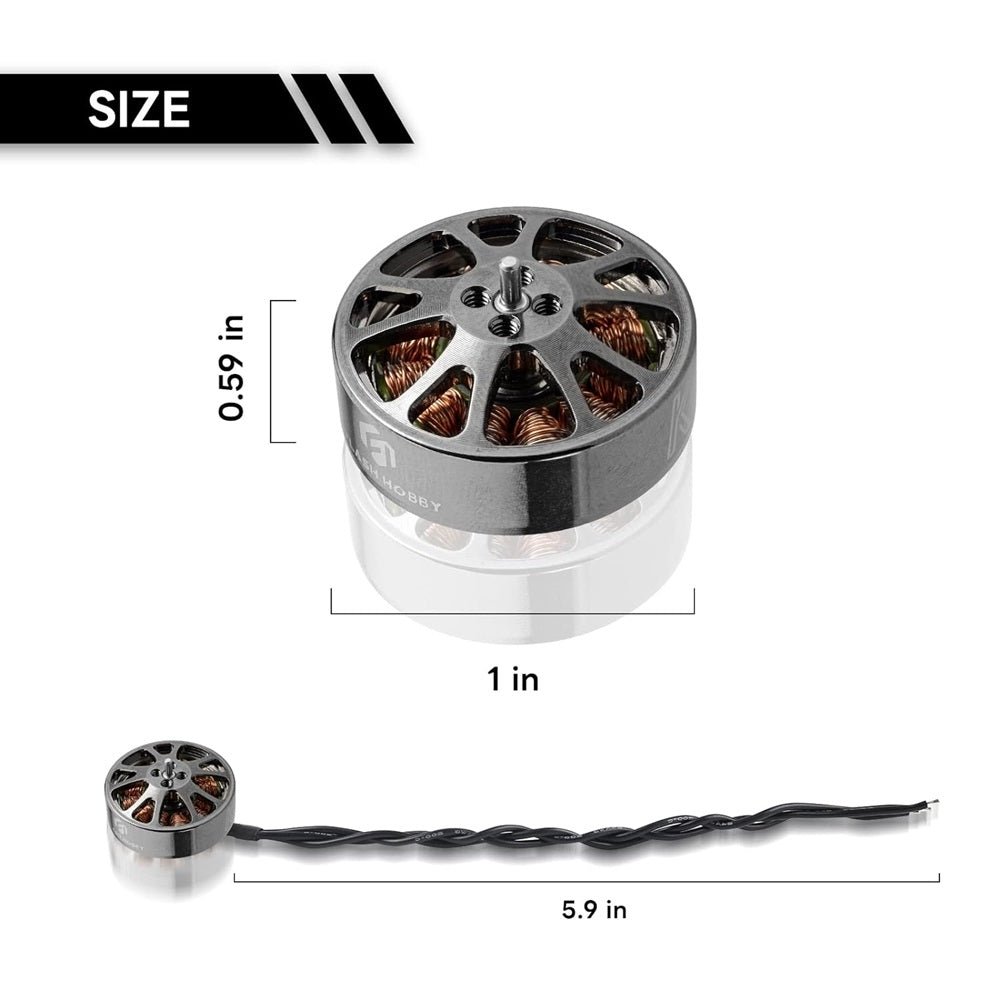

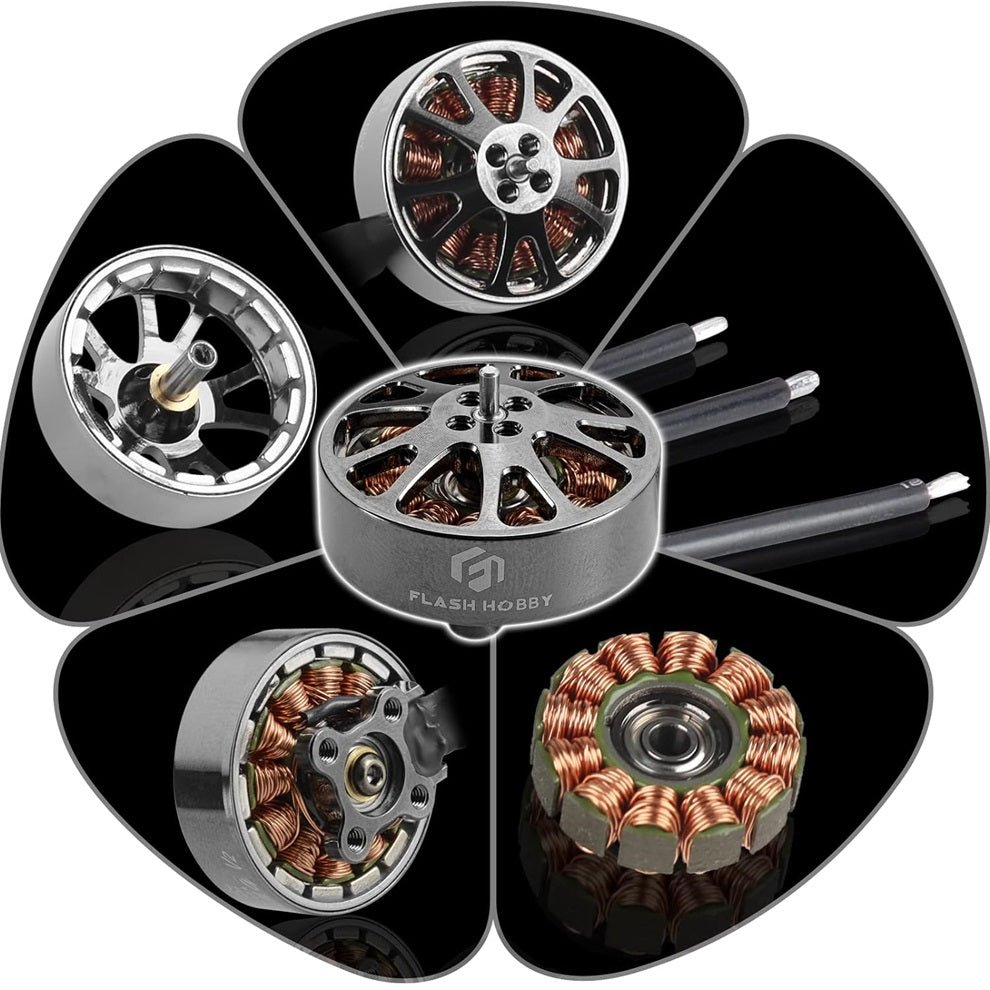

Product Detail:
Connected instructions
Application:

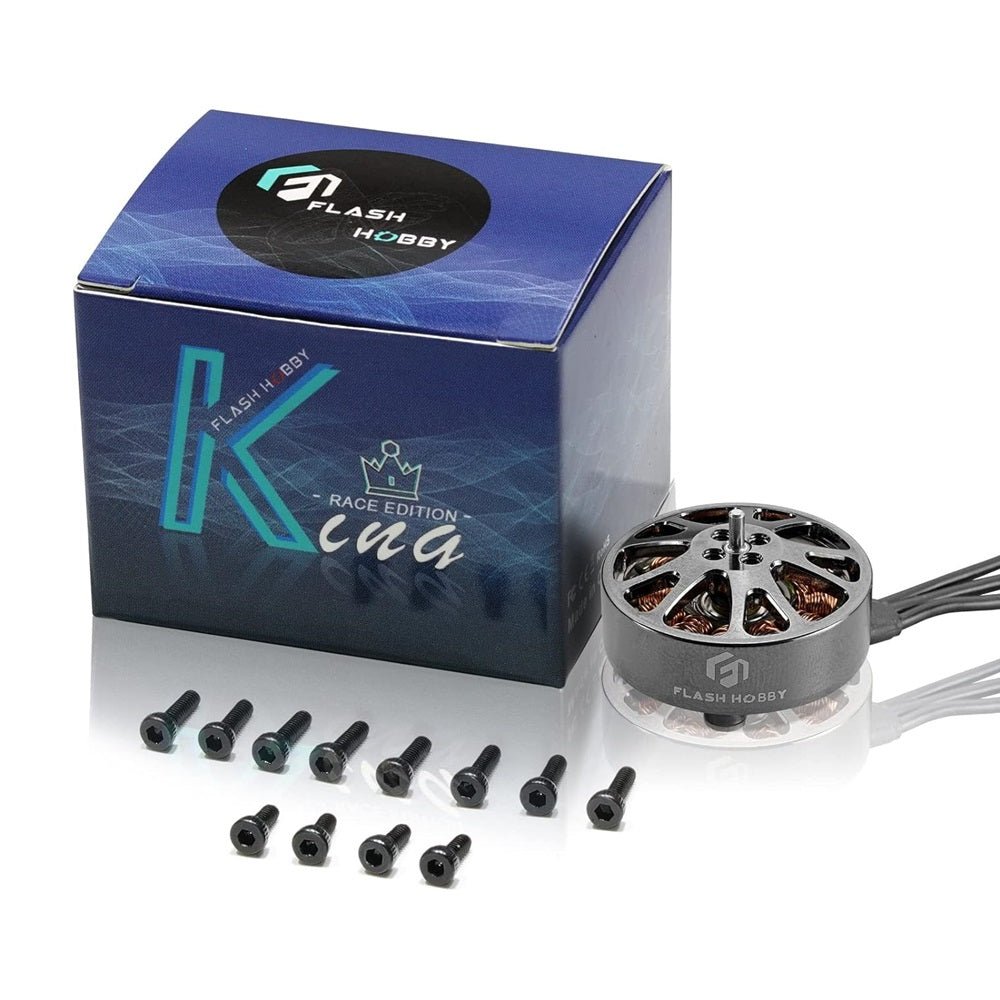

Package Includes:
Flashhobby motor X1, M2X5mm X 4, M2X7mm X8
