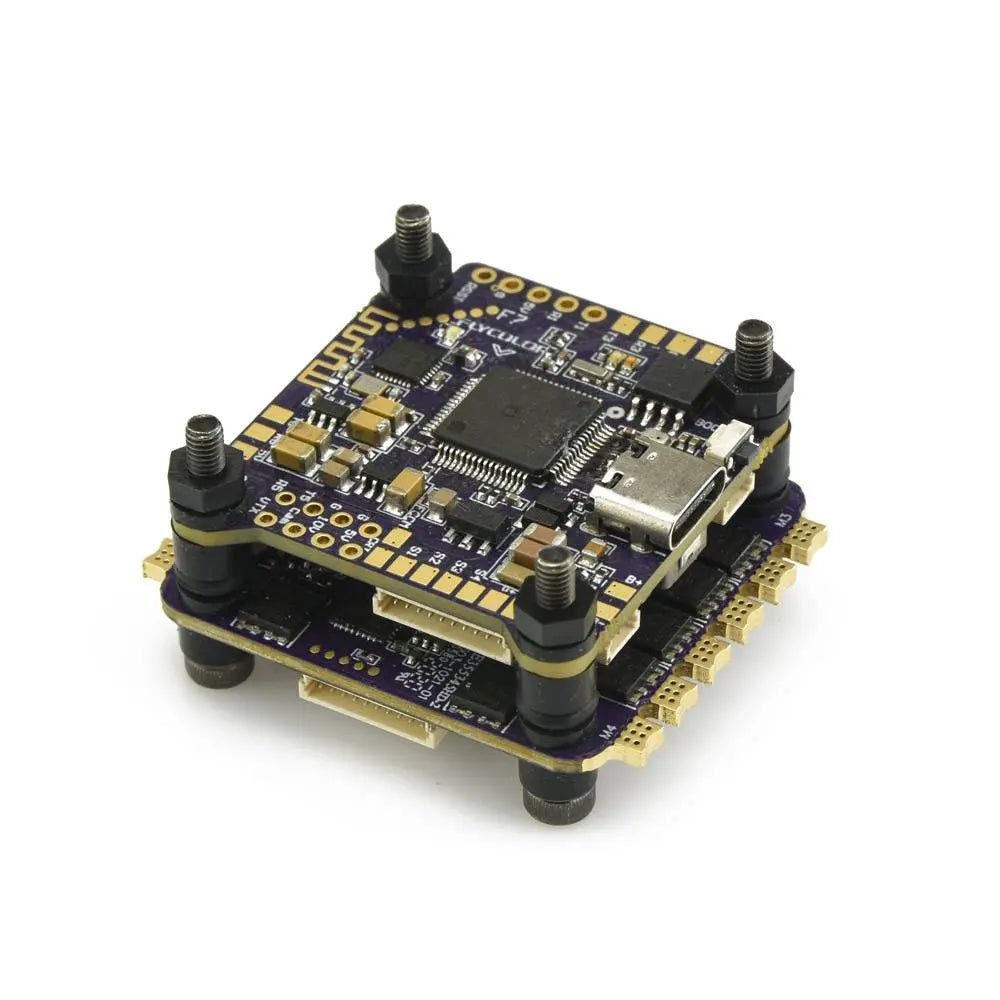

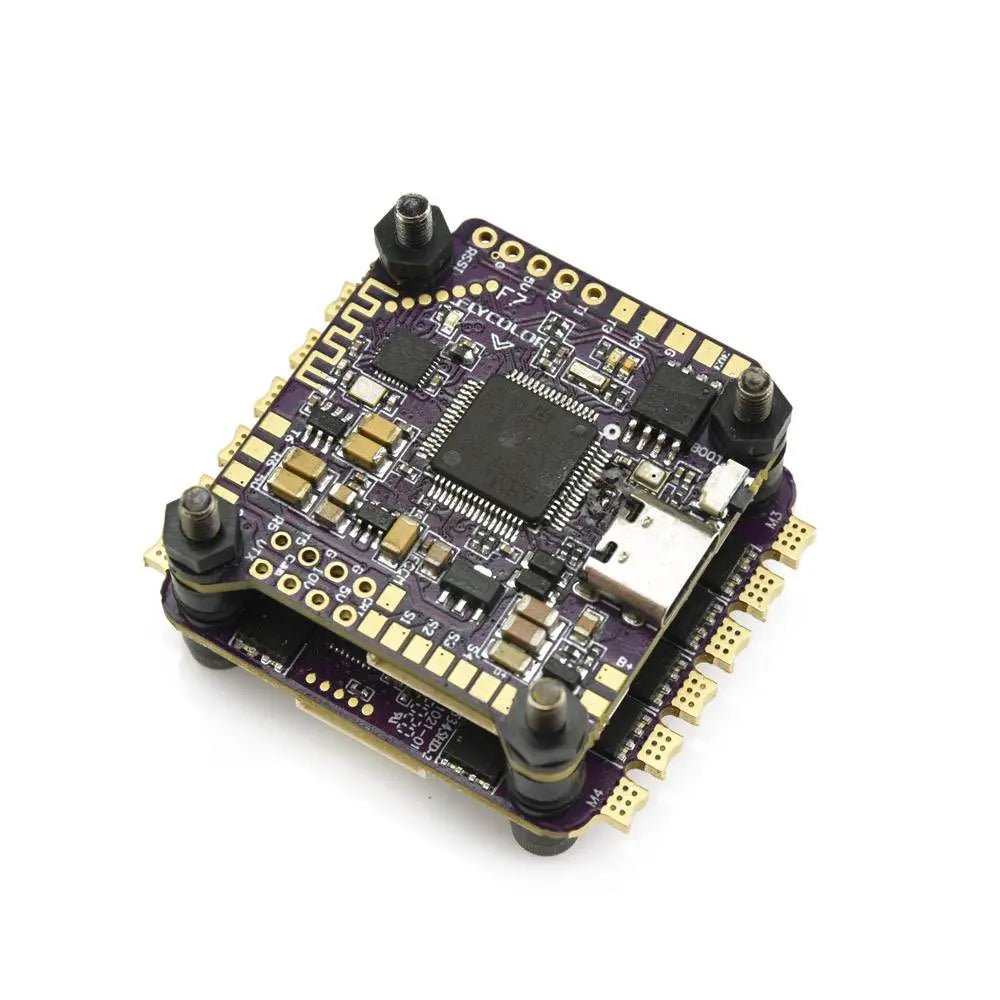

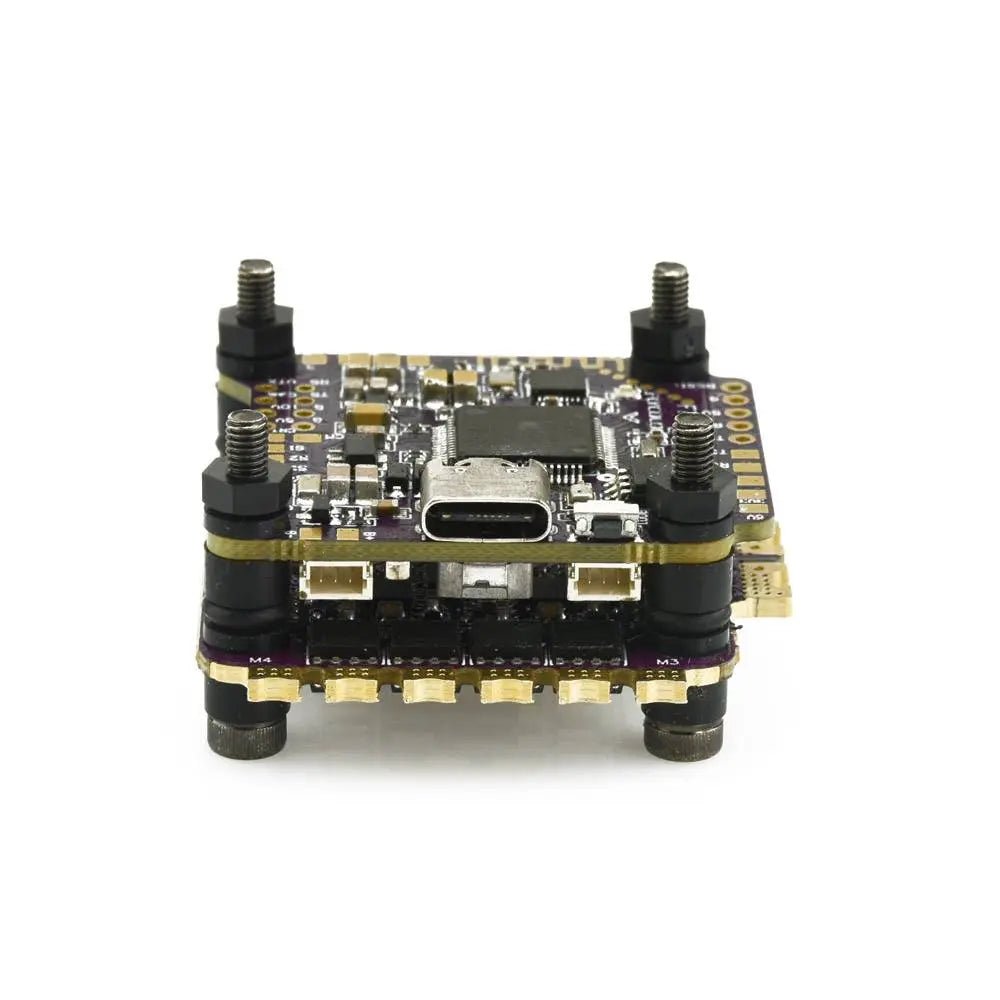

Flycolor Raptor5 F7 Tower Stack with F7 V2 Flight Controller Bluetooth LED 60A 3-6S BLHeli32 4in1 ESC – 30x30mm

The Flycolor Raptor 5 F7 Tower is a high-performance integrated flight stack featuring an F7 V2 flight controller and a powerful 60A 4-in-1 ESC. Built for 3-6S power systems, this stack utilizes BLHeli_32 firmware to provide the smoothest motor response and highest efficiency for FPV racing and freestyle drones. The “tower” design simplifies wiring and reduces the overall footprint, making it a reliable core for modern high-performance builds.

Check out all our 30x30mm Stacks  and the rest of our Flycolor Products!

Features:

• High-performance F7 V2 Flight Controller for superior processing power.

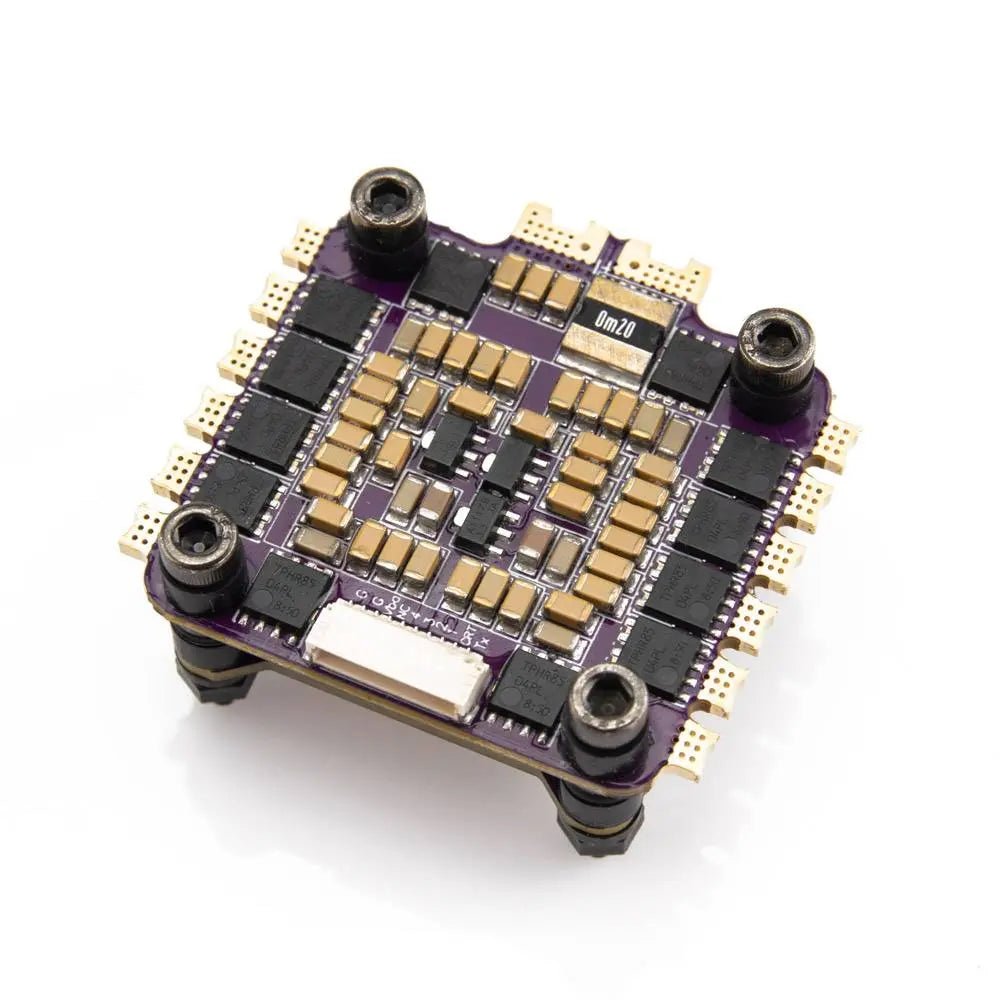

• 60A Continuous current 4-in-1 ESC with BLHeli_32 firmware.
• Supports a wide voltage range of 3-6S LiPo.
• Integrated tower design for easy installation and clean aesthetics.
• Optimized firmware specialized for disc motors for excellent compatibility.
• High-performance MOSFETs with low internal resistance.
• Supports Dshot and Proshot digital signals.

Specifications:

• MCU: STM32F722
• ESC Firmware: Flycolor_X_Cross_BL_32
• LiPo Cells: 3-6S
• Con. Current: 60A
• Burst Current (10S): 70A
• BEC: No
• Size: 41.7×44.8×16.7mm
• Mounting Holes: 30.5×30.5mm M3
• Weight: 26g
• Typical Application: FPV Racing/Freestyle

Package Includes:

• 1 x Flycolor Raptor 5 F7 V2 Flight Controller
• 1 x Flycolor 60A 4-in-1 BLHeli_32 ESC
• 1 x XT60 Power Cable
• 1 x FC/ESC Interconnect Wiring Harness
• 1 x Electrolytic Capacitor
• 1 x M3 Hardware/Mounting Set
