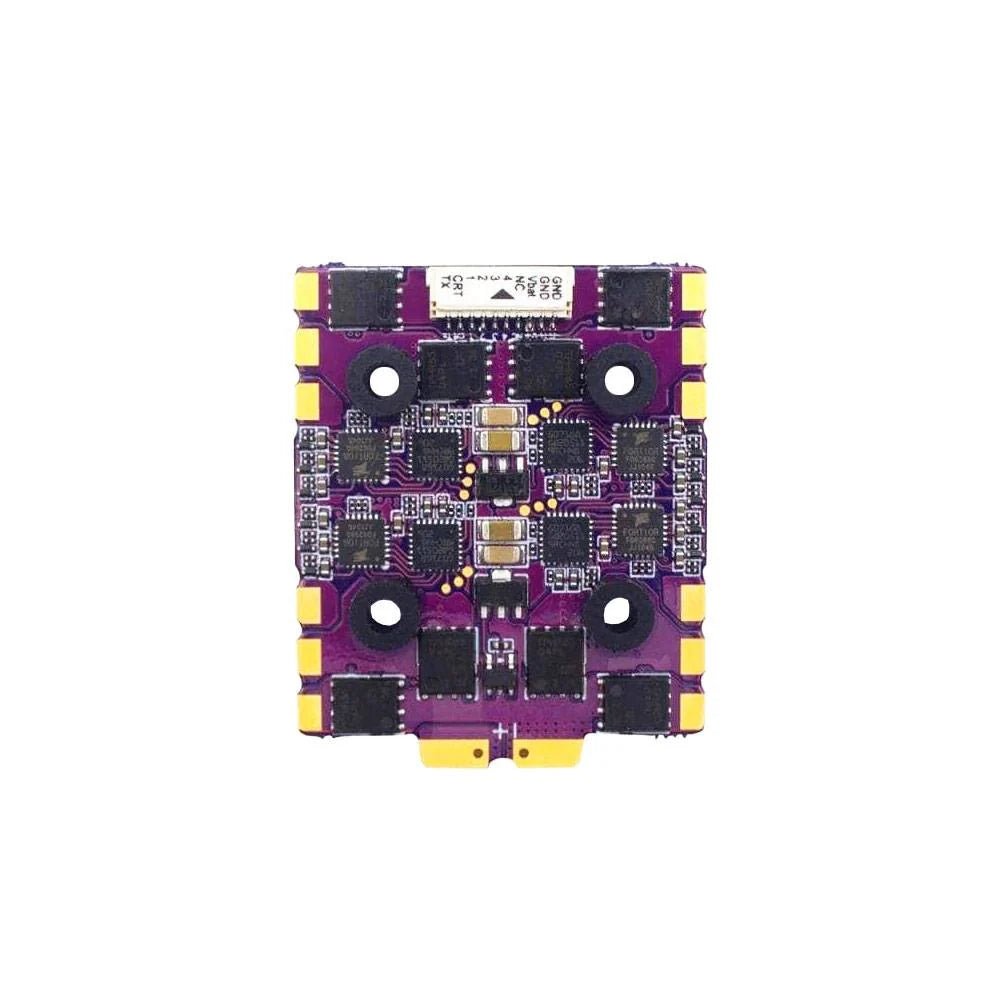

Flycolor Trinx G20 45A 3-6S BLHeli32 4in1 ESC – 20x20mm

Enhance your drone’s performance with the Flycolor Trinx G20 45A 4-in-1 BLHeli_32 ESC. Boasting a compact and lightweight design, this ESC is optimized for racing drones, featuring a 20x20mm mounting configuration with M3 screws. With advanced features like a high-frequency PWM up to 128K for smoother operation, optimized firmware for enhanced throttle linearity and faster response, and support for various pulse width inputs including Oneshot125 and Multishot, the Trinx G20 ensures a seamless and powerful flight experience. The inclusion of a built-in current sensor, VBAT output, and conformal coating for extra protection makes it a reliable choice for your FPV drone and cinematography endeavors.

Check out all our 20x20mm Electronic Speed Controllers and the rest of our Flycolor Products!

Features:

• Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5- 25us). The input signal is automatically detected by the ESC upon power-up.
• Compared with the previous generation of ESC, the ESC firmware is optimized, making the throttle linearity smoother and the response faster.
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
• 20×20 mounting holes to meet the installation requirements of diversified frames.
• Supports higher power load, more suitable for violent flight of racing drones.
• Miniaturized and lightweight design, better routing, and component layout.
• ARM 32-bit Cortex MCU STM32G0, frequency up to 64 MHz.
• Low ESR capacitor and XT60 cable included
• All Dshot and Proshot signals are supported.
• Built-in current sensor and VBAT output.
• Conformal coating for extra protection
• Large soldering tabs

Specifications:

• Firmware: Flycolor_Raptor_5
• Configurator: BLHeliSuite32
• Model: Flycolor TRINX G20
• Mounting: 20x20mm,M3
• Size: 44x36x6.3mm
• Con. Current: 45A
• LiPo cells: 3-6S
• BEC: No BEC
• Weight: 14.4g

Package Includes:

• 1 x Flycolor Trinx G20 45A 3-6S BLHeli32 4in1 ESC – 20x20mm
