FlyFishRC Osprey 5.8Ghz 90mm U.FL Antenna – LHCP 90mm

With its lightweight design and new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength, and clarity, and is now available to FPV pilots at an incredibly attractive price.

The Osprey Antenna features a transparent casing, and a unique hybrid network, which is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.

Although the Osprey Antenna is both small and light, it does not sacrifice any performance with a high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.

Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of the frequency you’re on, you are guaranteed to have a signal as clear and strong as it’s possible.

The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.

Check out all our UFL FPV Antennas and the Rest of our FlyfishRC Collection!

Specifications

• Radiation Efficiency: 99%
• Avg. Gain: 2.82dbi
• Polarization: LHCP

• Connector: UFL (IPEX-1)

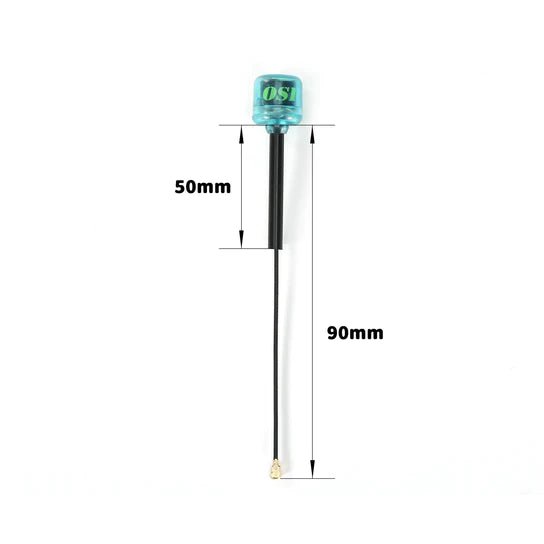

• Dimensions(head): 14.1mm dia. X 14mm height.

• Length: 104mm

• Cable: Protection tube RG1.13 coax.

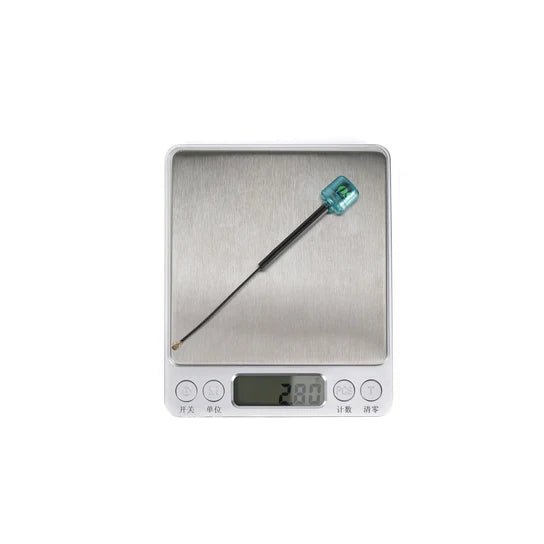

• Weight: 2.5g

Includes

• 1x  FlyFishRC Osprey 5.8Ghz U.FL Antenna – LHCP 90mm
