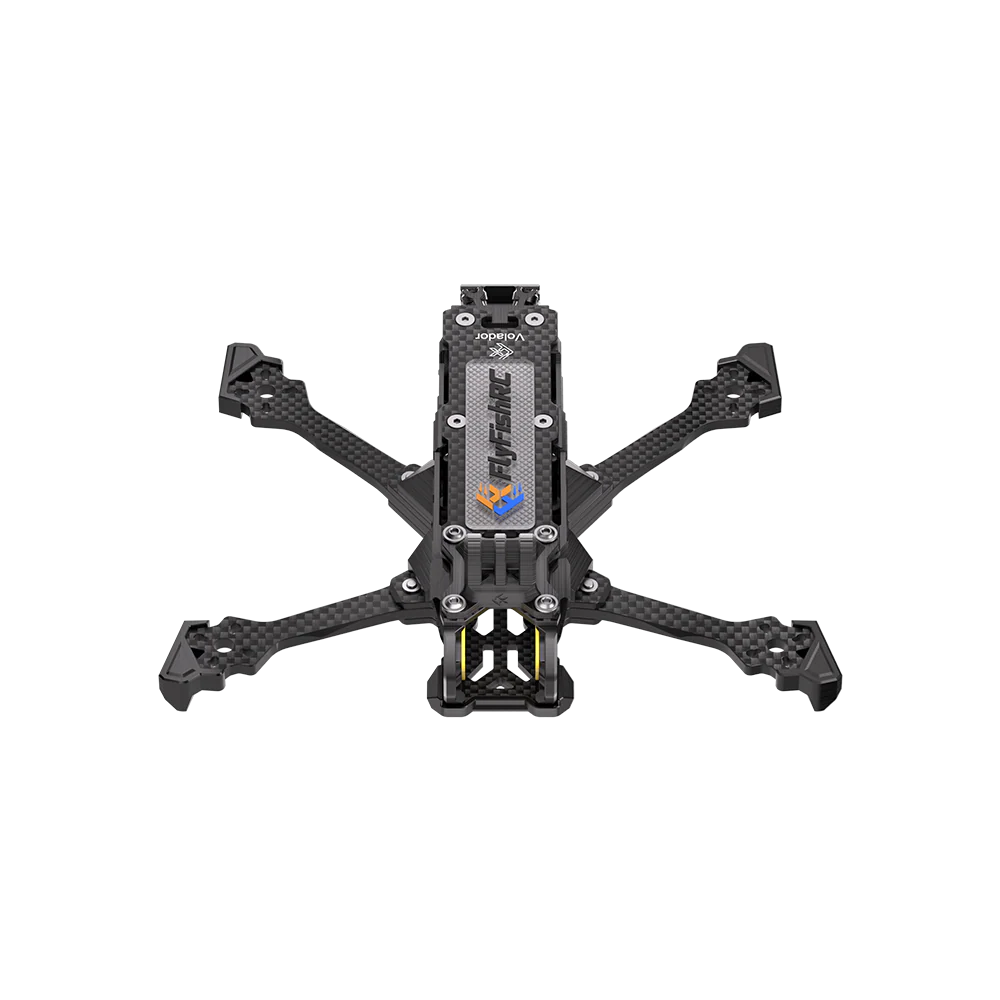

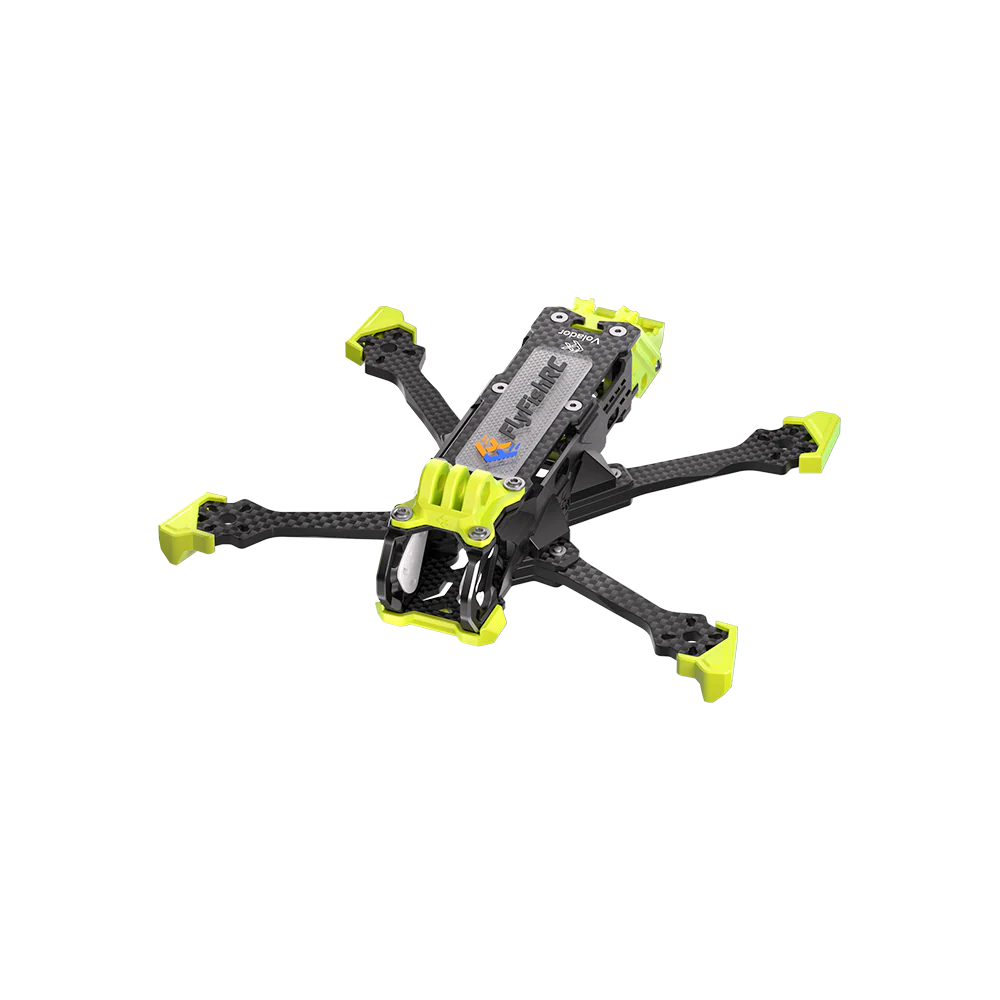

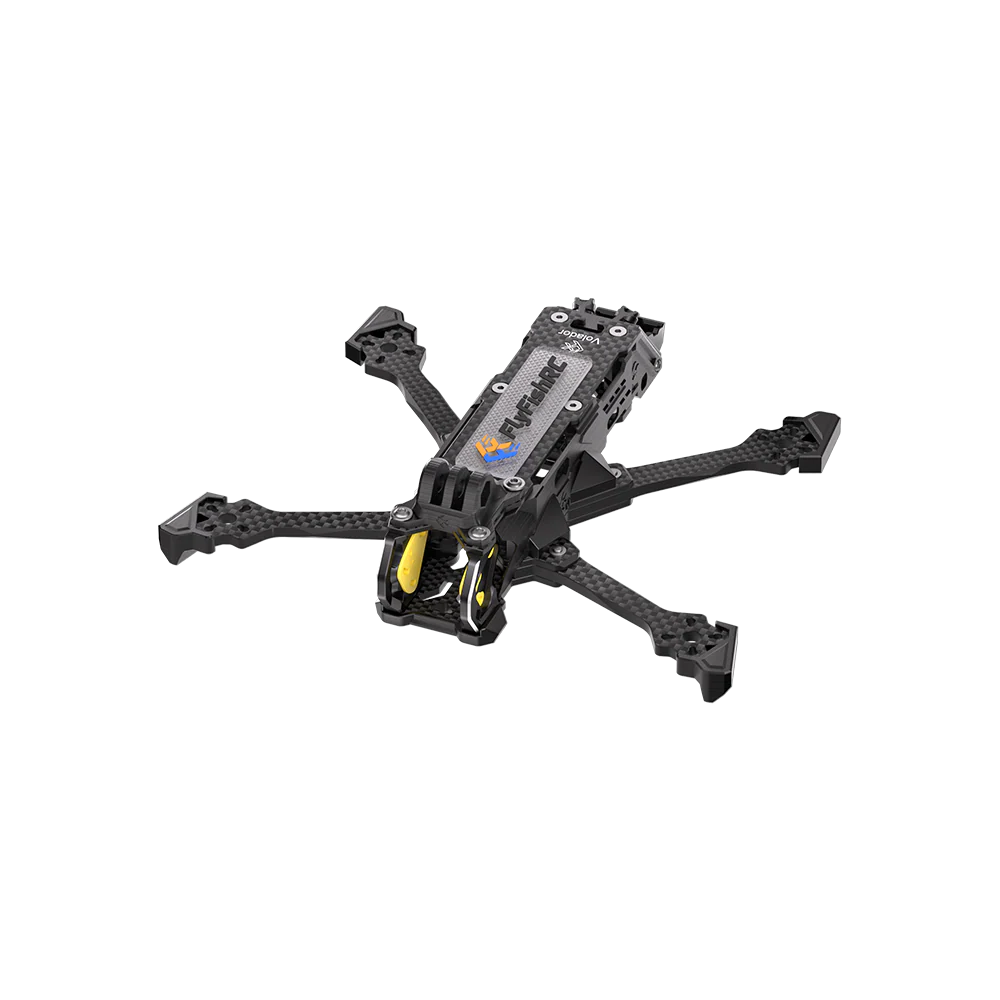

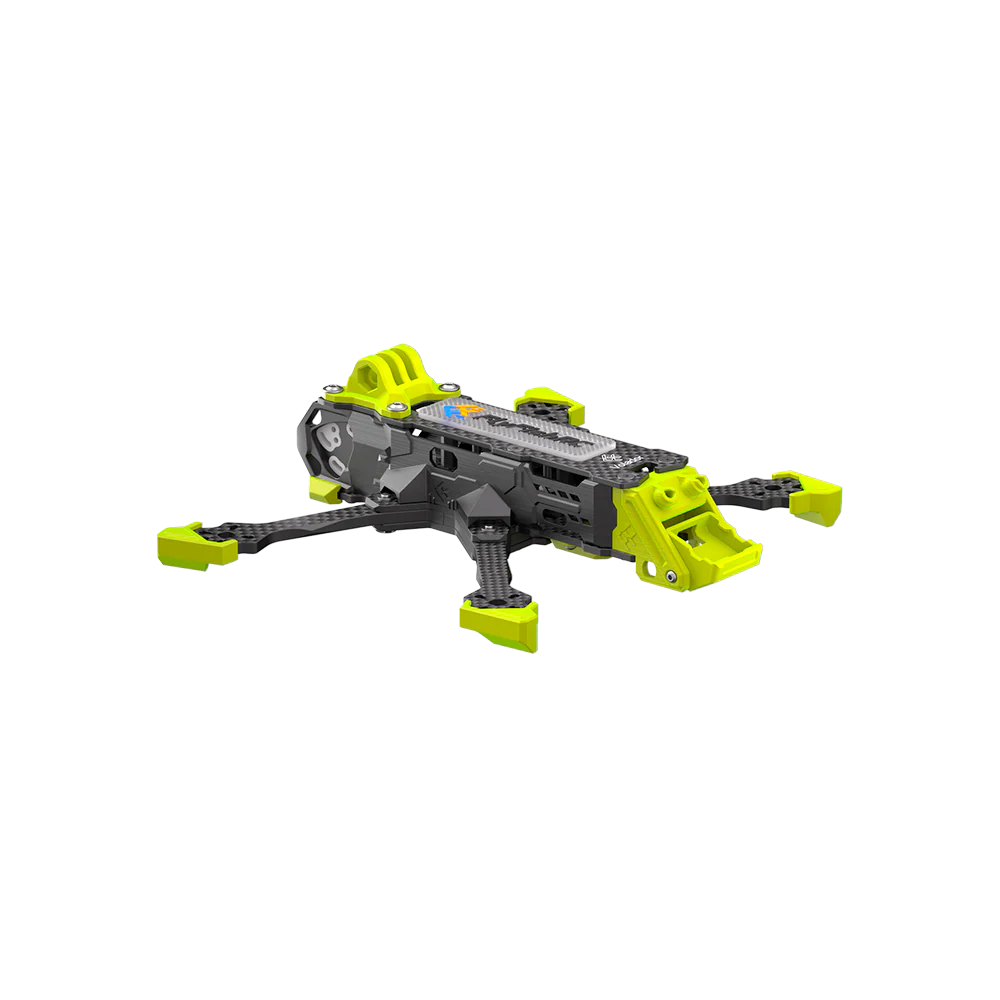

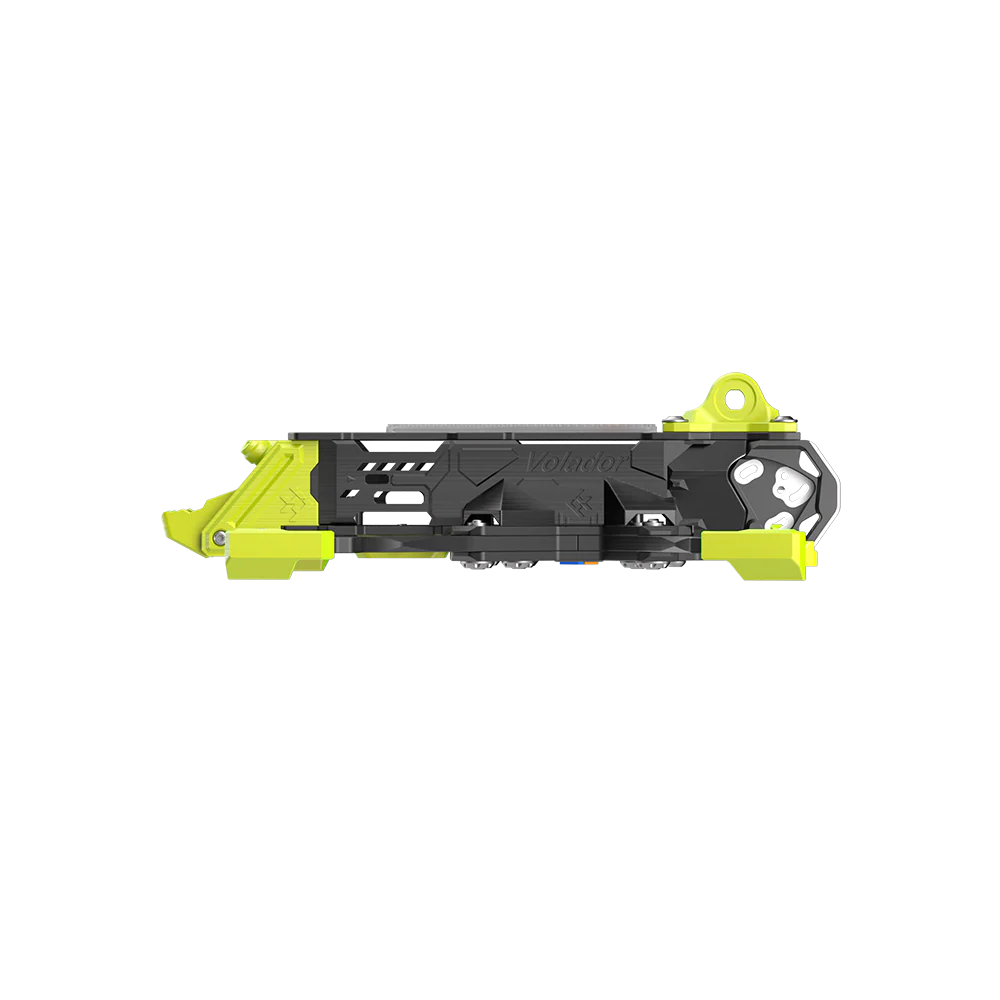

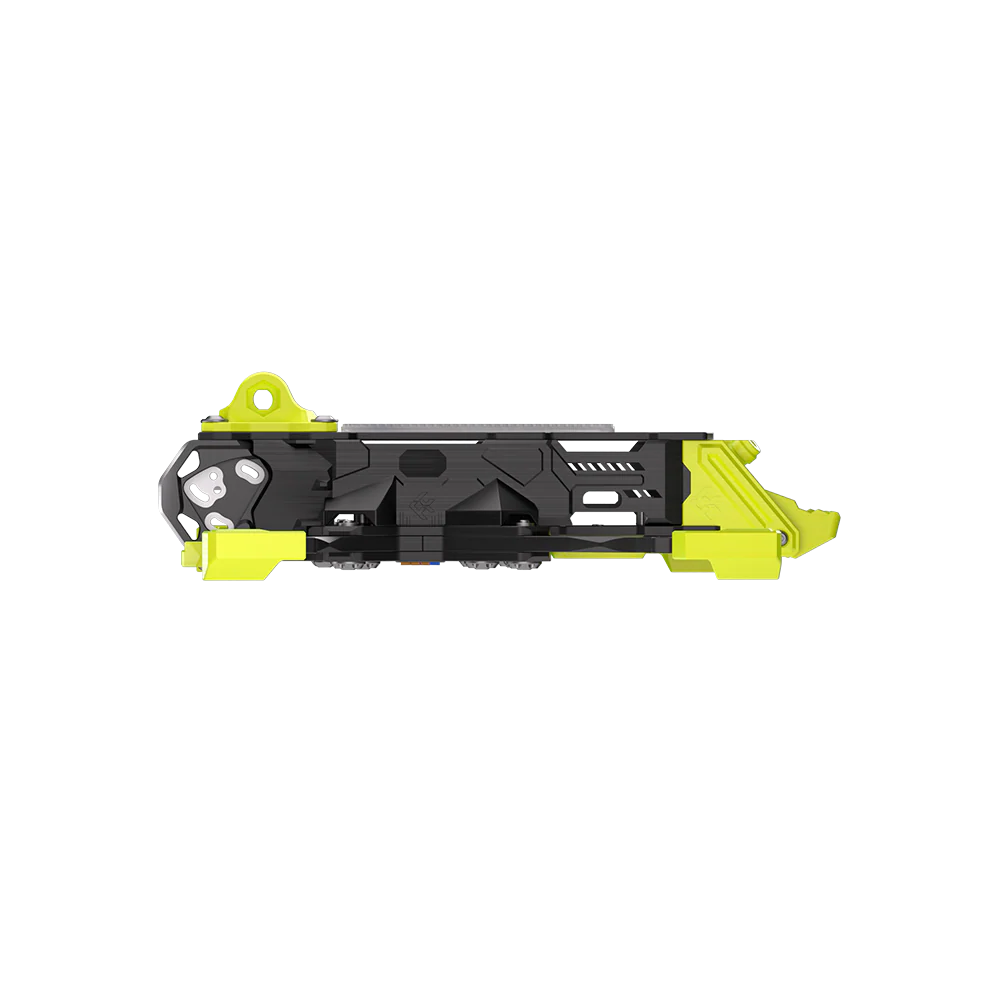

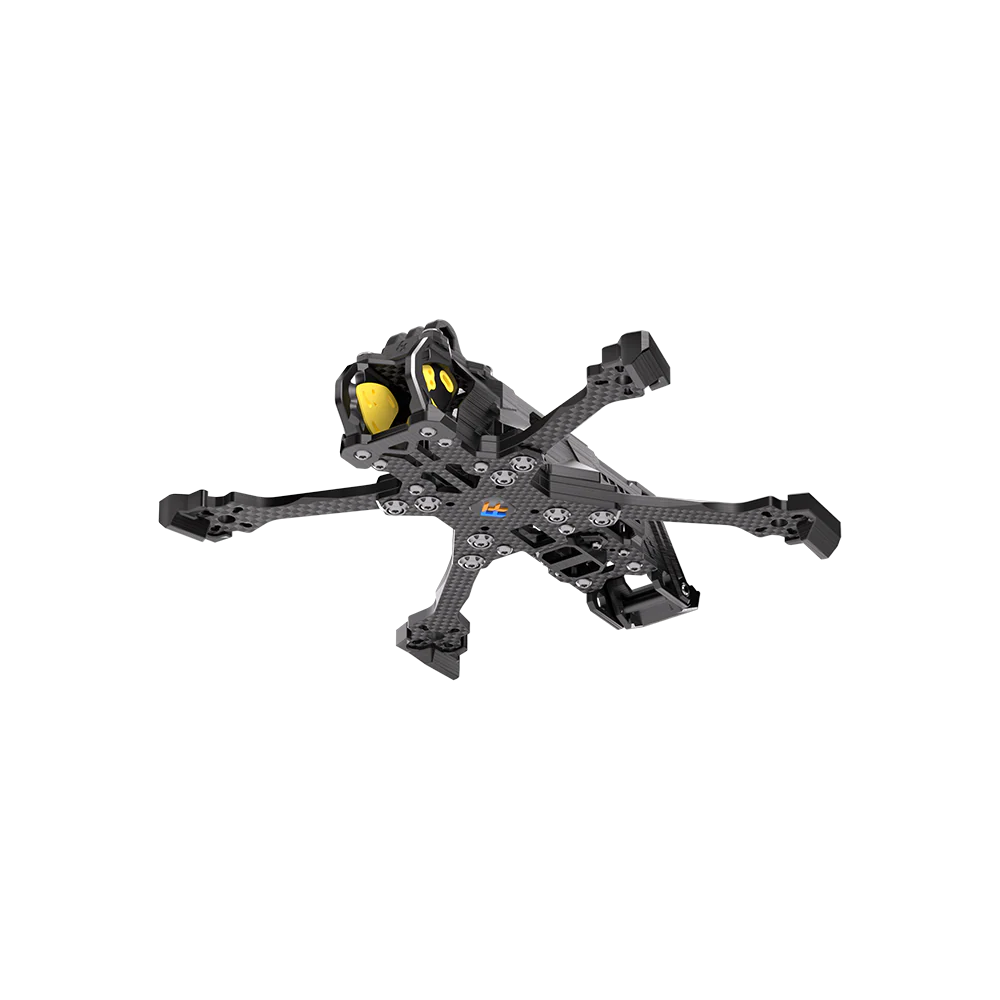

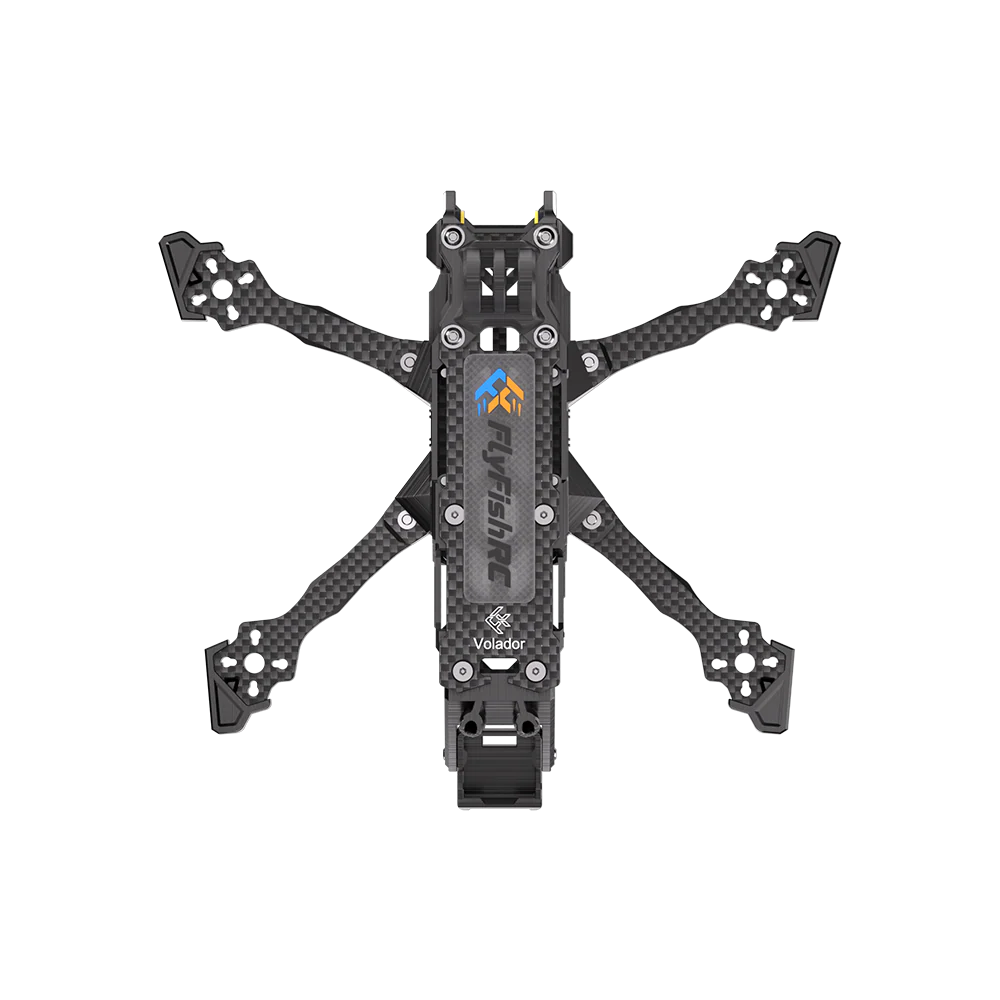

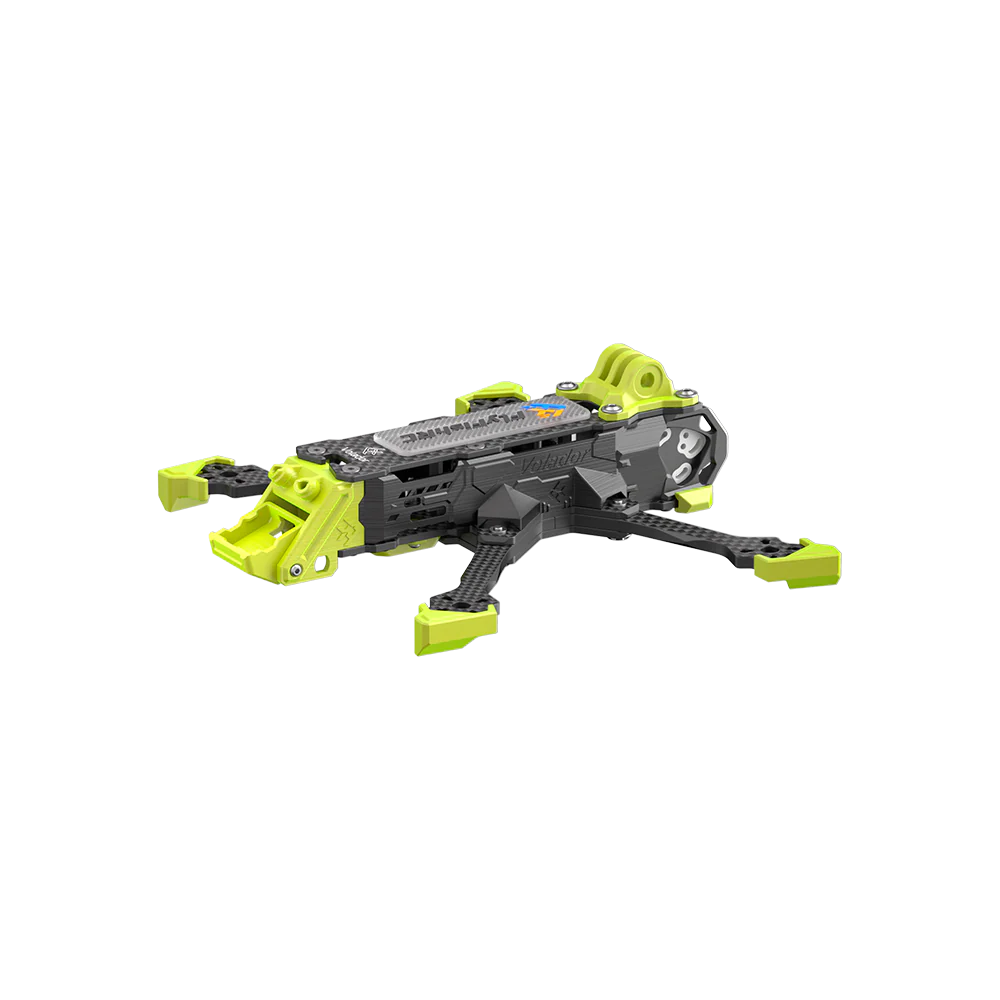

FlyfishRC Volador II VD4 O4 Pro 4″ Deadcat FPV T700 Frame Kit – Choose Color

The all-new Flying Fish Volador VD4, weighing 127g, features a DC layout, providing unobstructed flight view without propellers in view. The newly designed CNC side plates paired with a silicone-damped camera mount perfectly match the O4 VTX, completely eliminating jello effect and delivering a smooth FPV experience.

Check out all Volador Frames and parts as well as the rest of our FlyfishRC Collection!

Features:

• Strong, Light, Stable, Simple Assembly
  The main structure combines T700 carbon fiber with high-strength CNC aluminum alloy. Each edge is precision chamfered, achieving slight weight reduction while protecting cables for a premium, integrated finish. Innovative locking mechanisms physically suppress frame resonance, complemented by custom high-quality TPU components for more robustness and stability.
• Versatile Compatibility, Efficient Damping
  Dual mounting positions for the stack, VTX, and motors provide more flexibility, easily accommodating various ESCs, FCs and most analog and HD VTX systems on the market. Includes all necessary accessories for both analog and HD builds. Specially designed silicone damping pads for the VTX camera effectively eliminate DVR jello effect.

Specifications:

• Arm Thickness: 4mm

• Top Plate Thickness: 2mm

• Middle Plate Thickness: 2.5mm

• Bottom Plate Thickness: 2.5mm

• Brace Thickness: 4mm

• CNC Side Plate Thickness: 5mm

• Propeller Size: 4 inch

• Material: T700 Carbon Fiber

• FPV Camera Spacing: 19mm/20mm

• Weight: Approx. 127g (including printed parts)

• Color: Black/Yellow

• Frame Dimensions: 195*155*33mm

• Wheelbase: 183mm

• Flight Stack Mounting Holes: 20*20mm (M3) / 30.5*30.5mm (M3)

• Flight Stack Mounting Height: 22mm

• VTX Mounting Holes: 20*20mm (M2) / 25.5*25.5mm (M2)

• Motor Mounting Holes: 12*12mm (φ2mm) / 16×16mm (φ3mm)

Package Includes:

• 1 x Volador VD4 O4 Pro Frame Kit – Chosen Color
