Flywoo FlyLens 75 O3 Frame Kit – Clear Black

The Flylens 75 frame is a 75mm whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.

The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.

Browse the Flywoo FlyLens 75 HD Frames and Parts Collection

Check out our Frames Collection and the rest of our Flywoo Products!

Features:

• Latest three-point CNC damping platform design to perfectly eliminate high-frequency vibration and jelly effects
• Flight control hole position is 25.5×25.5mm, the image transmission compartment hole position is 20×20/25.5×25.5mm, and the motor hole position is 6.6mm 9mm
• Compatible with various mainstream devices on the market

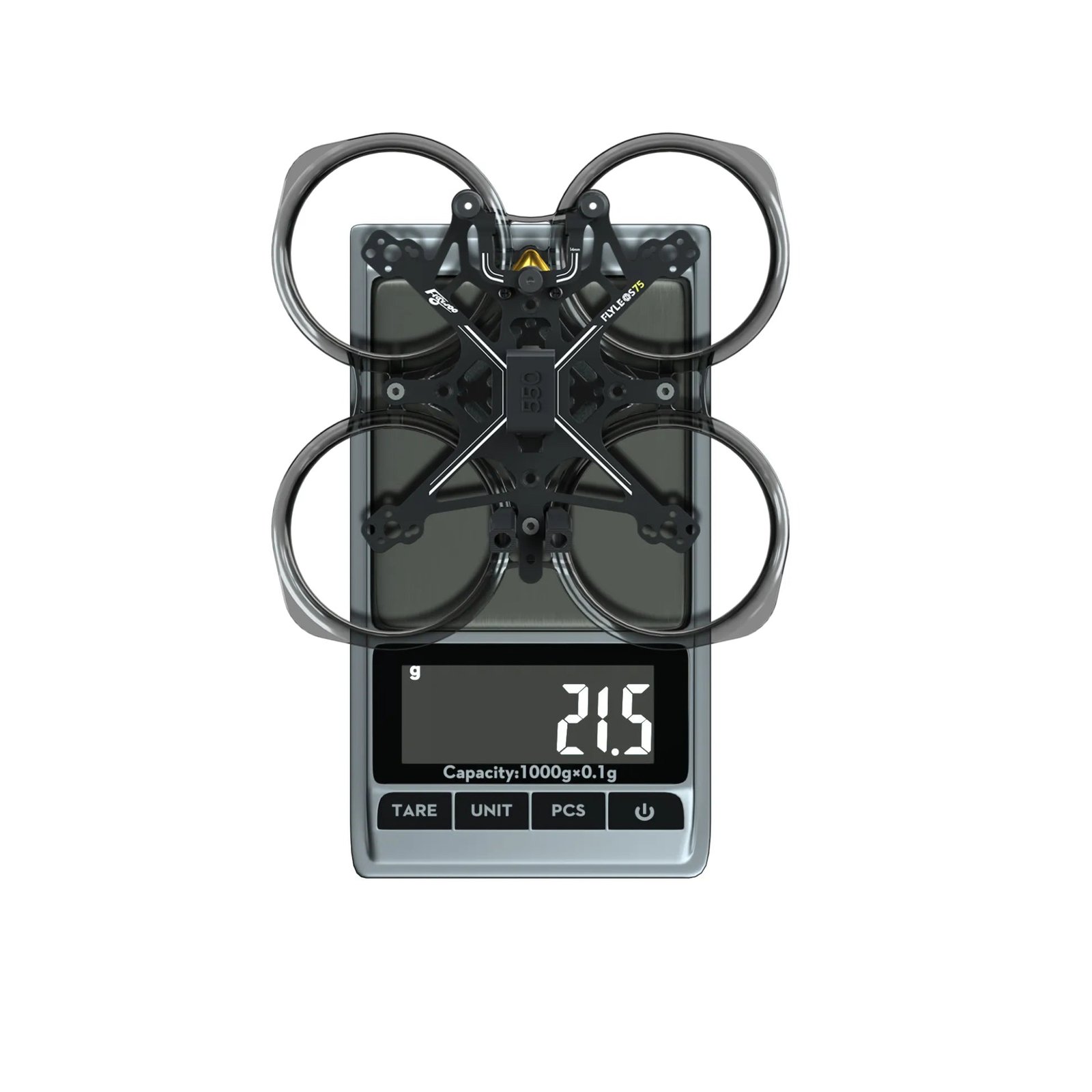

• Compact and lightweight design  for a 1.6 inch drone.
• Supports O3 digital image transmission for long-range, 4K high-definition, low-latency transmission.
• High-strength PC injection-molded protective ring for enhanced durability and safety.
• Unique CNC damping platform for stable video recording.
• Bottom-mounted image transmission PC compartment for protection and improved heat dissipation.
• Quick-release frame design for easy component separation.
• Reverse thrust propeller configuration for stable flight and extended endurance.

Specifications:

• Frame FlyLens 75 O3 Frame Kit
• Main Board Thickness 2mm
• CNC Gimbal Thickness 1mm
• Protective Ring Material PC+
• Flight Control Hole Position 25.5×25.5mm
• Image Transmission Hole Position 20/25.5mm Motor Hole
• Position 6.6mm/9mm
• Propeller Size 1.6 inch
• Camera Hole Position 20mm

Recommmend Configuration :

• Electronics: GOKU Versatile F405 1-2S 12A AIO  (MPU6000)
• Transmission: DJI O3 Air Unit
• Propeller: 1609 – 4Blade 40mm 1.5mm shaft
• Motor: ROBO 1003 14800KV
• Antenna: Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL

O3 Frame kit (20mm Cam Size): Suitable for all 20mm-sized cameras, such as Nebula Pro, Wasp, Walksnail Micro Cam, and HDZero Micro Cam.

Package Includes:

• 1 x Flywoo FlyLens 75 O3 Frame Kit – Clear Black
