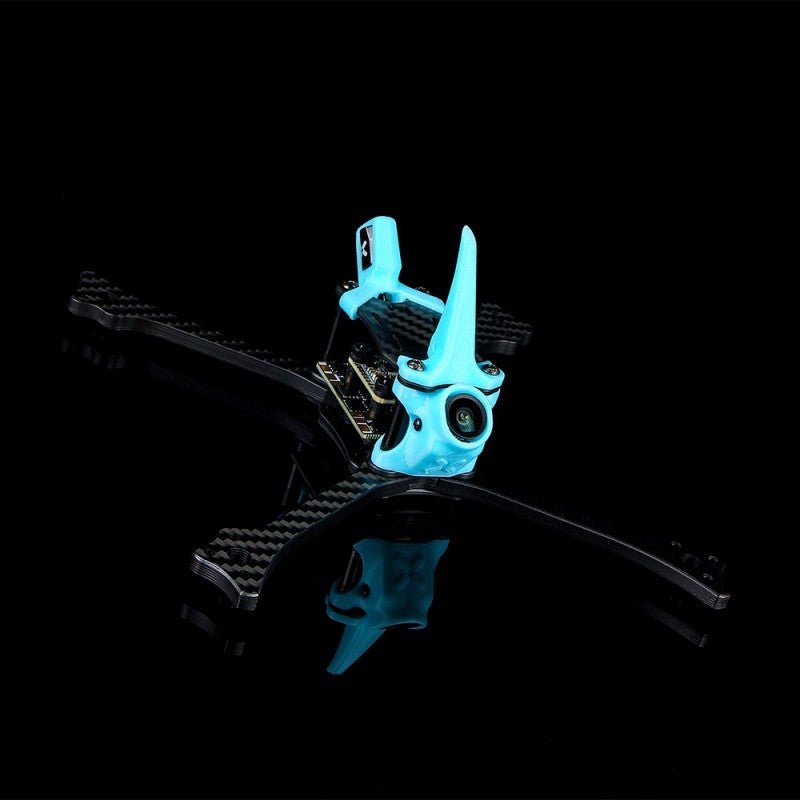

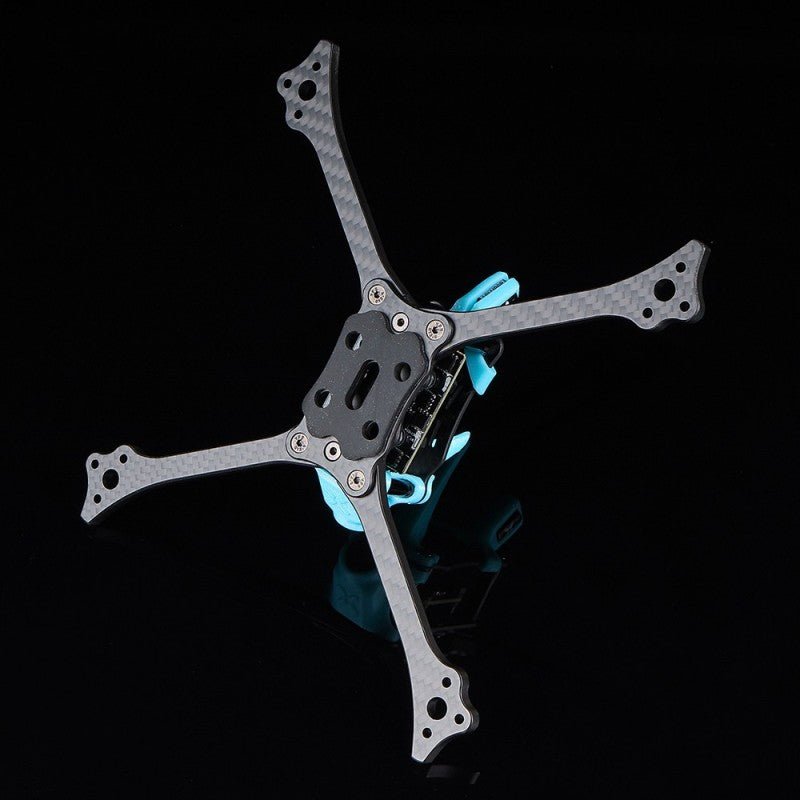

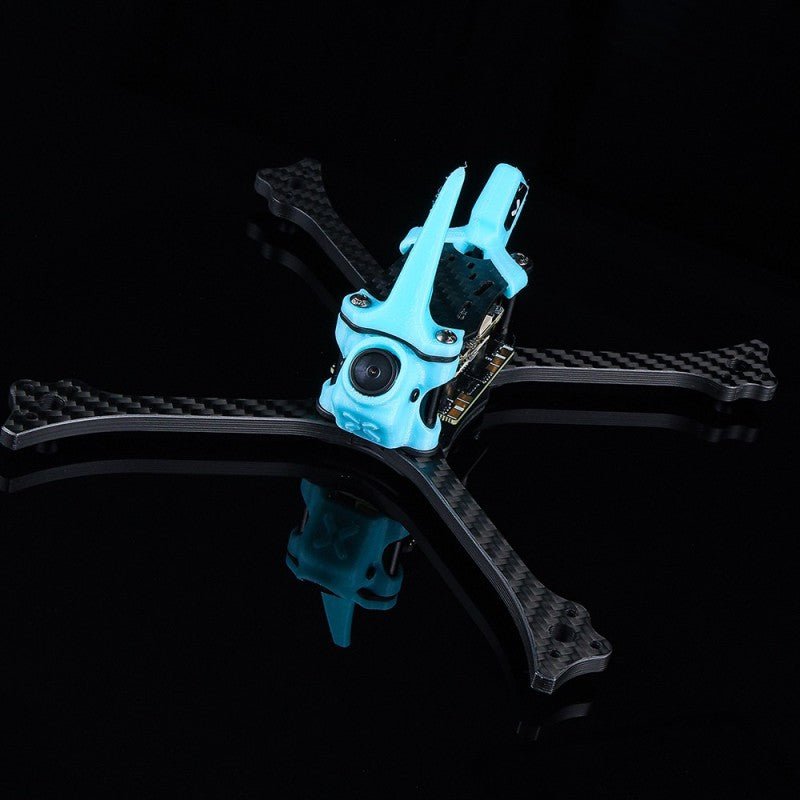

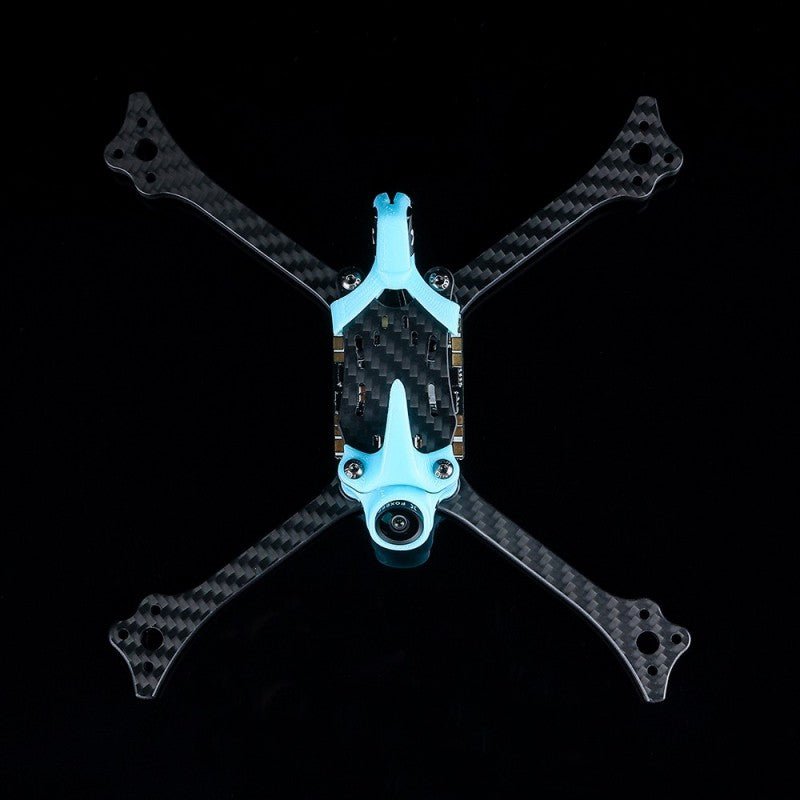

Foxeer Caesar V2 HDZero 5″ FPV Racing Frame – Choose Color

Introducing the new Caesar V2 5″ Racing Frame from Foxeer. It uses high performance T700 carbon for increased stiffness and vibration reduction. The frame can be built as Analog or HD setup and has been specifically designed to mount the HDZero Race V2 VTX.

Check out all our Racing Frames and the rest of our Foxeer Products!

Specifications:

• Material: Toray T700 carbon with silky coating
• Wheelbase: 195mm
• FC Mounting Holes: M3 20mmx20mm
• Camera size: 14mm nano size
• Video System: Analog/HDZero
• Weight: 74g (including TPU and Screws)
• Motor mounting Pattern: 16x16mm

You can Download the TPU File Here

Package Includes:

• 4 x 5mm Arm 16*16mm mounting
• 1 x 2mm Top Plate
• 1 x 2mm Center Plate
• 2 x 2.5mm Arm Holder
• 1 x 2mm Bottom Plate
• 1 x 40~55 Degree Cam Mount
• 1 x Antenna Mount for Micro Lollipop Antenna
• 1 x Turtle fin
• 4 x M3*8 Screw
• 2 x M3*11 Screw
• 4 x M3*16 Screw
• 6 x M3 Self-clinching Nut
• 4 x M3*26mm Screw
• 4 x M3*25mm 7075 Standoff
• 4 x M3 Nut
• 1 x Battery Anti-slip Mat
• 1 x 250*20mm Battery Strap
• 1 x 220*20mm Battery Strap
