Foxeer MEGA 6″ DC Deadcat Frame O3-Analog-Vista-HDzero-Walksnail – Choose Color

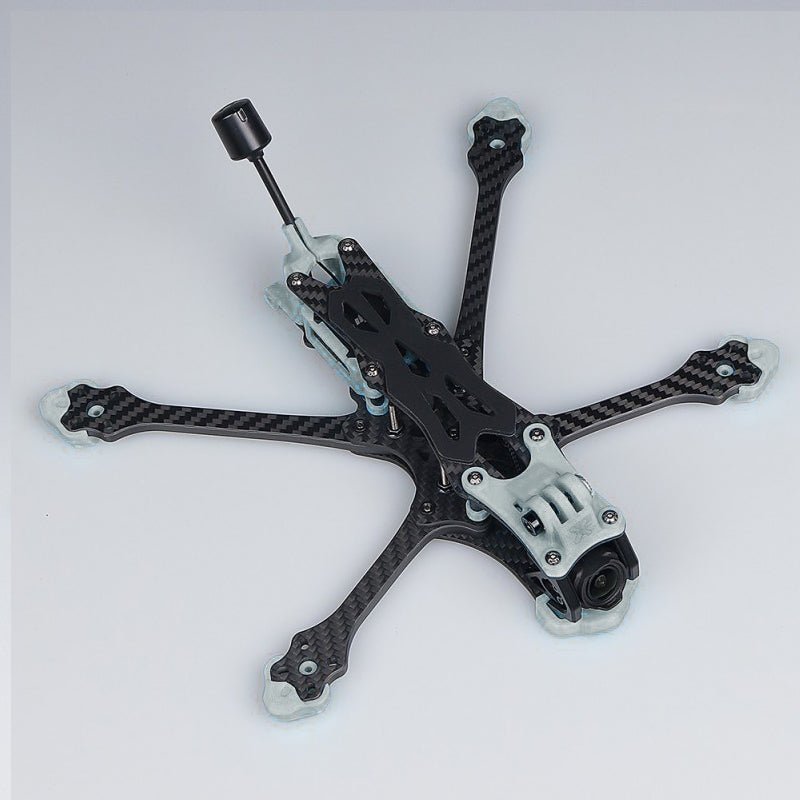

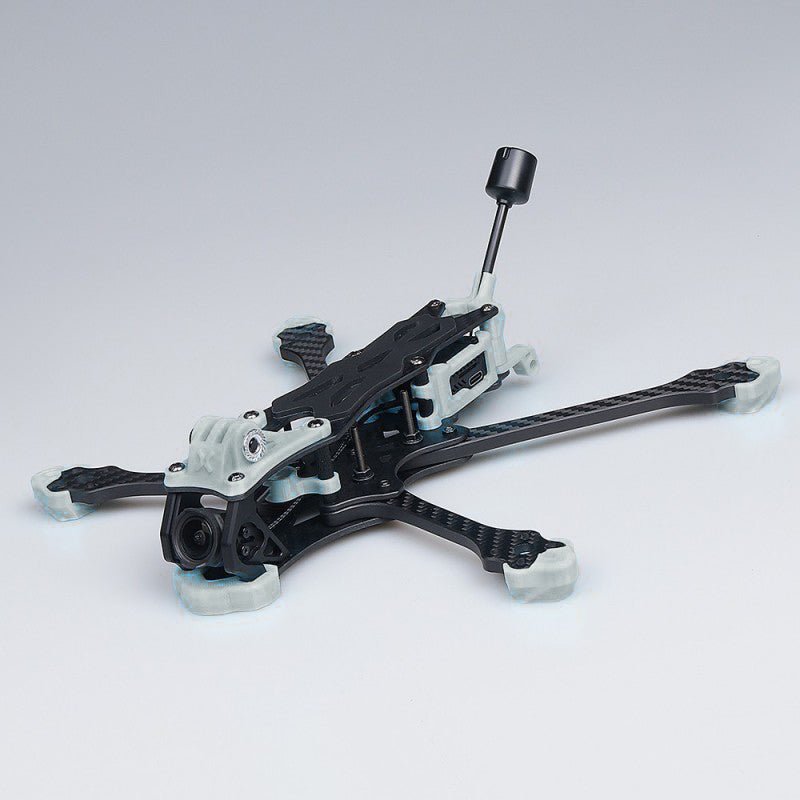

The new MEGA 6″ DeadCat Freestyle Frame from Foxeer is a great choice for freestyle builds. Available in Grey TPU Color. It features deadcat arm geometry and uses high performance T700 carbon for increased stiffness and vibration reduction. The frame can be built as Analog or HD setup and can fit the O3/Analog/Vista/HDzero/Walksnail VTX’s.

All parts and related items can be found in our Foxeer MEGA DC Frame Collection.

Check out all our Freestyle Frames, and the rest of our Foxeer Products!

Specifications:

• Material Toray T700 carbong
• Wheelbase6″: 269mm;
• Middle Mouting Hole 30.5×30.5mm
• Rear Mouting Hole 20×20/25.5*25.5/30.5×30.5mm
• Camera Size 19×19/20x20mm
• Supported System O3/Analog/Vista/Walksnail/HDZero
• Weight6″: 152g (Excluded TPU)
• Packing List
• 5mm Arm 16~19mm mounting – 4

You can Download the TPU File Here

Package Includes:

• 2mm Top Plate – 1
• 2.5mm Middle Plate – 1
• Balance Pole for 6″ – 2
• 2.5mm Bottom Plate – 1
• CNC Side Plate – 2
• Aluminum Column M3*Φ5.5*23 – 6
• SMA Antenna Mount – 1
• Bottom Plate Front Protective Mount – 1
• M5 Gopro Mount – 1
• Arm Guard – 4
• 915 Rx Antenna Mount – 1
• Isolation Column – 2
• Capacity Supporter – 1
•
  6″ DJI O3 VTx with 250GPS Mount – 1
• 6″ 250 GPS Mount – 1
• UFL Antenna Mount – 1
• Cam Spacer – 2
• M5 Nut – 1
• M5*20 Screw – 1
• Battery Anti-slip Mat -1
• 250*20mm Strap – 1
• 220*20mm Strap – 1
