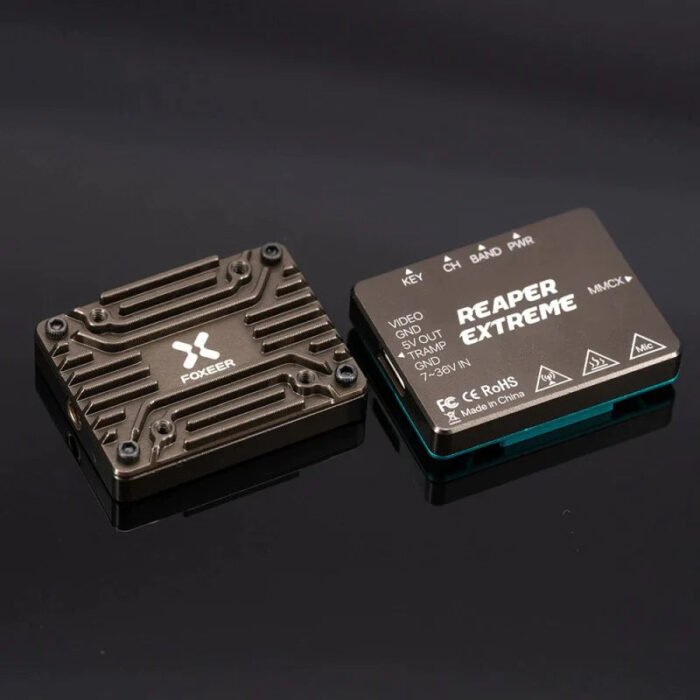

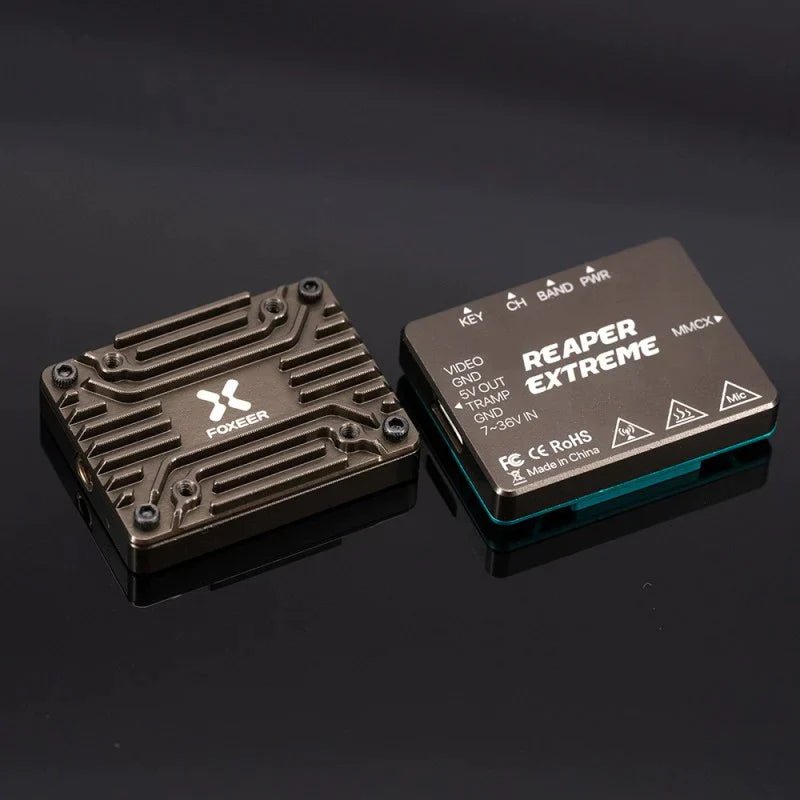

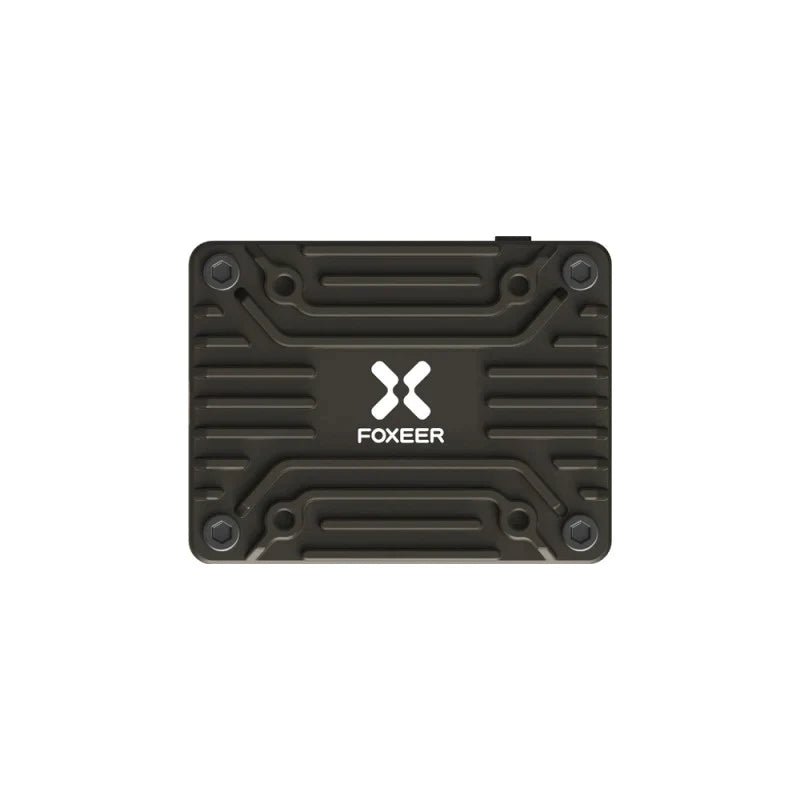

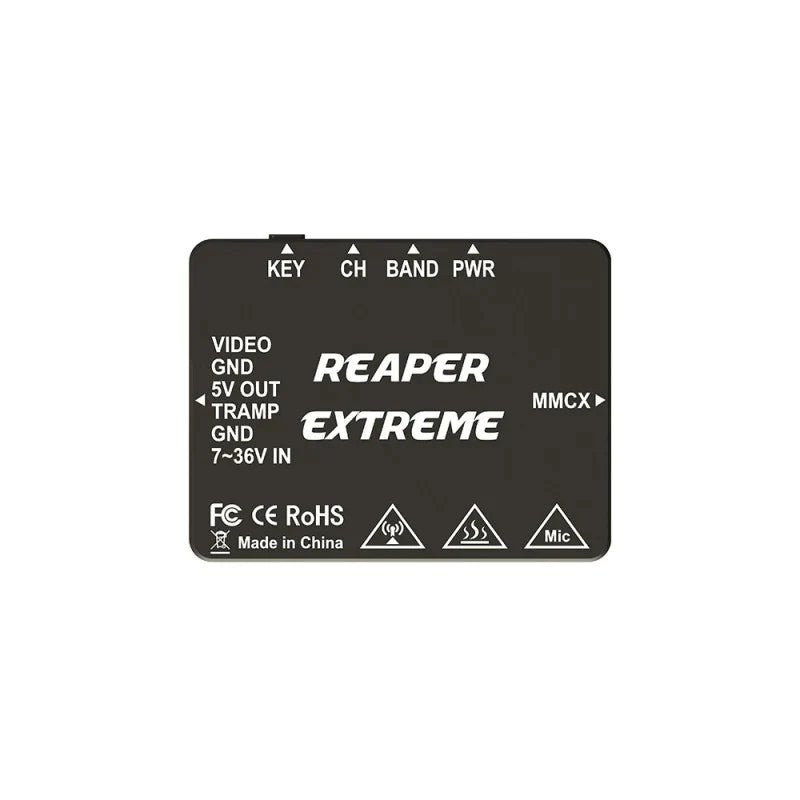

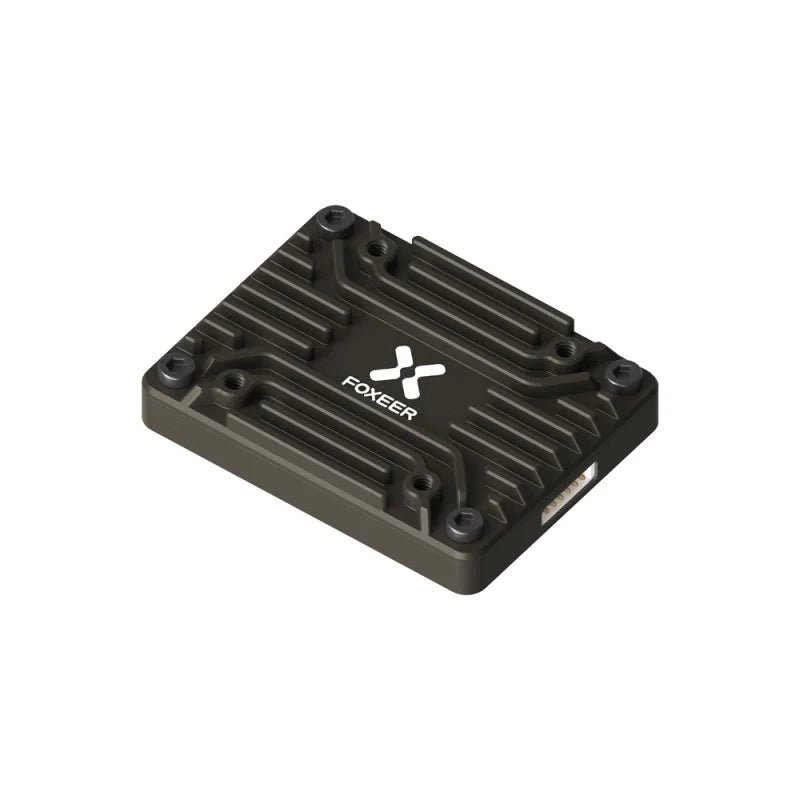

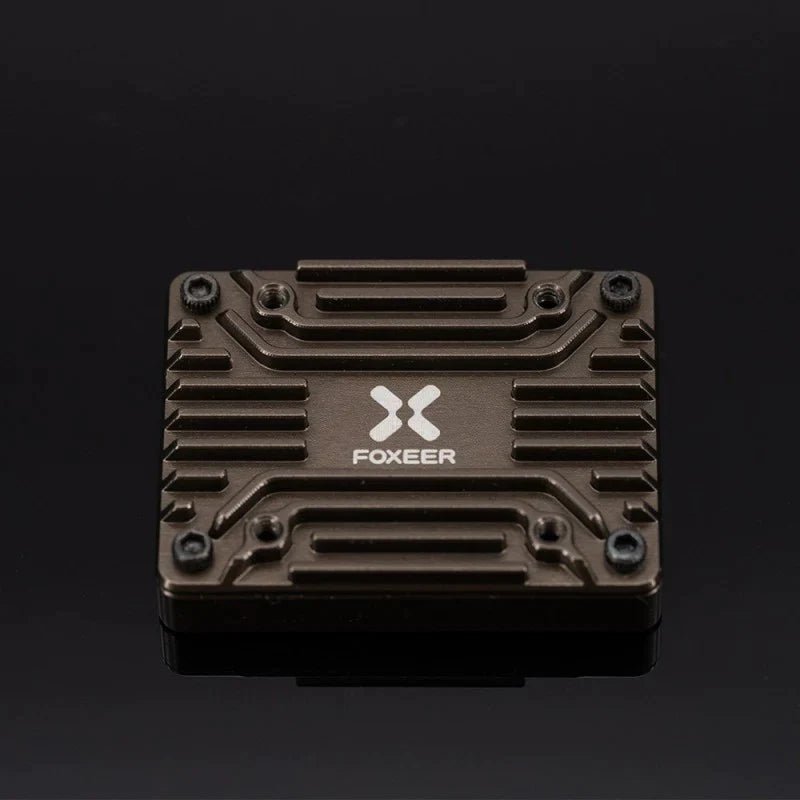

Foxeer Reaper Extreme 2.5W V3 4.9G-6G 37CH Adjustable Analog VTX

The Foxeer Reaper Extreme 2.5W VTX is one of the highest power output VTX’s on the market that are still reasonably sized for our FPV quads. It is a great choice for the Long Range guys or for those who need high power VTX to fly in video power demanding locations.

Check out all of our video transmitters and our Foxeer Products!

Specifications:

• Input Voltage: 9~36V
• Output Voltage: 5V
• Channels: 37CH
• Power Output: 25mW/200mW/500mW/1.5W/2.5W
• Pit: Double click to enter
• Weight: 13g
• Mounting Pattern: 20*20mm M2 2.8mm depth
• Size: 36*27.5*8mm
• Power Consumption: 1.2A/9V

Package includes:

• 1 x VTX
• 1 x Silicon Cable

Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

PIT On/Off:

Double-click the “KEY” button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
