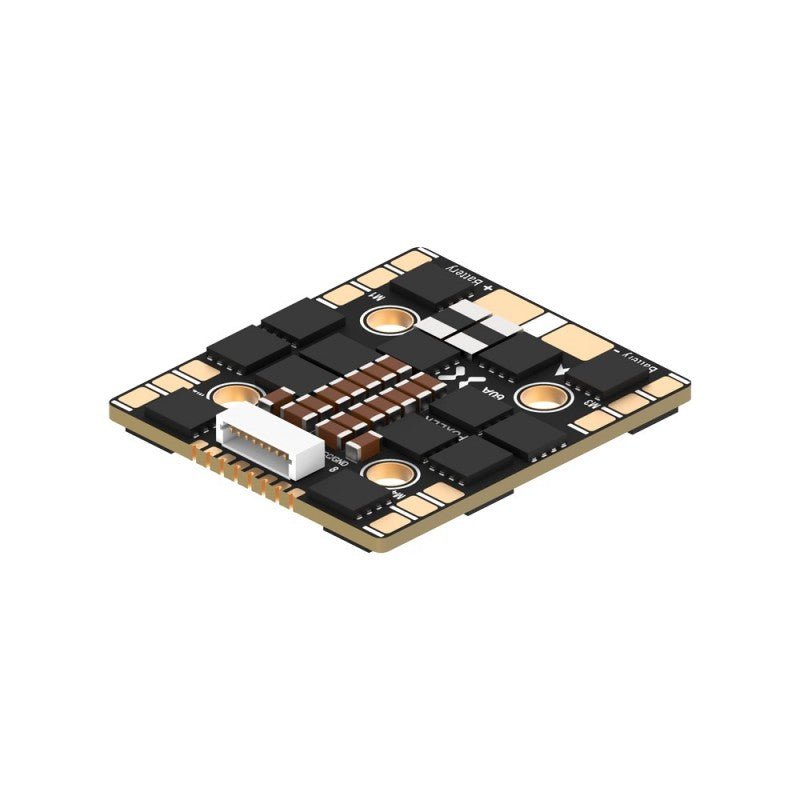

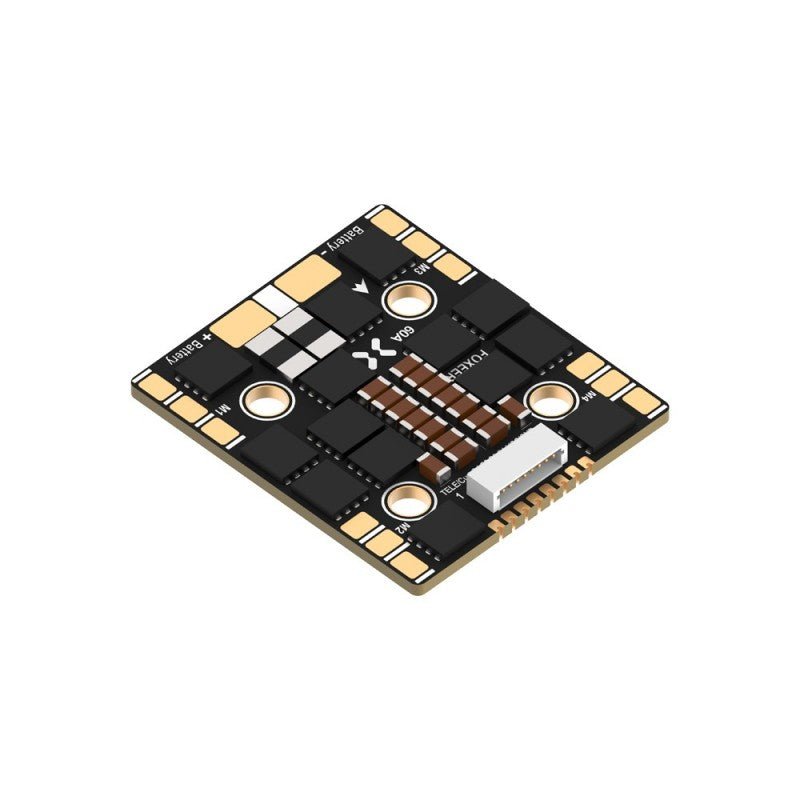

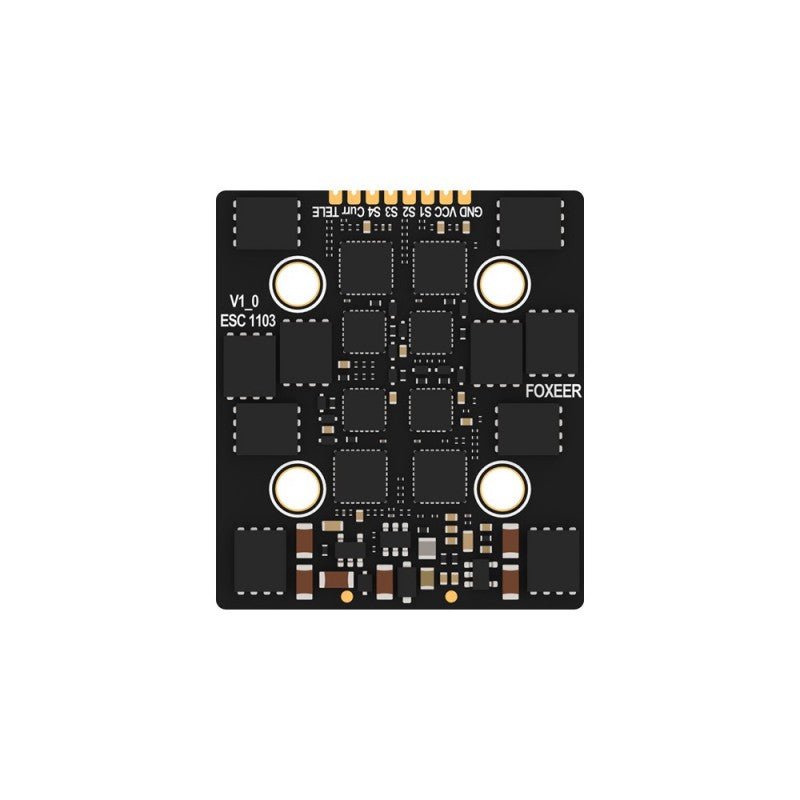

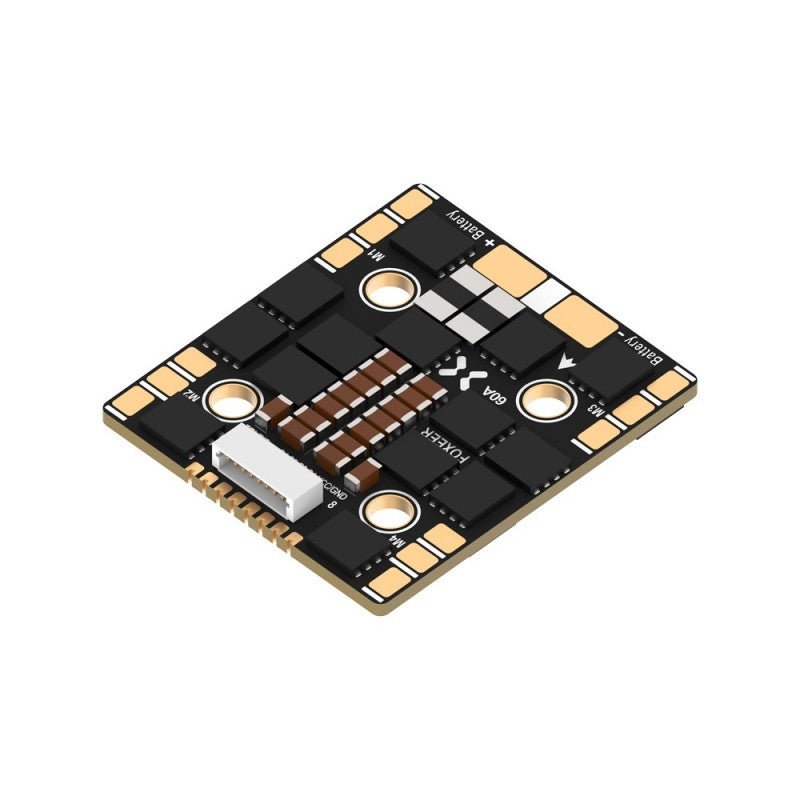

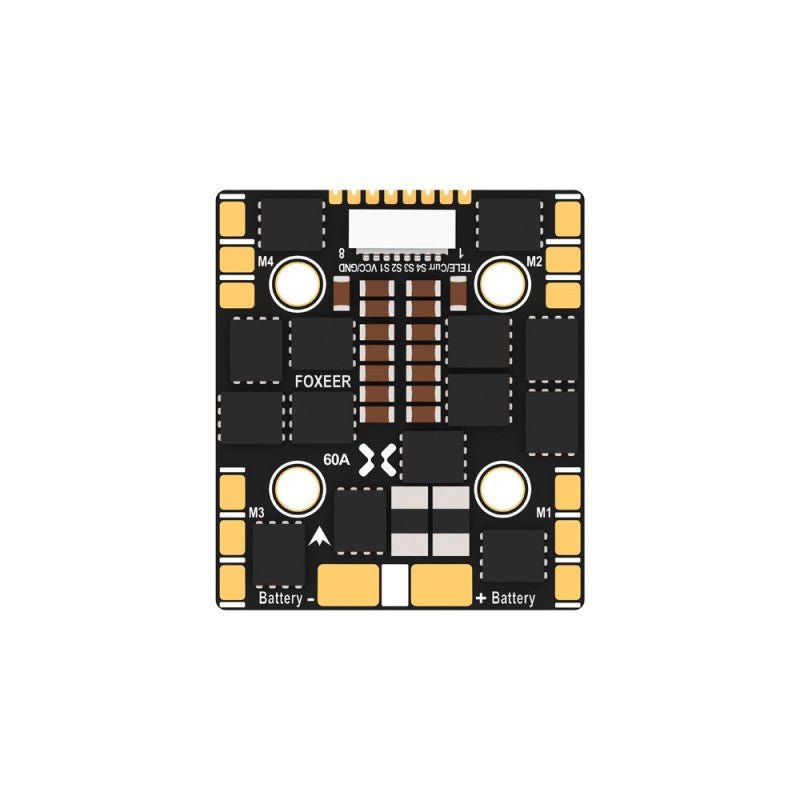

Foxeer Slim Mini Reaper F4 BL32 128K 32Bit 60A 3-8S 4in1 ESC – 20×20

The Foxeer Slim Mini F4 Reaper 128K is the next evolution of the Reaper ESC series.
Thanks to the F4 processor, low heat generation, high-quality mosfets and excellent layout, this new version has a smoother flight performence and consistent power delivery.

Check out all our 20×20 Electronic Speed Controllers, and the rest of our Foxeer Products!

Specifications

• Input Voltage: DC 9V~40V (3-8S Lipo)
• Max. Continuous Current: 60Ax4
• Max Burst Current: 100A*4
• Firmware: BLHeli_32
• Firmware Target: FOXEER_ReaperM4IN1_F4_60A_128_Multi_32_9
• Motor Protocol: DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
• BEC: No
• Current Sensor: Yes
• Mounting Dimensions: 20x20mm M3
• Dimensions: 36*41mm
• Weight: 13g
• Telemetry: Supported

• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%

Includes

• 1x Foxeer Slim Mini Reaper F4 128K 32Bit 45A 3-6S 4in1 ESC – 20×20
• 1x AMASS XT60H Pigtail
• 1x 560uf 35V Capacitor
• 8 x Grommet
• 1 x ESC to FC Cable
