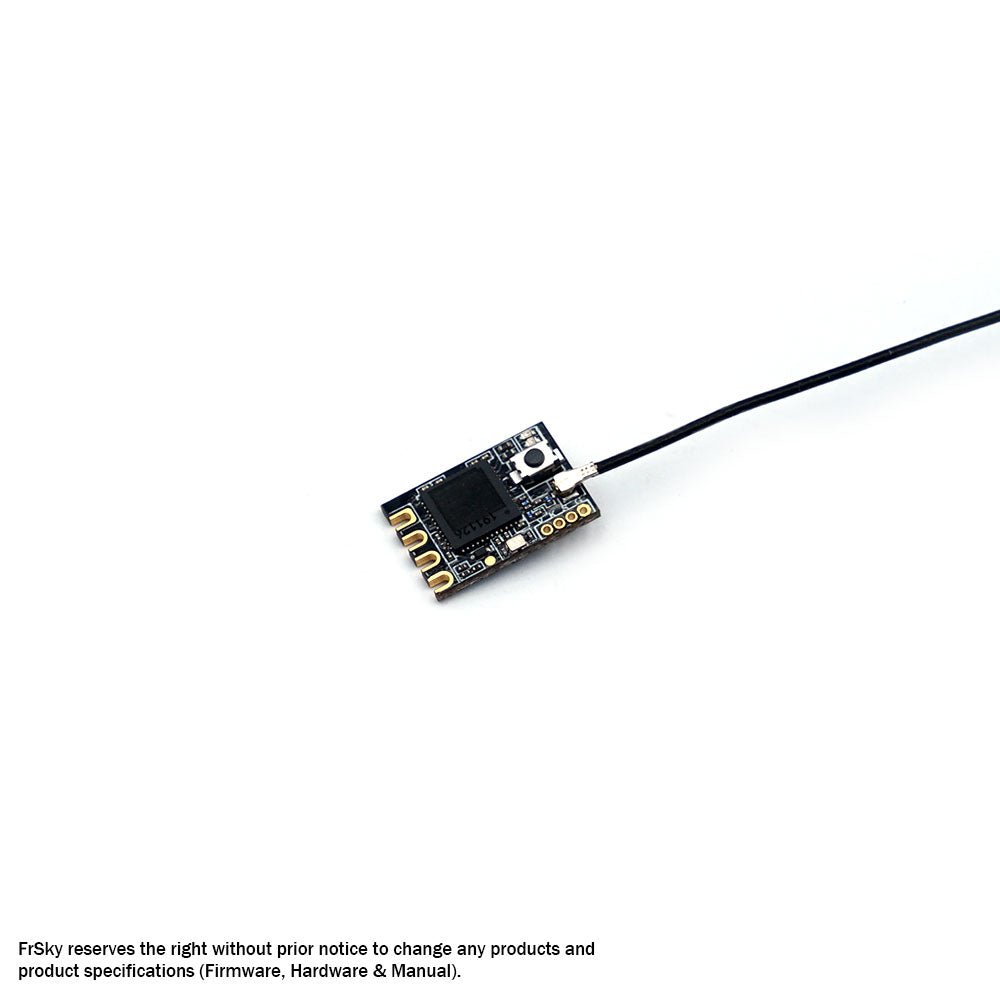

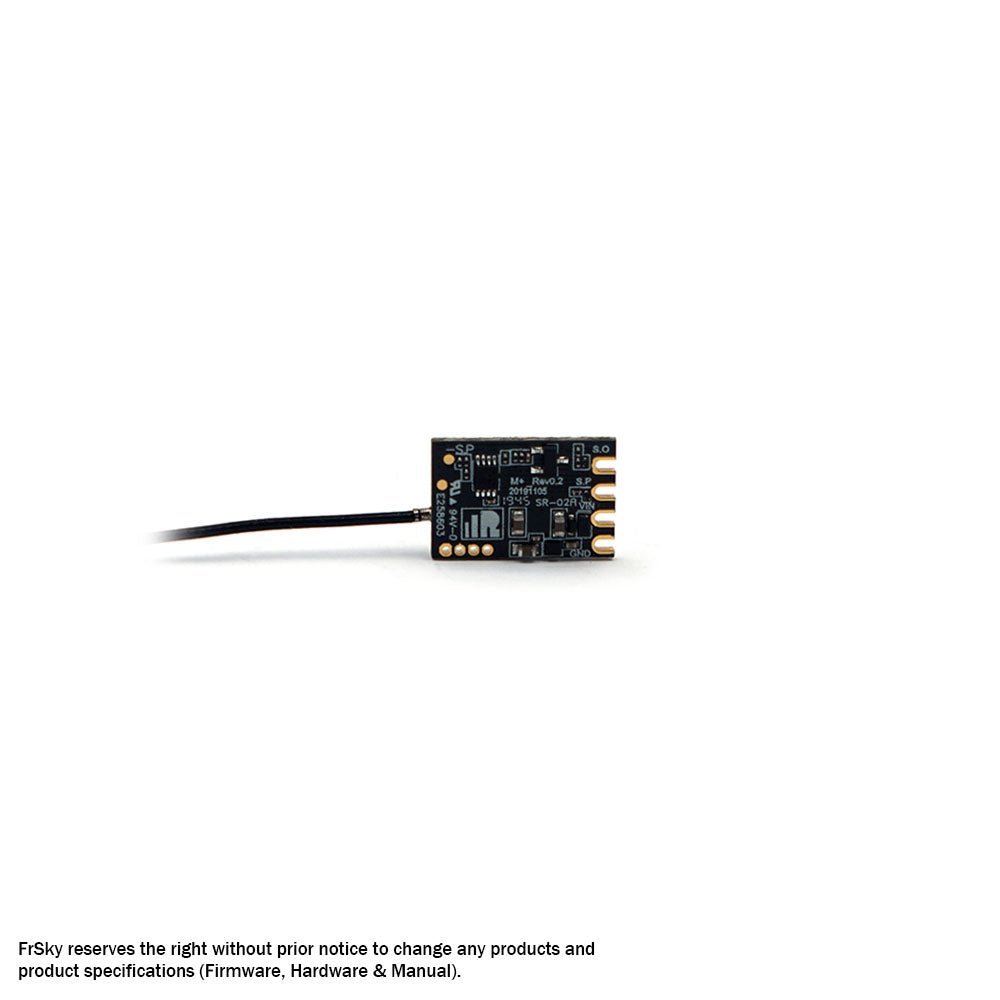

FRSKY ARCHER M+ 16/24CH ACCESS OTA 2.4GHz Micro Receiver

The ARCHER M+ receiver features its tiny form factor and new ACCESS protocol. ACCESS provides the lower latency and increased performance of our previous XM+ receivers. With OTA (Over-The-Air) function support firmware upgrades will be very easy, no more wires.

The ARCHER M+ has an S.Port/F.Port that makes this tiny receiver also support the telemetry function with around 500 to 600 meters telemetry range. Now you can enjoy the audio feedback with it from your FrSky ACCESS enabled transmitter.

Checkout all our Receivers and our Frsky Collection

Features:

• ACCESS protocol with Over The Air (OTA)
• Tiny and super lightweight
• Full control range & 500 to 600 meters telemetry range
• SBUS OUT
• S.Port / F.Port
• Inverted S.Port

Specifications:

• Dimension: 17*11.7*4mm (L*W*H)
• Weight: 1g
• Number of Channels: 16/24 SBUS channels
  – 16 SBUS channels
  – 24 SBUS channels (Stay tuned)
• Operating Voltage Range: 3.5 -10V
• Operating Current: 16mA@5V typ
• Operating Range: ＞1.2km (Full range) (*Range may vary based on local conditions.)
• Compatibility: All FrSky ACCESS transmitters

Package Includes:

1 x FRSKY ARCHER M+ACCESS OTA 2.4GHz Micro Receiver

Full manual can be FOUND HERE
