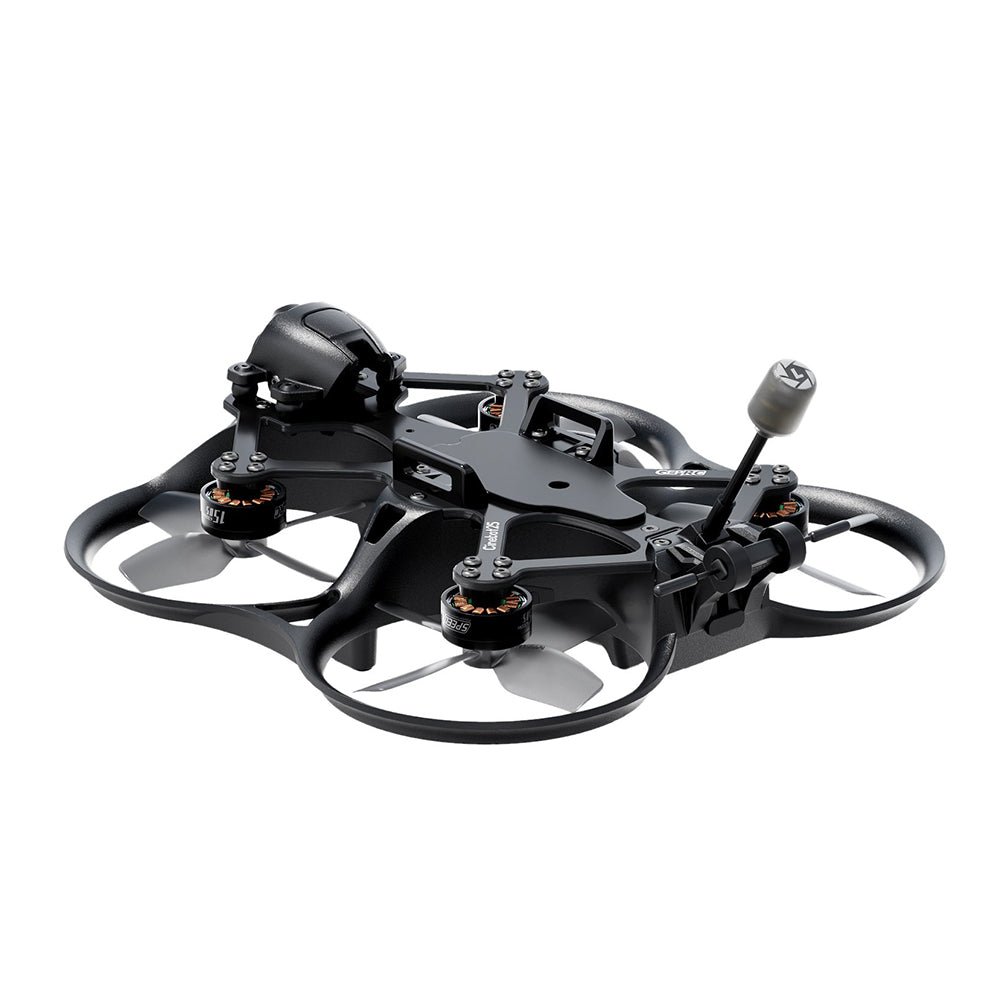

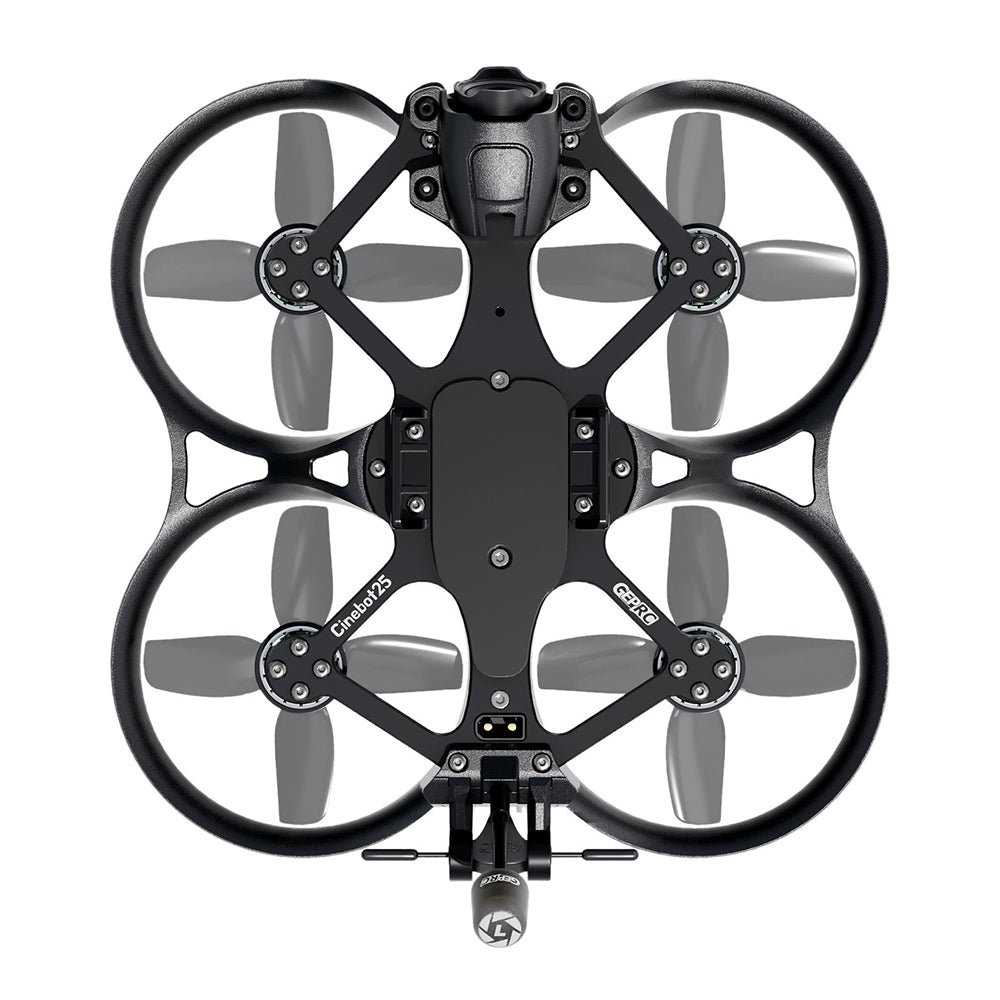

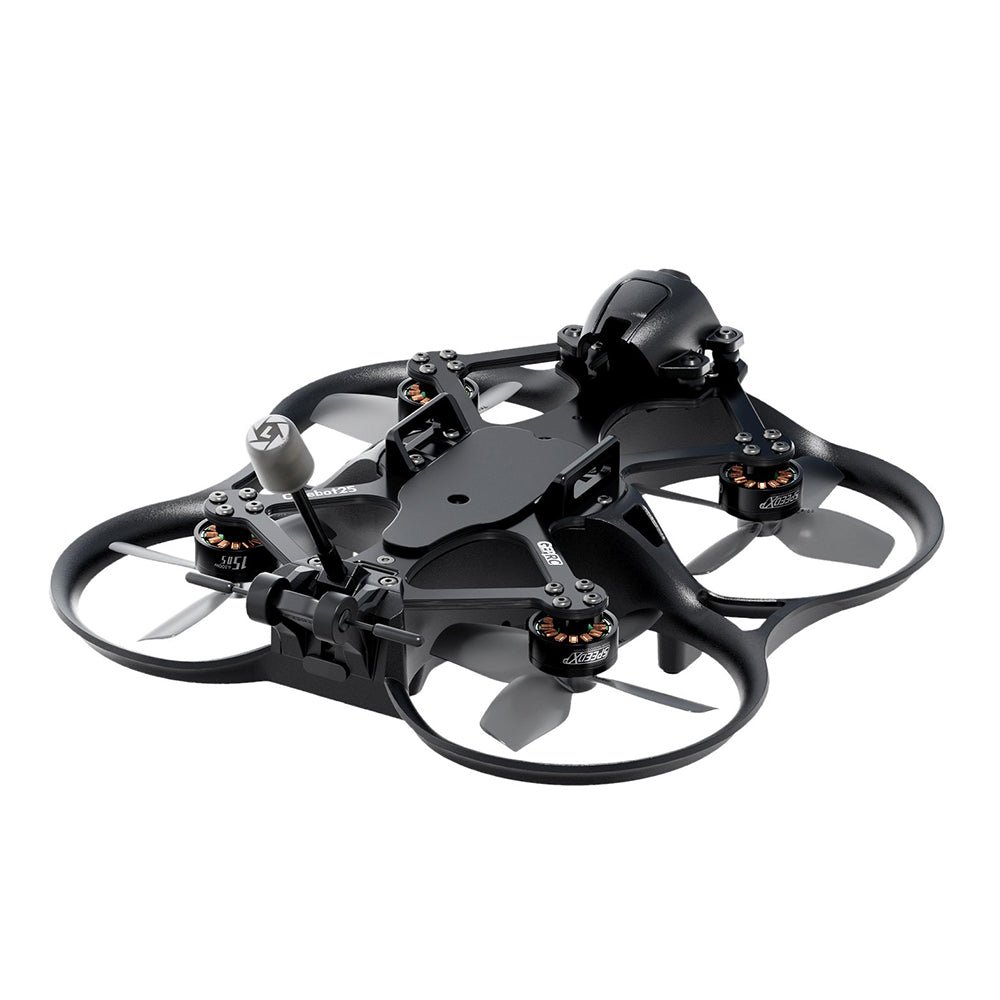

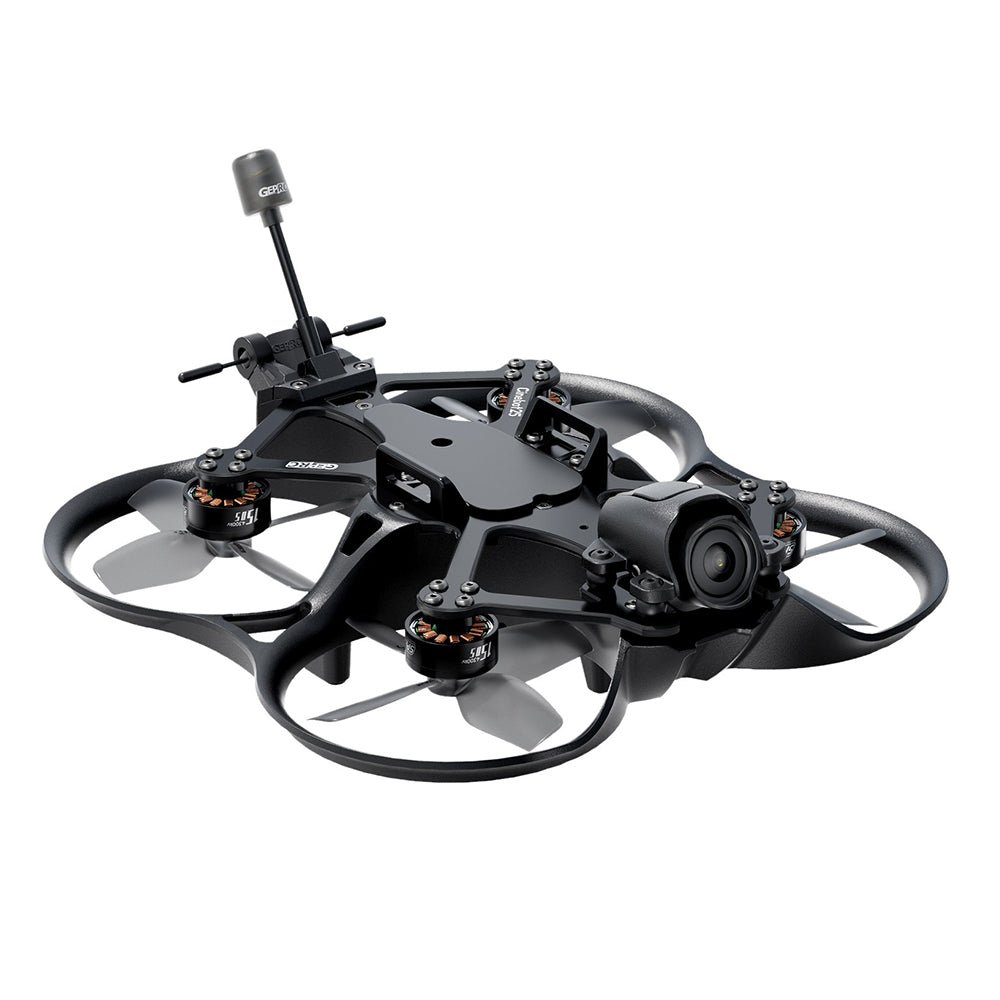

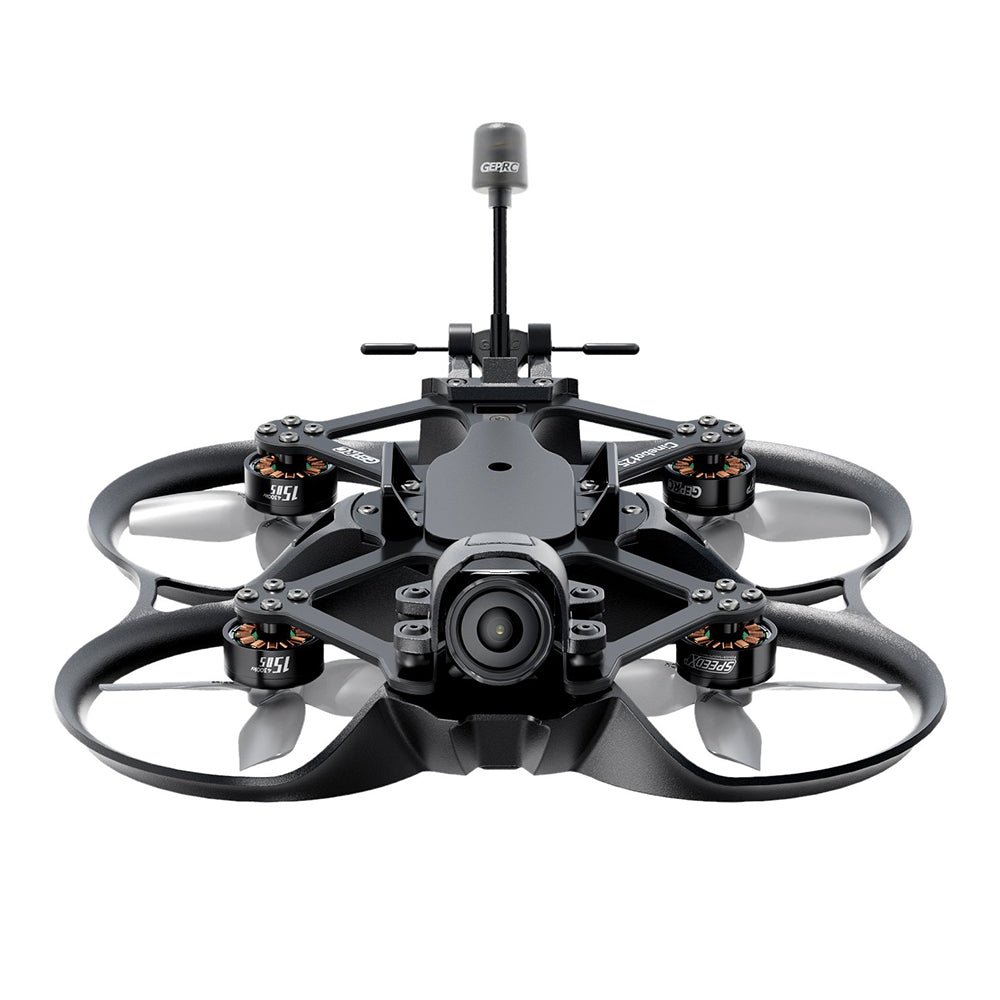

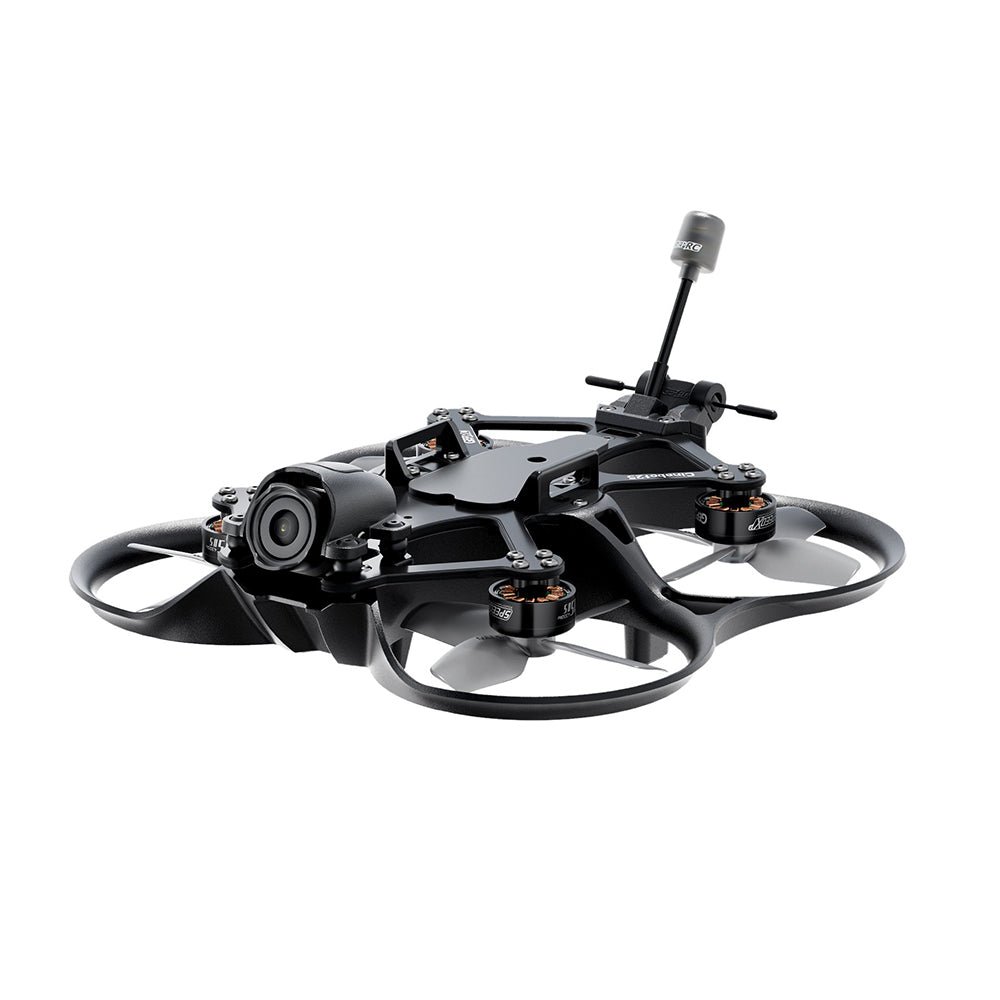

GEPRC Cinebot25 S HD Wasp 2.5″ Cinewhoop – Choose RX

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

The O3 anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the O3 Air Unit， and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A AIO FC that will breathe new life into the footage-shooting experience.

Check out all our BNF Cinewhoops and the rest of our GepRC Products!

Features:

• Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.
• The shock-absorbing protection cover of the camera provides better stability for footage shooting.
• Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.
• The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.
• Optimized silicone T-shaped antenna fixing component.
• Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g.
• Equipped with the new TAKER G4 45A AIO, the G4 FC has a stable flight computing capability. An integrated 45A BL32 ESC possesses strong discharge capability that supports a refresh rate of up to 128K PWM.
• The compatibility between O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.
• The customized fixing stand of the receiver simplifies the internal space.
• Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

Specifications:

• Model: Cinebot25 S Wasp Quadcopter
• Frame: GEP-CT25 Black
• Wheelbase: 115mm
• FC: TAKER G4 45A AIO
• MCU: STM32G473CEU6
• Gyroscope: ICM 42688-P
• FC firmware: TAKERG4AIO
• ESC: BLHeli 32Bit 45A
• Motor: SPEEDX2 1505 4300KV
• Propellers:  HQprop DT63mm x4
• Connector: XT30
• VTX: Runcam Link
• Camera: Runcam Wasp
• Antenna: Peano 5.8G LHCP UFL
• Receiver: PNP(internal VTX receiver) / ELRS2.4G / TBS NanoRX
• Weight: Cinebot25 S Wasp PNP version 180g±1g
• Recommended battery:LiPo 4S 650mAh-850mAh
• Flight Time：5′-7’30”（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

Package Includes:

• 1 x Cinebot25 quadcopter
• 1 x HQprop DT63mmx4 propeller（pack）
• 2 x  Battery anti-slip pads
• 1 x 15*150mm battery strap
• 1 x 15*180mm battery strap
• 1 x Naked GoPro base
• 1 x O3 heat sink
• 1 x L-shaped screwdriver 1.5mm
• 1 x Frequency paring pointer
• 1 x Damping ball puncher
• 2 x Camera damping balls
• 4 x M2 nuts
• 6 x M2*6 button head screws
• 4 x M2*18 button head screws
• 4 x M1.6*8 Round Head screws with collar
• 4 x M2*5 button head screws
• 4 x M1.6*10 allen screws
• 2 x M2*12 button head screws
• 2 x M2 self-clinching nuts
• 2 x T-shaped antenna fixing silicones
