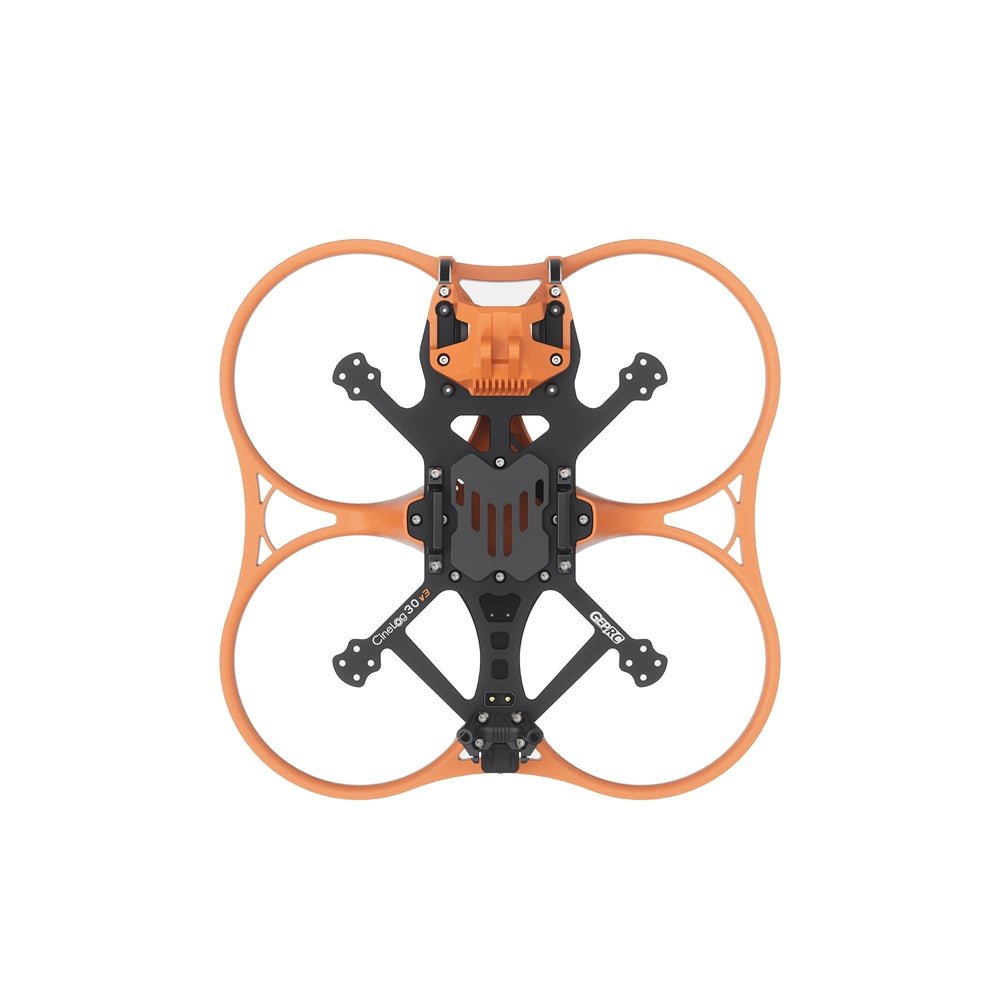

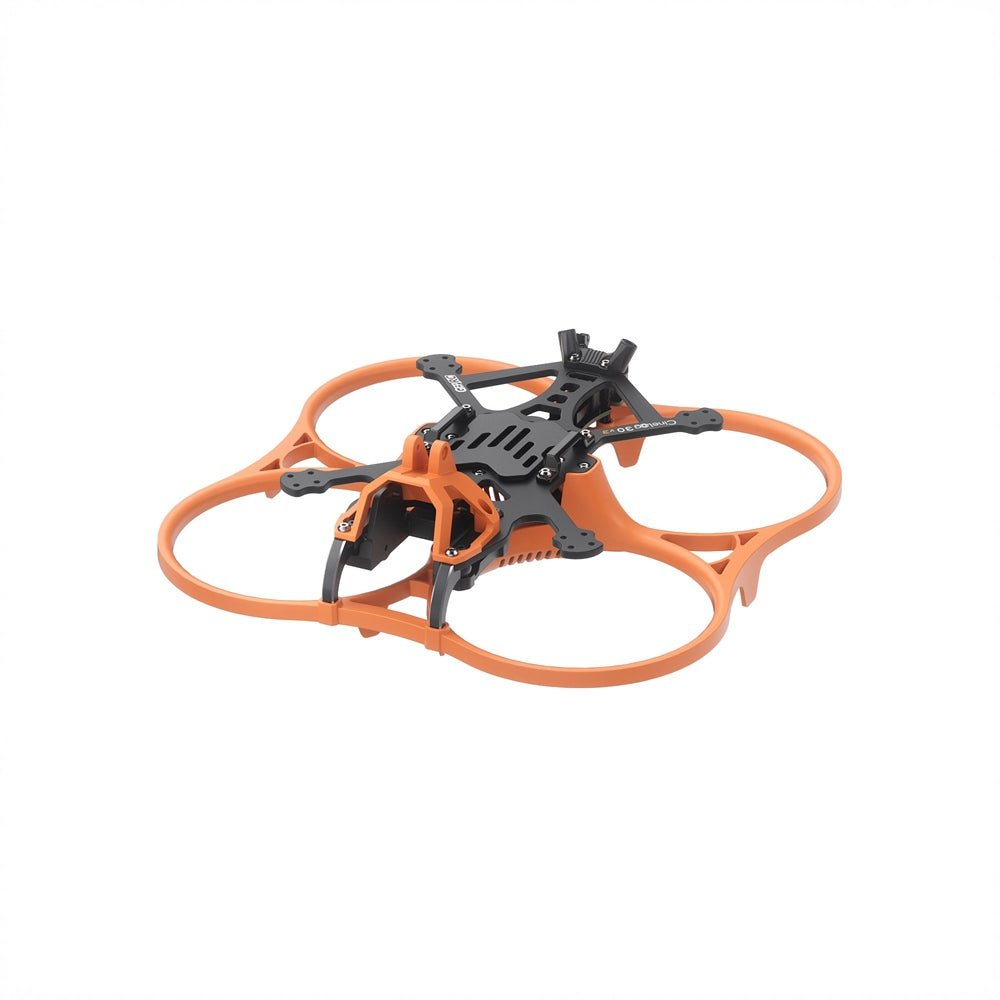

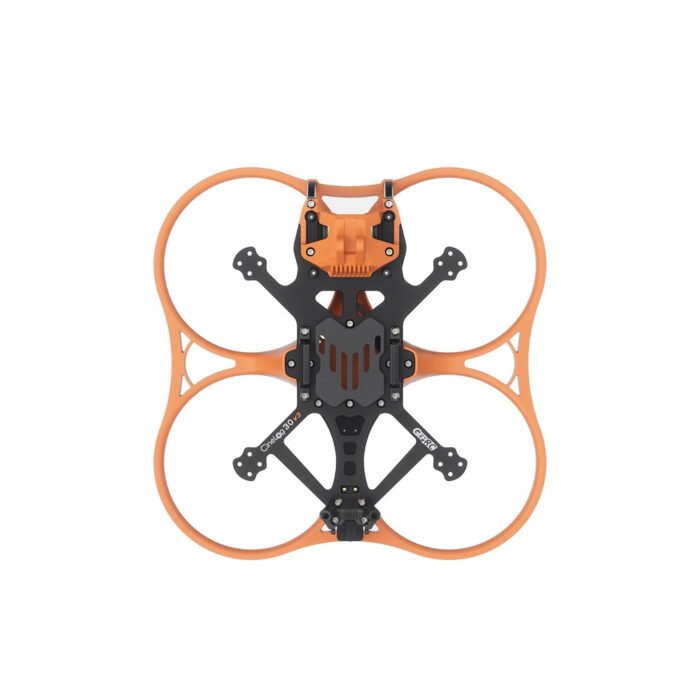

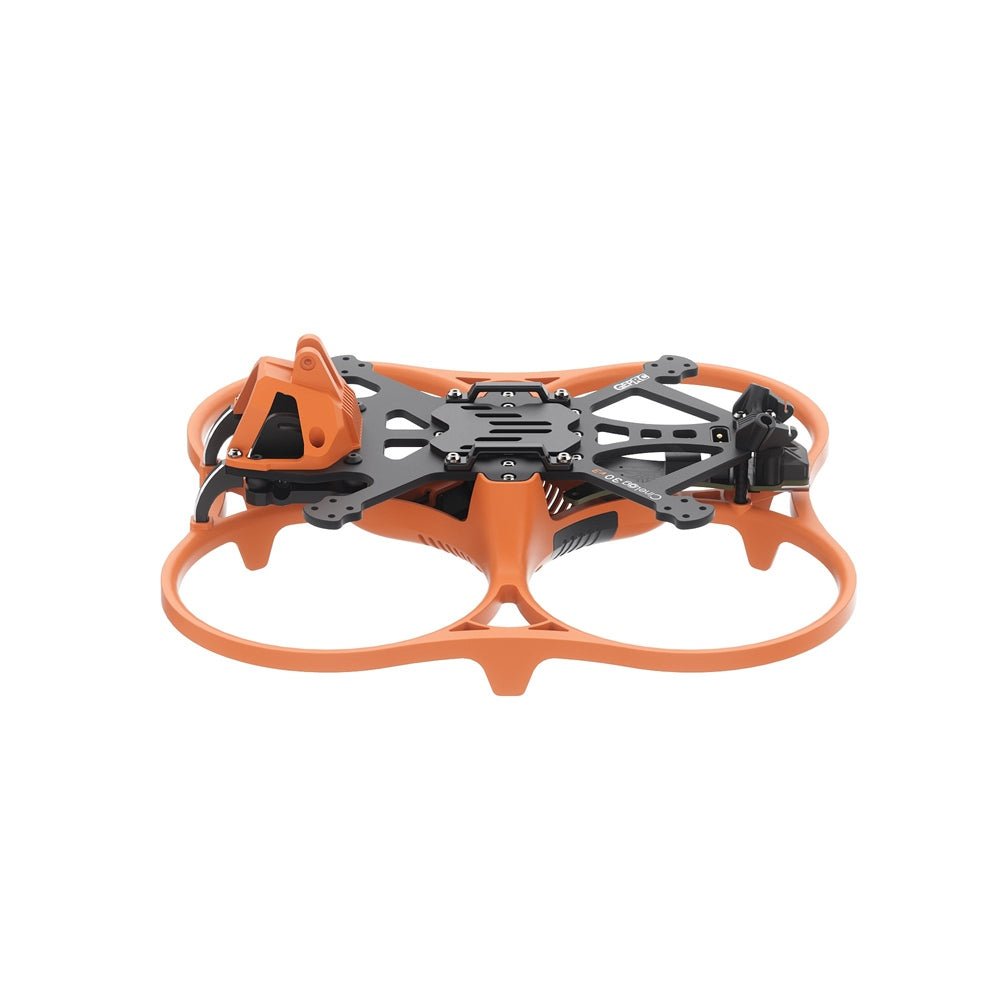

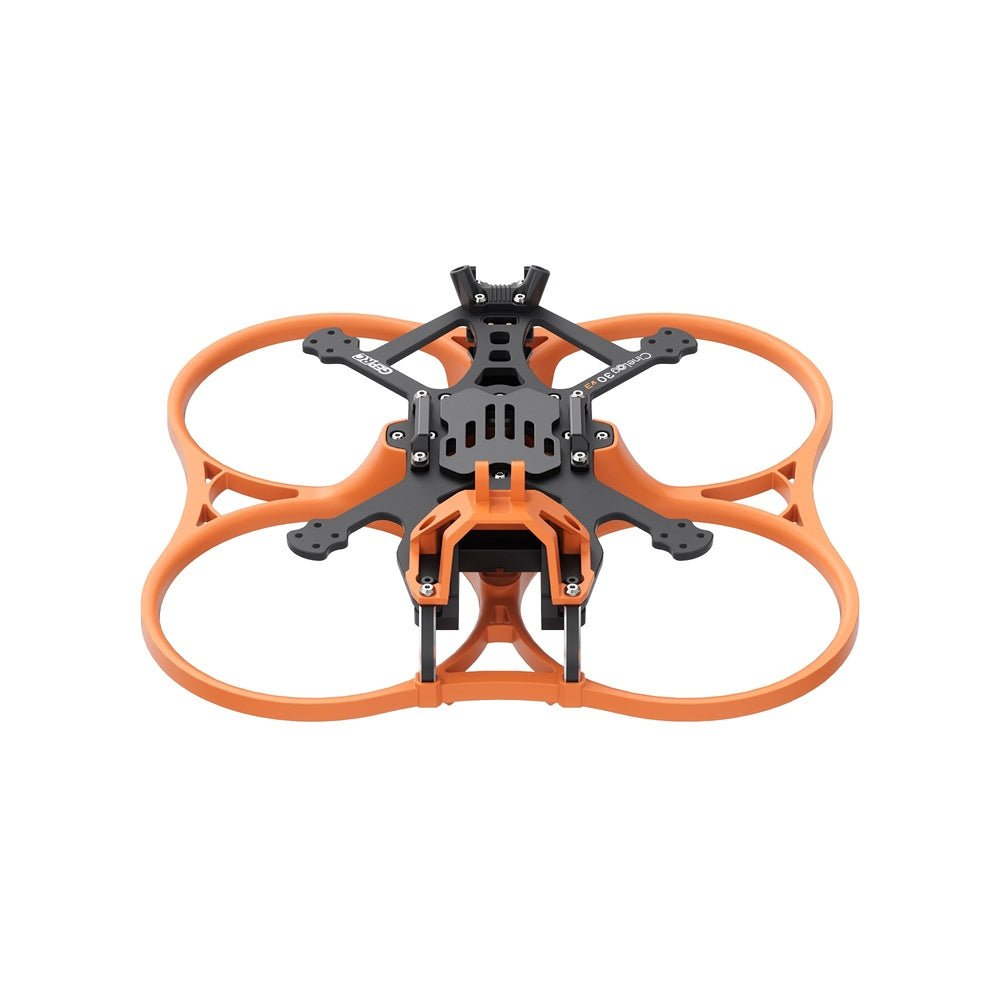

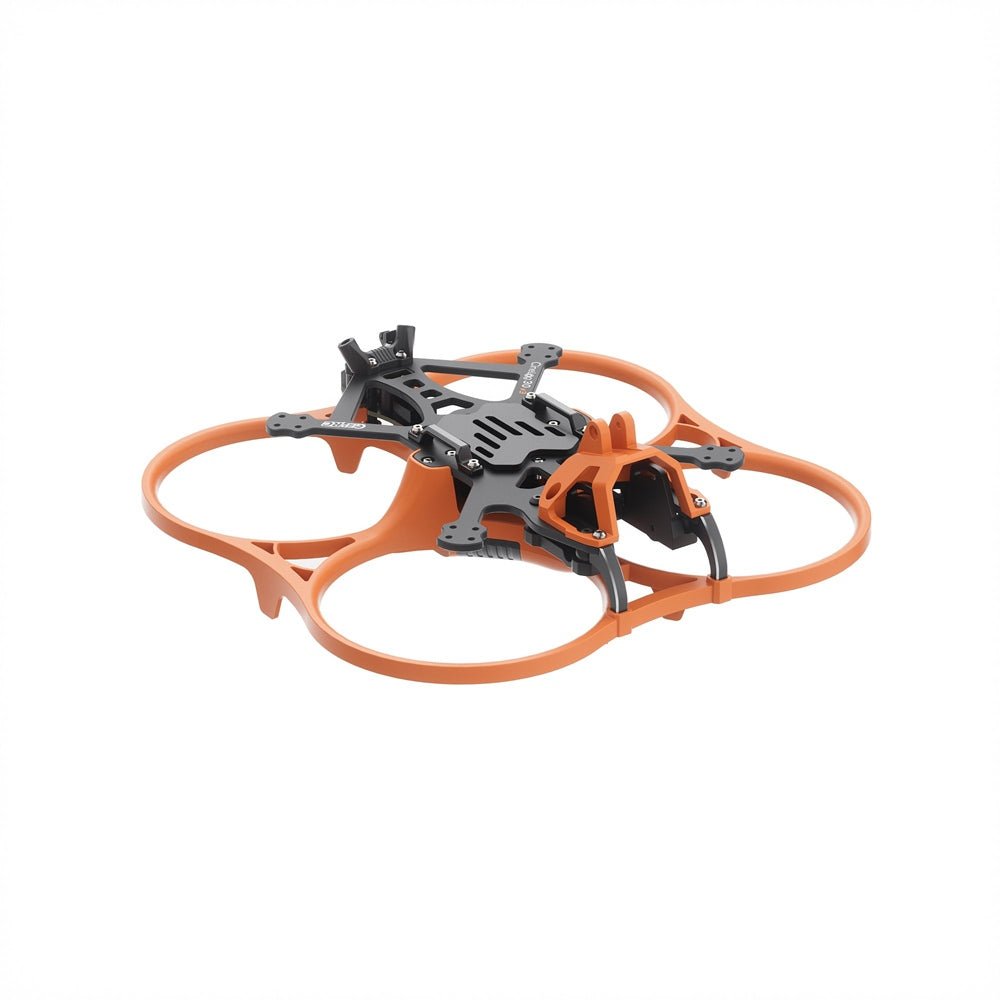

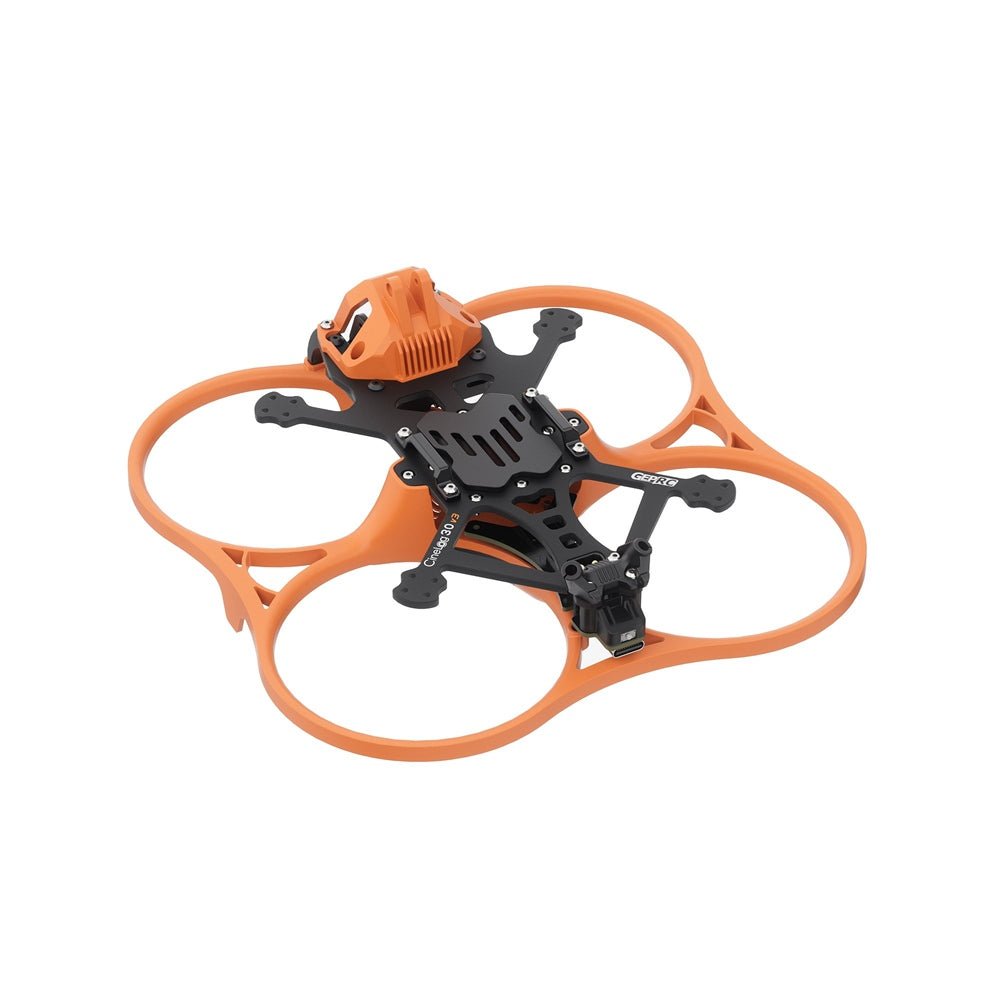

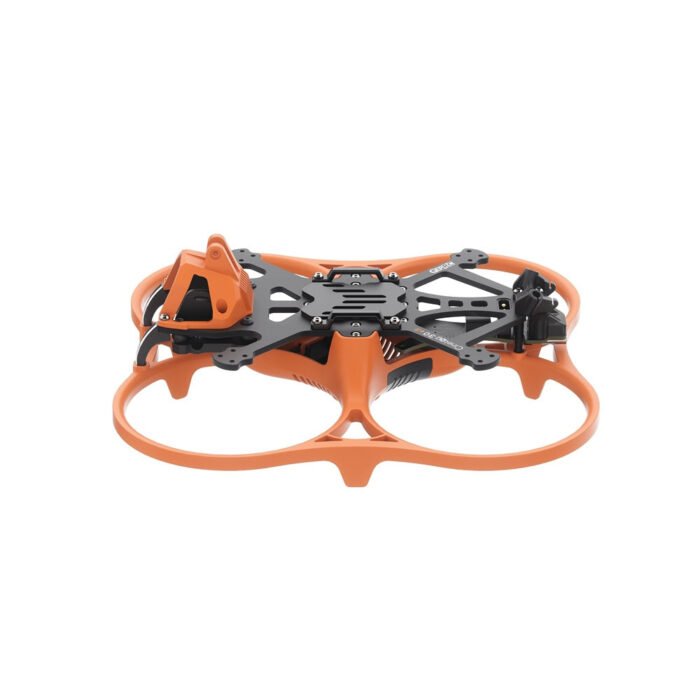

GEPRC GEP-CL30 V3 CineLog30 V3 3.0″ O4 Compatible Drone Frame Kit

The GEP-CL30 V3 comes with an upgraded design, featuring an integrated protective guard custom-made for the O4 Air Unit Pro.
The frame’s cutouts provide a balance of heat dissipation and strength, while silicone dust plugs protect the O4 Air Unit Pro VTX and are easy to remove for quick binding and file access. Six screws enable fast disassembly, and the canopy is available in three colors for customization. The custom function board, buzzer, LED strip BEC, and anti-spark features. The underslung gimbal mount ensures smooth, stable footage.

Check out all our Cinewhoop Frames and the rest of our GepRC Products!

Features:

• Cinelog series underslung gimbal mount for smooth footage with the O4 Air Unit PRO.
• Multiple color options to personalize your Cinelog30 V3.
• Aluminum reinforcement on the frame and cage for improved structural strength.
• Canopy design effectively protects the O4 Air Unit PRO.
• Data port dust plugs prevent dirt from blocking during takeoff and landing.
• Only 6 screws hold the frame together, making assembly easy.
• New 6-in-1 function board simplifies wiring and optimizes space inside.

Specification:

• Model: GEP-CL30 V3 frame
• Frame Color: Black, Orange
• Canopy Color: Black, Orange, grey
• Frame Dimension: 3-inch
• Wheelbase Dimension: 128mm
• Carbon Fiber Plate Thickness: 2.5mm
• FC Mounting Pattern: 25.5*25.5mm
• VTX Mounting Pattern: 20*20mm/25.5*25.5mm
• Motor Mounting Pattern: 9*9mm
• Camera Mounting Pattern: 20mm
• Power Connector: XT30
• Compatible propellers: 3-inch
• Frame Weight: 78g±2

Package Includes:

• 1 x Protective frame（black）

• 1 x Protective frame（orange）

• 1 x Canopy（black）

• 1 x Canopy（orange）

• 1 x Canopy（grey）

• 1 x Aluminum battery strap

• 1 x Aluminum lens mount

• 1 x LED strip

• 2 x Battery anti-slip pads

• 1 x Cinelog30 V3 FCB

• 1 x 15*150mm battery strap

• 1 x 15*130mm battery strap

• 1 x L-shaped screwdriver 1.5mm

• 1 x spare screw pack

• 1 x battery anti-slip pad

• 1 x Damping ball puncher

• 1 x Frequency pairing ejector pin

• 1 x Screw pack
