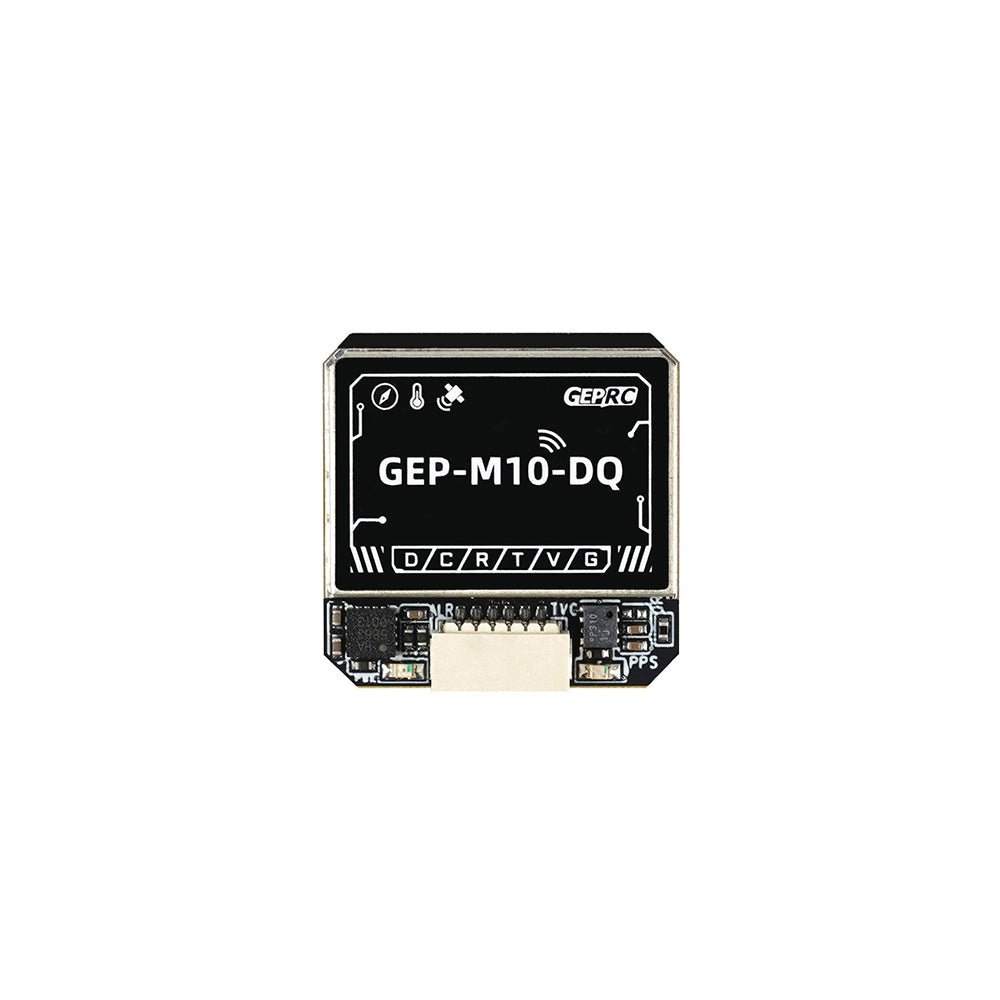

GEPRC GEP-M10-DQ GPS Module
$32.99
| Weight | 0.02 kg |
|---|
Out of stock
Description
New GEPRC GPS series products based on u-blox M10 chip: GEP-M10nano, GEP-M10, GEP-M10-DQ.
GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of u-blox company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.
Check out our all our Flight Controller Accessories and the rest of our GEPRC Collection!
Â
Features:
- U-blox M10 series chip
- Fast positioning speed
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Up to 32 satellites
- Stable connection quality
- Unique appearance design
- Small size and light weight
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use
- Integrated magnetometer+barometer,integrated module (GEP-M10-DQ)
Specifications:
- Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ
- GPS chip: u-blox M10
- Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ: QMC5883L
- Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ:DPS310
- Input voltage: 3.3V-5V
- Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel: 72ch
- Navigation satellites: Up to 32 pieces
- Output protocol: GEP-M10nano: UART(ublox) / GEP-M10: UART(ublox) / GEP-M10-DQ: UART(ublox),I2C
- Baud rate: 115200bps
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal positioning accuracy: 2D ACC1.5m(Weather)
- Timing accuracy: 30 ns
- Receiver sensitivity: Trace-162dBm, Capture-160dBm
- Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration: 4G

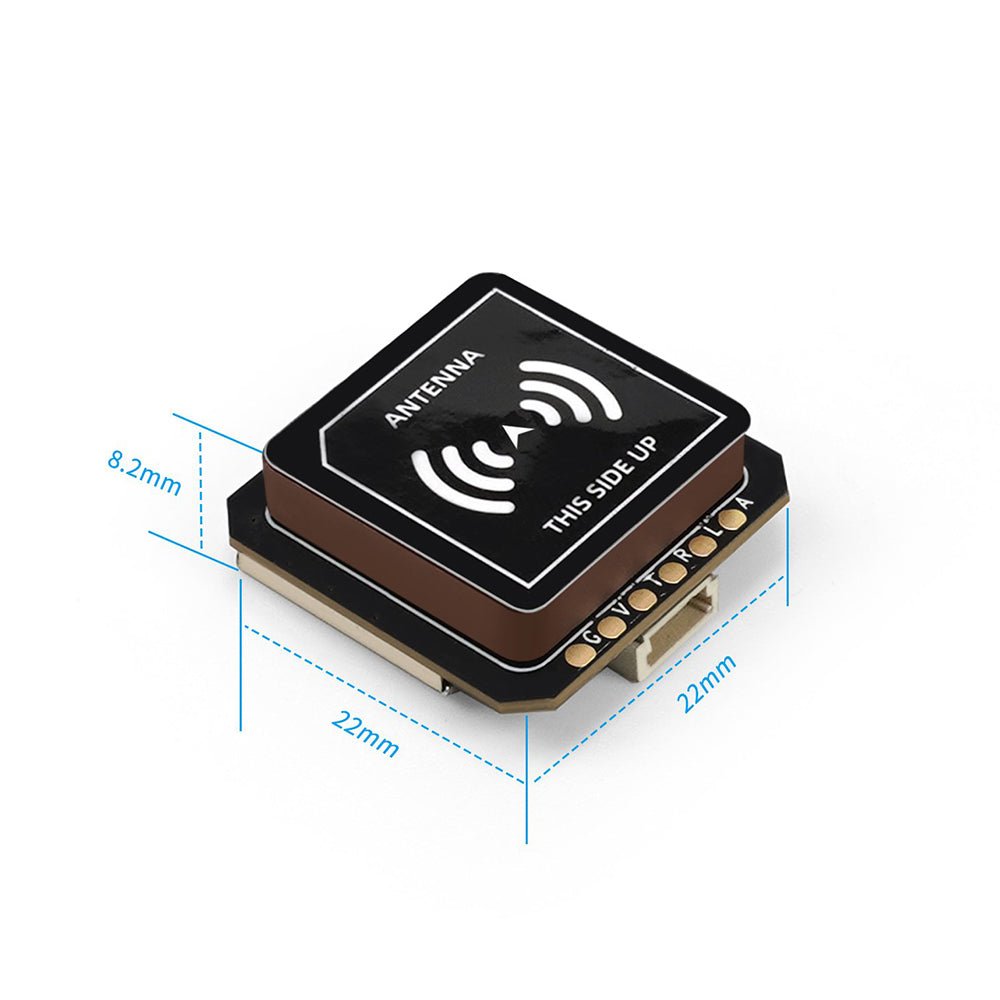

- Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm

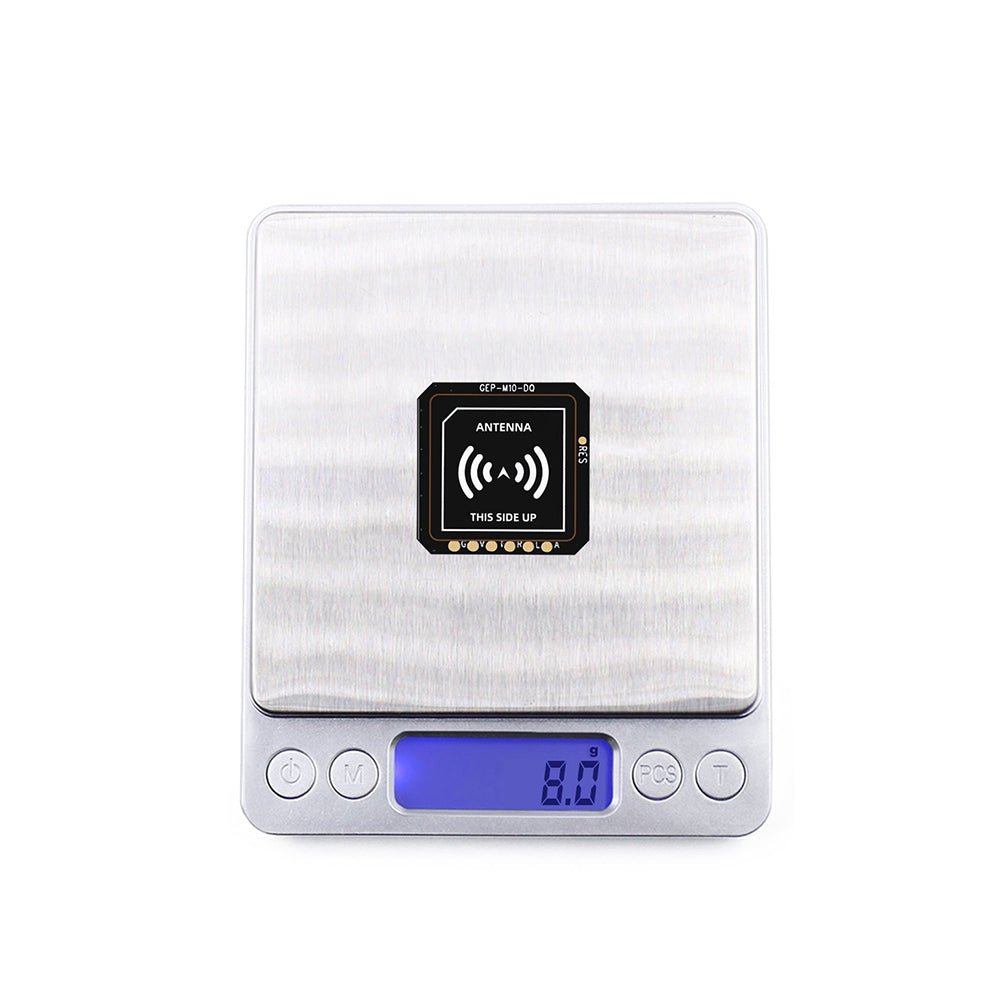

- Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10-DQ: 8.0g
Â
Package Includes:
- 1 x GPS module
- 1 x Terminal wire
- 1 x Instruction manual
- 1 x GEPRC sticker
- 1 x Heat shrink tubing
