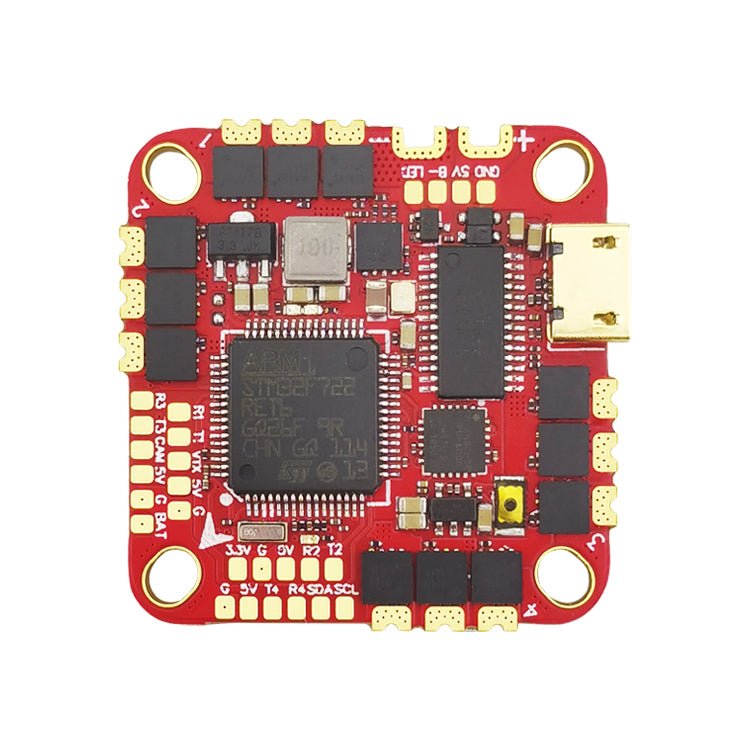

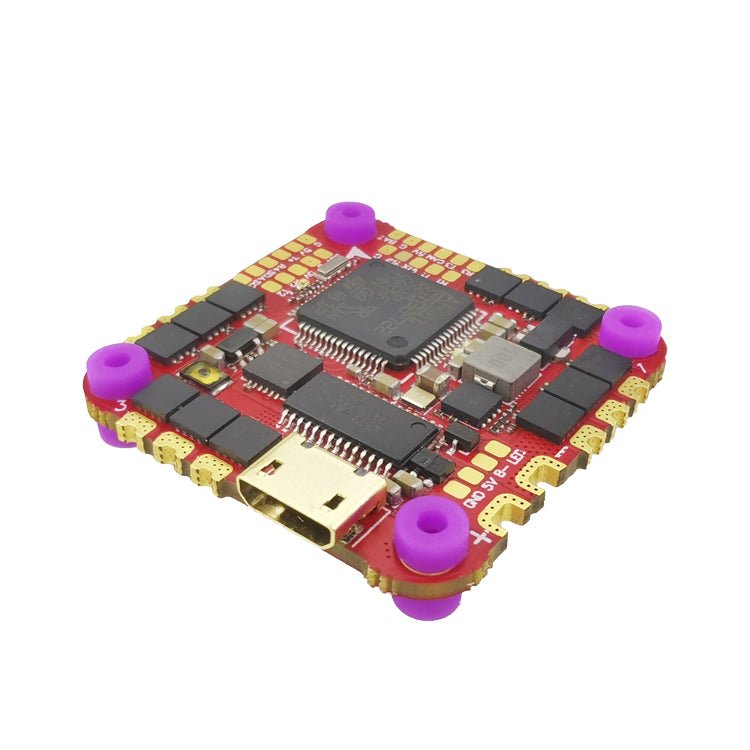

HAKRC F722 2-6S 40A AIO FLIGHT CONTROLLER BLHELI_S(W/external USB Board)

The F722 40A AIO is HakRC’s new whoop style flight controller/ESC AIO board for ultralite and whoop build.
This FC features an onboard as well as external USB port for thos tight build where it’s hard to reach the USB plug.

Checkout all our Whoop Style Flight Controllers and the rest of our HAKRC products!

Features:

• The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
• MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
• Using industrial grade LDO, high temperature resistance.
• Using high-quality Japanese Murata capacitors, strong filtering performance
• Size: 32* 32mm (25.5mm-26.5mm mounting hole)
• Packing size: ø63*32mm
• Product net weight: 7g
• Package weight: 25g

F722 FC:

• CPU: STM32F722RET6
• IMU: BMI270, ICM42688P, or MPU6000
• OSD: AT7456E
• Barometer: integrated
• BEC: 5V/3A
• Uart: 5
• LED: Support WS2812 and other programmable
• Sensor: Built-in current sensor
• Flight control firmware version: HAKRC F722D

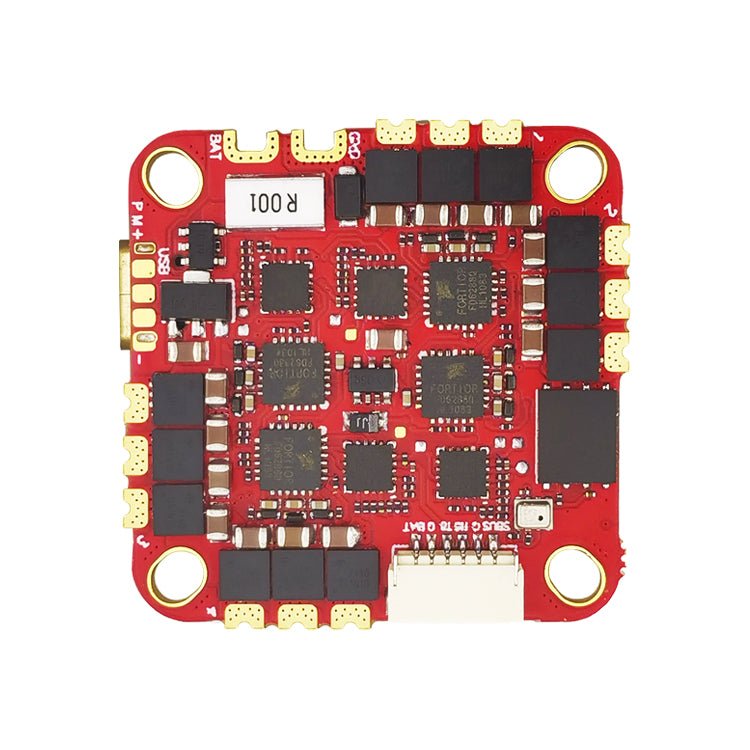

BLheli_S ESC:

• Firmware support: BLHELI_ S
• Protocol support: PWM, Oneshot125, Oneshot42,
• Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-6S Lipo
• Continuous current: 40A
• Peak current: 50A
• Current meter proportional value: 450
• Firmware version: BLHELI _S (G- H-30)

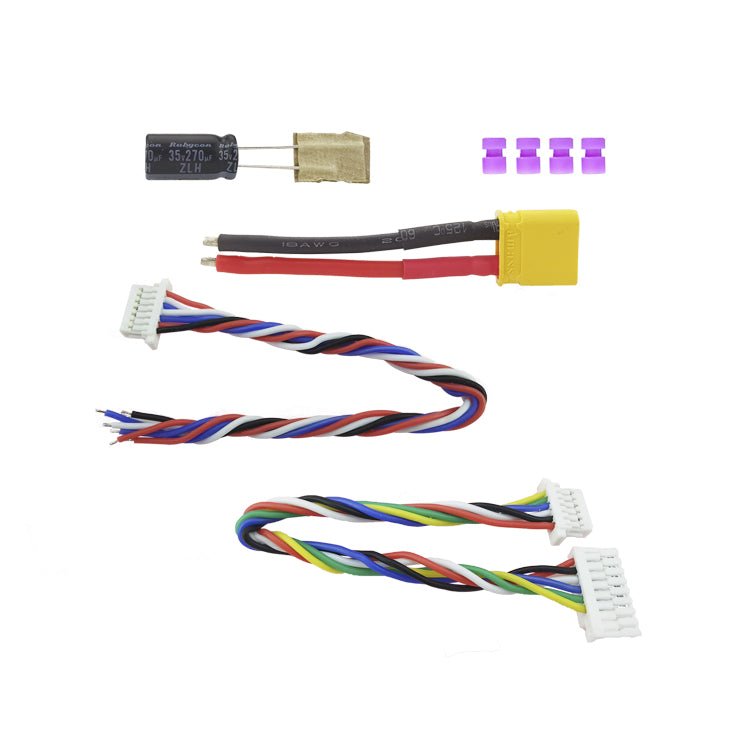

Package Includes:

• F722 AIO x1
• Yellow shock-absorbing ball x4
• XT30 power cord x1
• Type-C USB small board x 180mm
• SH1.0/7P single-head cable x 1
• 270uf/35V capacitor x 1

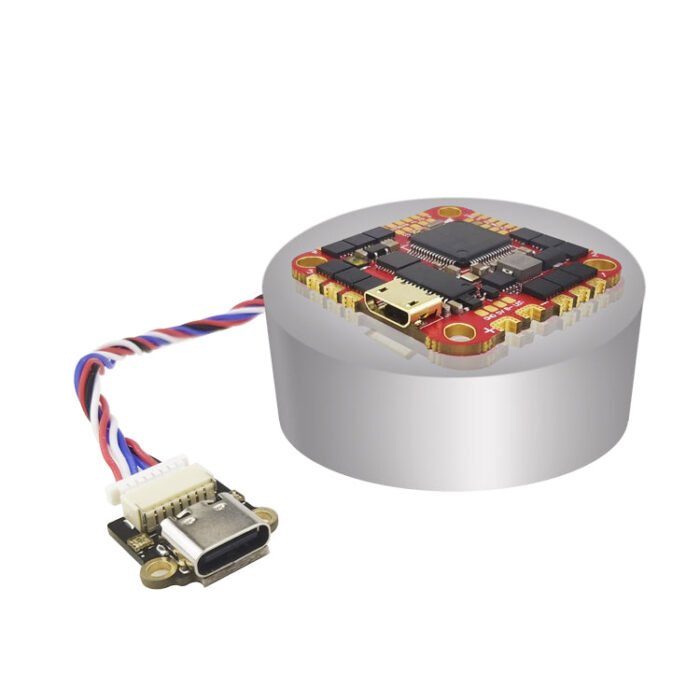

External  USB Board
