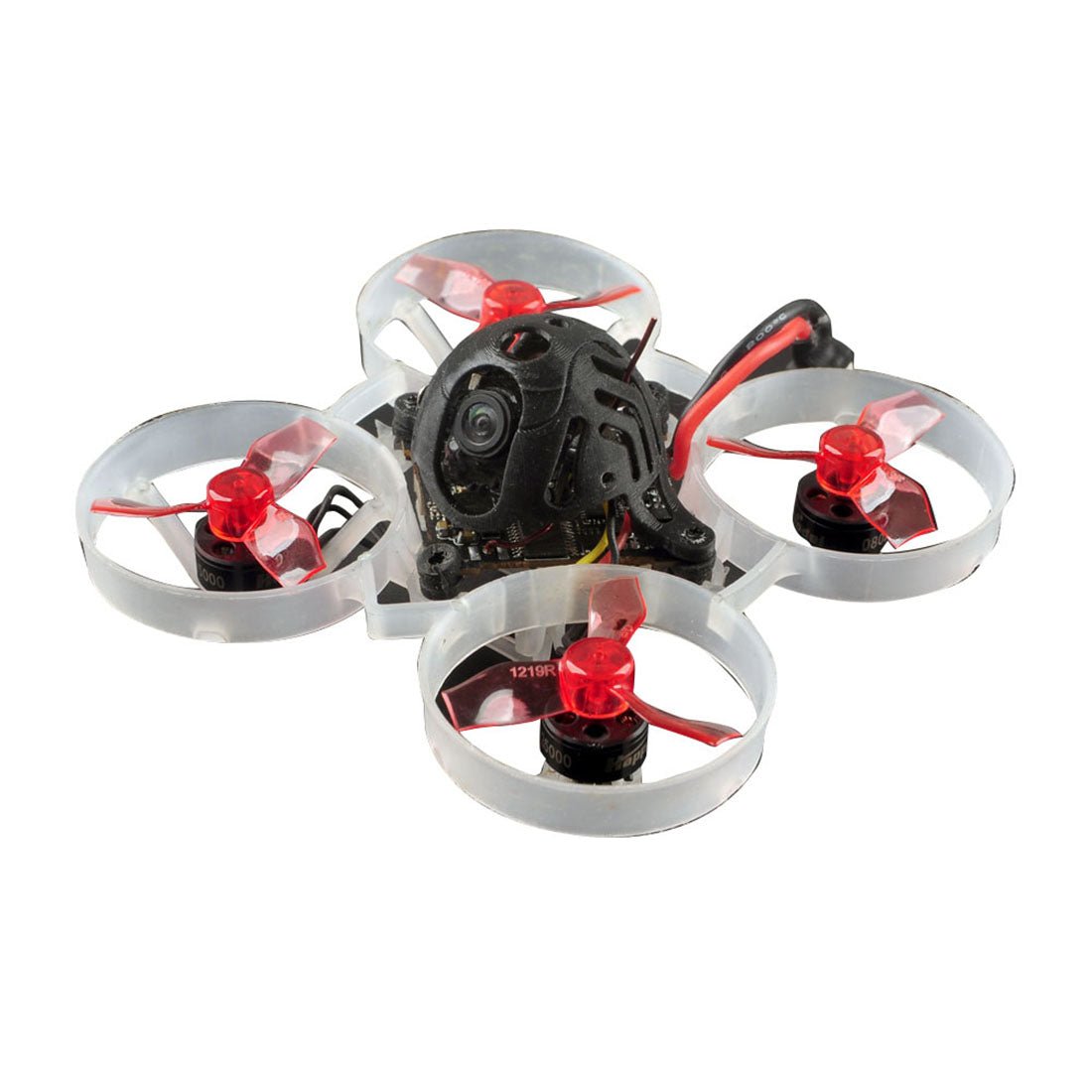

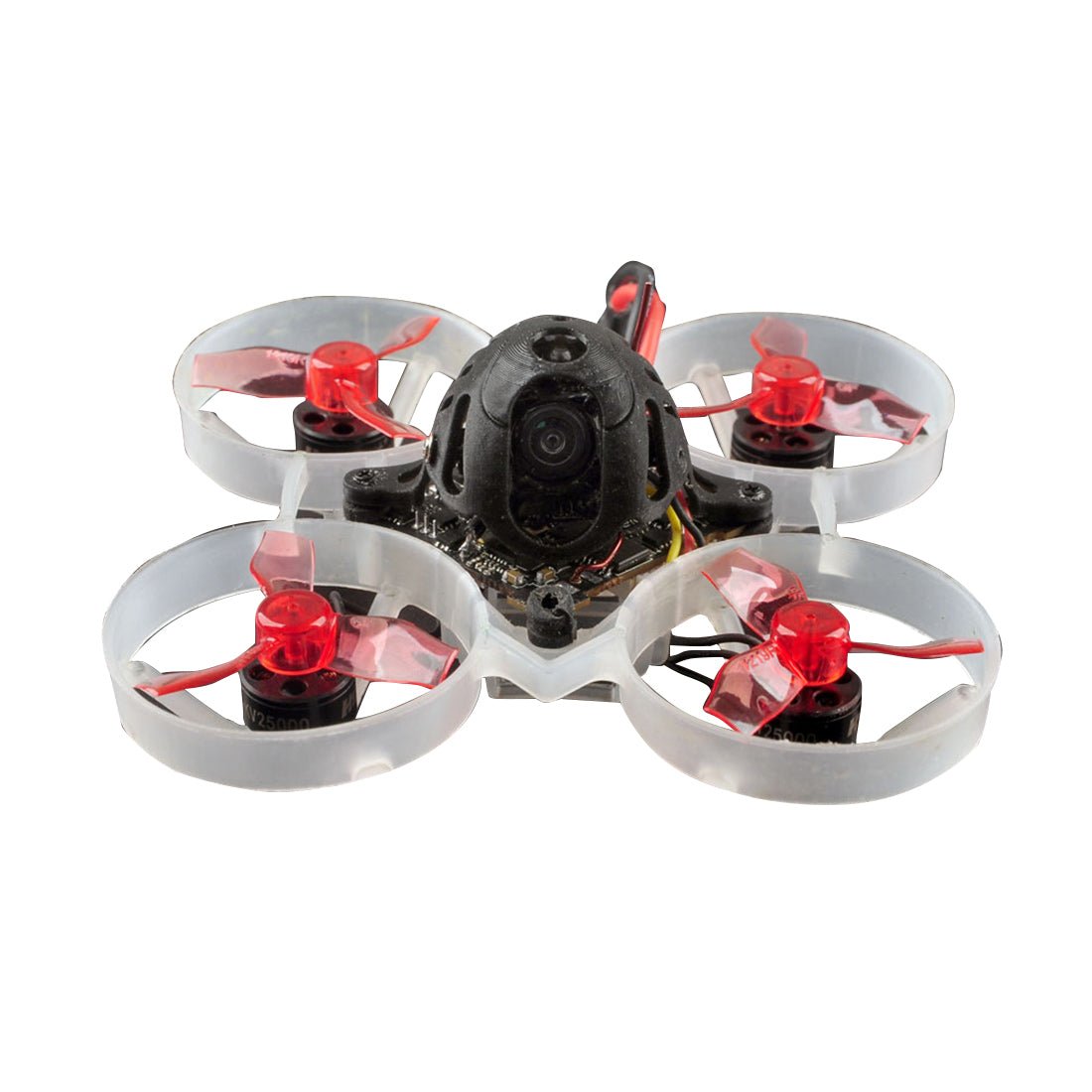

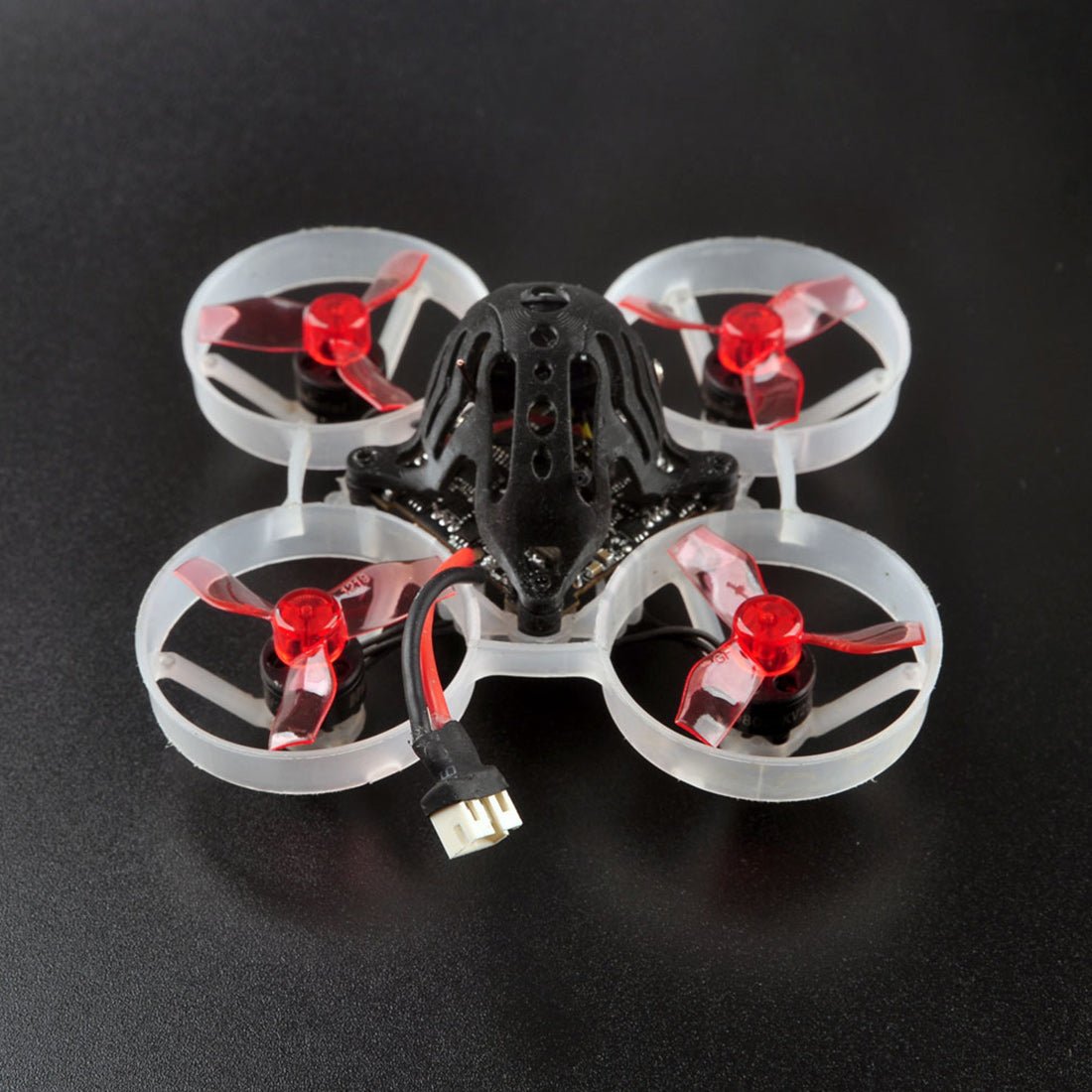

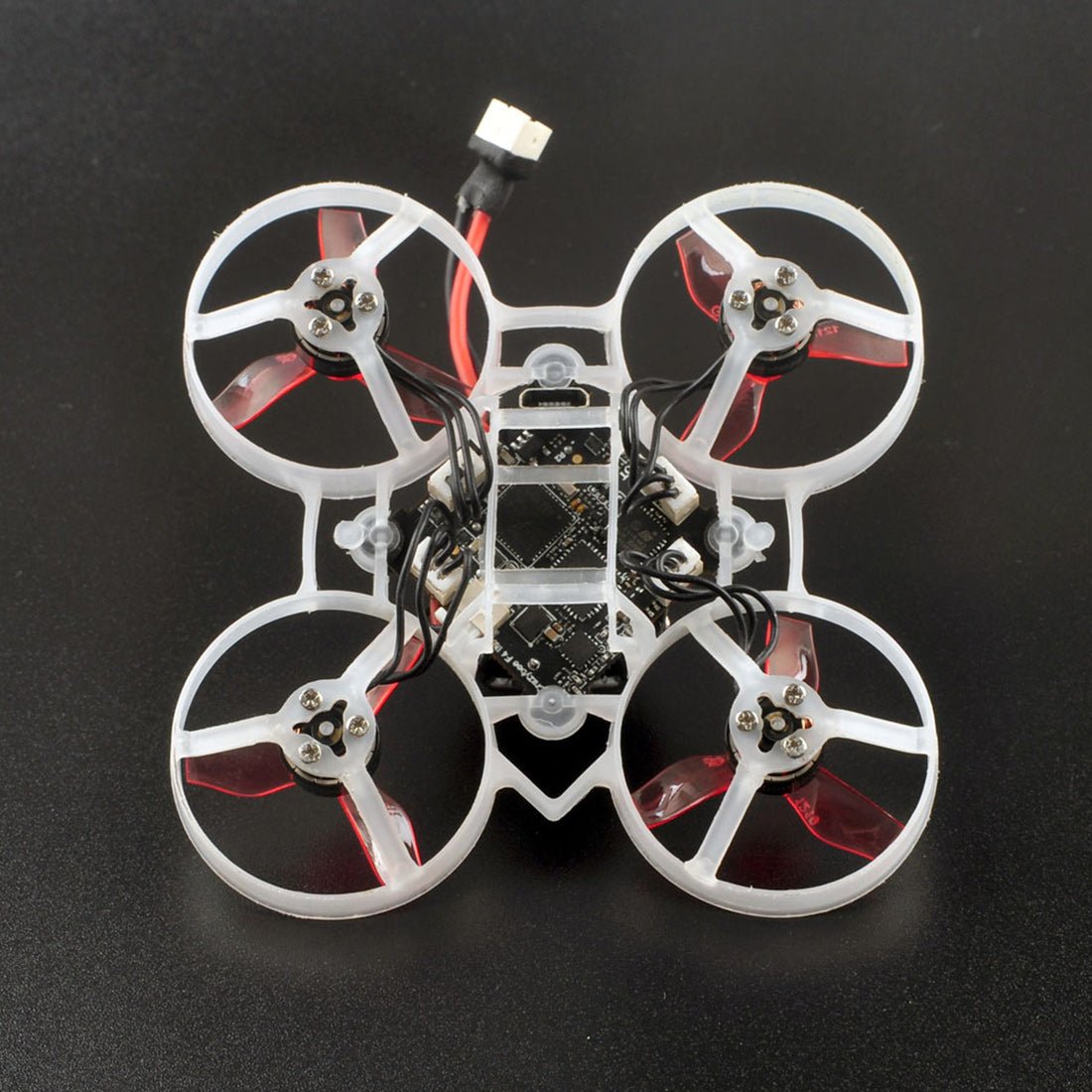

HappyModel BNF Mobula 6 1S Micro Whoop Quadcopter (Choose RX & Version)

With one of the best nano cameras, the Caddx ANT and significantly lighter than its competitors Mobula 6 is a serious contender in the whoop racing scene.
Available in 2 different KV options
25000KV for crazy fast races
19000KV for great all around performance and racing

Check out our Mobula 6 and Parts collection!

Specifications

Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX

• (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
• (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: ICM 42688P
• Board size: 28.5 * 28.5MM
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky/Flysky receiver
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard Frsky Receiver Version

• SPI BUS receiver Frsky D8 compatible
• Compatible Non EU transmitter D8 model
• Channels: 8ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard Flysky Receiver Version

• SPI BUS receiver
• Protocol: AFHDS and AFHDS-2A Switchable
• Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
• No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
• Failsafe support

Onboard 5A BLheli_S 4in1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_7.HEX
• Default protocol: DSHOT600

SE0802 19000KV / 25000KV Motor

• Model: SE0802
• KV: 19000KV / 25000KV Motor
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.9g
• No.of Cells(Lipo):1S only

Gemfan 1219 3-Blade Propeller Brand Name: Gemfan

• Center Thickness:5mm
• Prop Disk Diameter:31mm
• Center Hole Inner diameter:1.0mm
• Quantity: 4 CW & 4 CCW
• Weight:0.28g

Onboard 5.8G 40CH 25mW VTX Output power: 25mw

• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race band
• Smartaudio ready

Caddx ANT Camera

• Day/Night: Color
• Housing Material: ABS

Lipo Battery ( Included)

• Continuous Discharge Rate: 30C
• Size: 57mmx12mmx7mm
• Weight: 8g
• Connector: PH2.0
• Quantity: 4 PCS

Includes

• 1x Happy Model Mobula6 1S FPV Racing Drone
• 4x 1S 300mAh 30C Lipo Battery
• 1x 1S Lipo/LIHV USB Charger
• 1x Propeller disassemble Tool
