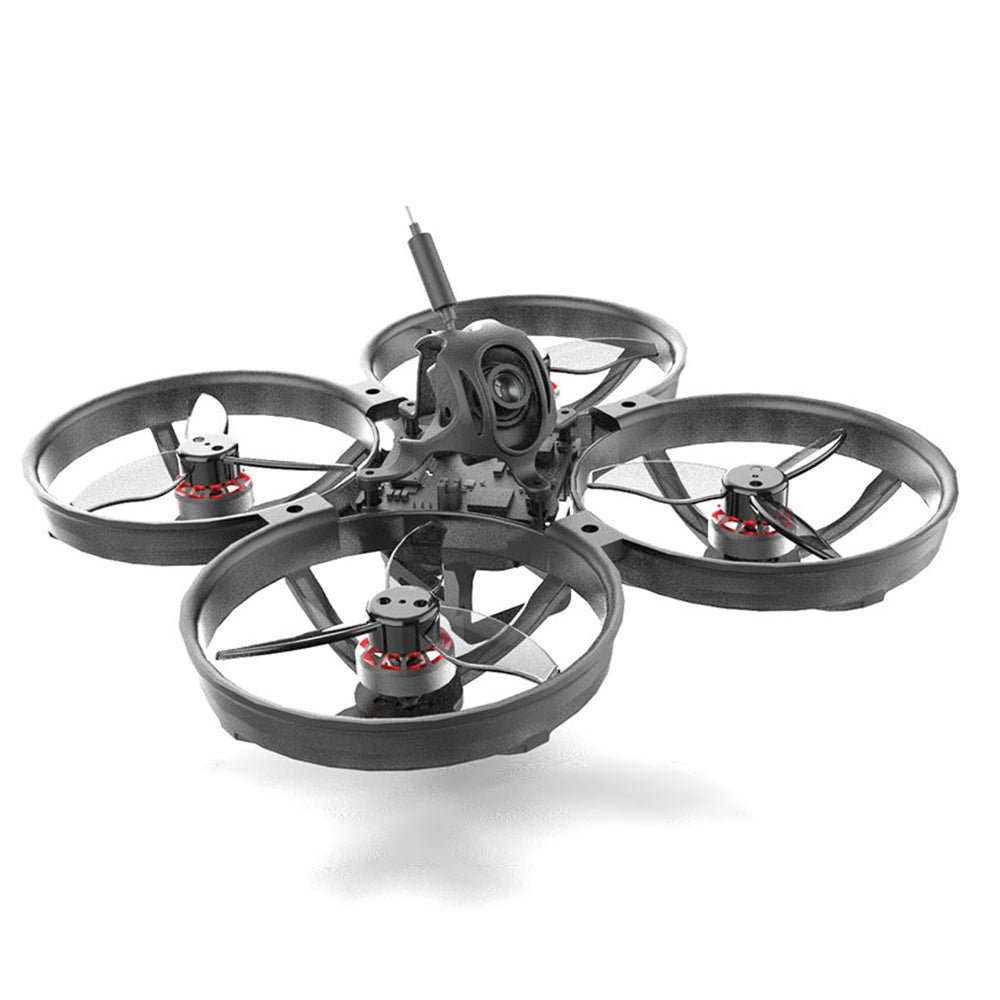

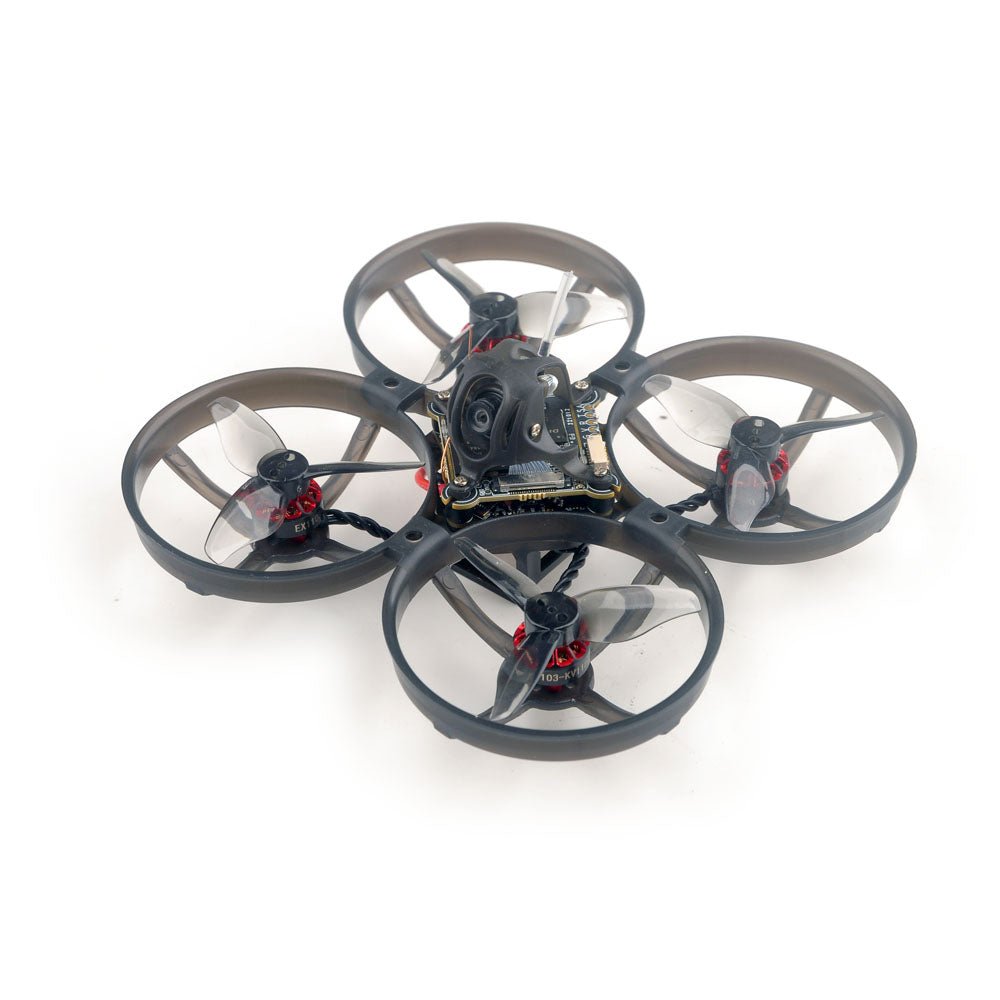

Happymodel Mobula8 2S Digital HD (HDZero) 85mm Micro FPV Whoop Drone – ELRS 2.4

Here comes Mobula8 2S Digital HD FPV series with The HDZero Digital System, New CrazyF405 ELRS flight controller, EX1103 KV11000 motors and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight in HD Quality Video.

Here is our recommended 2S 550mAh Battery that fits perfectly in this drone!

Check out our Micro Whoop Drones, our entire Happymodel Products and The Digital BNF/PNP/RTF Collection.

Features:

• Digital HD FPV experience
• New CrazyF405 ELRS HD flight controller
• Powerful and Smooth
• UART ExpressLRS receiver
• Built-in blackbox for Gyroflow and PID Tune

Specifications:

Motor

• Mode: EX1103 KV11000
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:3mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
• Weight(g):3.8g
• No.of Cells(Lipo):1-2S

Propellers

• Weight:0.88g
• Material: PC
• Pitch:2.3inch
• Props Dia:52.17mm
• Center Thickness:5mm
• Center Hole Dia:1.5mm

Flight Controller

• MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
• GYRO Sensor: BMI270  (SPI connection)
• Mount hole size: 25.5mm*25.5mm
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• Built-in 12A(each) Blheli_S 4in1 ESC
• Built-in Serial ExpressLRS 2.4G
• Built-in BMP280 Barometer
• Built-in 8MBp blackbox
• Built-in voltage meter sensor , voltage meter scale 110
• Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

• Power supply: 1-2S LiPo/LiPo HV
• Current: 12A continuous peak 15A (3 seconds)
• Support BLHeli_S Bluejay firmware
• Factory firmware: Bluejay ESC V0.19
• Firmware target: Z-H-30
• Default protocol: DSHOT300
• When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHz
• Antenna: enameled copper wire 31mm length
• Telemetry output Power: <12dBm
• Default firmware version: ExpressLRS V3.0.1
• Firmware target: HappyModel EP 2400 RX
• Could update firmware via ExpressLRS configurator

 ** If bound to radio but having trouble seeing stick movement in Betaflight, then you may need to turn off the “Model Match” factory setting in the ELRS web GUI.

HDZero Version

• HDZero Nano Lite Camera
• 14x16x11 mm
• 1.5gram
• 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
• Excellent low light performance
• Fov:
• 4:3: D:130° H:108° v:84°
• 16:9:D:122° H:108° V:65°
• HDZero Whoop Lite VTX
• 1-3S Input
• 25mW/200mW RF Output-SmartAudio Support
• 25.5×25.5 M2 Soft Mounting- Antenna Retention
• Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
• 4.5grams/4mm Thickness (without shielding)

Package Includes:

• 1x Mobula8 Frame
• 1x CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4
• 4x EX1103 KV11000 brushless motor
• 1x Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)
• 1x HDZERO Whoop Lite bundle
• 1x Canopy(DJI O3/Walksnail/HDZERO optional)
• 1x Screw driver
