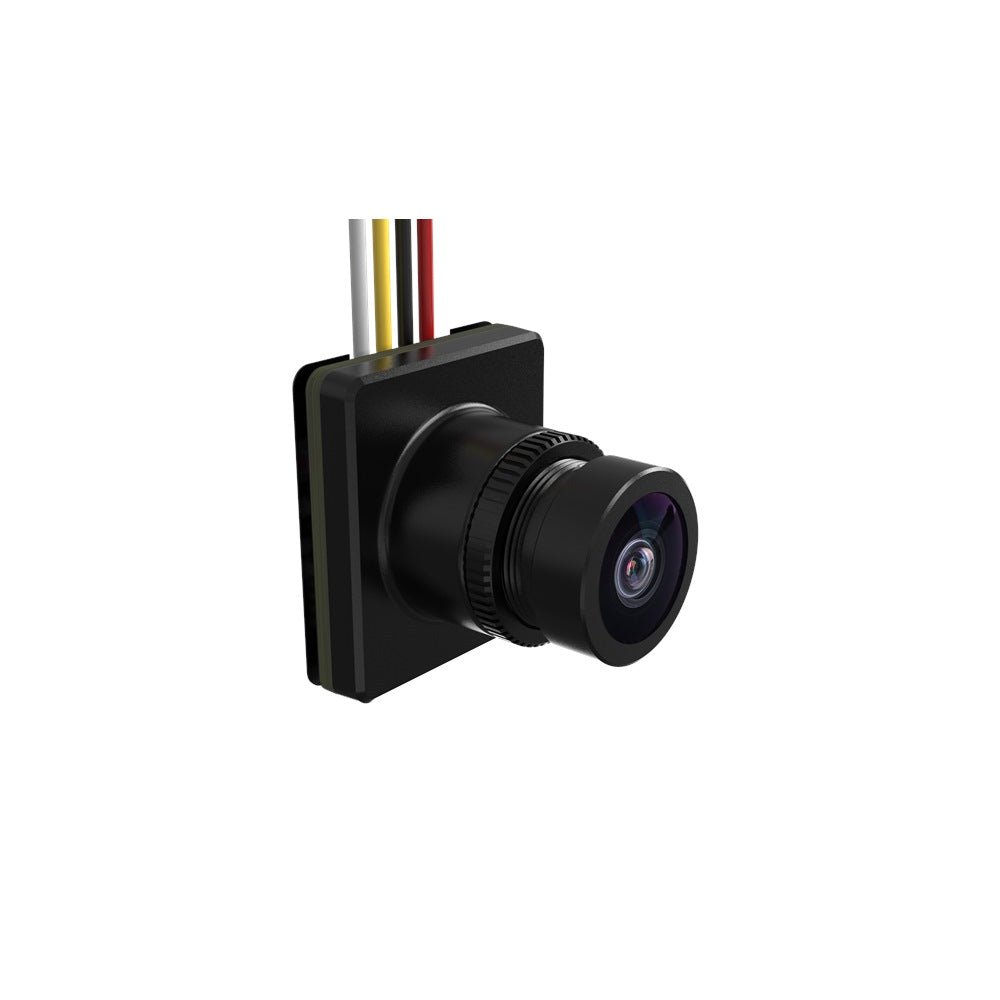

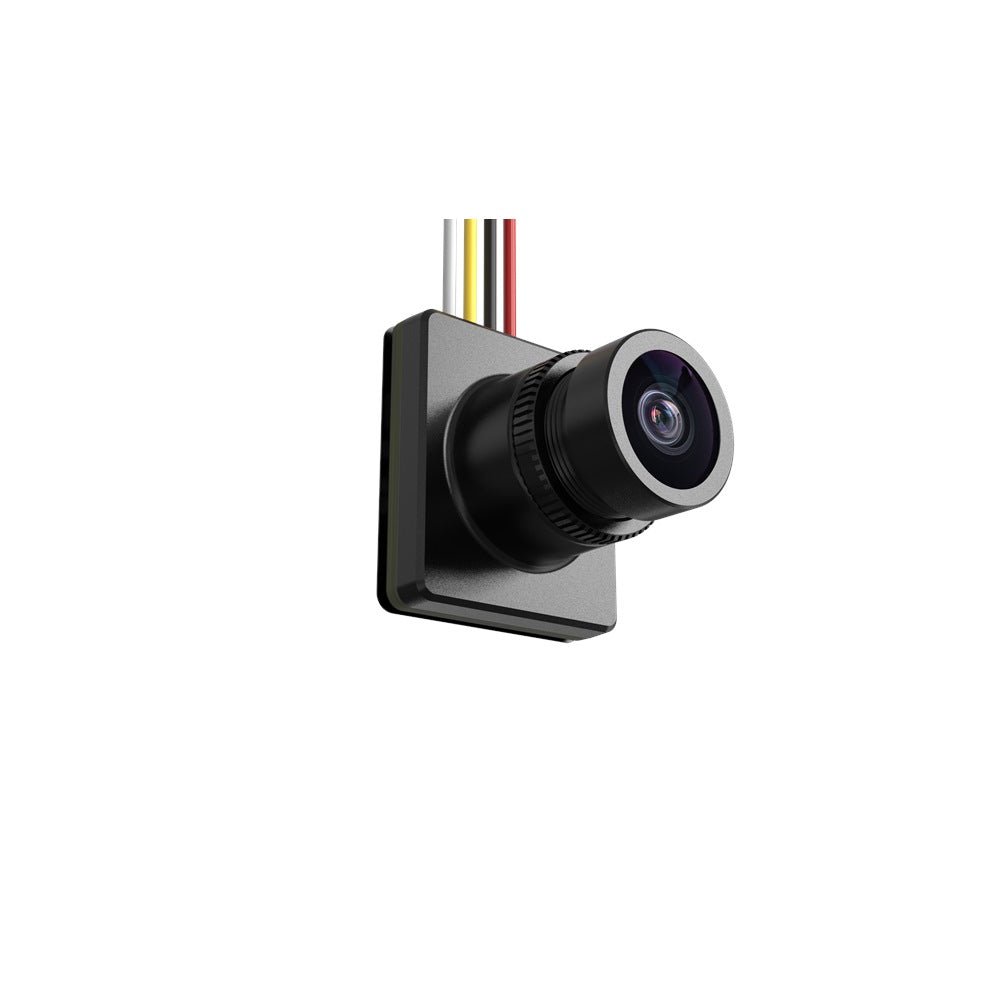

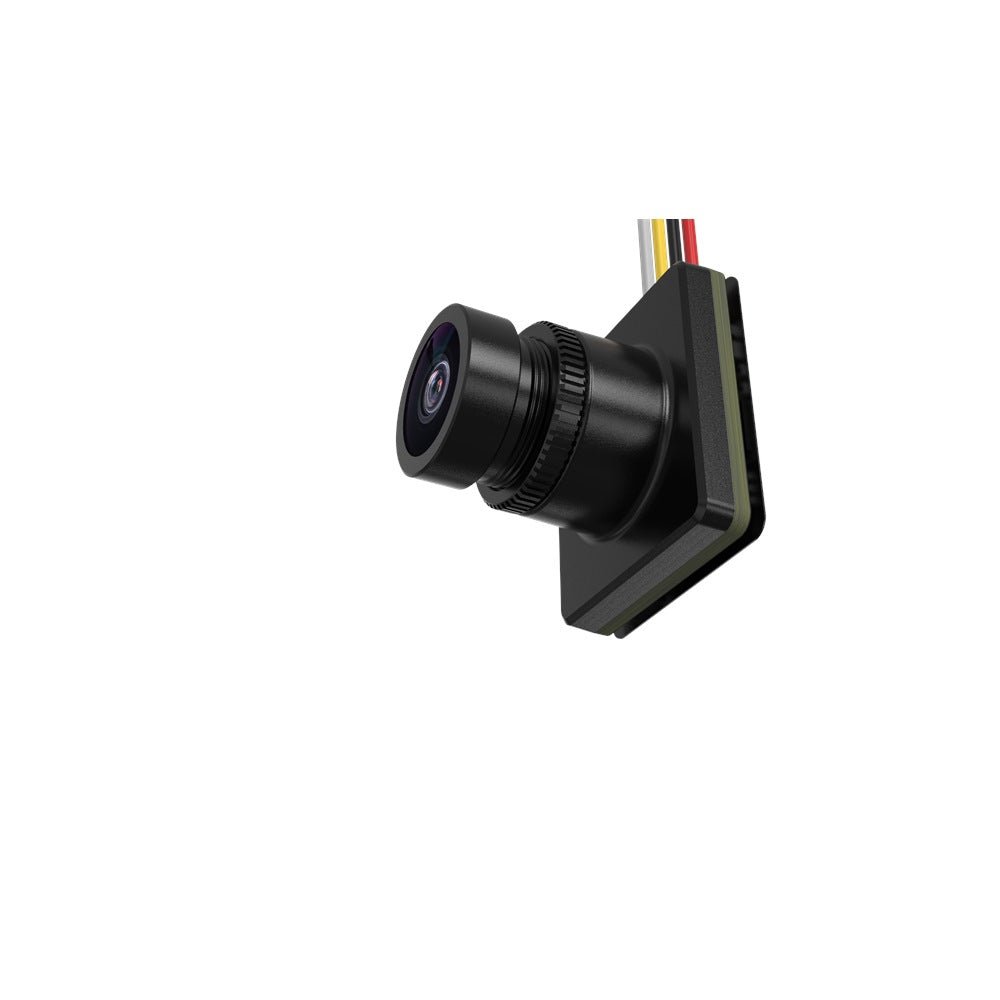

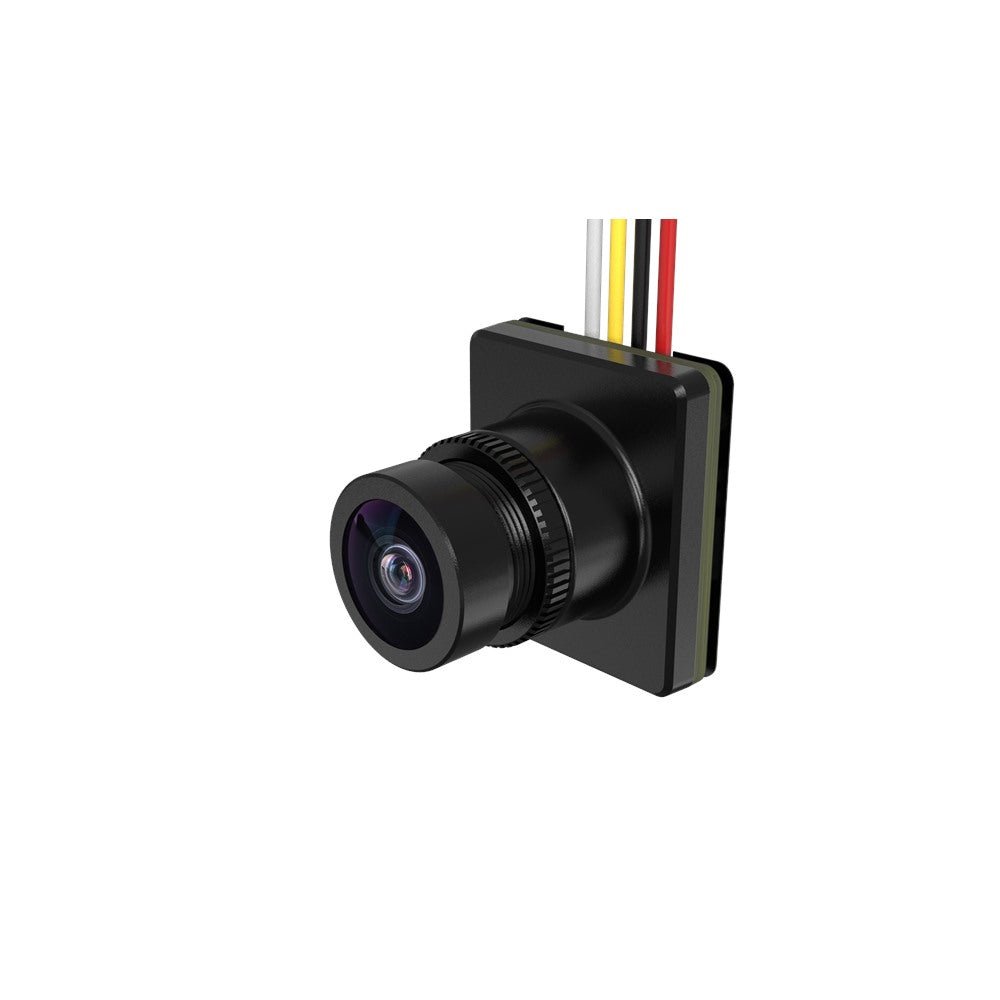

HDZero Lux 720p 60fps HD FPV Digital Camera for Whoops and Micros

The Runcam HDZero Lux camera is compact, lightweight, and durable, making it perfect for tiny whoops and micro drones. It features a ½ inch CMOS sensor that delivers sharp image quality and excellent low-light performance. Lux camera has Wide Dynamic Range (WDR) and offers higher quality by oversampling (1080p ‐> 720p). The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability.

Optimized for a 4:3 aspect ratio, it can also be configured for a 16:9 aspect ratio with a reduced vertical FOV. Designed meticulously for ultra-lightweight drones like tiny whoops, where every fraction of a gram matters, the camera boasts a large 94-degree vertical FOV, ideal for fast indoor and outdoor proximity flying.

Check out all our Digital FPV Cameras and the rest of our HDZero Related Products!

How to change 4:3/16:9

The HDZero AIO5 and ECO VTX lack a communication mechanism to automatically retrieve the Lux camera settings, such as aspect ratio. Users need to manually set the aspect ratio for both the AIO5/ECO VTX and the Lux camera. Here’s a short video demonstrating how to do that

Specifications:

• Manufacturer: RunCam
• Model: HDZero Lux
• Sensor Size: 1/2 inch
• Resolution: 720p @60fps
• Sensitivity: 10650mV/Lux-sec
• Shutter: Rolling Shutter
• FOV:
  • D:155° H:126°  V:94°(4:3)

  • D:170°  H:145°  V:82°(16:9)
• Input Power: 3.3~5V
• Power Consumption: 0.5W
• Weight : 2.3g
• Dimensions: L14mm x W16mm x H14mm

Package Includes:

• 1 x HDZero Lux 720p 60fps HD FPV Digital Camera
