HDZero Whoop V2 Bundle (Nano V3 Camera)

Features

• High-Definition Video: Delivers 720p60, 540p90, and 1080p30 resolution options.

• Low Latency: Optimized for digital FPV racing and freestyle with near-zero visible latency.

• Improved Durability: Features a thicker PCB for enhanced impact resistance during crashes.

• Ultra-Sensitive Sensor: Nano V3 camera uses a 1/2 inch CMOS sensor for superior clarity and color.

• Flexible Mounting: Designed with a standard 25.5×25.5mm mounting pattern for easy integration into most whoop frames.

• Secure Connectivity: Includes a secured U.FL connector with a brass bar to prevent antenna pop-offs.

Specifications

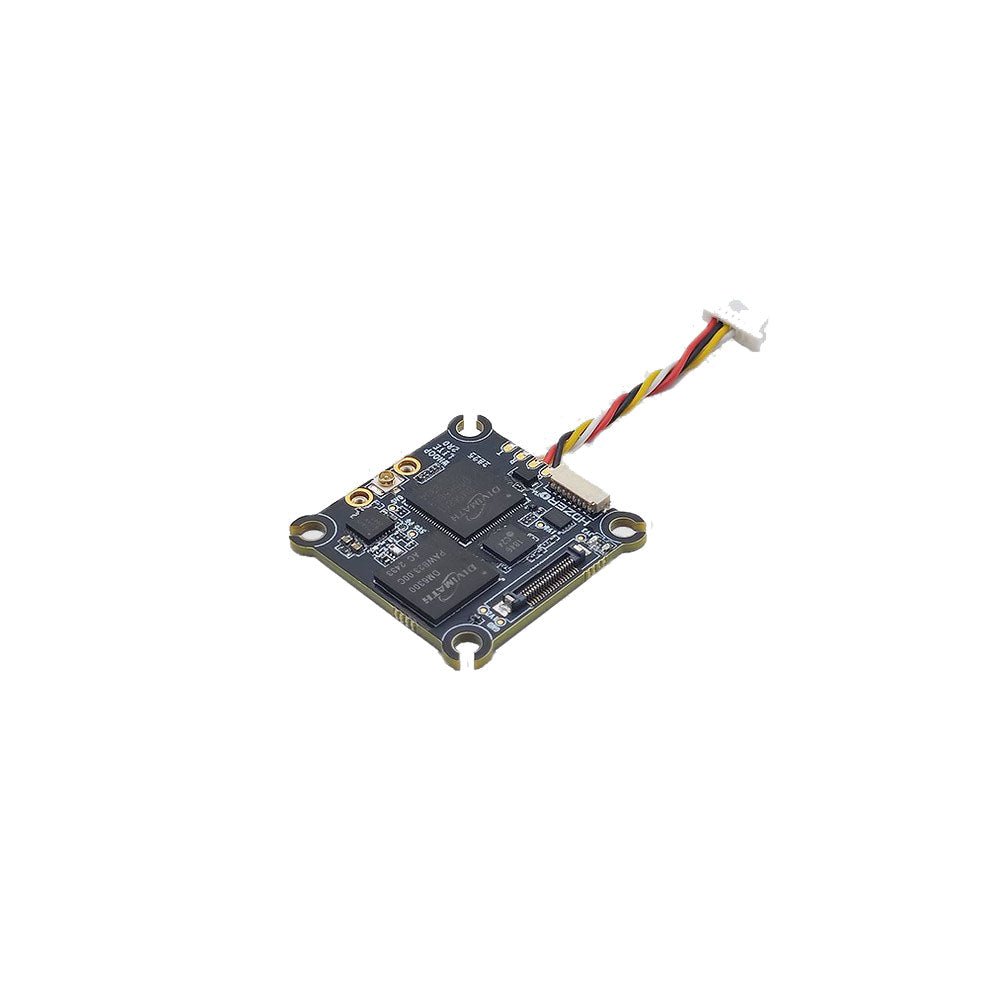

• Whoop V2 VTX:

• Model: HDZ3104

• Frequency: 5.725 – 5.850 GHz

• RF Power Output: 25mW / 200mW

• RF Connector: Secured U.FL with brass bar

• Video Connector: MIPI

• Size: 31 × 31 mm (29 × 29 mm inner)

• Mounting Pattern: 25.5 × 25.5 mm (M2)

• Weight: 5.4g (5.1g without wires)

• Power Input: 3V – 12.6V (1S – 3S)

• Power Consumption: 5W – 6W

• Control/OSD: MSP OSD / Smart Audio

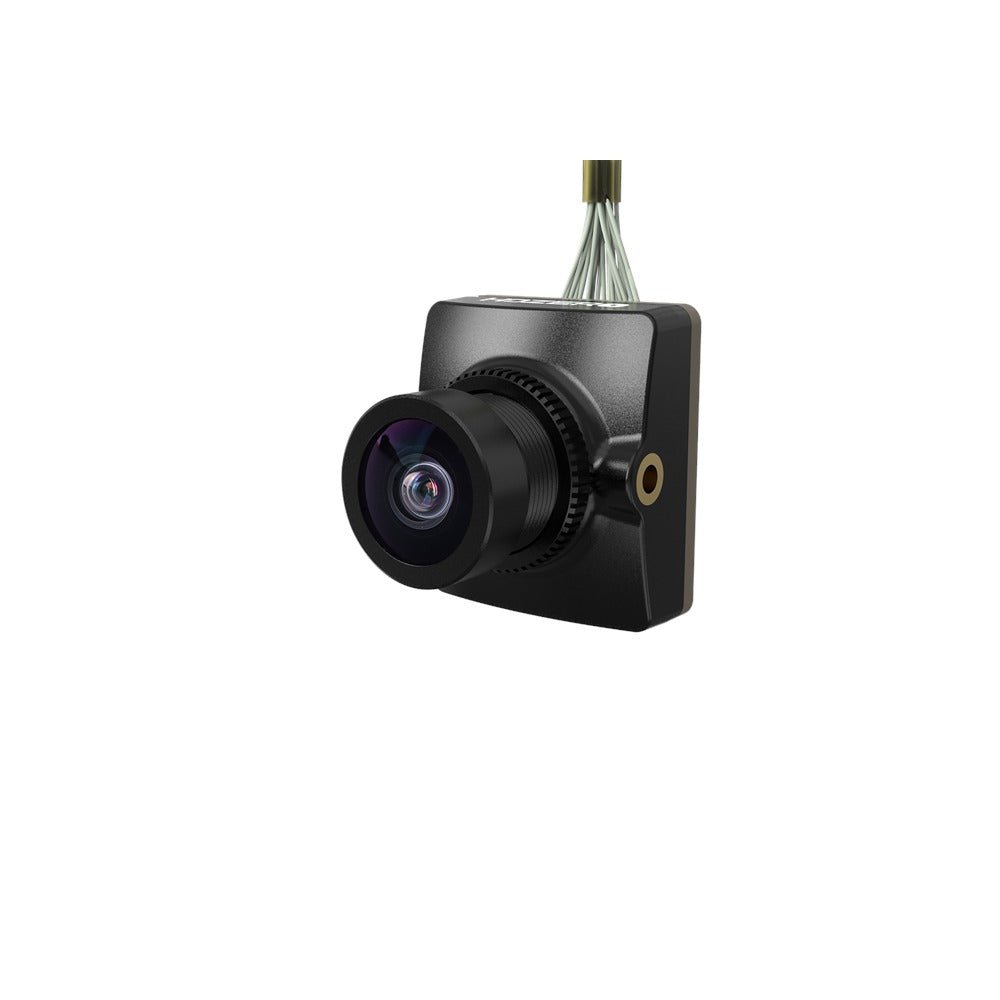

• Nano V3 Camera:

• Sensor: 1/2 inch CMOS

• Sensitivity: 10650 mV/Lux-sec

• Resolution: 720p60 4:3

• FOV: D:155° H:126° V:94°

• Weight: 2.2g

• Dimensions: 14 x 16 x 14 mm

Compatibility

• Flight Controllers: Supports FCs with MSP OSD and Smart Audio protocols.

• Cameras: Compatible with all HDZero MIPI cameras.

• Goggles: Requires HDZero compatible digital FPV goggles or VRX.

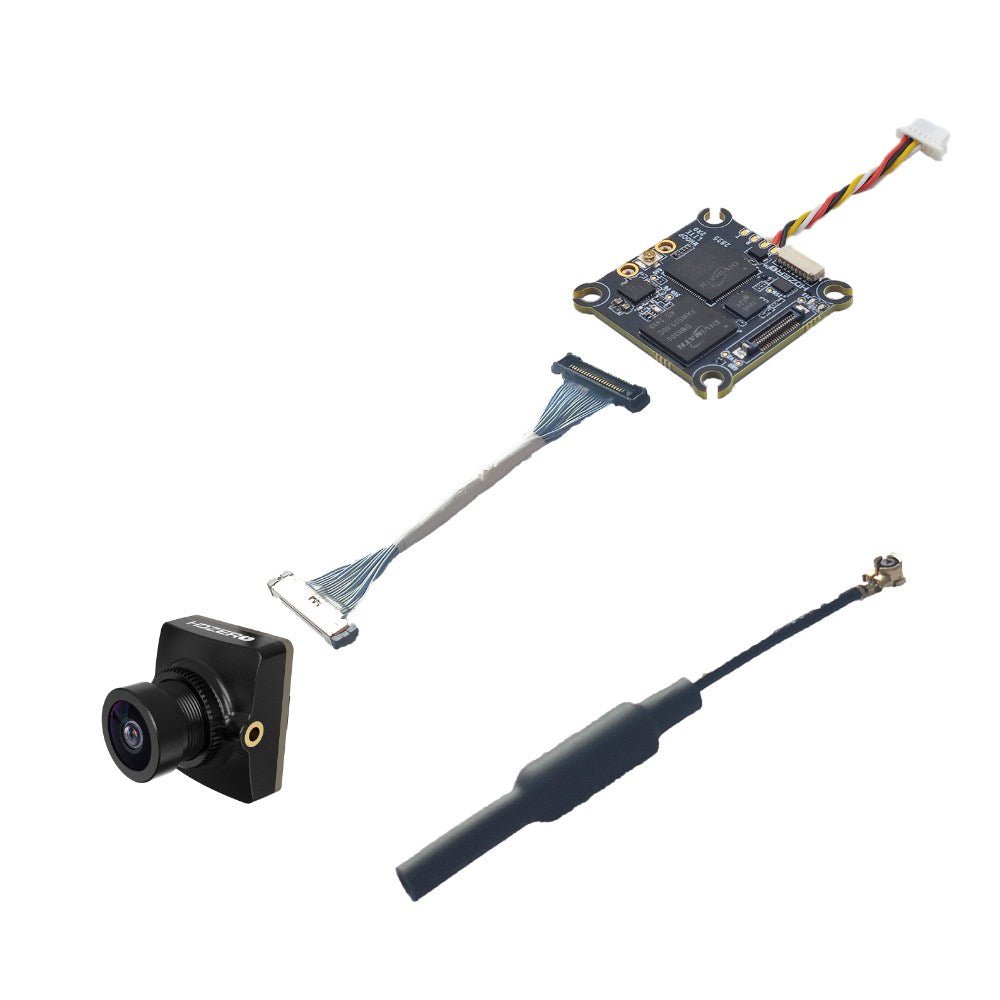

Package Includes

• 1x HDZero Whoop V2 VTX

• 1x HDZero Nano V3 Camera

• 1x Dipole Antenna

• 1x 40mm MIPI Cable

• 4x Rubber Grommets (M3 to M2)

• 3x u.FL Antenna Retention Screws

• 1x Metal Brass Bar (for antenna retention)

Critical Notes

• Cooling Requirement: This VTX generates significant heat; ensure adequate airflow is provided during operation to prevent thermal shutdown. Do not leave the unit powered on the bench without a fan.

• Voltage Warning: Supports 1S to 3S input only (3V – 12.6V). Exceeding this voltage will permanently damage the hardware.

• Antenna Security: Always ensure the antenna is securely attached via the included brass bar before powering the unit to avoid RF damage.
