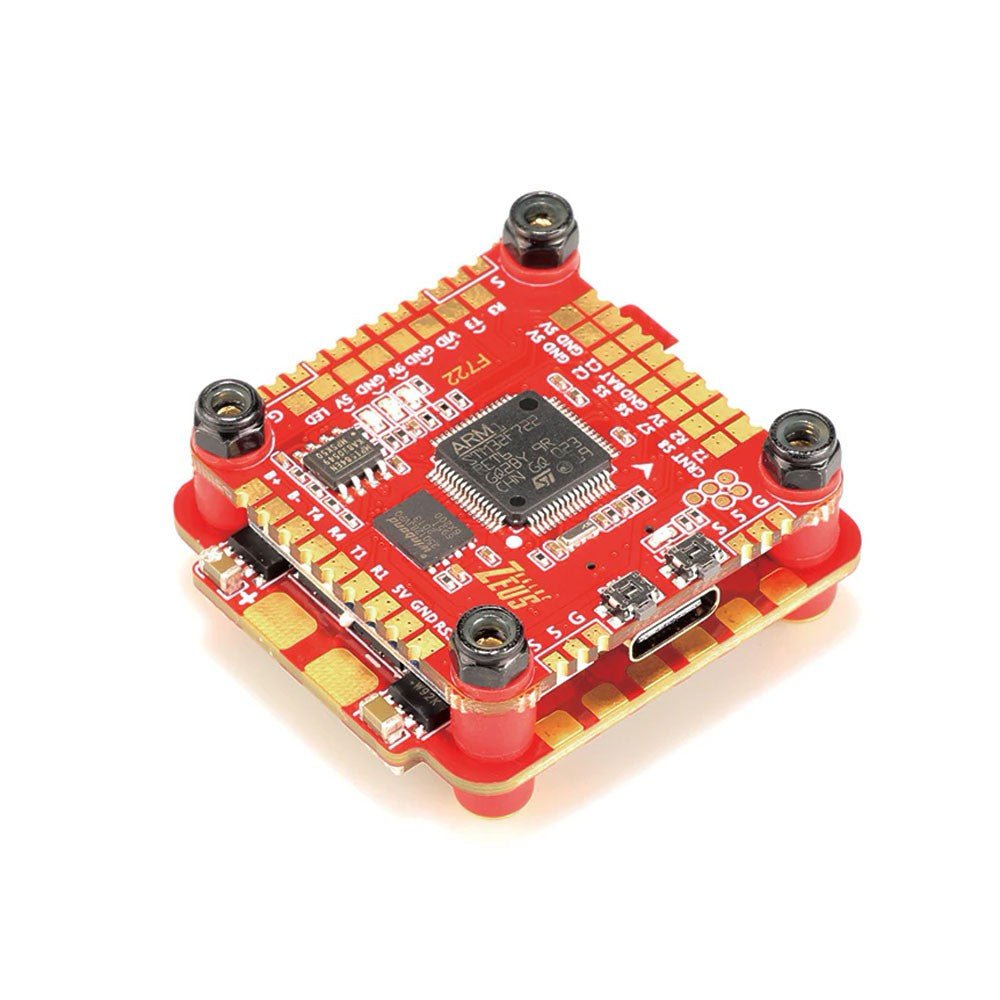

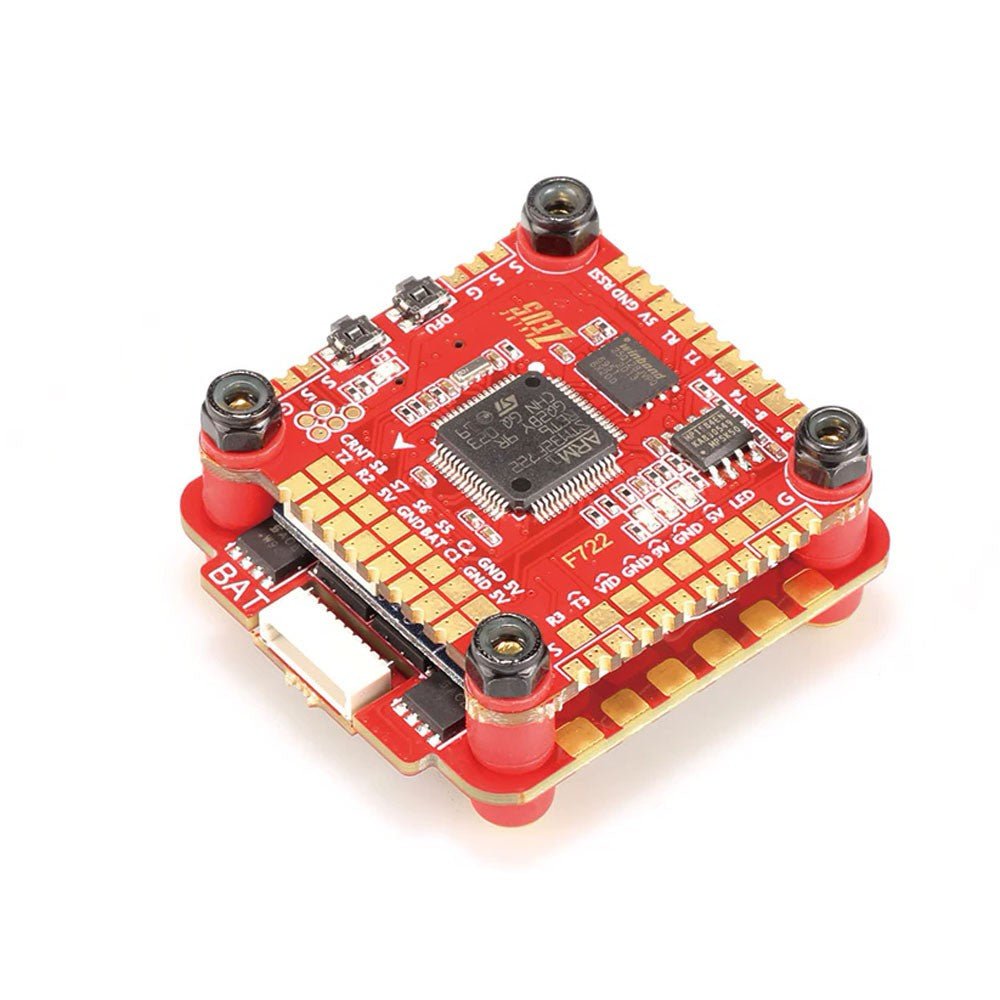

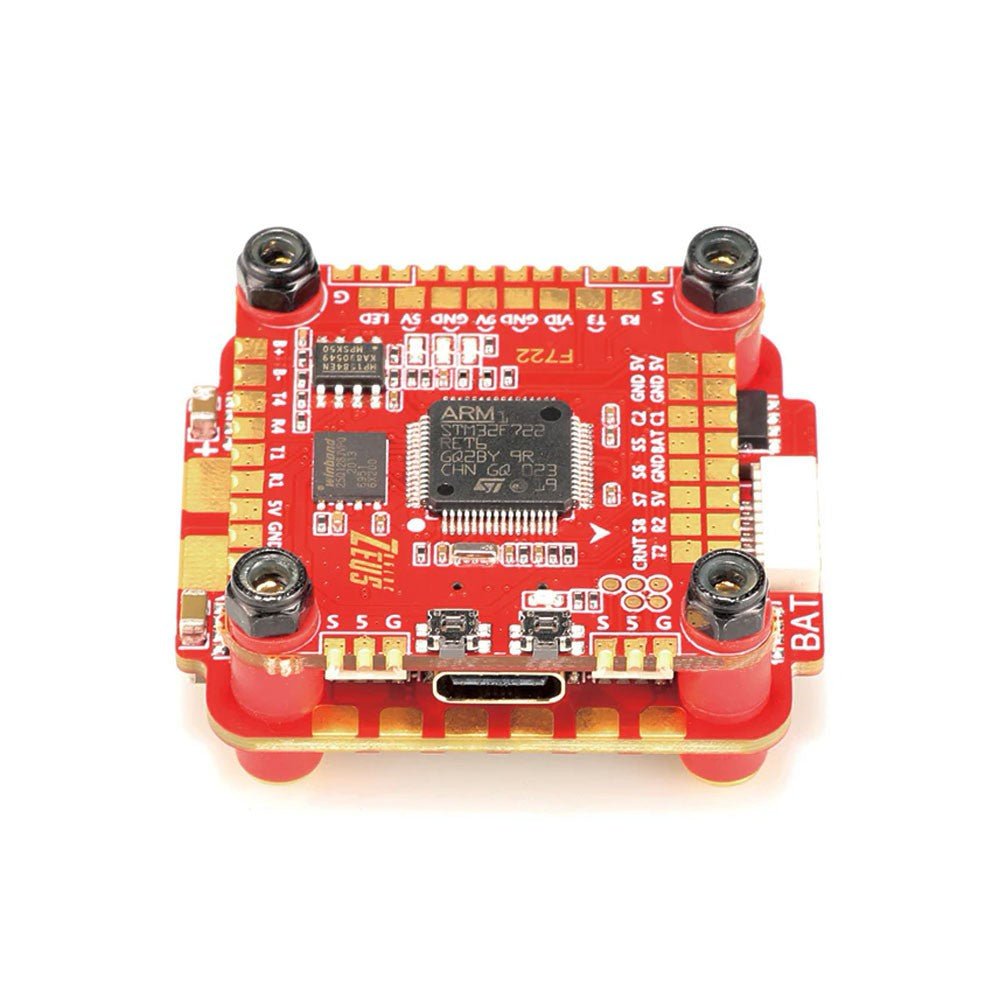

HGLRC Zeus F760 Stack – F722 FC + 60A 30*30 BL32 3-6S 4-in-1 ESC

The HGLRC Zeus F760 is a powerful stack that comes with the Forward 60A 4-in-1 ESC and the Zeus F722 Flight Controller! A cool feature about this stack is that the F722 FC comes with an integrated LED that allows quick programming with a push of a button. The FC also comes with 5 UARTS: Receiver (SBUS/iBUS/DSMX/R9MM/CRSF), GPS, VTX, ESC Telemetry, and DJI. This stack supports DSHOT1200/600/300/150.ONESHOT125/42 and has a running frequency of up to 48MHZ.

Check out all our 30×30 Flight Controllers and the rest of our HGLRC Products!

Specifications:

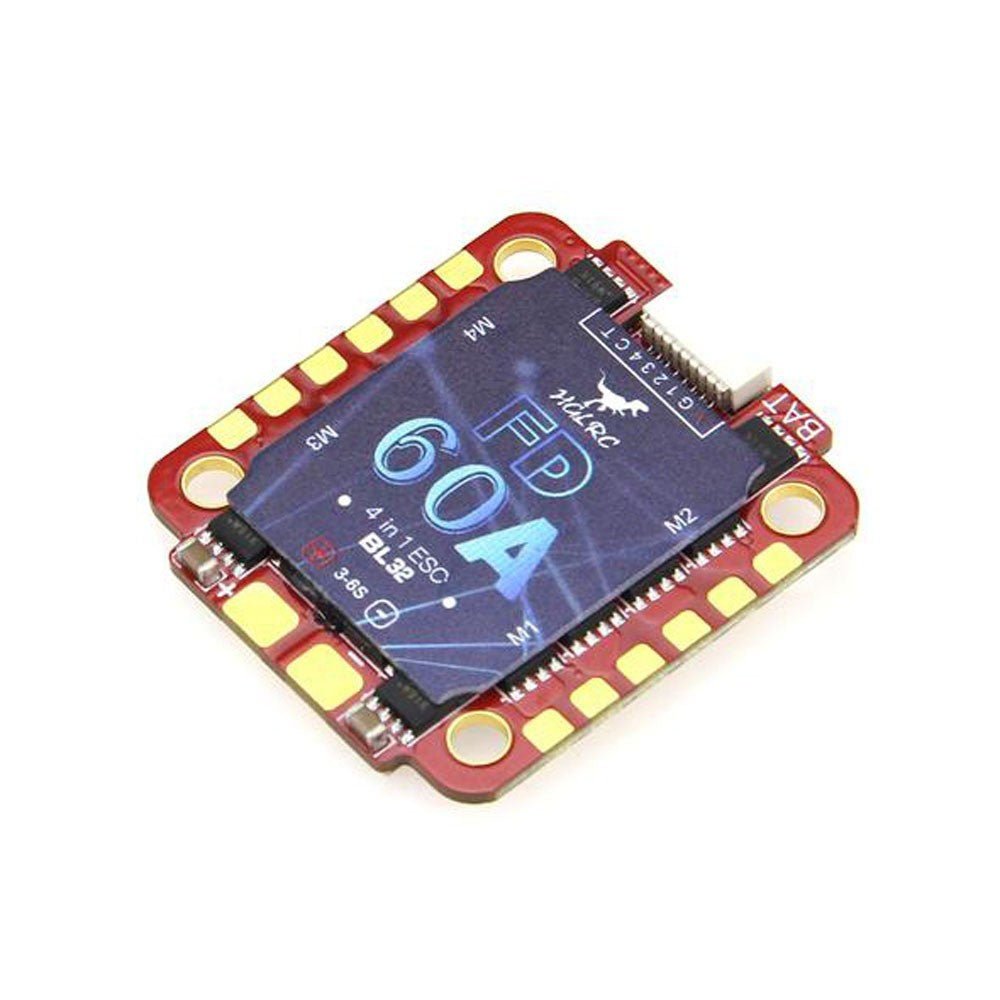

Forward 60A 4-in-1 ESC:

• Input Voltage: 3-6S Lipo
• CPU:STM32F051
• BLHELI32 Firmware
• Steady Current: 60A
• Peak Current: 65A（10 Second）
• BEC: NO
• Supported Protocols: DSHOT1200/600/300/150.ONESHOT125/42
• Installing Hole:30.5×30.5mm,M3
• Size:45x40x6.5mm
• Weight:18g

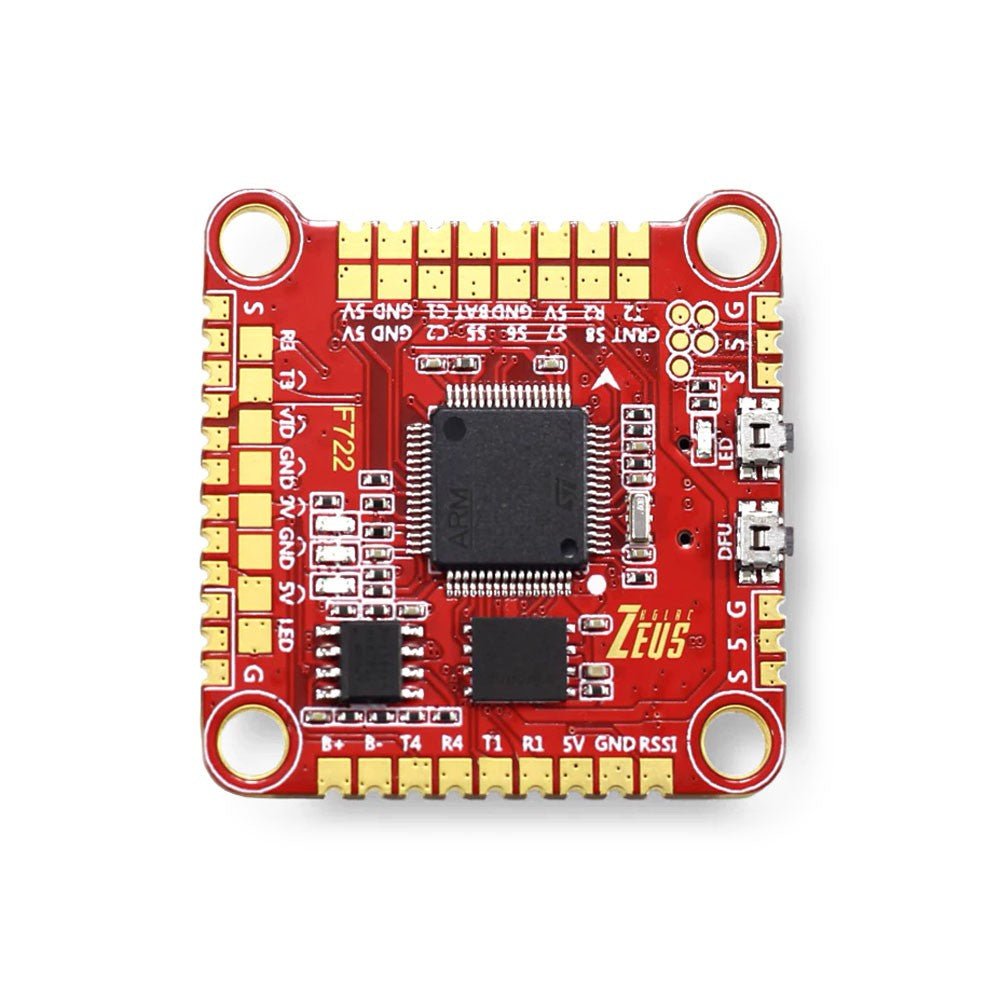

Zeus F722 Flight Controller:

• Built-in LED controller
• MPU: MPU6000 or BMI270
• UARTS:5
• CPU:STM32F722 RET6
• Input Voltage:3-6S Lipo
• Built-in Betaflight OSD to adjust PID
• BEC Output:
• 9V2A
• 5V/3A
• Usage:for 100mm-450mm Frame Kit
• FC Firmware:BF HGLRCF722(HGLR)
• Installing Hole:30.5X30.5mm.M3
• LED Control: BF/Button
• BlackBox:16M
• Barometer: BMP280(I2C)
• Size:37.3×37.3mm
• Installing Hole:30.5X30.5mm.m3
• Weight:8.1g

Package Includes:

• 1 x F722 Flight Controller
• 1 x 60A BL32 3-6S 4in1 ESC
