HGLRC Zeus25 F722 3-6S V2 AIO Flight Controller w/ BLHeli_S ESC

The new HGLRC Zeus 25 AIO is a perfect choice for your Micro and Ultralite Long Range builds.
The built in 10V/1A BEC makes it a great power source for your HD Caddx Vista or DJI Air Unit.

Checkout all our Whoop Style Flight Controllers and the rest of our HGLRC products!

Features:

• F722 chip is used on Zeus25 AIO, with high-performance computing speed, making it smoother during flight.
• Extra independent 6P interface to install digital FPV system easily with a socket

Specifications

• Brand name: HGLRC
• Item Name: ZEUS25 V2 AIO
• Input Voltage:3-6S Lipo
• Usage:for 100mm-250mm Frame Kit
• Installing Hole: 25.5X25.5mm.M2
• Size: 34.5×34.5mm

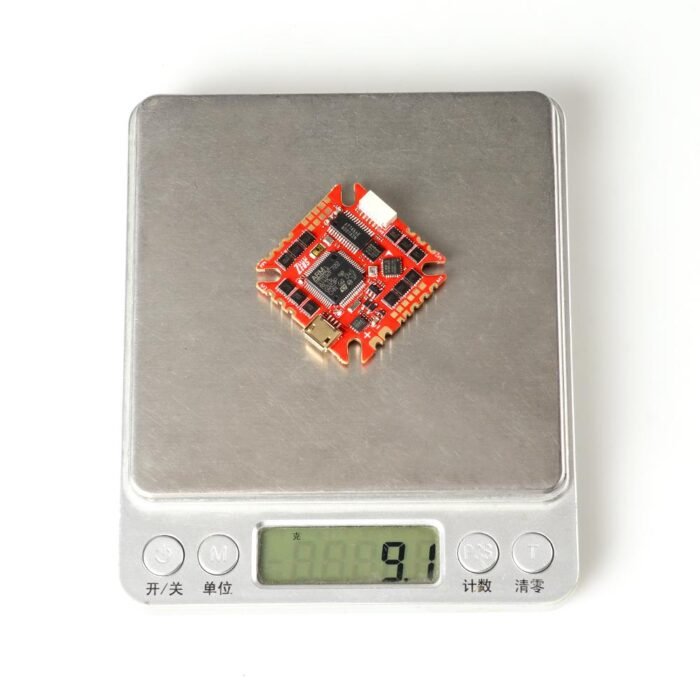

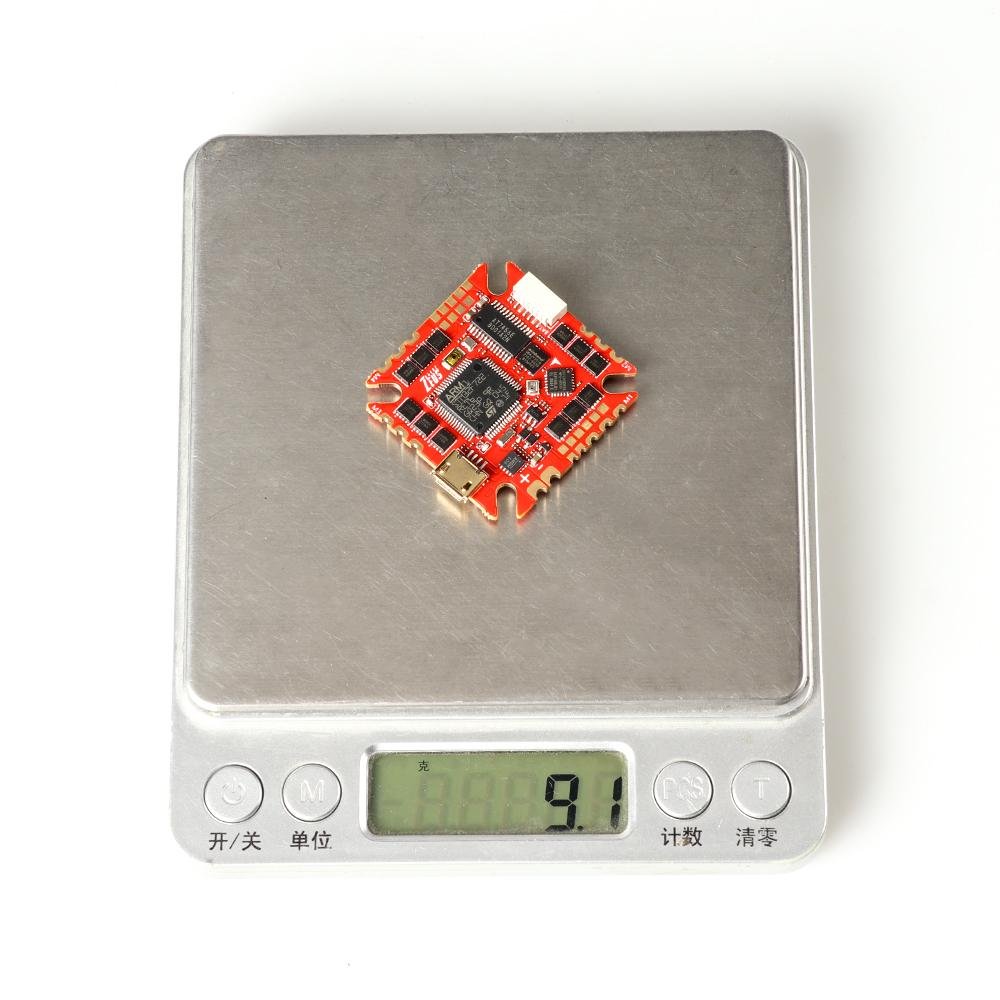

• Weight: 9.1g

F722 Flight Controller

• FC Firmware: ZEUSF722 AIO
• CPU: STM32F722 RET6
• MPU :  BMI270
• BEC: 5V/2A
• UARTS: 5
• OSD: Support
• BlackBox: 8M
• Built-in Current Sensor

25A 32Bit 4in1 ESC

• 25A BL_S 4in1 ESC
• ESC Firmware:F_H_40
• Constant Current:25A
• Peak Current:30A（5 Sec）
• Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot

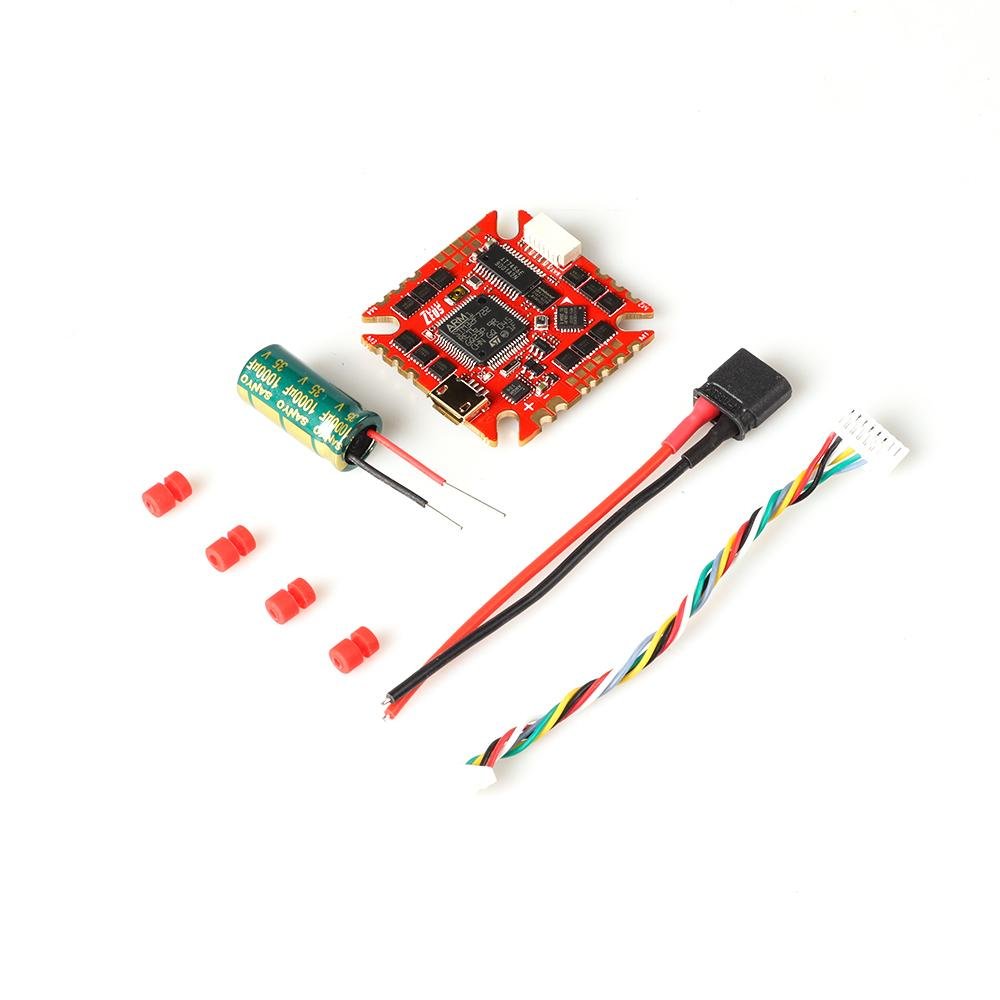

Includes

• 1x ZEUS25 V2 AIO
• 1x Accessory pack
