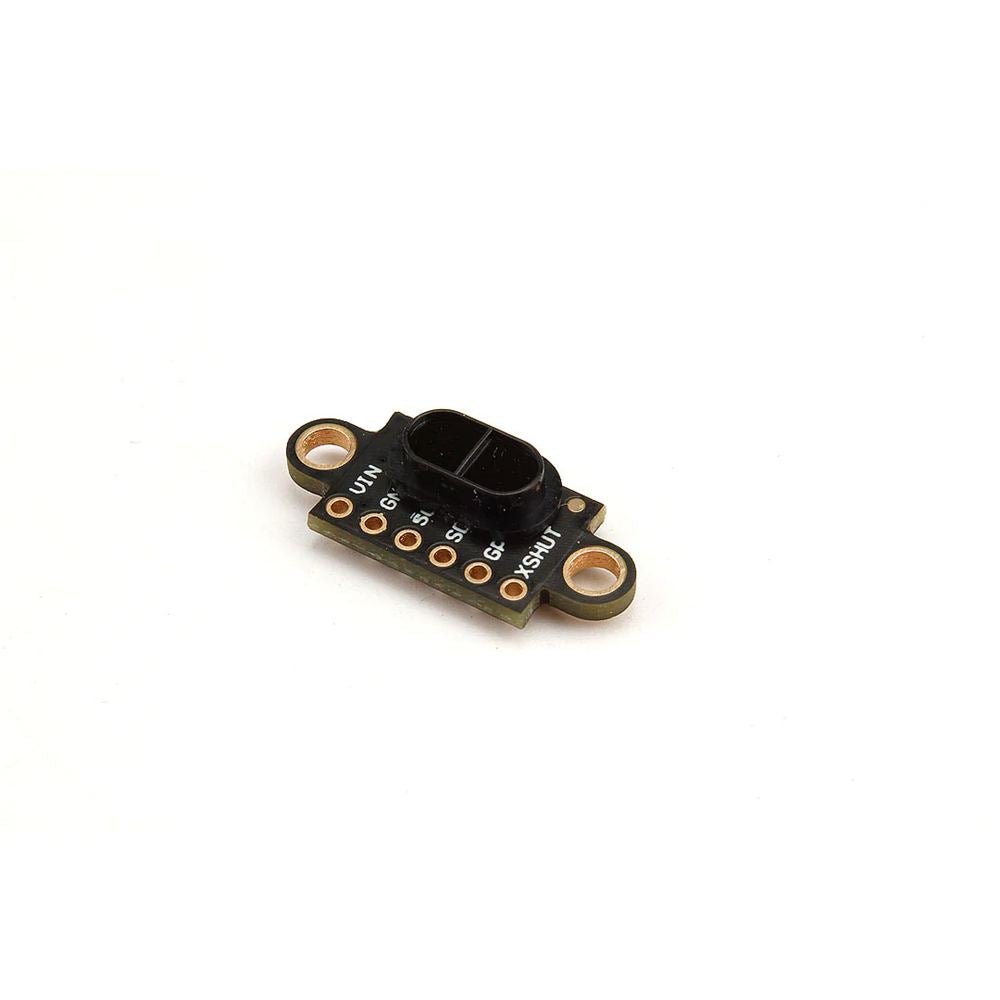

Holybro ST VL53L1X Lidar
$19.99
| Weight | 0.01 kg |
|---|
Out of stock
Description
The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.
Check out all our FC Accessories and the rest of our Holybro Collection!
Features
- Fully integrated miniature module
- Emitter: 940 nm invisible laser (Class1)
- SPAD (single photon avalanche diode) receiving array with integrated lens
- Low-power microcontroller running advanced digital firmware
- Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor
- Fast and accurate long distance ranging
- Up to 400 cm distance measurement
- Up to 50 Hz ranging frequency
- Typical full field-of-view (FoV): 27 °
- Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
- Programmable ROI position on the receiving array, providing multizone operation control from the host
- Easy integration
- Single reflowable component
- Can be hidden behind many cover window materials
- Software driver and code examples for turnkey ranging
- Single power supply (2v8)
- I²C interface (up to 400 kHz)
- Shutdown and interrupt pins
SPECIFICATIONS
- Working voltage: 3.3-5v
- Communication interface: I2C
- Dimensions: 25×10.7×3.2mm
- Weight: 2.4g

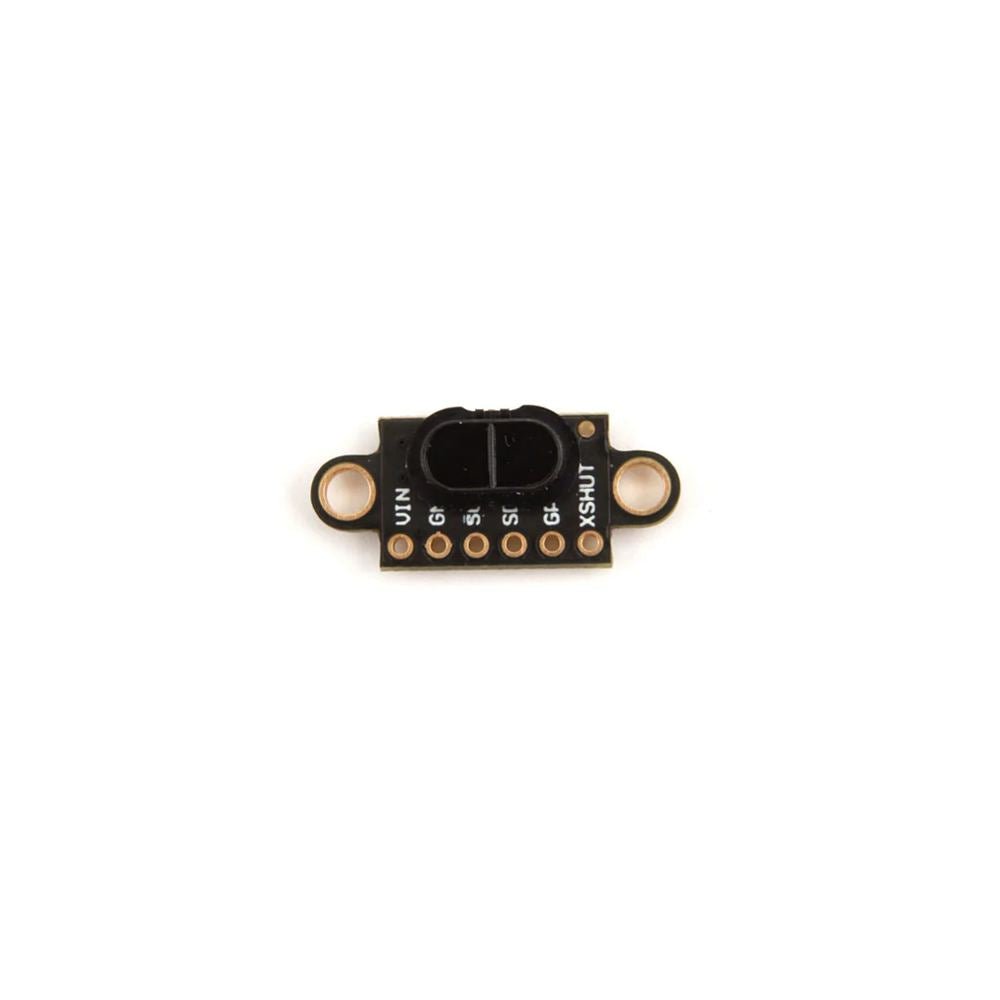

PINOUT

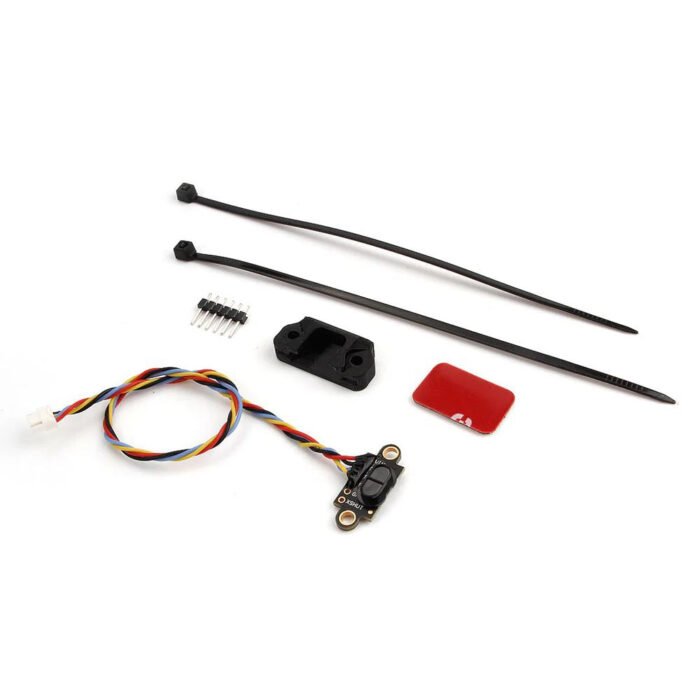

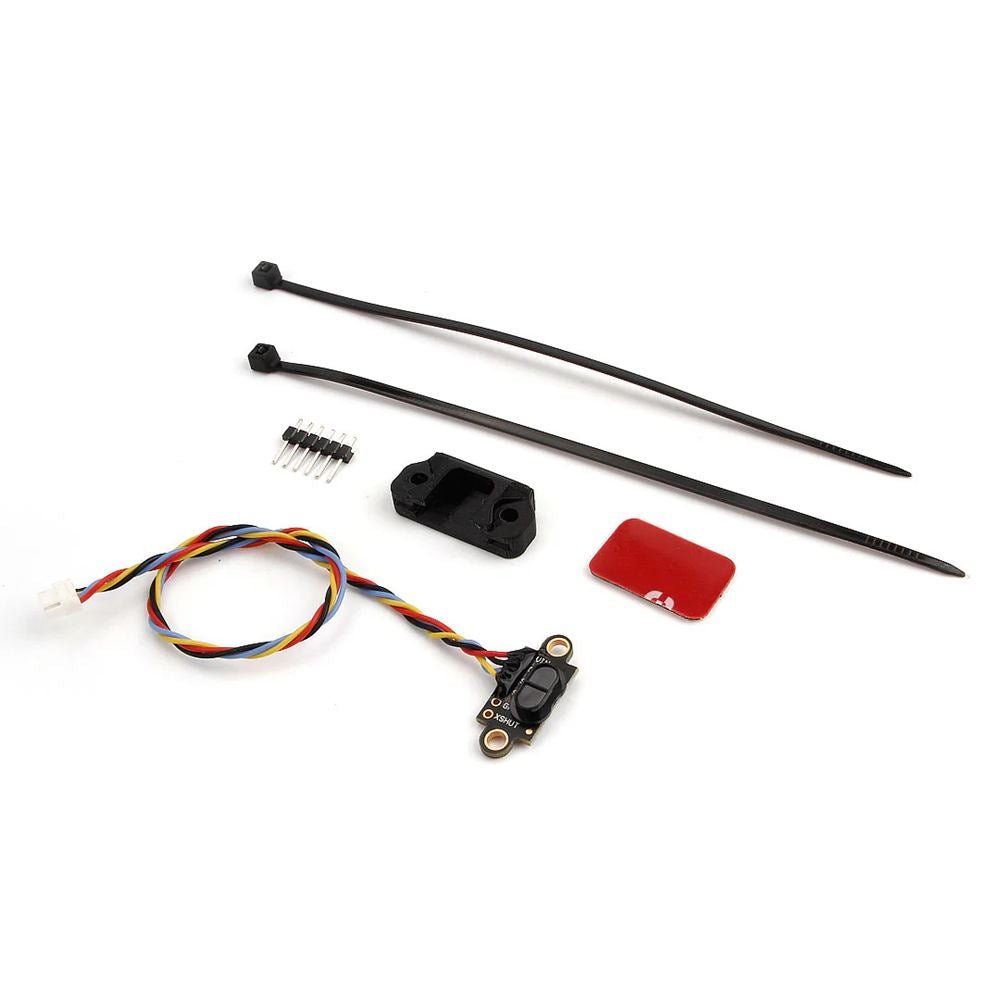

Package Included
- 1x VL53L1X

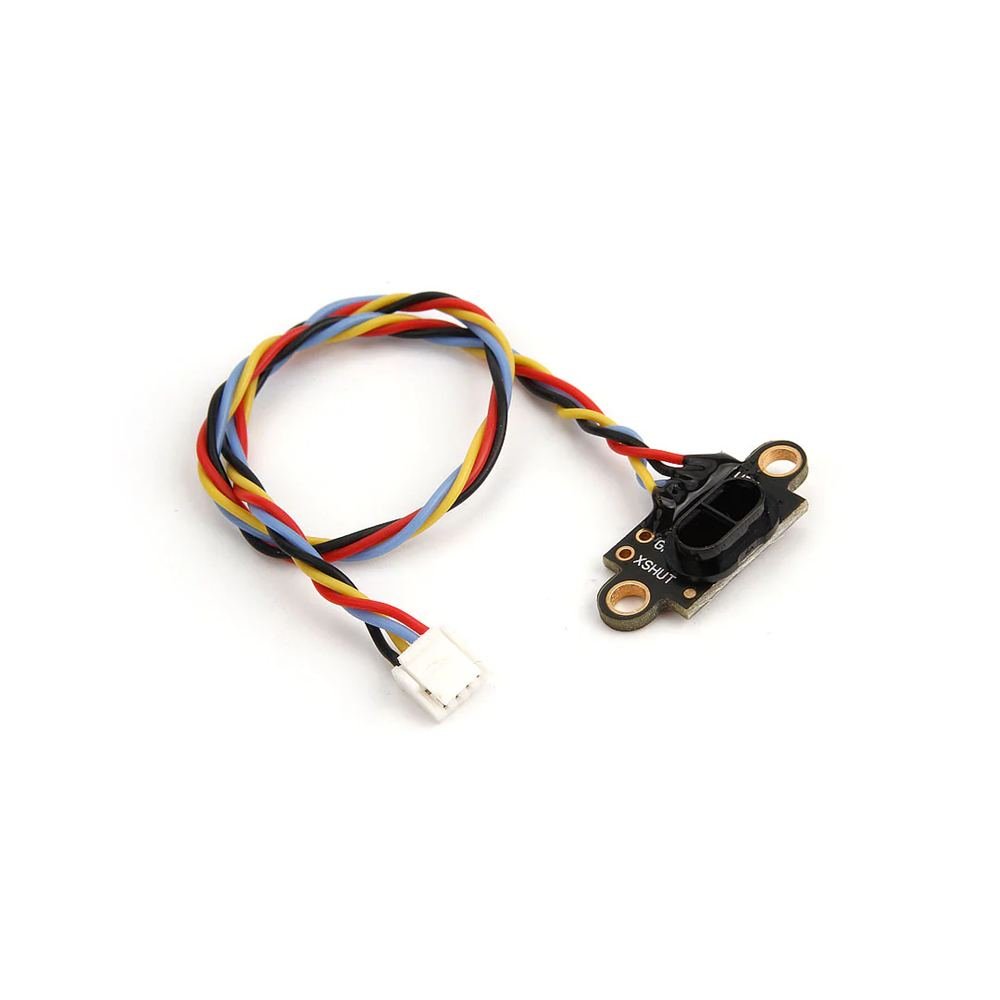

- 1x GH4P 200mm Cable(installed)

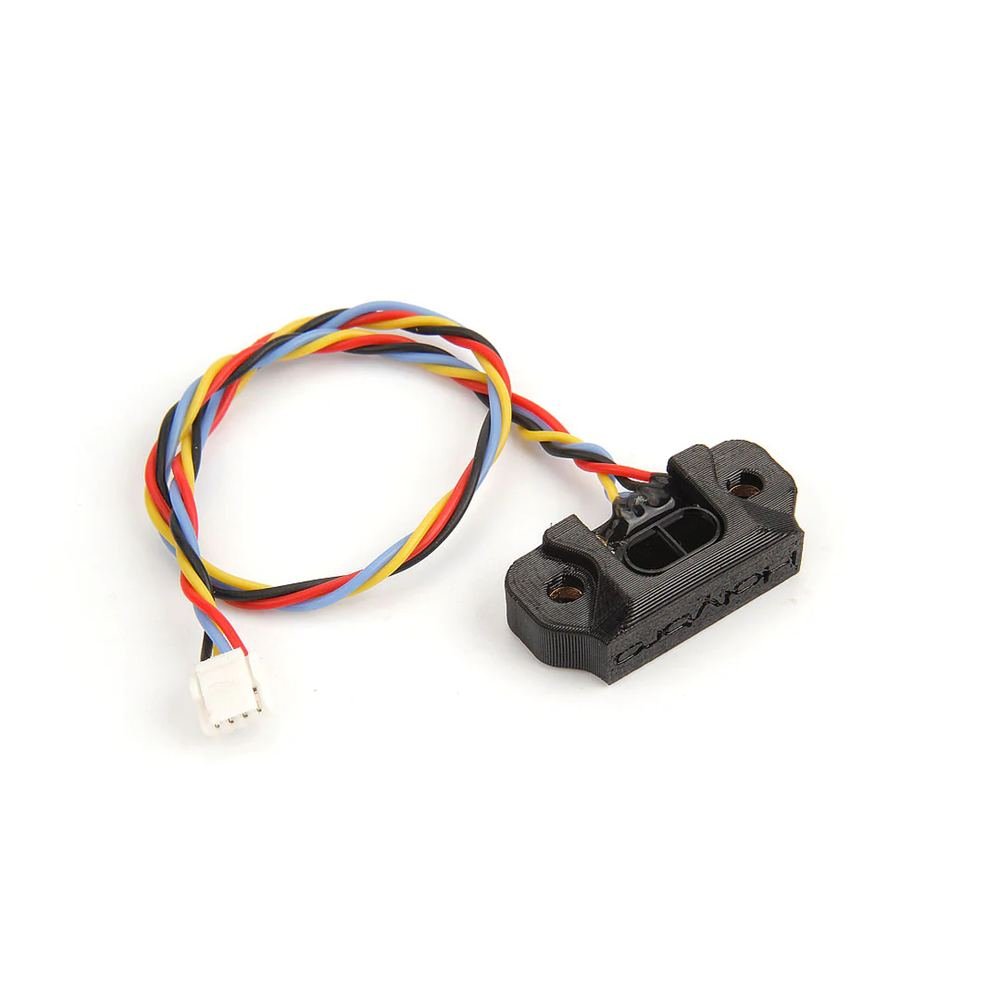

- 1x TPU Protective Case Shell
Download:
Some Tips: https://ardupilot.org/copter/docs/common-vl53l0x-lidar.html
