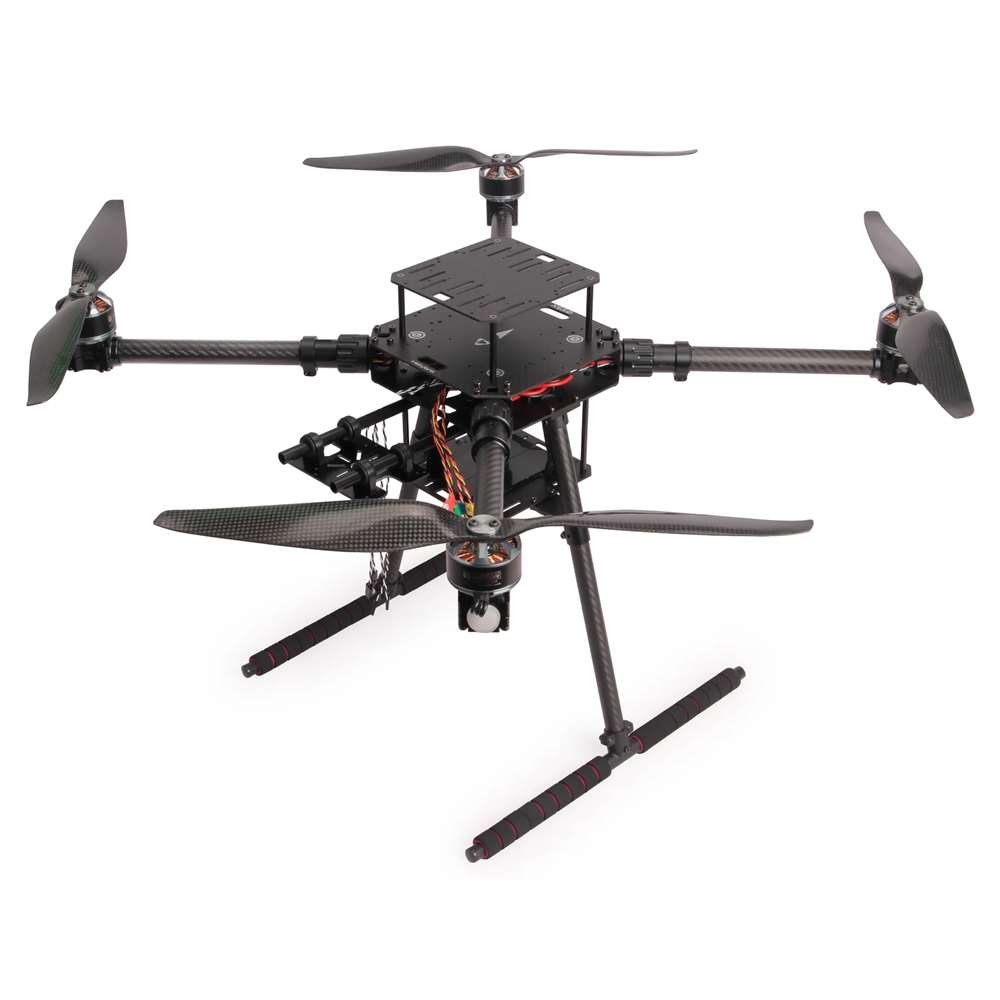

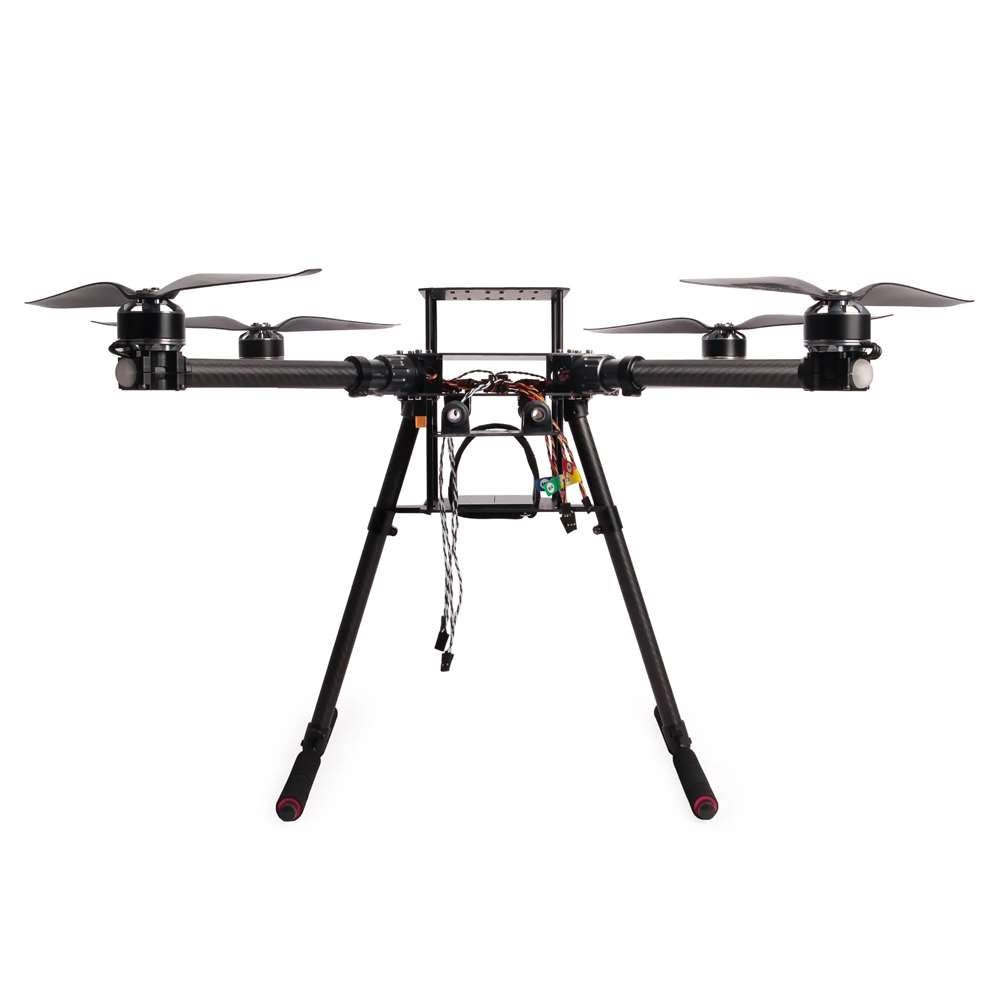

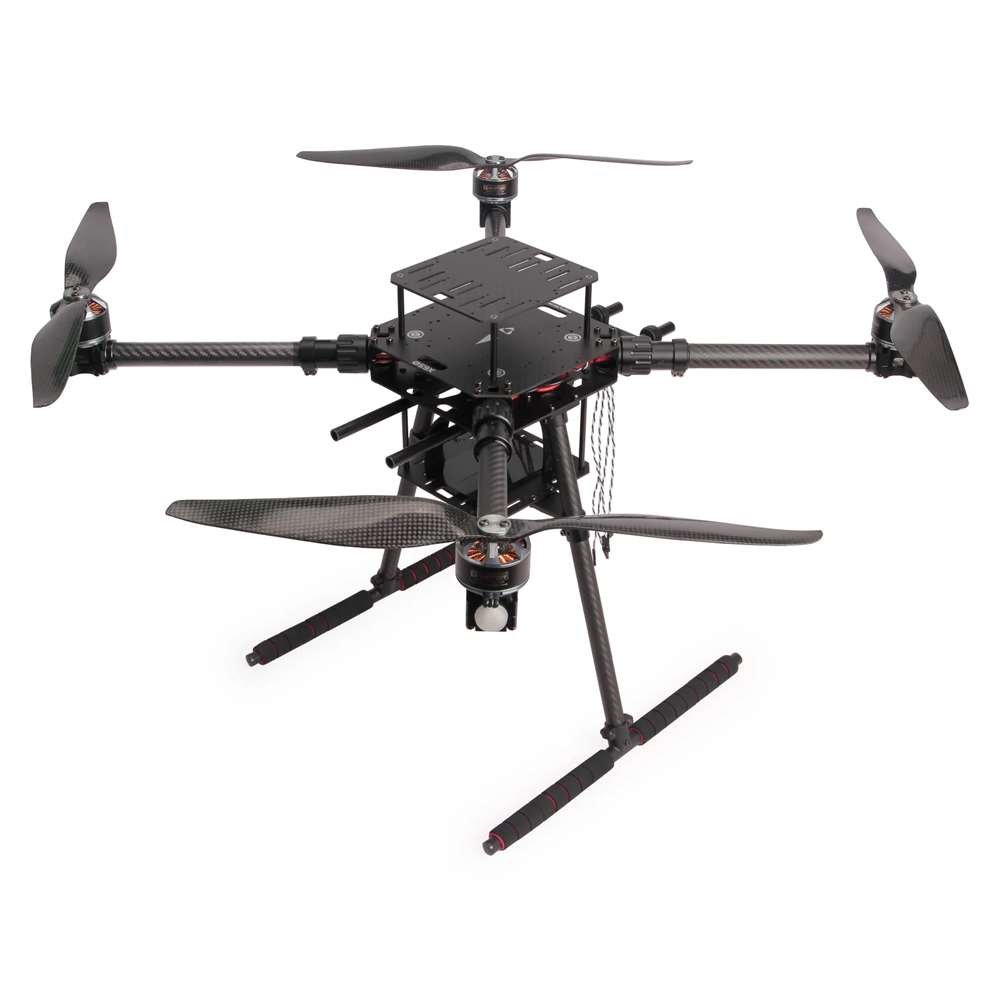

Holybro X650 V2 Almost-Ready-to-Fly (ARF) Frame Kit

The Holybro X650 Development Kit is designed for enthusiasts and developers looking to create their own aerial solutions. This comprehensive kit includes essential components such as the frame and motors allowing you to build and customize your X650 drone to meet your specific project needs. Ideal for both educational purposes and advanced hobbyist use, the X650 Development Kit offers a robust platform for exploring drone technology and enhancing your flying skills. Unlock your potential with the Holybro X650 Development Kit and take your drone projects to new heights.

Check Out all our Cinelifters and related Accessories as well as the rest of our Holybro Products

Features:

• Carbon Fiber frame with foldable aluminum arm connector
• New frame design with minimal assembly time, no soldering required
• Easy & straightforward installation
• Spacious platform for easy integration of additional accessories & battery
• Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB
• Power distribution board (PDB) with XT60 & XT30 plugs
• Optional depth camera mount for Intel RealSense depth camera

Frame Details:

• Wheelbase: 650mm
• Motor mount
  • Mount pattern: 16-25mm

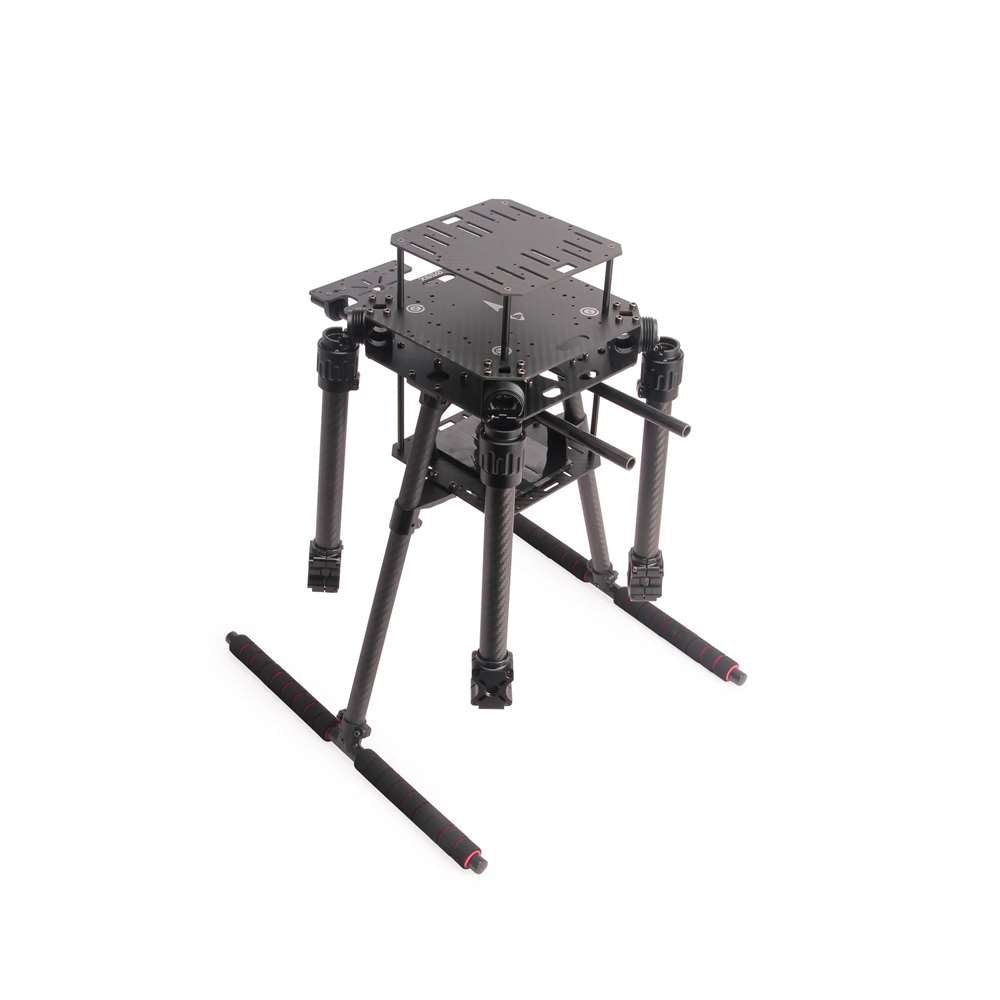

• Body – Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)
• Arm – High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
• Landing gear – 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
• Upper & Battery Plate – 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
• Platform board – With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
• Dual 10mm Ø rod x 320 mm long rail mounting system
• Two battery pads & Straps
• Hand tools for installation

Flight Time and Payload

• Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)

• Full Kit Weight: 2000g (without battery)
• Payload:
  • 4.3kg (without battery)
  • 3.5kg (with 5200mAh 750 gram battery)
  • 3.1kg (with 10000mAh 1200 gram battery)
• Takeoff Weight Limit: 6300g (70% throttle)
• Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

Dimension:

Recommendation Combination (Not Included):

Flight Controller – Pixhawk 6C or Pixhawk 6X or Pixhawk 6X with Jetson Baseboard
Power Module – PM02D, PM03D Power Module, PM02 V3,
GPS – M10 GPS Module, H-RTK F9P Rover Lite & Helical
Telemetry Radio: SiK Telemetry Radio V3  433/915MHz
RC Radio & Receiver: RadioMaster TX16S RC Controller & RadioMaster R81 Receiver

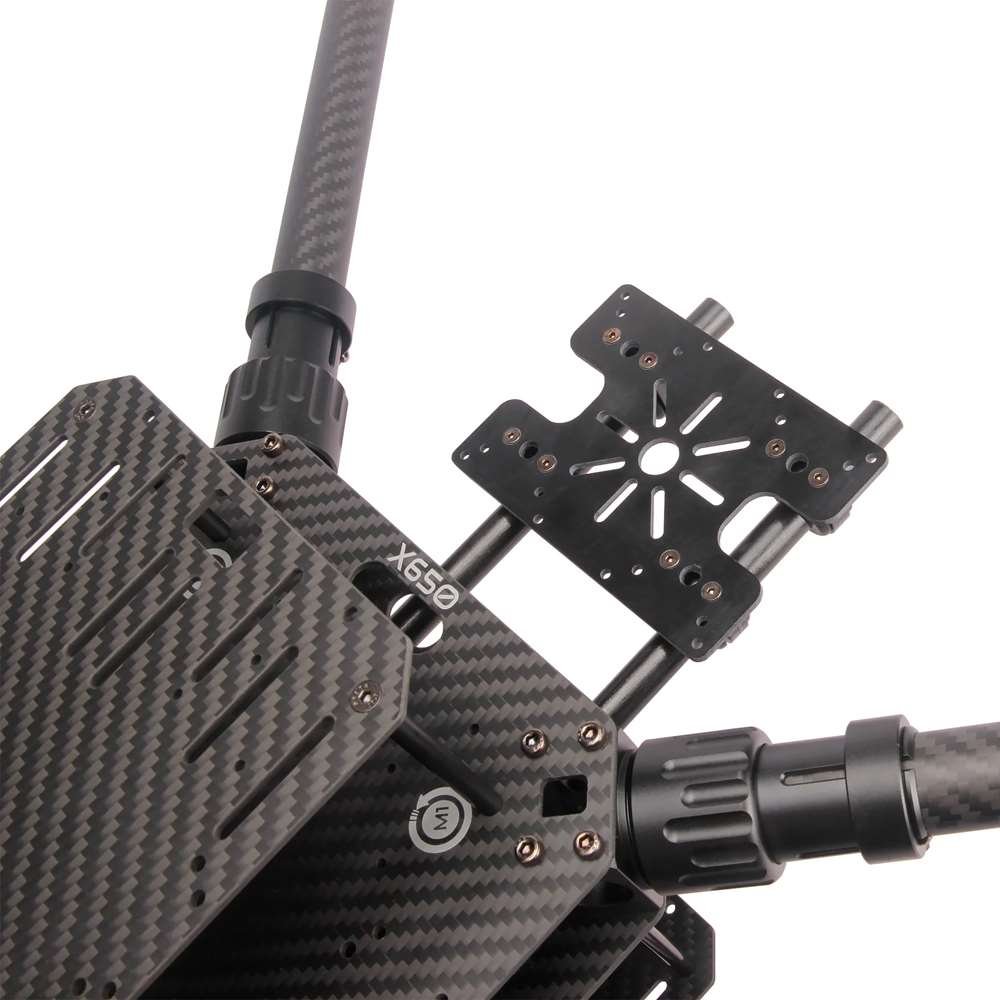

Depth Camera Mount

Package includes:

• X650 V2 Frame Kit
• Preinstalled Items:
  • 4 Motors – Tmotor MN4014 KV330 Motor with XT30 Plug
  • 4 ESCs – Tekko32 F4 45A ESC with XT30 Plugs
  • 4 LED – NeoPixel WS2812 LED (Setup Instruction)
• Gemfan 1555 Carbon Fiber Propellers (4 pcs)
• Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)
