iFlight Alpha A65 V2 Analog FPV BNF Whoop Drone – Choose Receiver

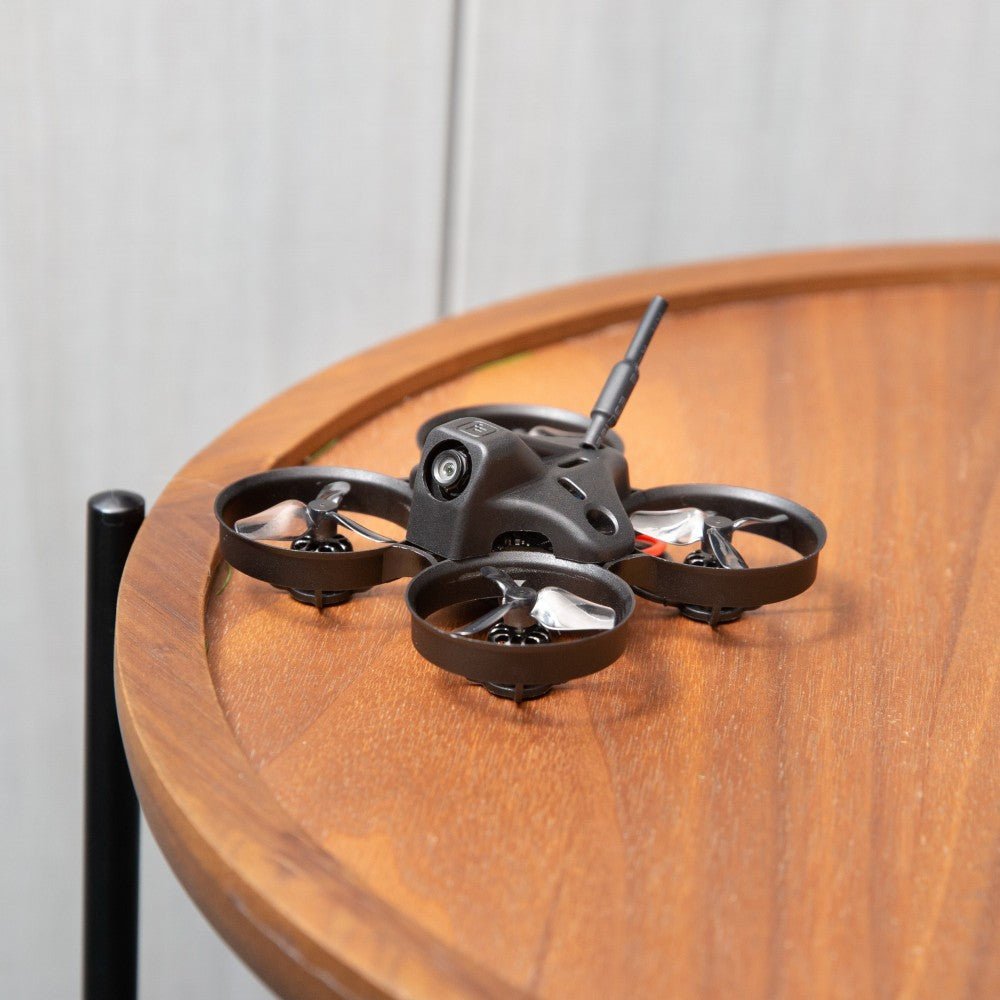

Let’s welcome the upgraded version of Alpha A65, the newly designed canopy and body frame, available in black and white color. This Alpha A65 is an even smaller size 65mm light weight 24.5g whoop. Stuffed with our newest electronic components and technology, this thing will guarantee loads of hours practice or racing across the smallest spaces. This is what we came up with to combine flight time efficiency with sufficient power.

Check out our other Micro Bind and Fly Drones as well as all our iFlight products!

Features:

• 24.5 grams (without battery)
• Butter smooth XING 0802 22000KV (more torque and efficiency with longer flight times)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings
• Main Changelog from V1 to V2:
• Upgraded canopy and body frame
• Upgraded camera
• January 2022: Before XING 0802 22000KV changed to XING 0803 17000KV
• April 20, 2022: Before SucceX F4 1S 5A AIO Whoop Board w/VTX changed to BLITZ F411 1S 5A Whoop AIO Board

PRE-TUNED & PRE-SETUP:

• – Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
• – Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

Specifications:

• BLITZ F411 1S 5A Whoop AIO Board
• XING 0802 17000KV FPV Micro Motor
• Wheelbase: 65mm
• Body size: 46*46mm
• Ducted propeller size: 31mm
• FC pattern: 25.5*25.5mm
• Weight: 24.5g (without battery)
• Flight time: 3-4 min cruising (1S 300mAh)

BLITZ F411 1S 5A Whoop AIO Board FC Specs:

• Weight: 4.8g (with power cable, VTX, and VTX antenna)
• Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
• Supported Protocols: CC2500, SPI, D8, S-FHSS
• FC Firmware: IFLIGHT_BLITZ_F411RX
• BEC output: 5V 500mA
• Connector: Micro-USB
• MCU: STM32F411
• INA pad: n uart2
• Barometer: NO
• Size: 29*29mm
• Gyro: BMI270
• Blackbox: NO

BLITZ F411 1S 5A Whoop AIO Board ESC Specs:

• Signal Support: Dshot, Oneshot, Multishot
• Current: 5A continuous and peak 6A
• ESC Firmware: O-H-30 BLS 16.8
• Current sensor: yes
• ESC Telemetry: NO
• Current scale: 400
• BLHeli: BLHeli-S
• Input: 1S

VTX Specs:

• Protocol: Smart audio
• Power: PIT/25/50mW
• Connector: UFL/IPEX
• Input voltage: 5V
• Channels: 37CH

Includes:

• iFlight Alpha A65 V2 Analog FPV BNF Whoop Drone – Chosen Receiver

Tip:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Important:

Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.
If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
