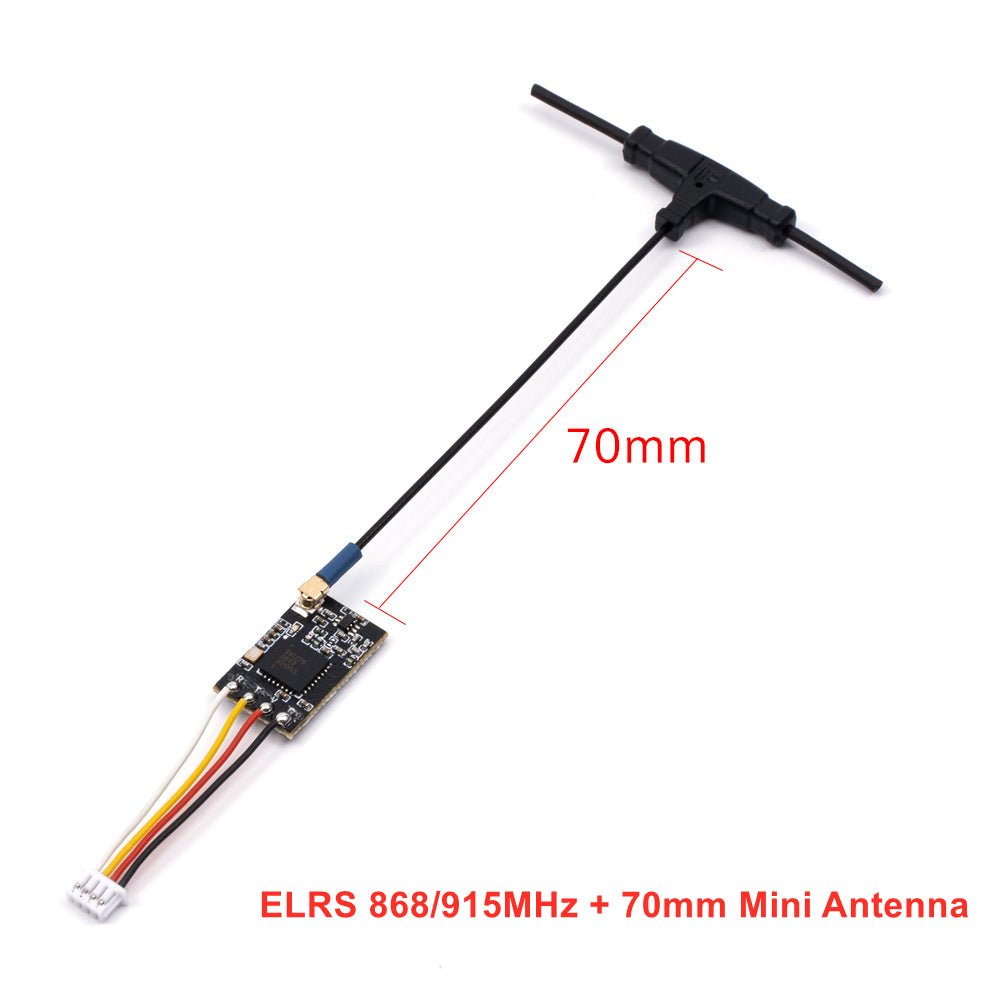

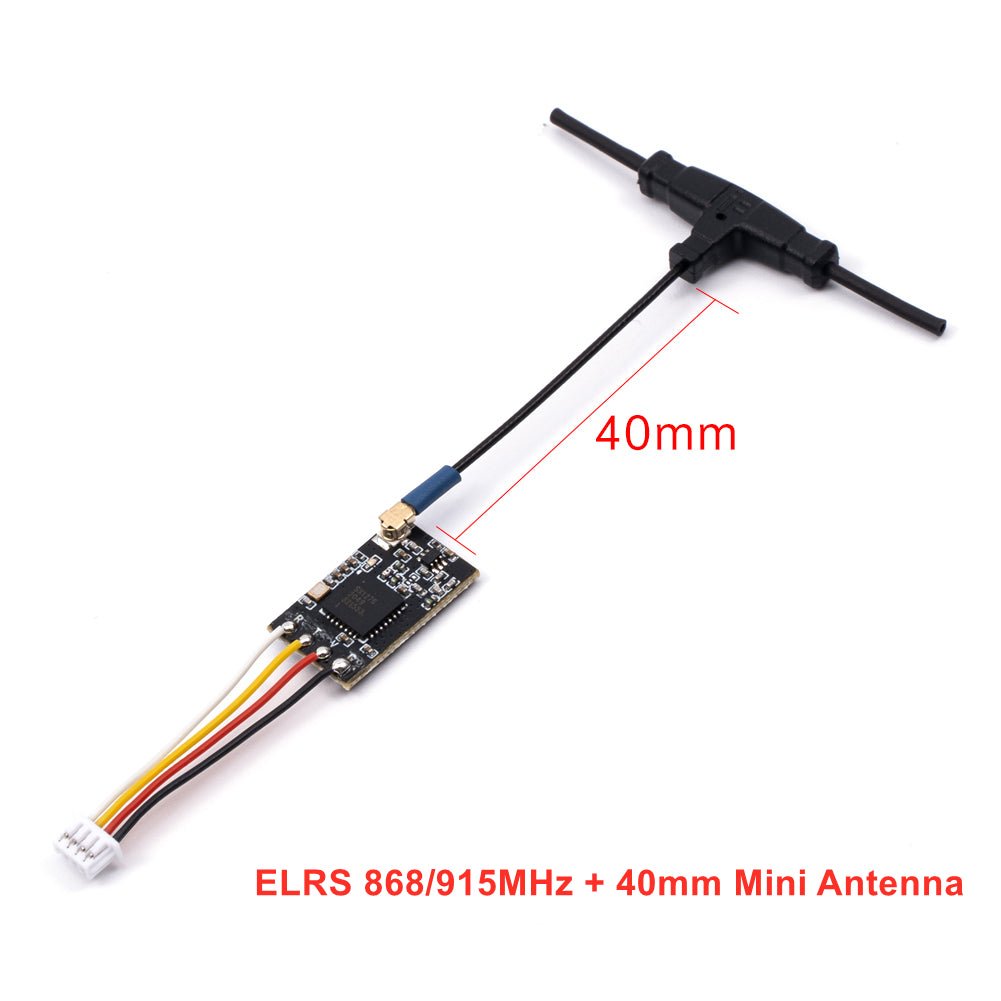

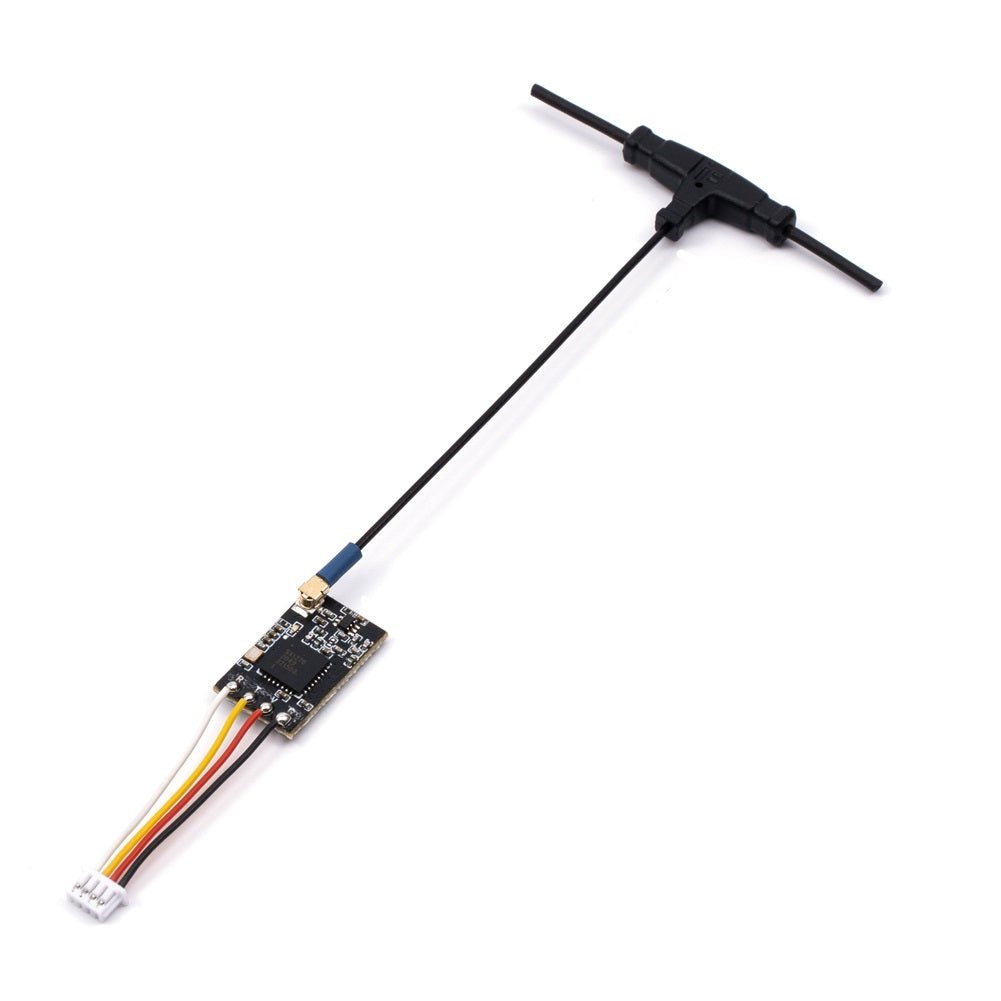

IFlight ELRS 915/868MHz Receiver – Choose Antenna

It’s finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafe’s are a thing of the past.

ExpressLRS RX modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.

Check out all our ExpressLRS Products, Receivers, and the rest of our IFlight Products!

Highlights:

• Improved circuit design

• Market’s lowest crystal frequency deviation (low packet loss, high frequency stability)

• High-performance at 2400MHz or 900MHz (915 / 868 bands available)

• Frequency tuned T-style dipole antenna options

• Pre-soldered SH1.25 connector with 30mm wire length (Plug&Play for easy installation with iFlight FCs)

Performance and Compatibility:

• Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).

• Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.

• Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation (only 11KHz in total at 51.99976MHz on the crystal). Please checkout this article for further information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error

Band Options:

• The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities. If you’re not sure what to get, please checkout the official ELRS Long Range Competition to see what has been achieved. https://www.expresslrs.org/2.0/info/long-range/

• What can you expect? Due to local regulations, the 915MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.


Specs:

• Antenna connector: IPEX(868MHz/915MHz)

• Firmware: ExpressLRS  iFlight 900RX(868MHz/918MHz)

• Frequency bands: 868MHz EU/915MHz FCC

• Telemetry Power: 17dbm (868/915MHz）

• Dimension: 12*19.5mm

• Connector: SH1.25 including 30mm wire (pre-soldered)

• Interface: 5V GND RX TX

• Input voltage: 5V

• Protocol: CRSF

• Weight: 1.2g

Package Includes:

• 1 x IFlight ELRS 915/868MHz Receiver – Chosen Antenna
