Sold out
iFlight ExpressLRS ELRS Nano Receiver 2.4GHz – Choose Antenna
$22.99
| Weight | N/A |
|---|---|

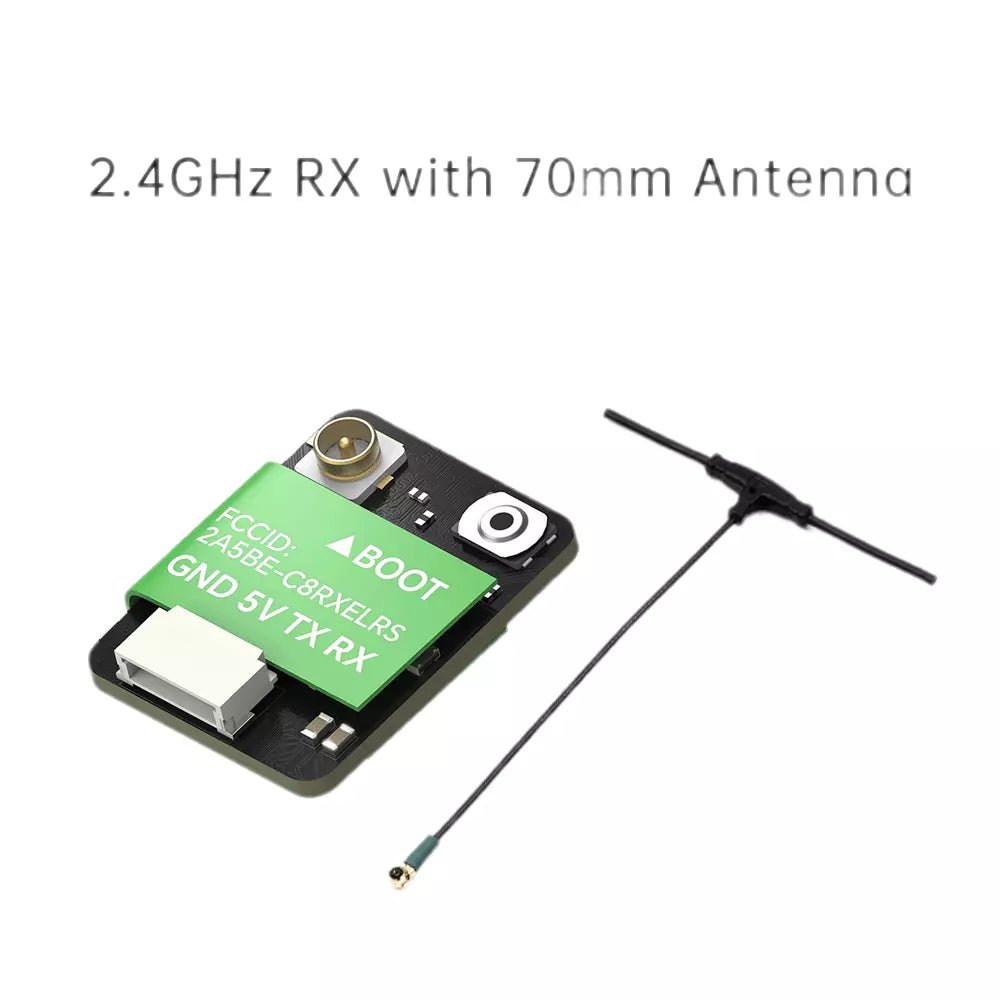

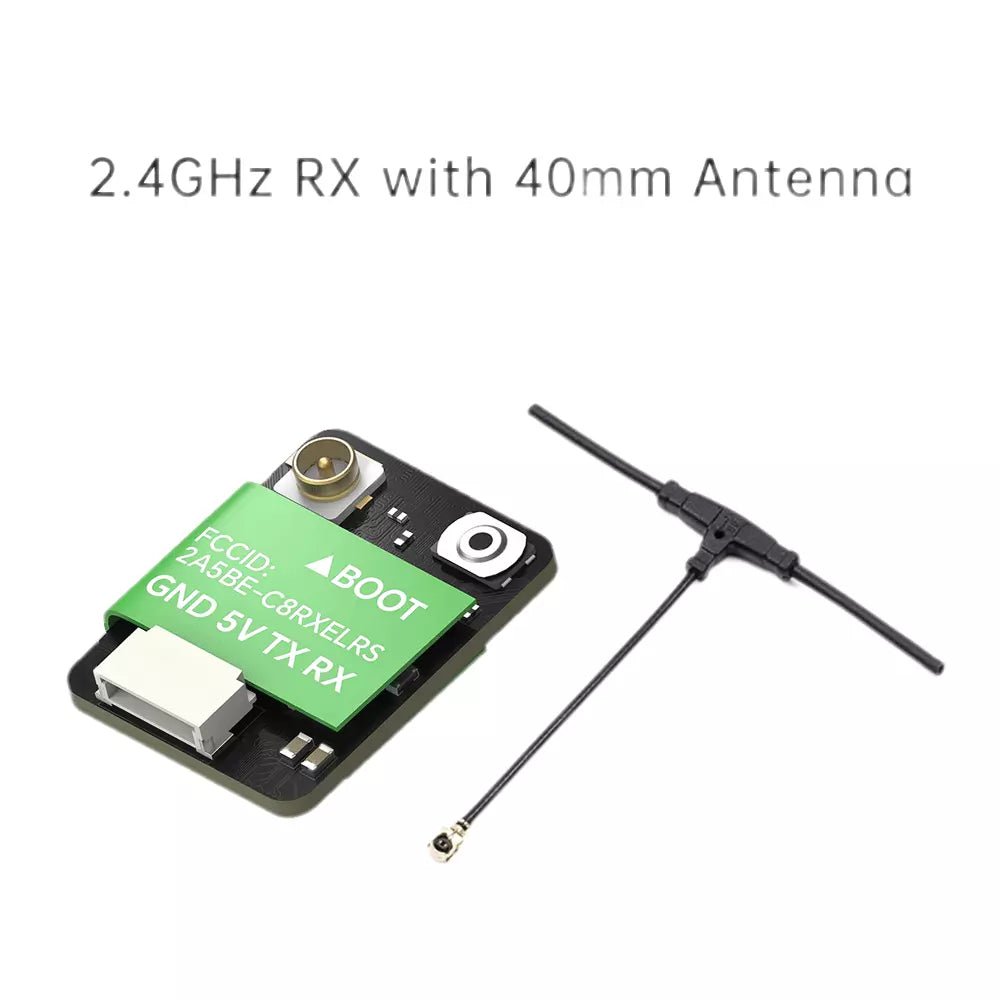

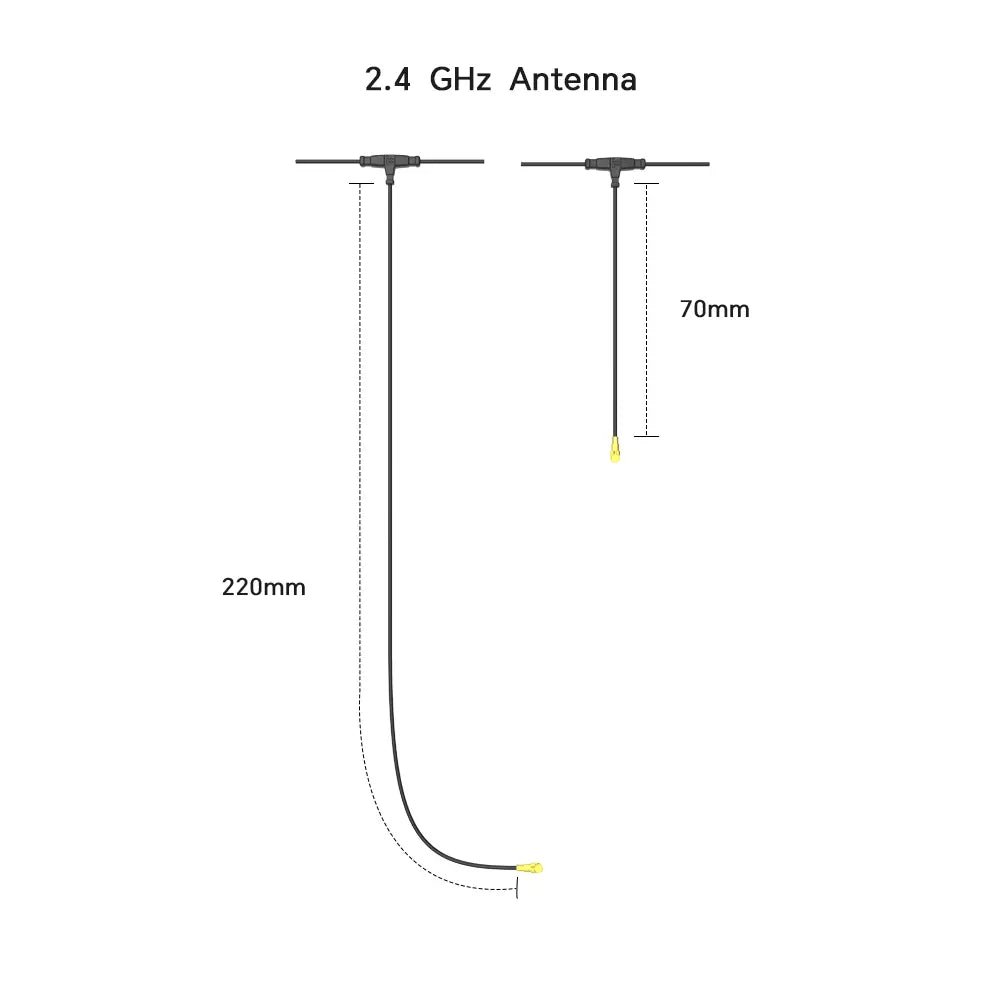

| Choose Antenna Length | 220mm Mini Antenna, 40mm Mini Antenna, 70mm Mini Antenna |
Description
It’s finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafes are a thing of the past.
ExpressLRS RX Nano modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Check out our ExpressLRS Collection, all our Receivers and the rest of our iFlight Products.
Checkout the official ExpressLRS website: https://www.expresslrs.org/
Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs
Features:
- Improved circuit design
- Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2400MHz.
Performance and Compability
Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.
Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation. Please checkout this article for further information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error
Specifications:
- Antenna connector: IPEX
- Firmware: ExpressLRS iFlight 2.4GMHz Nano RX(2.4G)
- Frequency bands: 2.4GHz ISM
- Telemetry Power: 12.3dbm（17mW 2.4G）

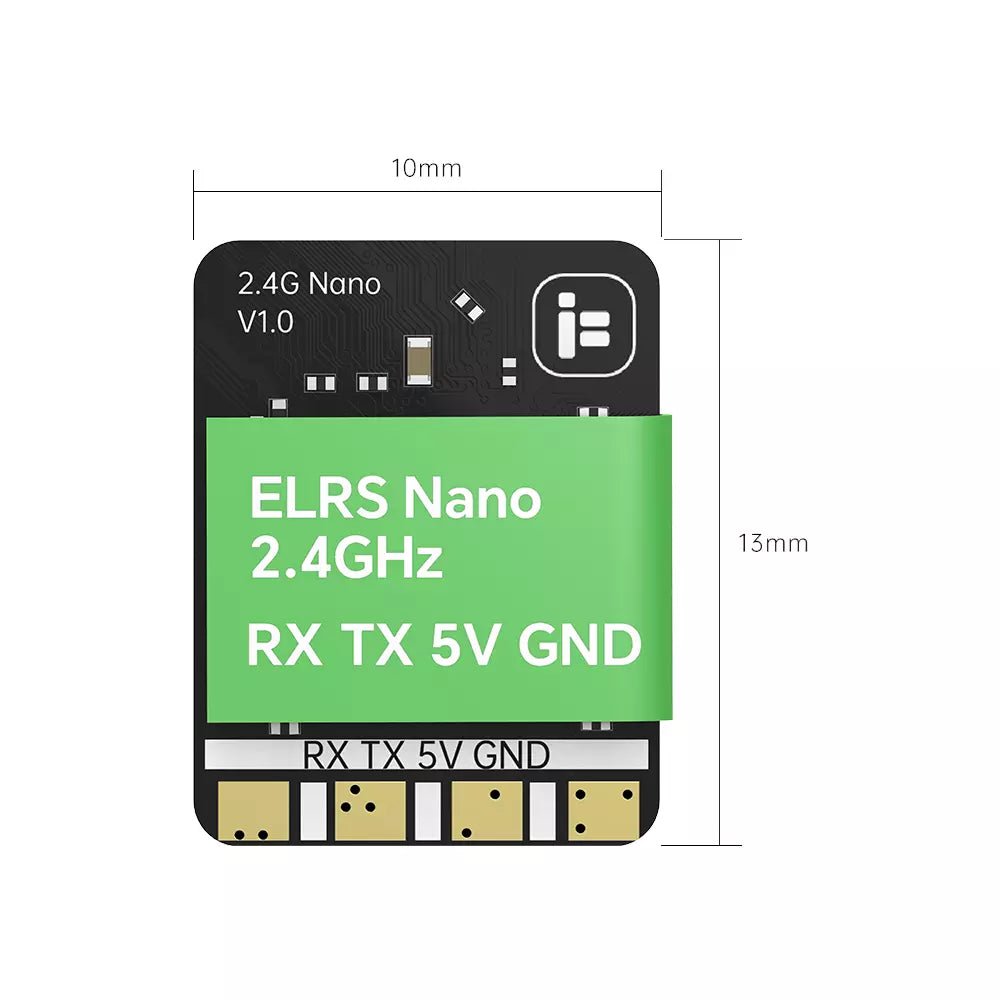

- Dimension: 10*13mm
- Connector: SUR0.8 Connector
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g
Package Includes:
- 1 x ExpressLRS Nano Receiver
- 1 x Antenna
