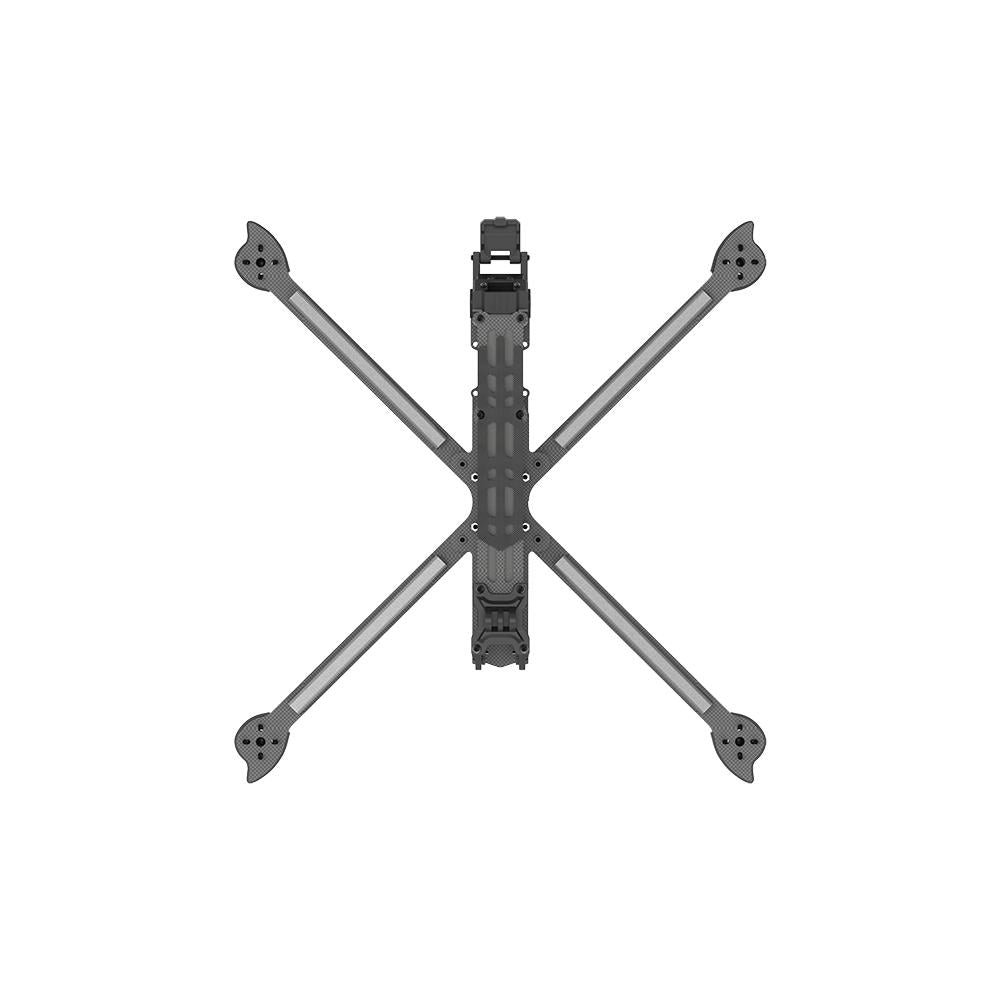

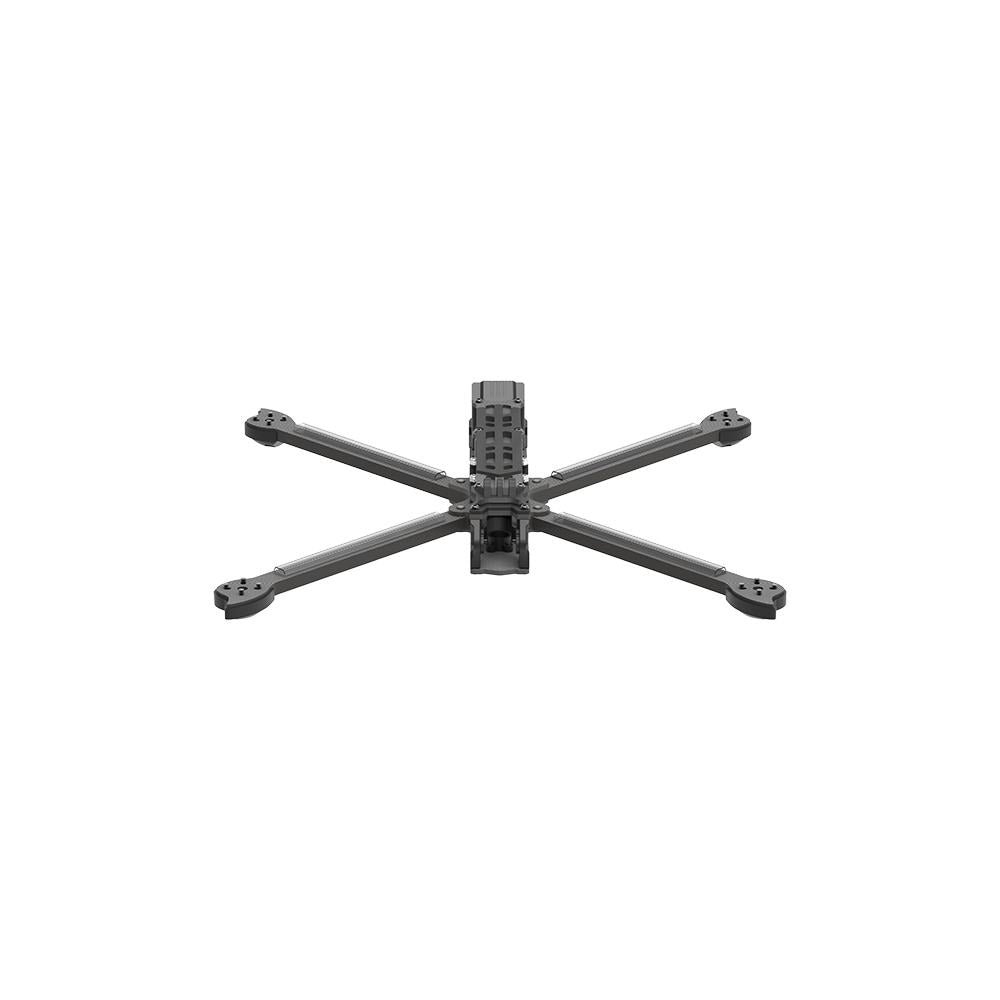

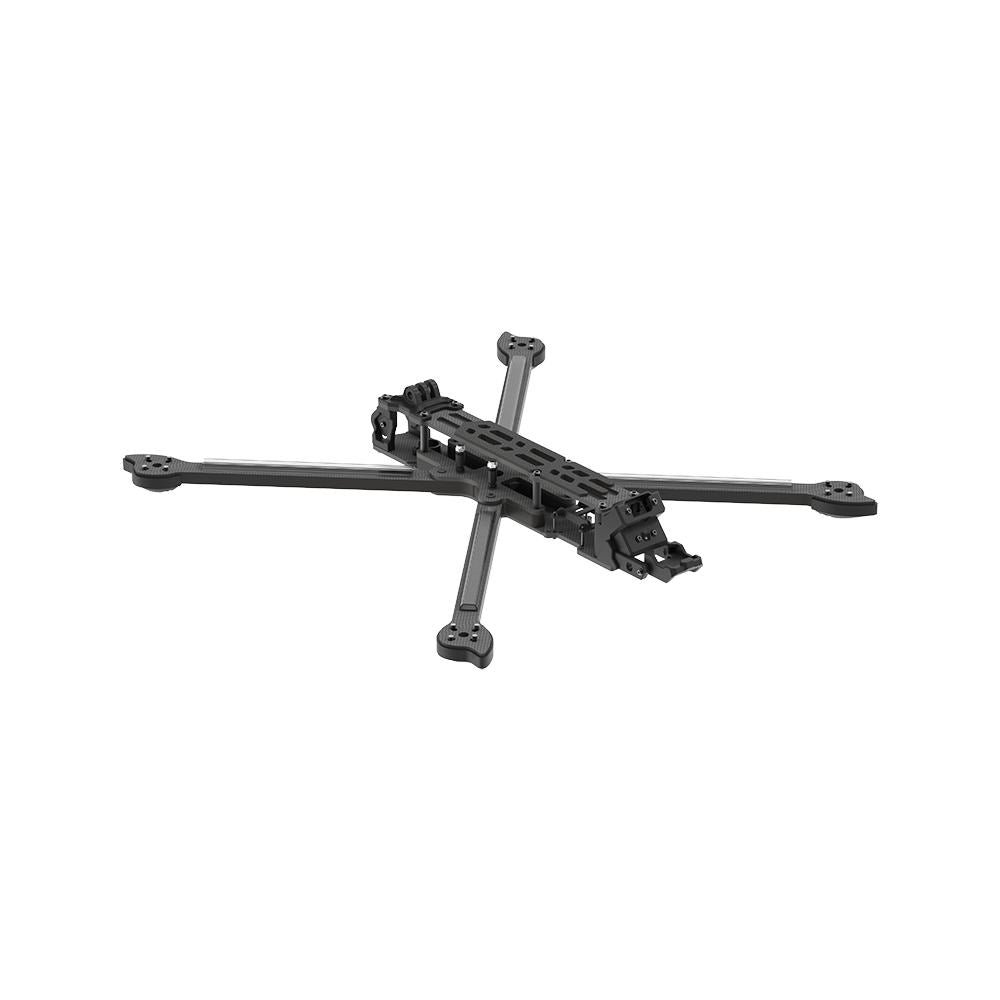

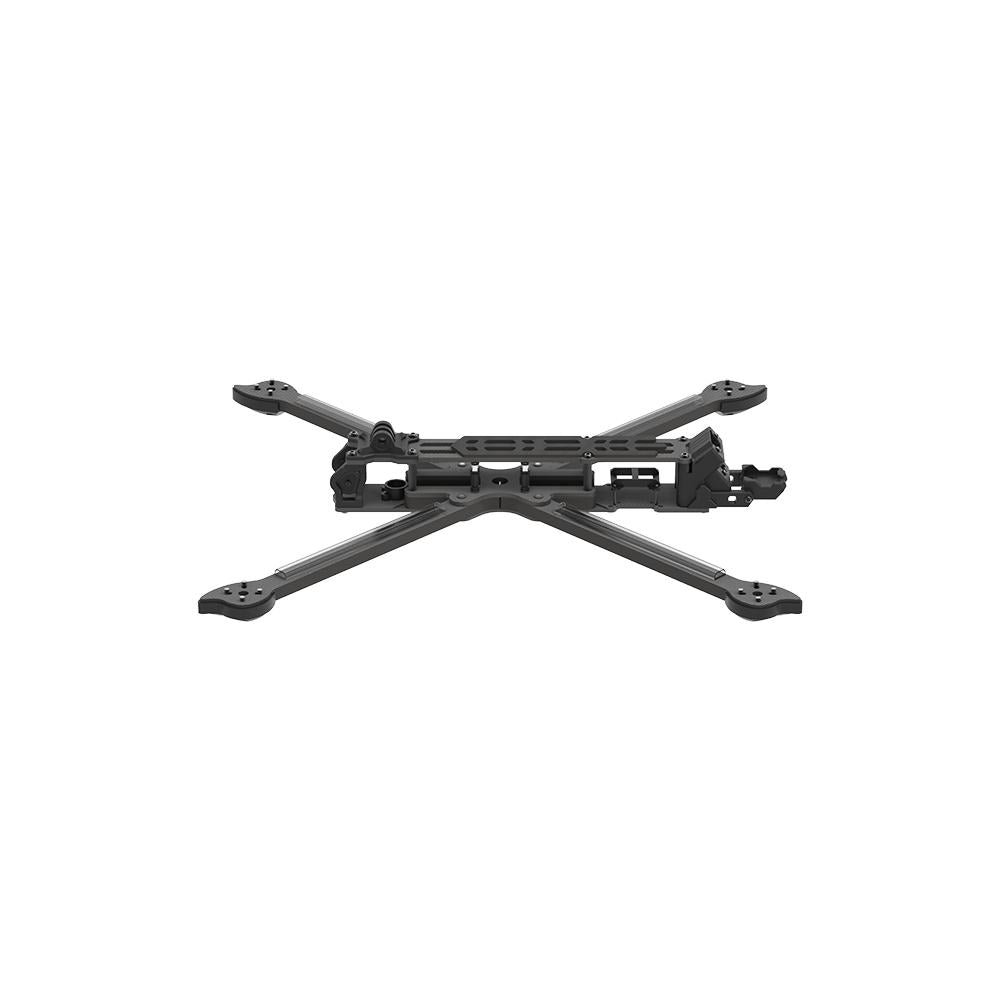

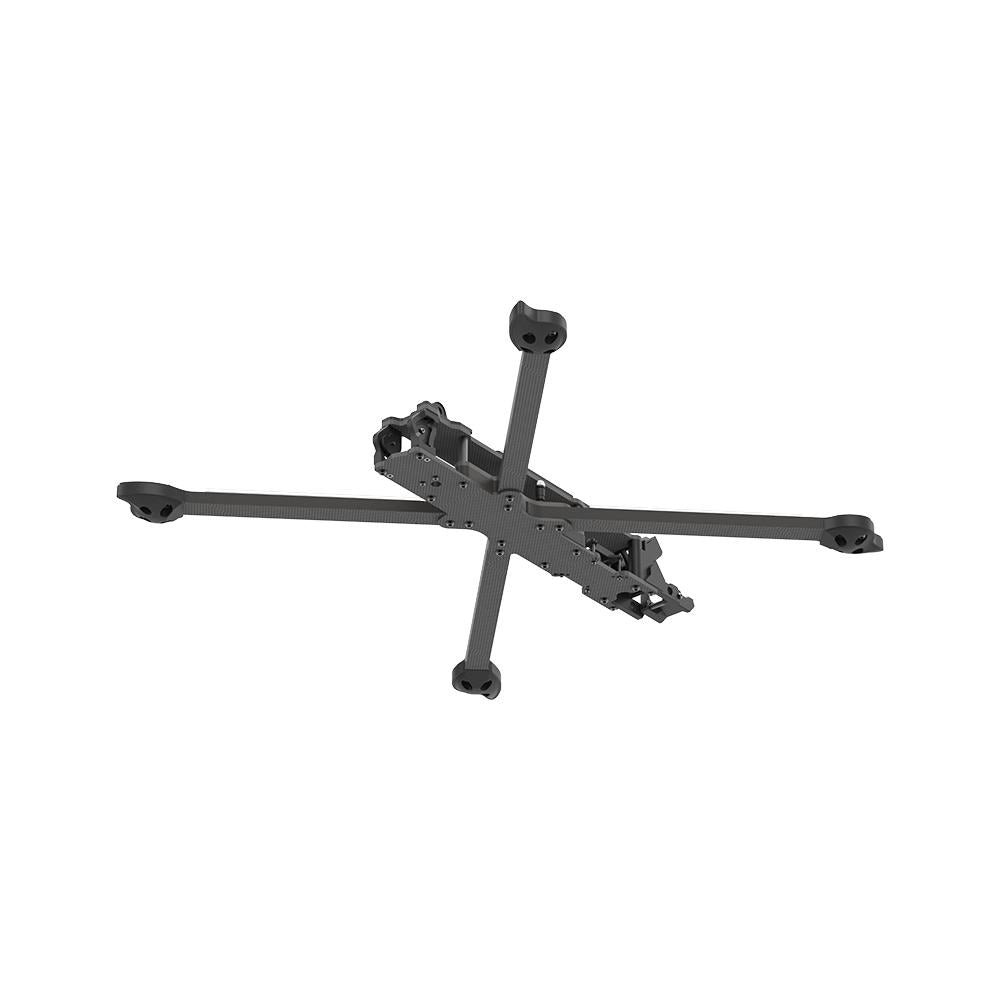

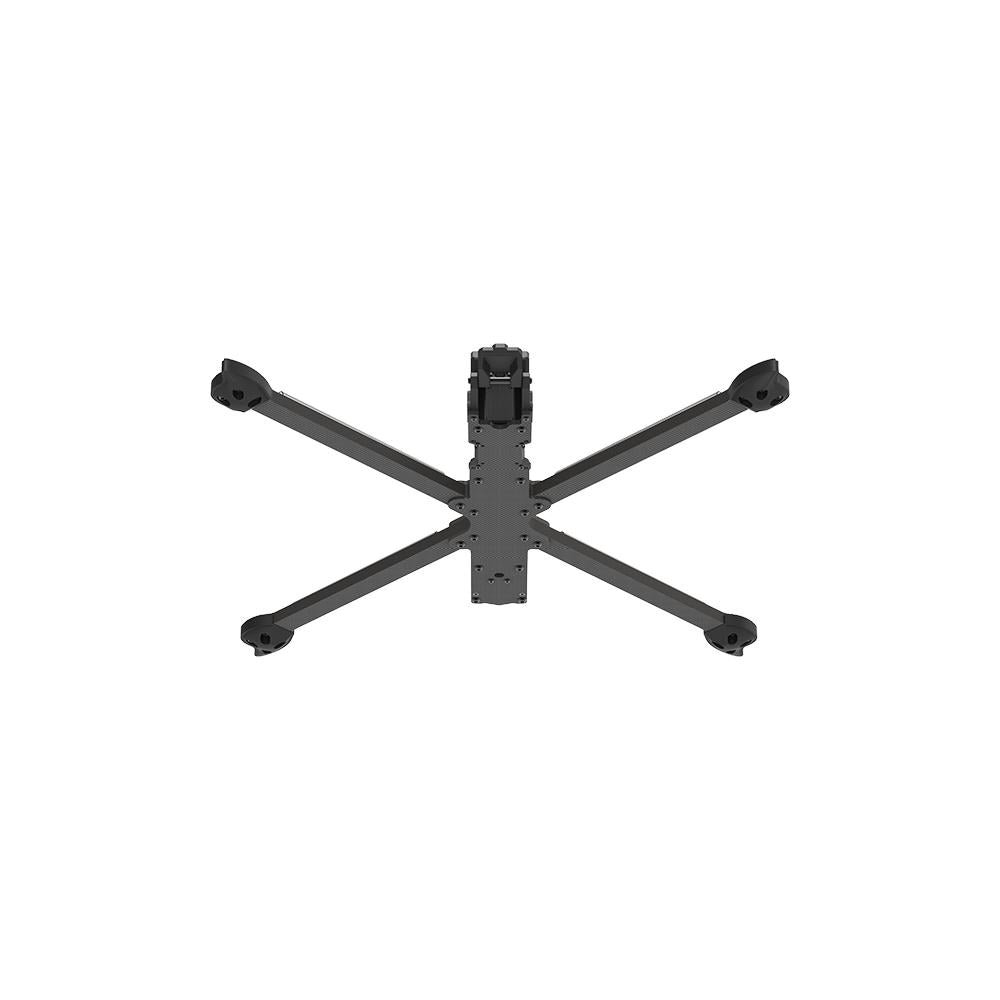

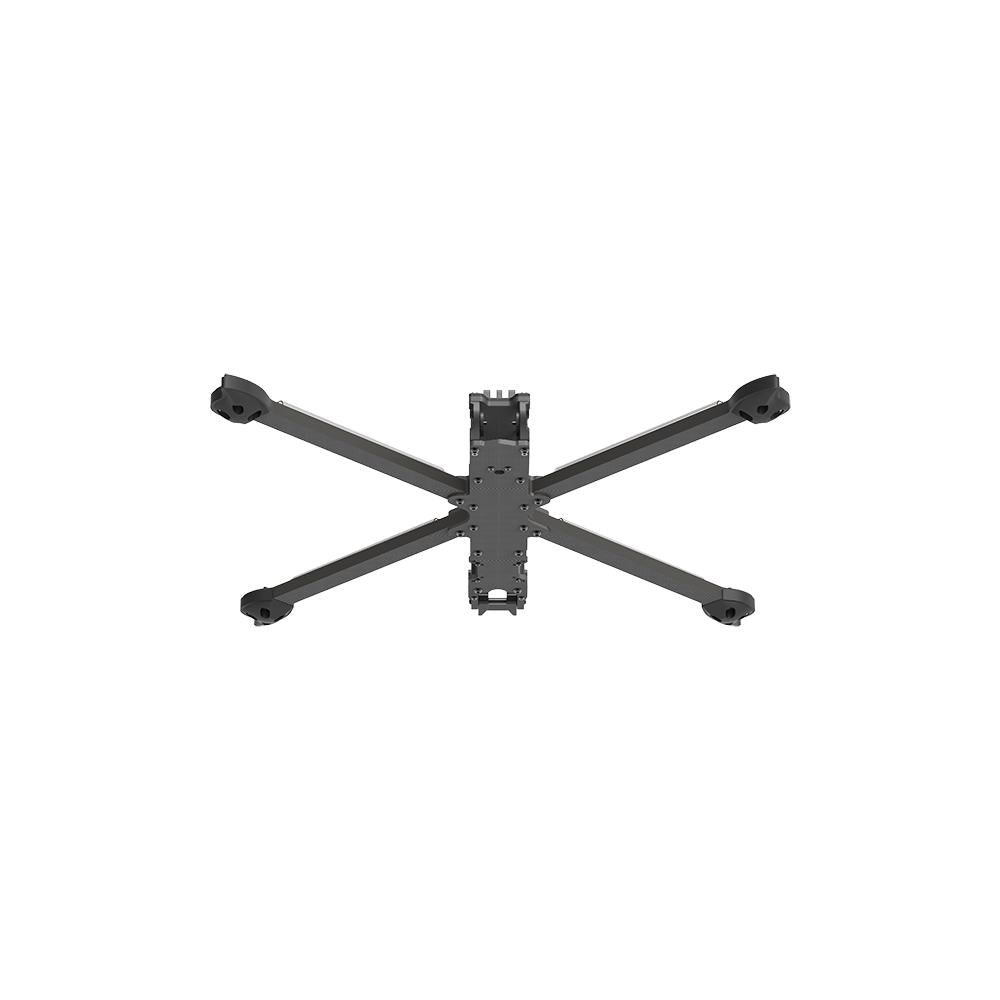

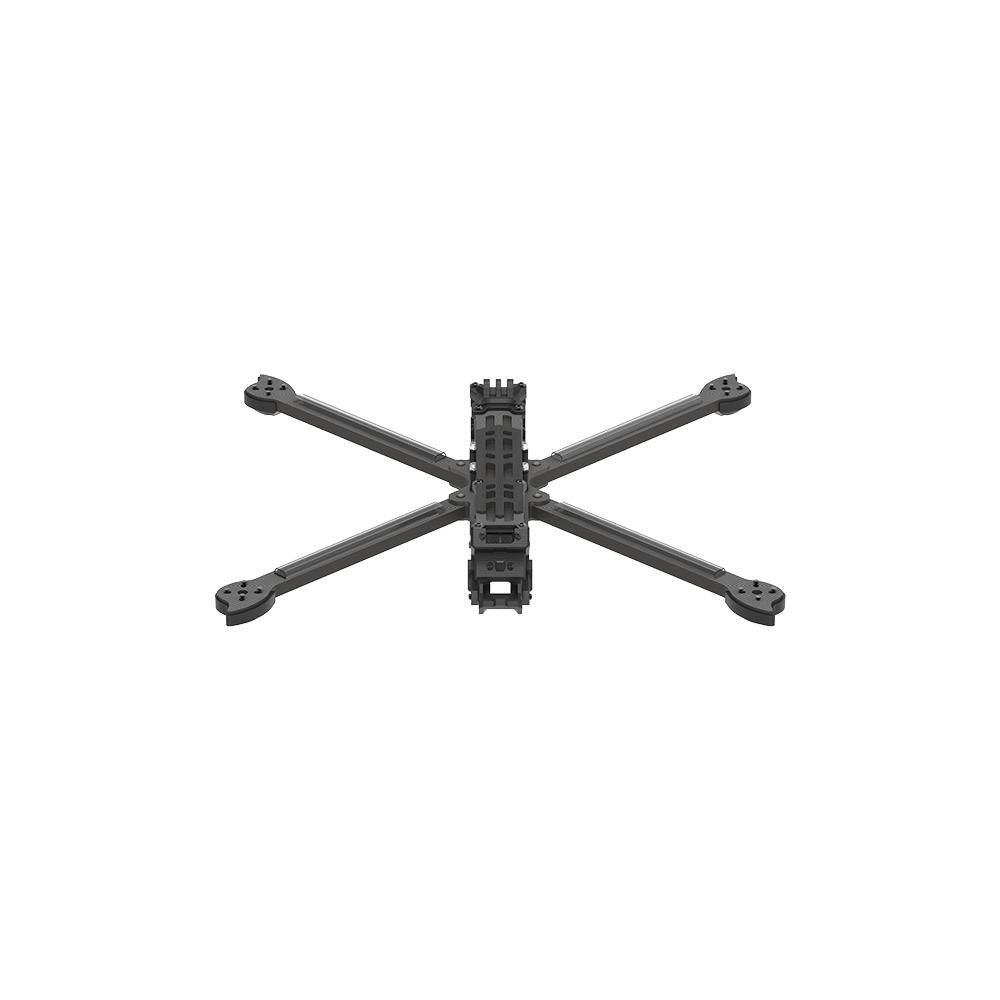

iFlight Nazgul XL10 V6 10″ Frame Kit

framIt’s proud to announce the release of the XL series V6 Frames, XL10 V6 is a 10″ size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.

The main advantages of the XL series V6  are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.

Battery Recommendation (NOT INCLUDED): 6S 5600mAh to 8000mAh Li-on Battery

You can find all the related parts in The IFlight XL10 V6 10 inch Long Range Drone Frame Collection

Check out all our Frames and the rest of our iFlight Products!

 Highlights:

• Full 3K Carbon Fiber airframe
• 10″ version fits popular 10″ style propellers
• Popular True-X configuration
• Fits both 30.5×30.5 and 20×20 stacks
• Compatible with DJI O3 Air Unit, Caddx Vista HD System, BLITZ Whoop 1.6W VTX
• 360° TPU protection and Antenna mounts

Specifications:

• Product Name：Nazgul XL10 V6 10 inch Frame Kit
• Wheelbase: 420mm
• Frame Dimension: L297*W297*H35mm
• Arm Thickness: 7mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 3mm
• Upper Plate Thickness: 3mm
• Max Flight Stack Height: 19mm
• Max VTX Height: 29mm
• Motor Mounting: 16x16mm/19x19mm
• VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm
• Weight: 343±5 g

Package Includes:

• 1 x Nazgul XL10 V6 Frame
• 1 x Screw Bag
• 1 x TPU Set
• 1 x Battery anti-slip mat
• 2 x Battery straps (the color will be shipped randomly)
