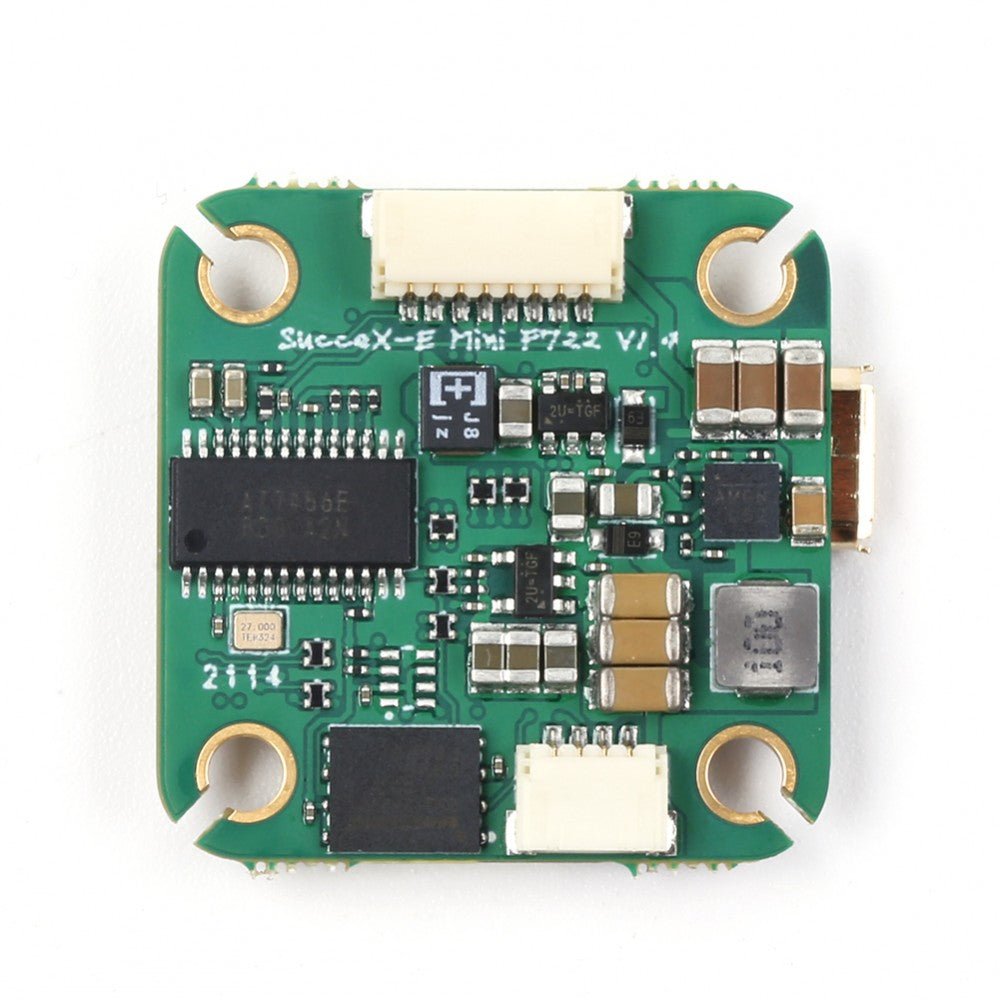

iFlight SucceX-E Mini F7 2-6S V1.4 Flight Controller – 20x20mm

iFlight SucceX-E Mini F7 2-6S Flight Controller with Vista HD Plug-and-Play. No need to solder tiny wires.

Check out all our 20x20mm Flight Controllers and the rest of our iFlight Products!

FC // SucceX-E Mini F7

Top Features:

• Gold-plated plug
• BlackBox: 8MB
• Vista HD Plug-and-Play. No need to solder tiny wires.
• BAT, +5V, 3.3, Start indicator
• Smartaudio & IRC Tramp VTX protocol supported

Specifications:

• MCU: STM32F22RET6 216 MHz
• Gyro: MPU6000 or BMI270
• Baro: BMP280(I2C）

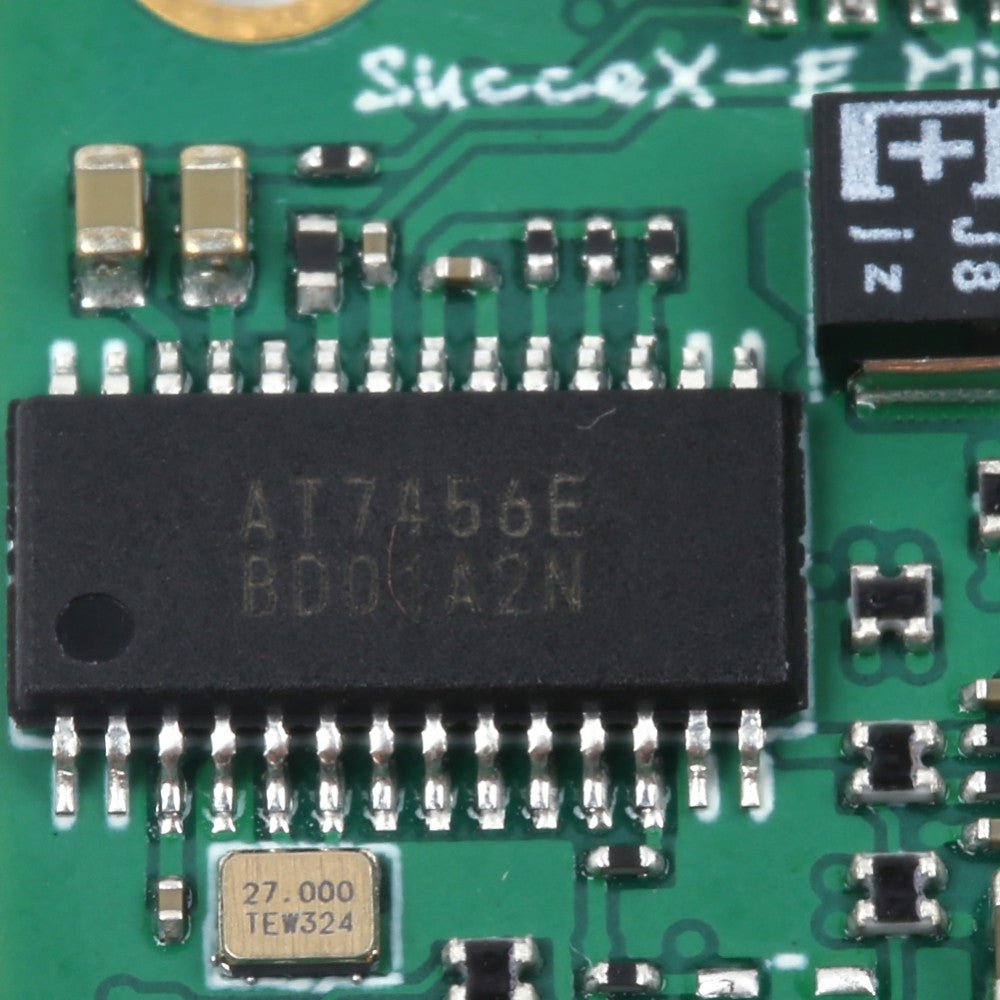

• OSD: IFLIGHT OSD （AT7456E）
• BEC: 5V 2.5A
• BlackBox: 8MB
• Uart: 4*UART(UART1、UART2、UART4、UART5)
• UART1 for VTX HD/Analog Telemetry
• UART2 for Receiver
• UART4 for GPS
• UART5 for ESC Telemetry
• 4×Dshot/PWM outputs
• Smartaudio & IRC Tramp VTX protocol supported
• WS2812 led Strip: Yes
• Bepper: Yes
• Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0
• Outer Size: 27*27mm / 20*20mm φ3 mounting
• Weight: 4.9g

Physical

• Mounting hole: 20*20mm，φ3mm
• Size: 27*27mm

Package Includes:

• 1pc x SucceX-E mini F7 Flight controller
• 1set x wire harness
