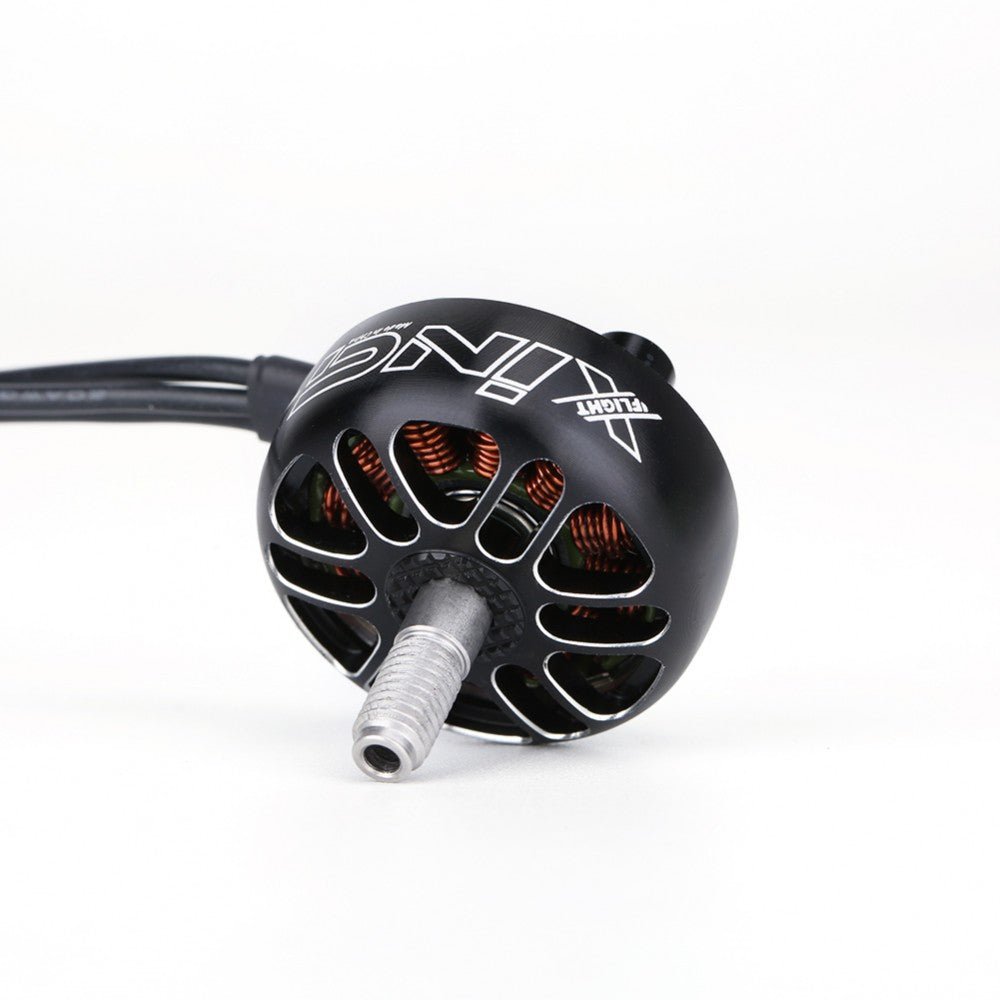

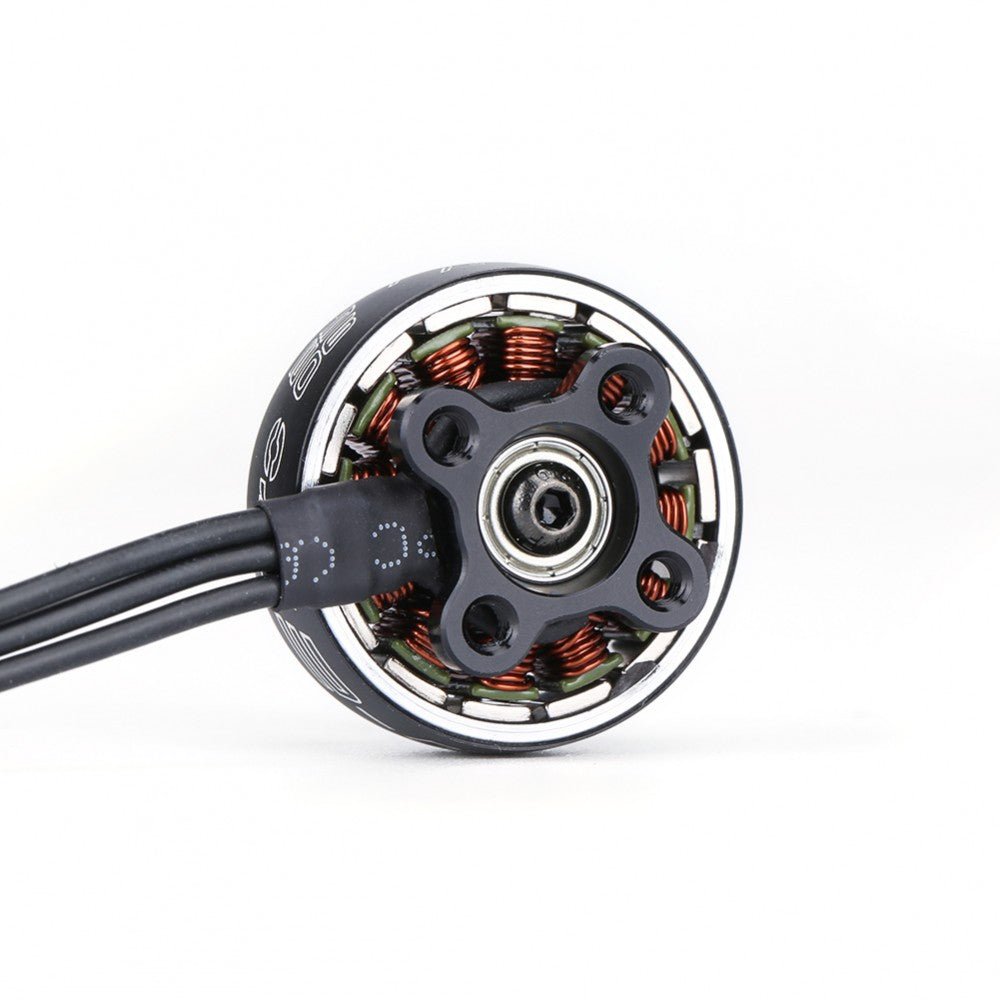

iFlight XING-E Pro 2306 Unibell FPV Motor – 2450KV

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.

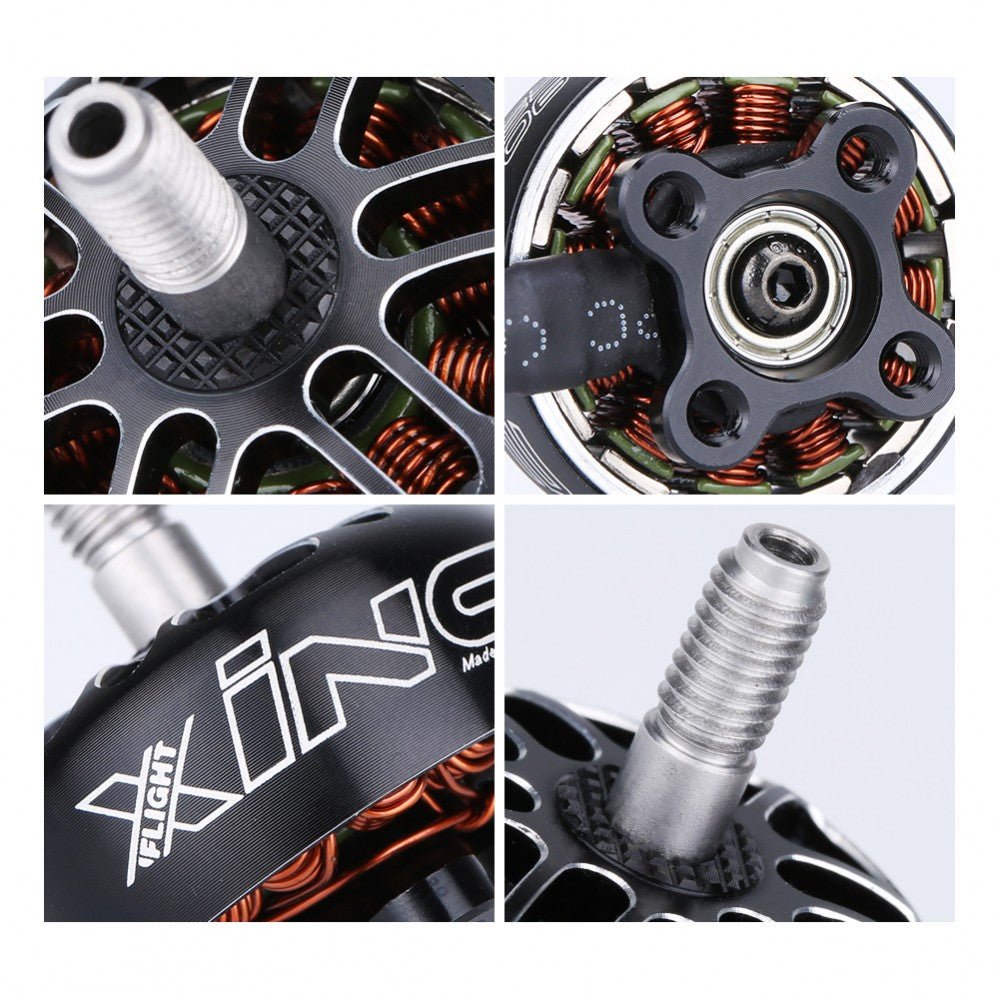

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Check out all our 23XX Motors and the rest of our iFlight Products!

Features:

• High-strength 4mm Steel shaft
• N52SH High-temperature magnets, NSK bearings
• 16x16mm hole pattern
• Single strand copper winding
• 6061 CNC machined aluminum top and base parts
• Hex bolt shaft set screw

Specifications:

• Configuration: 12N14P
• Stator Diameter: 24mm
• Magnets: N52SH Curved
• Bearing Size: 9x4x4
• Shaft Diameter: 4mm / Steel
• Base Mounting Pattern: 16x16mm M3 Thread
• Motor Dimension:29.5×18.7mm
• Weight:33.1g (150mm wires)
• Idle Current @12.6v (Io):2.1A
• Cells (LiPo): 2-6S
• Max Burst Current <10s:55.22A
• Max Power (W) 60s:885.4W
• Internal Resistance (Rm): 40.6mΩ
• Motor Wire Length: 150mm / 20AWG

Package Includes:

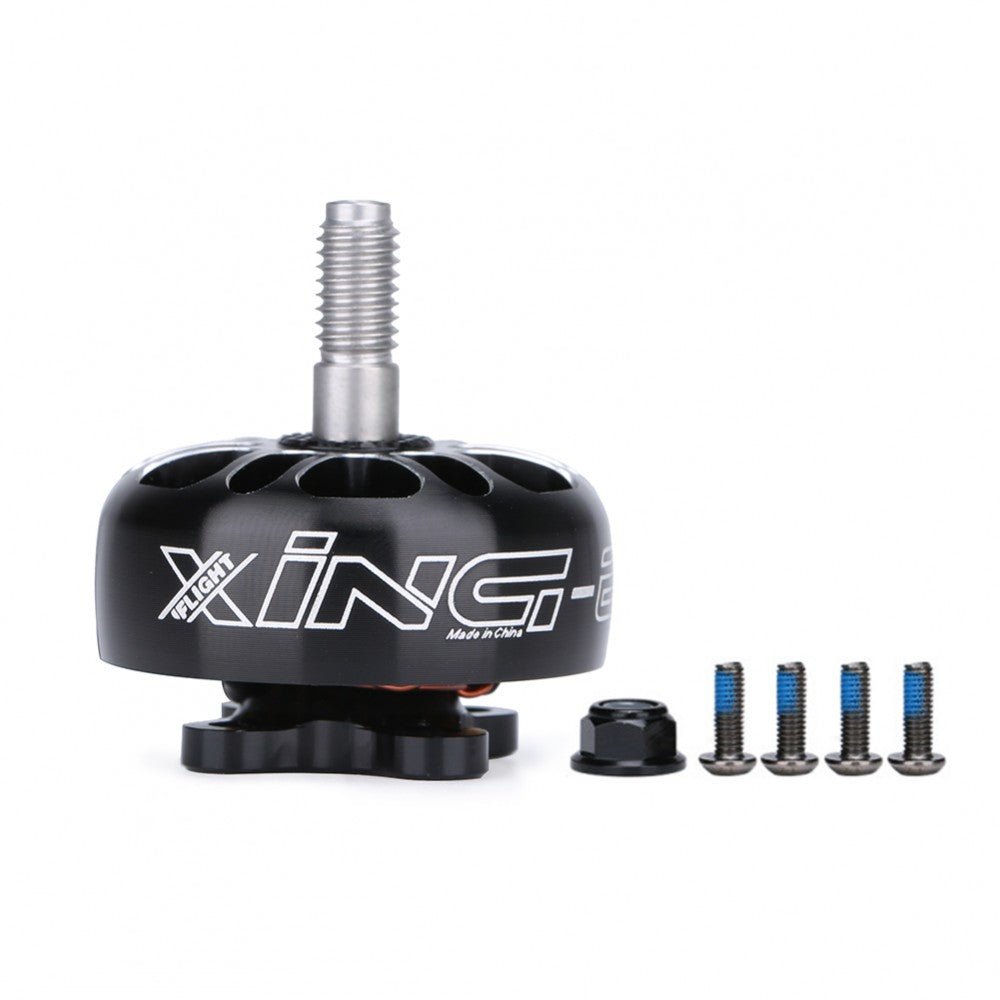

• 1 x iFlight XING-E Pro 2306 FPV Motor – 2450KV
