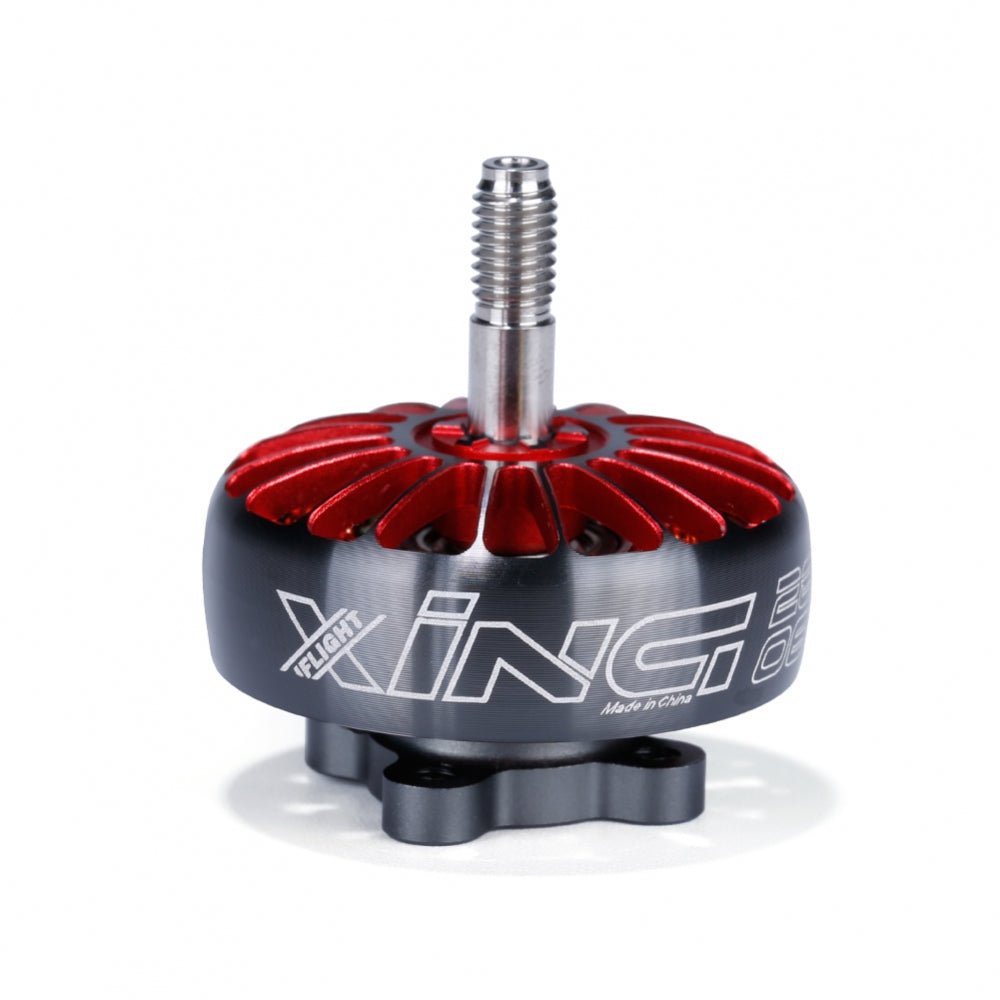

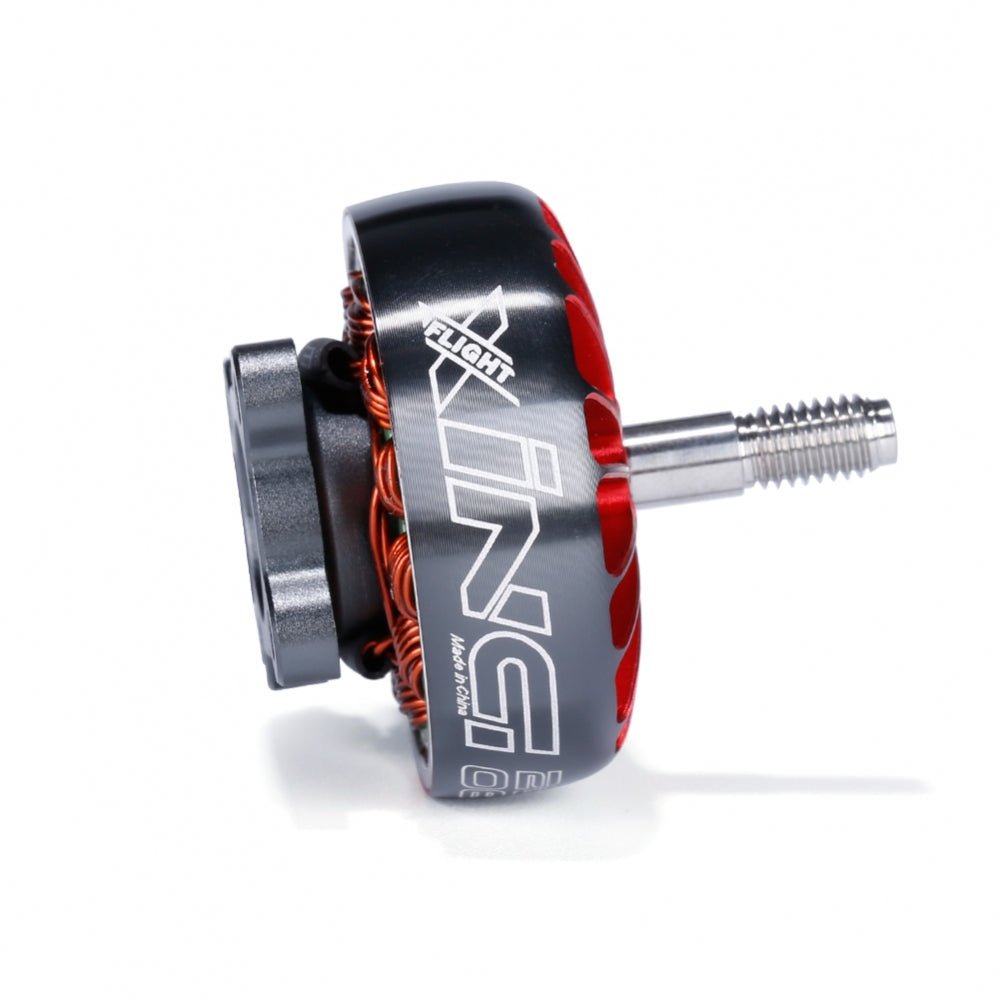

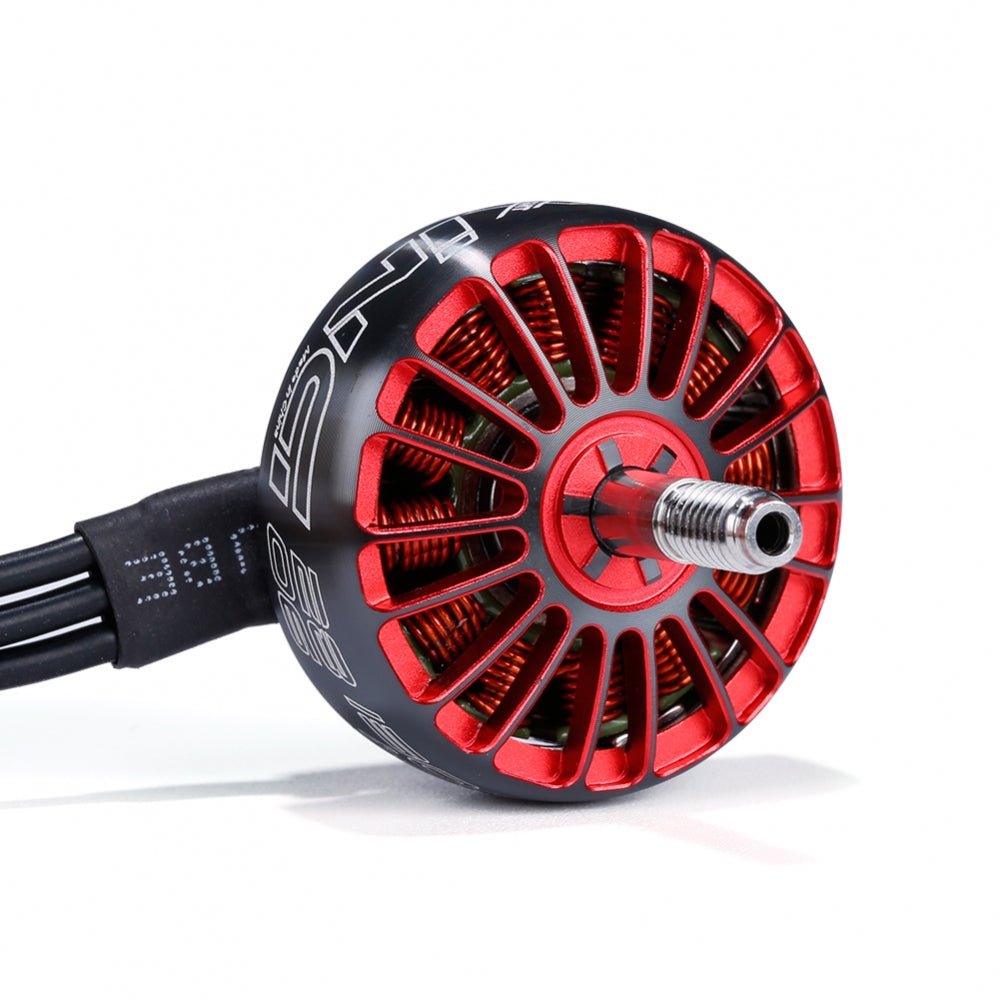

iFlight XING X2806.5 FPV NextGen Motor 1300KV

The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It’s a great motor if you’re building bigger drones like 7 inch or 8 inch.

Checkout all our iFlight XING motors and other 2806.5 motors we carry
We also carry the 1800KV Variant of this motor.

Features

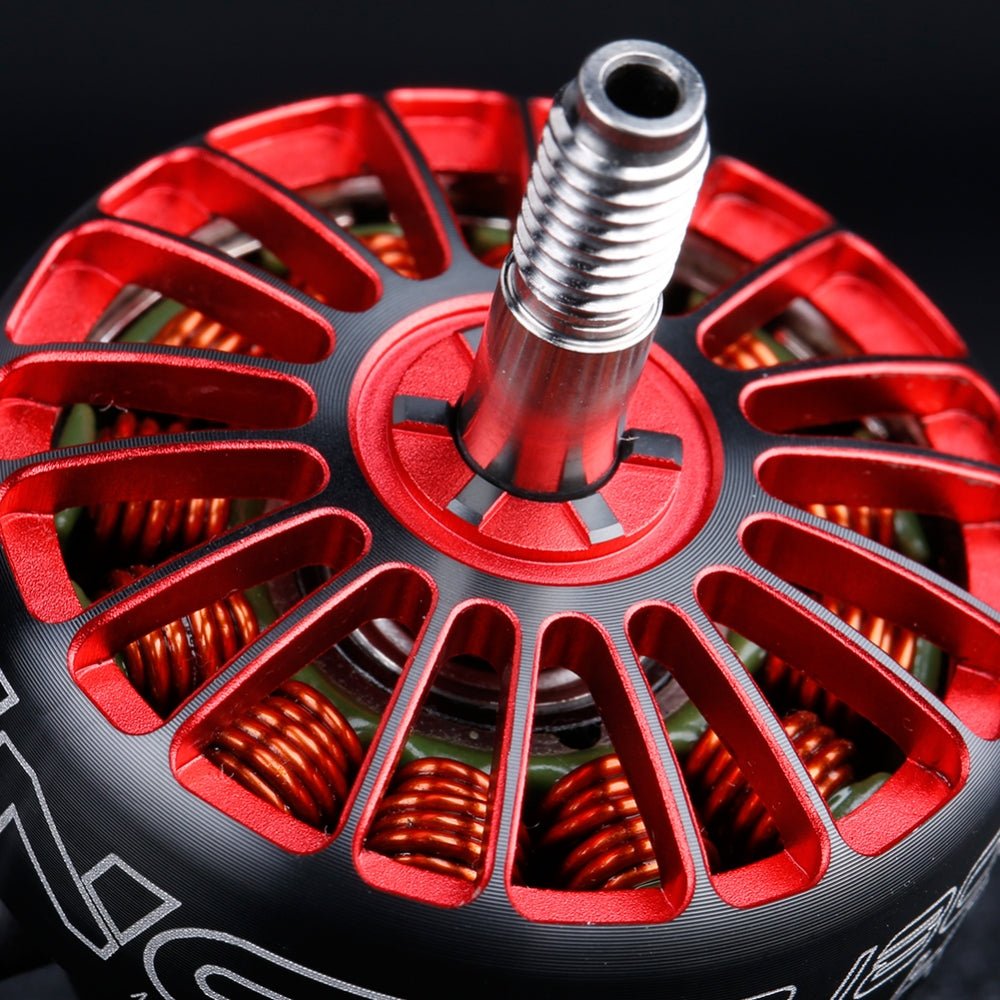

• High-strength 4mm Titanium alloy shaft

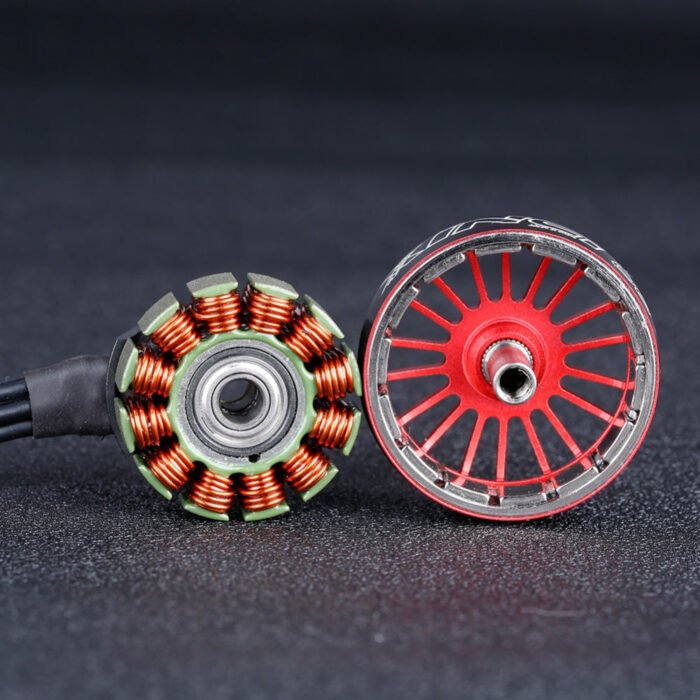

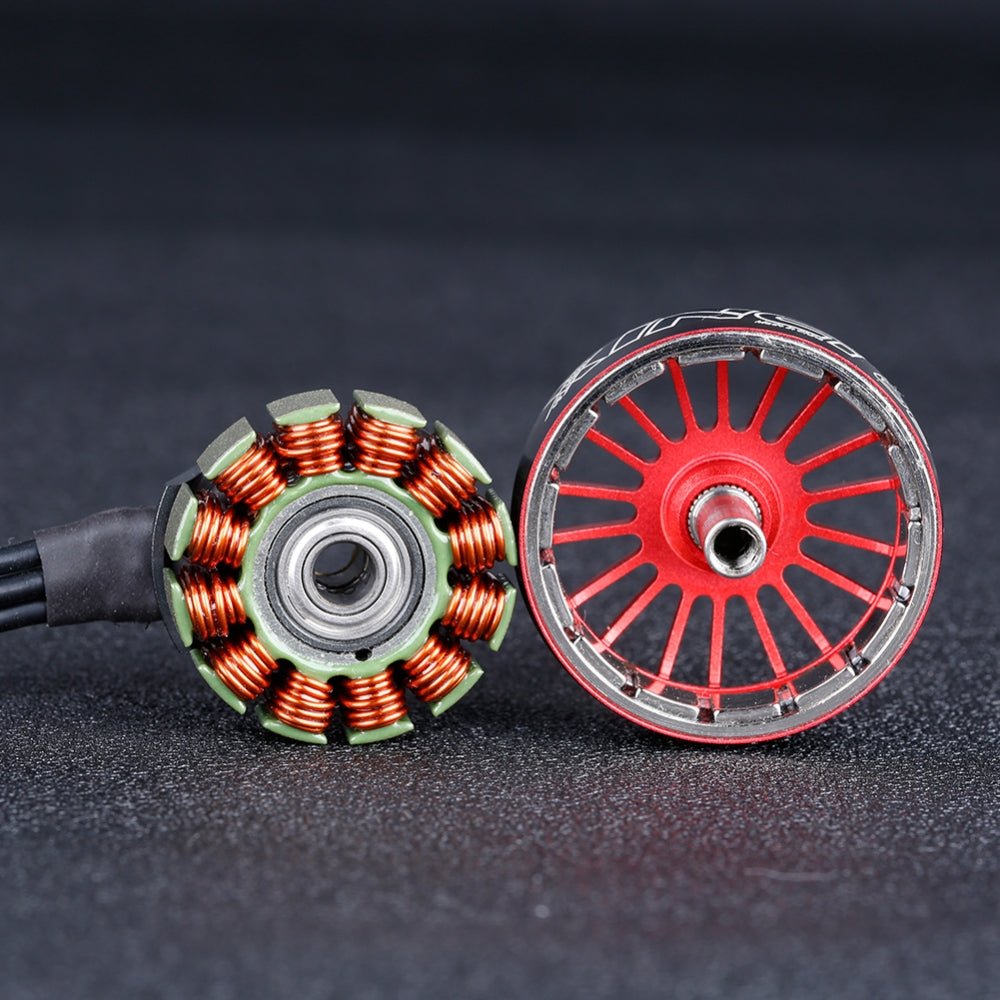

• Unibell design
• 7075 aluminum Bell and Base

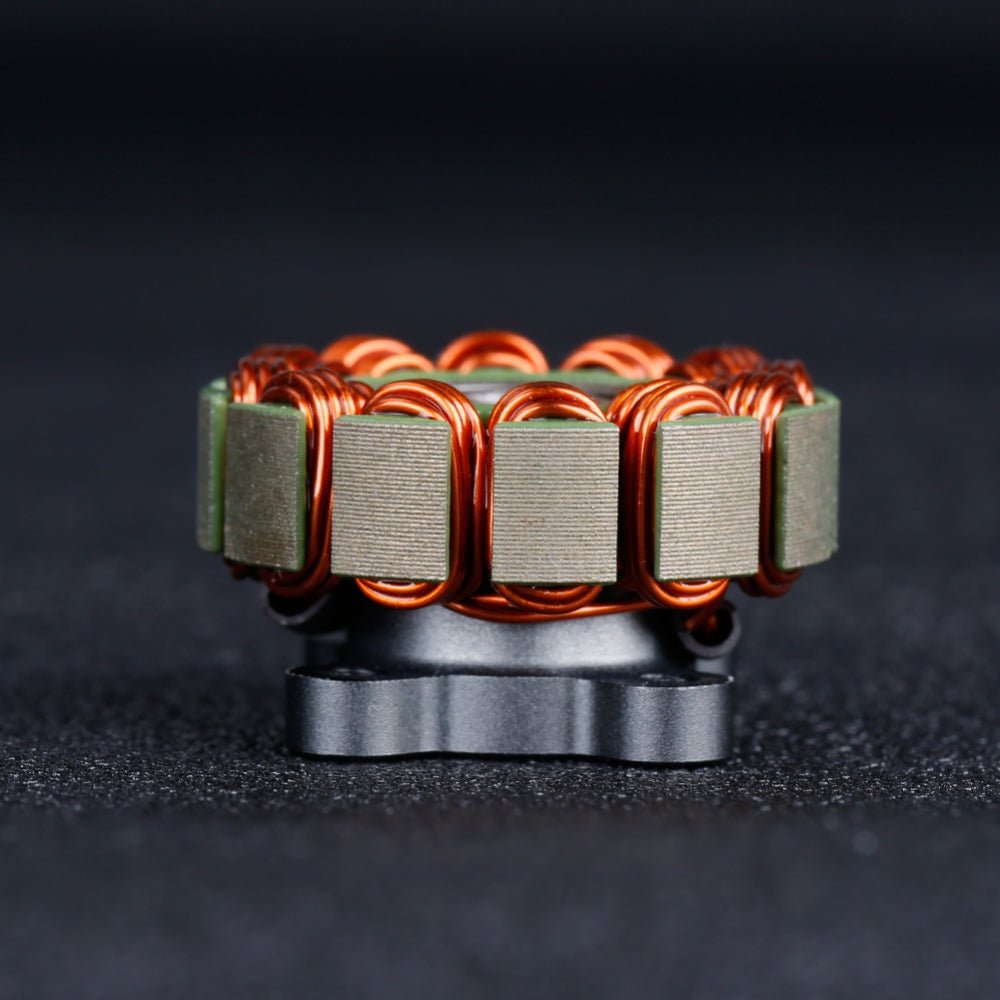

• Electromagnetically matched magnets and stator

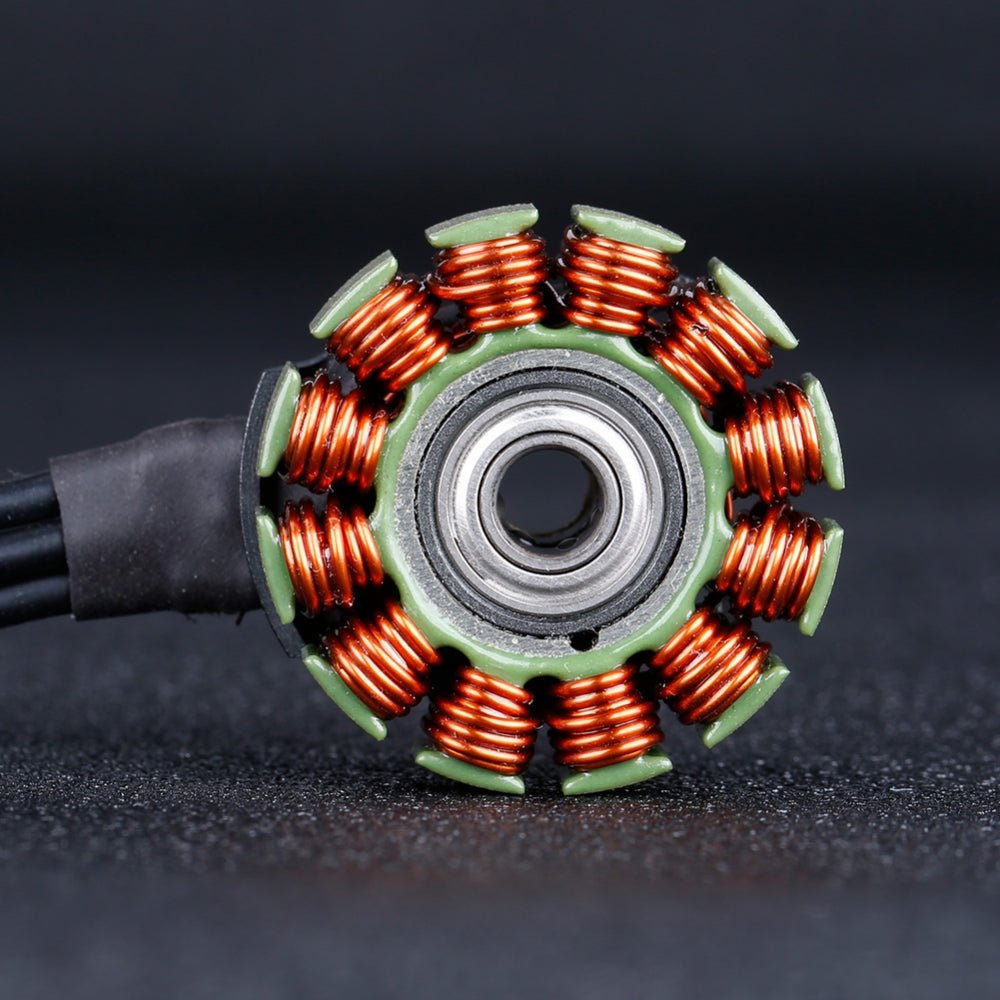

• Japanese NSK 11*5*5 bearings
• N52H Arc curve  magnets
• Motor wires protected
• Hex bolt shaft set screw
• Dynamically balanced

Specifications

• Voltage: 2-6S
• KV Option: 1800
• Configuration: 12N14P
• Bearing: NSK 11x5x5mm
• Stator Diameter: 28mm
• Stator Length: 6.5mm
• Shaft Diameter: M5
• No.of Cells(Lipo): 2-6S
• Motor mount hole: 19x19mm, M3

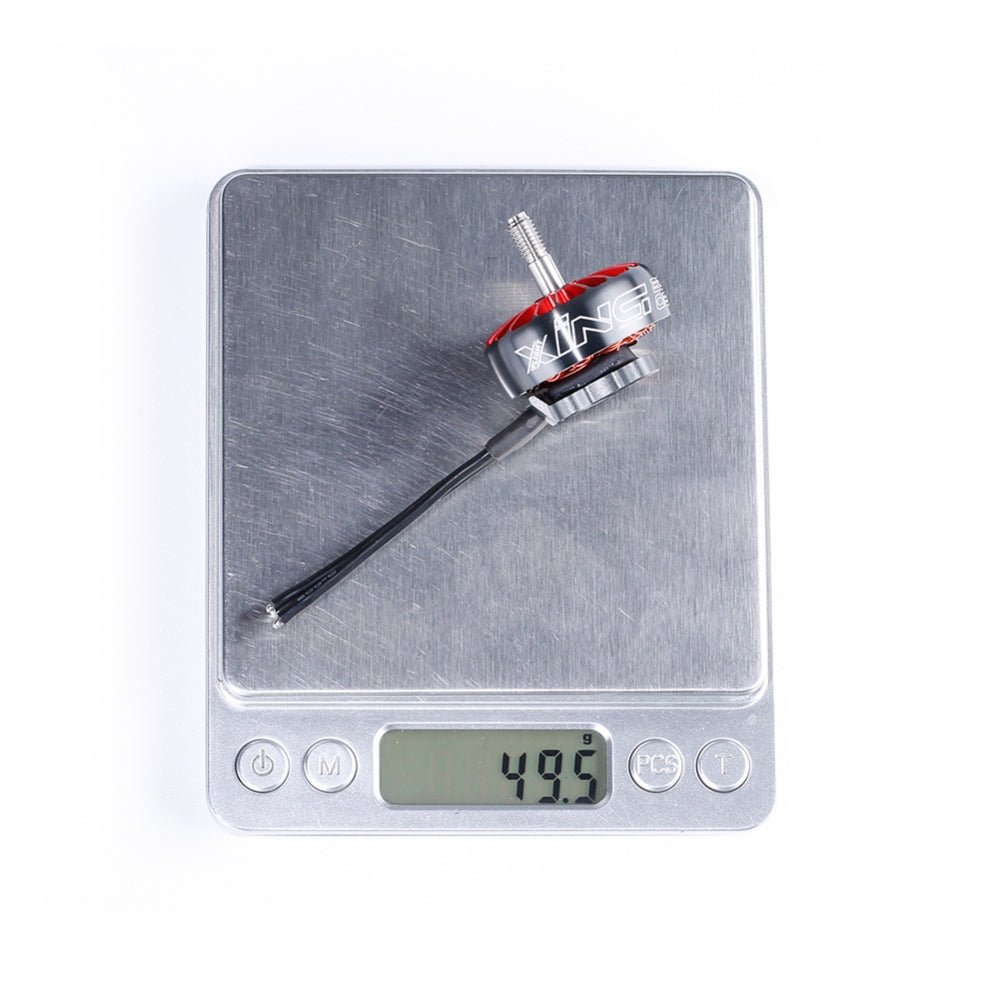

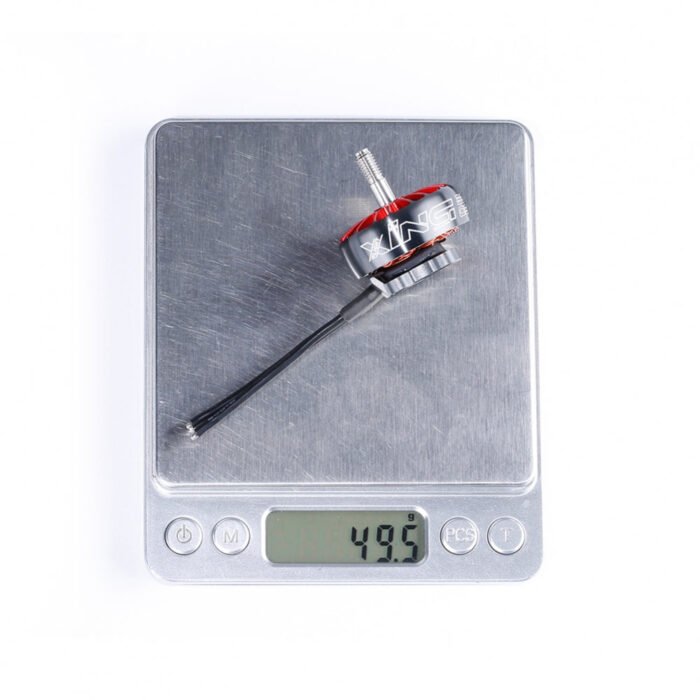

• Weight: 49.5g(with a short cable)

Includes

• 1x X 2806.5 Motor
• 1x M5 Nut
• 4x M3x8 Screw
