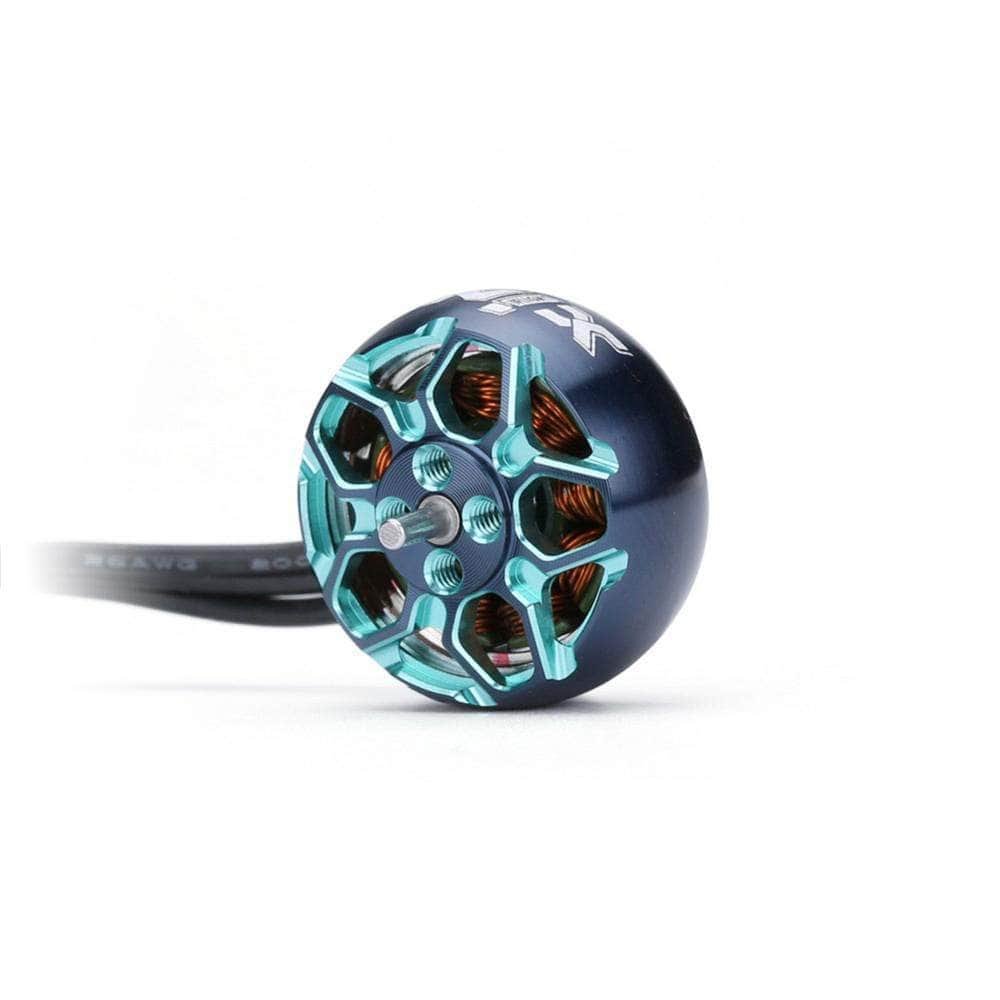

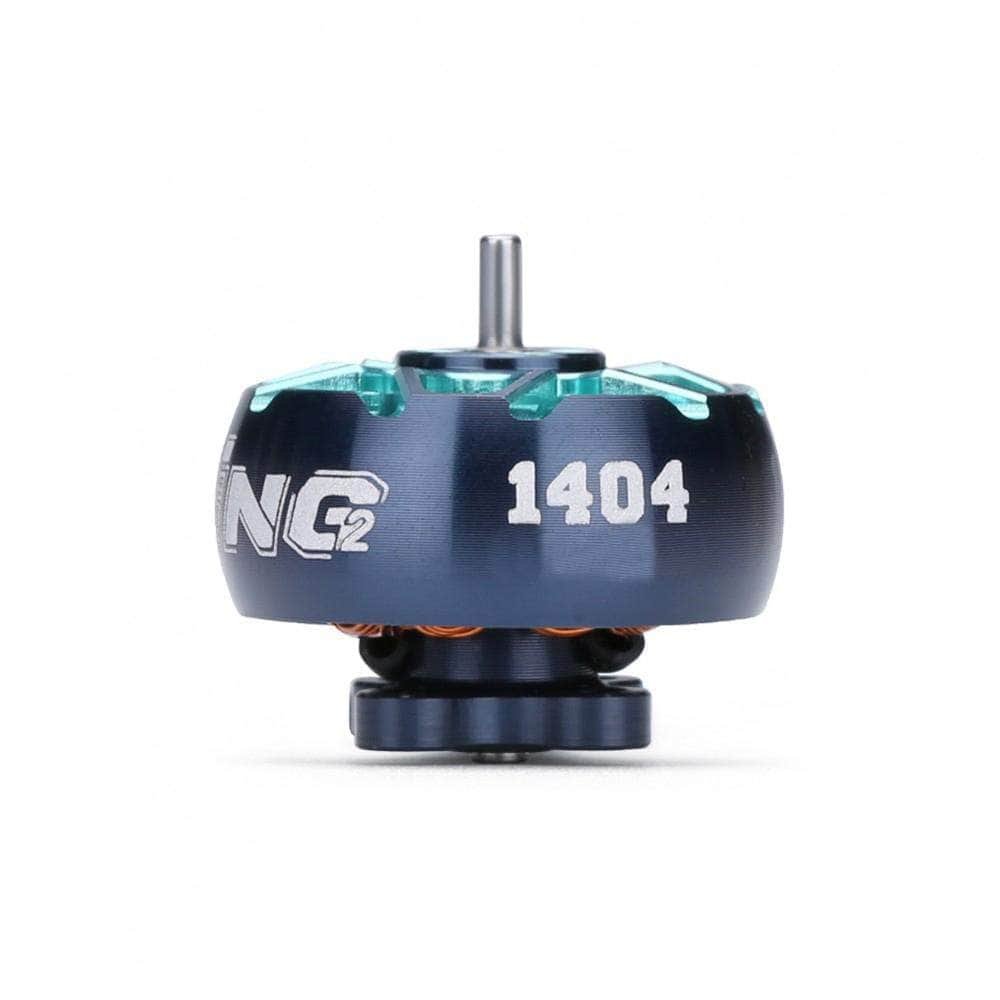

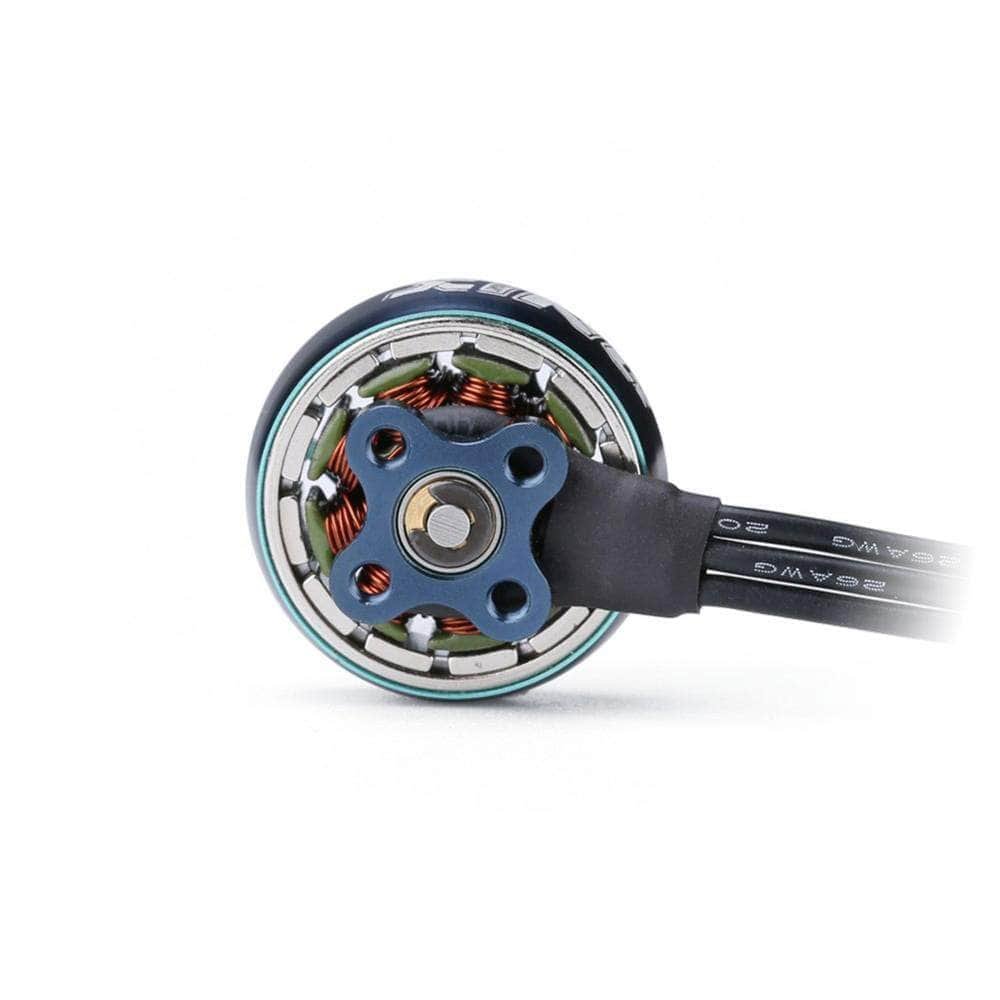

iFlight Xing2 1404 3800KV Motor

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. iFlight’s ready to announce our predecessor the XING2! The high manufacturing standards and premium performance offered by the Xing line have been improved upon, with New center slotted N52H curved arc magnets, O-ring bearing protection, adjusted tolerances to reduce the magnet air gap and stator lamination,  causing better efficiency and higher power!

Check out all our Motors and the rest of our iFlight Products!

Features:

• 5mm titanium alloy shaft, our strongest prop shaft ever!
• Crash resistant 7075 aluminum bell
• Smooth and long-lasting NSK 9x9x4 bearings
• Center slotted N52H curved arc magnets
• XING O-ring bearing gap protection
• Motor wires protector
• Dynamically balanced

Specifications:

• Voltage: 2S-4S
• KV Option: 3800Kv
• Configuration: 9N12P
• Stator Diameter: 14mm
• Stator Length: 4mm
• Shaft Diameter: 1.5mm
• No.of Cells(Lipo): 2-4S
• Mounting pattern: 9*9-φ2mm
• Bearing: 5*2*2.5mm
• Wire: 120mm/26AWG
• Weight: 8.5g (without cable)

Package Includes:

• 1 x iFlight Xing2 1404 3800KV Motor
